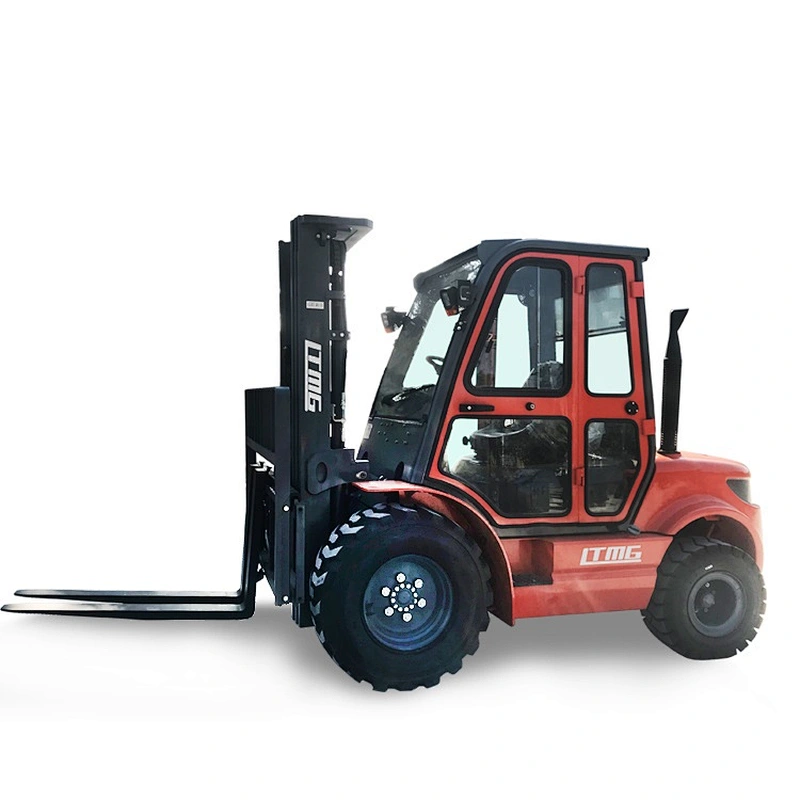

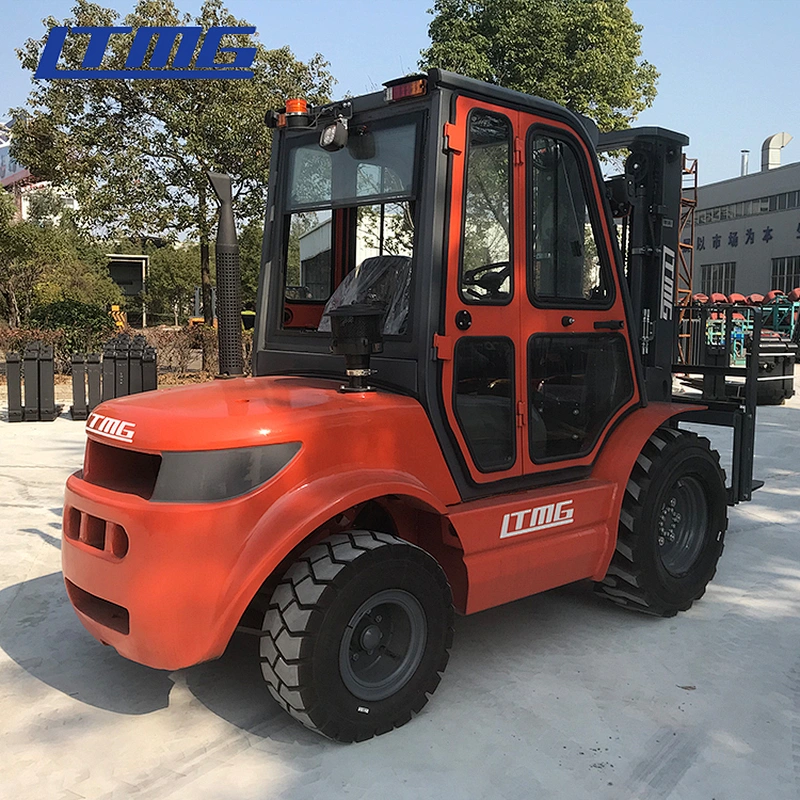

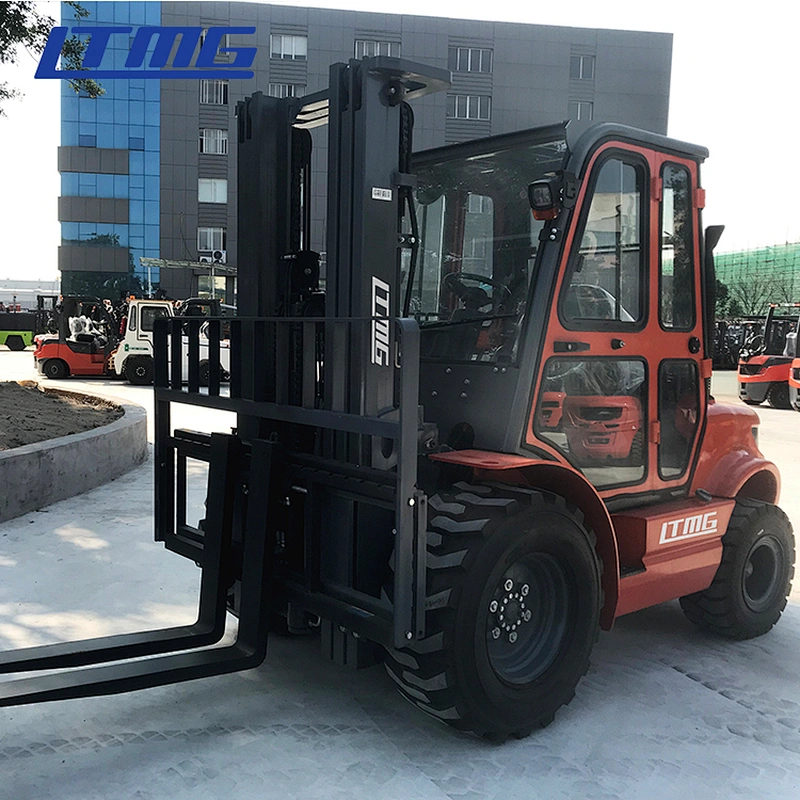

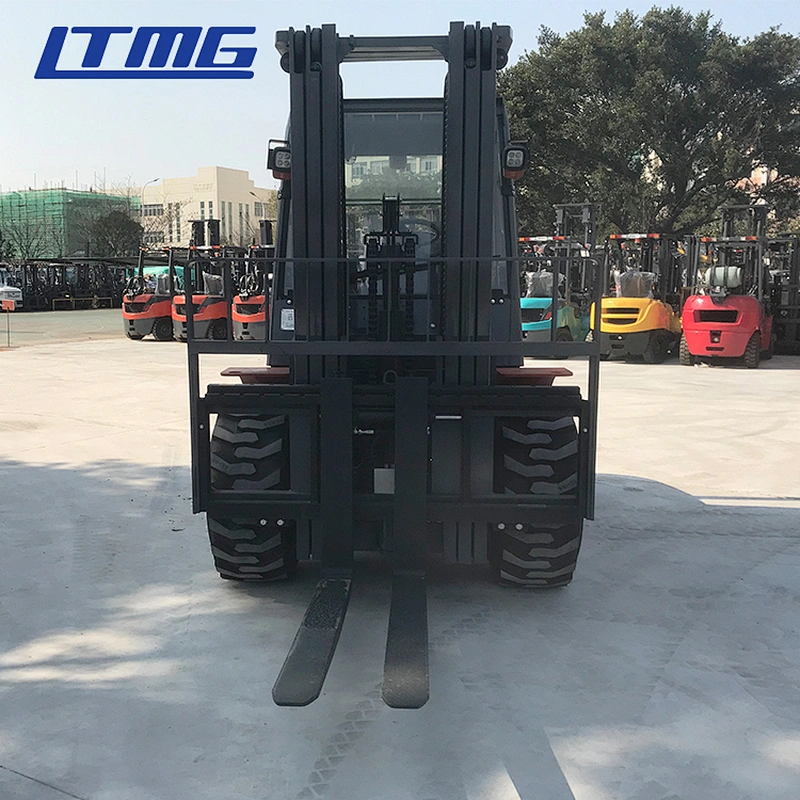

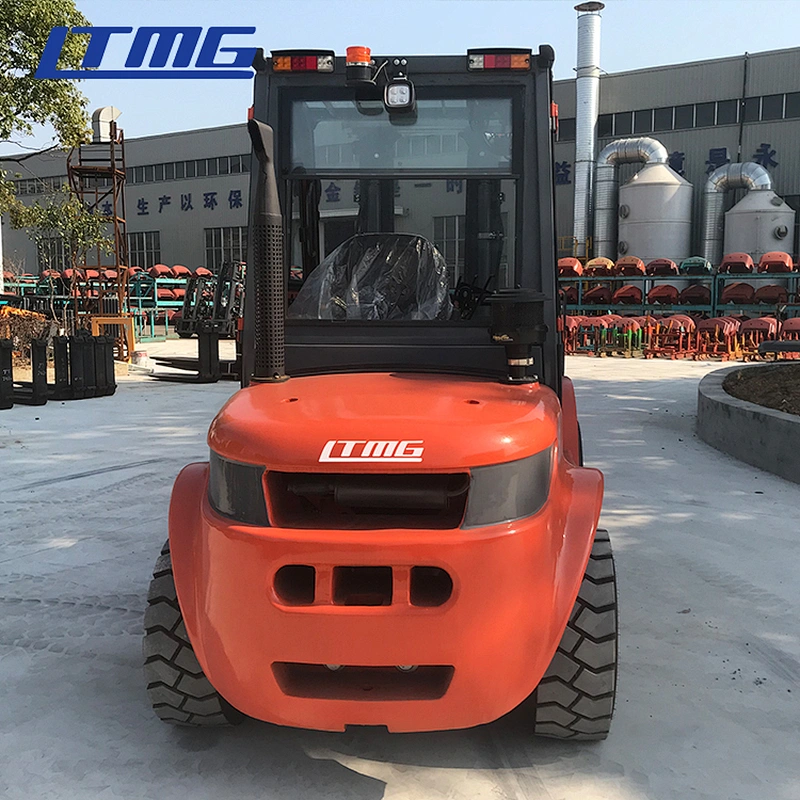

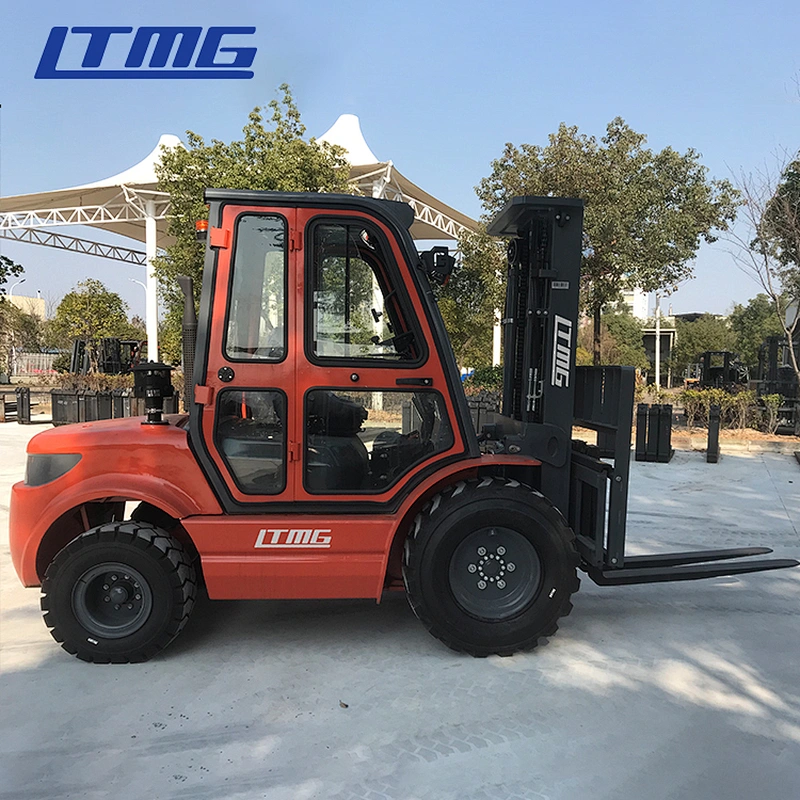

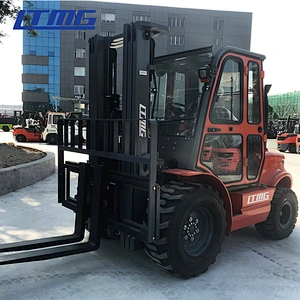

2 ton - 3.5ton rough terrain forklift - 2 wheel drive

2 ton - 3.5ton rough terrain forklift - 2 wheel drive

Model NO.: FDR20 - 35 H -2wd
Price:: USD 11965.00-12149.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 500 unit / Year
Country of Origin: Ningbo Port, China

Quantity:

Product Description

Applicable Industries:Building Material Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
Local Service Location:Turkey
Local Service Location:United States
Local Service Location:Brazil
Local Service Location:Indonesia
Local Service Location:Thailand
Local Service Location:Australia
Local Service Location:South Africa
Local Service Location:Ukraine
Showroom Location:Brazil
Showroom Location:Thailand
Showroom Location:Australia
Condition:New
Place of Origin:CN;ZHE
Power Souce:Diesel Engine
Warranty:1 year
After-sales Service Provided:Video technical support
Brand Name:LTMG
Max. Lifting Height:3000mm
Min. Lifting Height:0mm
Fork Length:1070mm
Fork Width:122mm
Overall Dimensions:3060x1604x2115mm
Certification:CE/ISO9001:2008
Applicable Industries:warehouse logistics

Machine application

Product Description

This rough terrain forklift main used for all kinds of working,as lifting and transporting machineries, this model forklift trucks are widely used for loading, unloading and transporting the packaged goods in the factories, warehouses, stations, wharves, ports and so on.

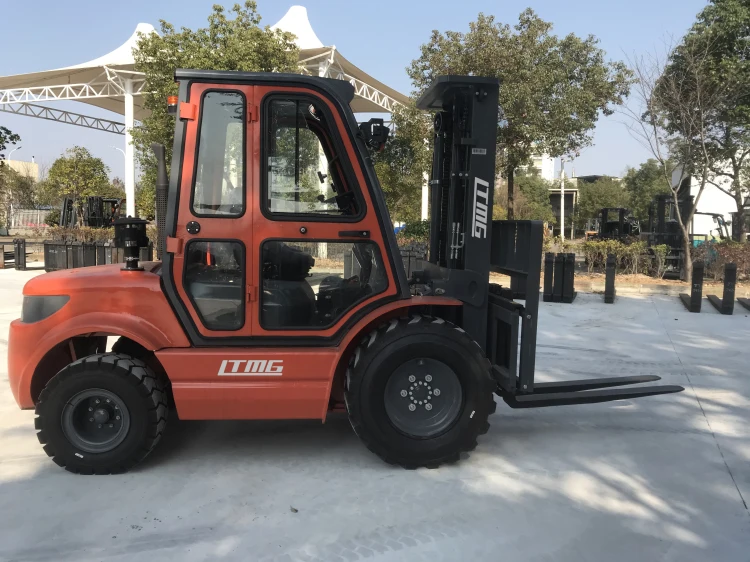

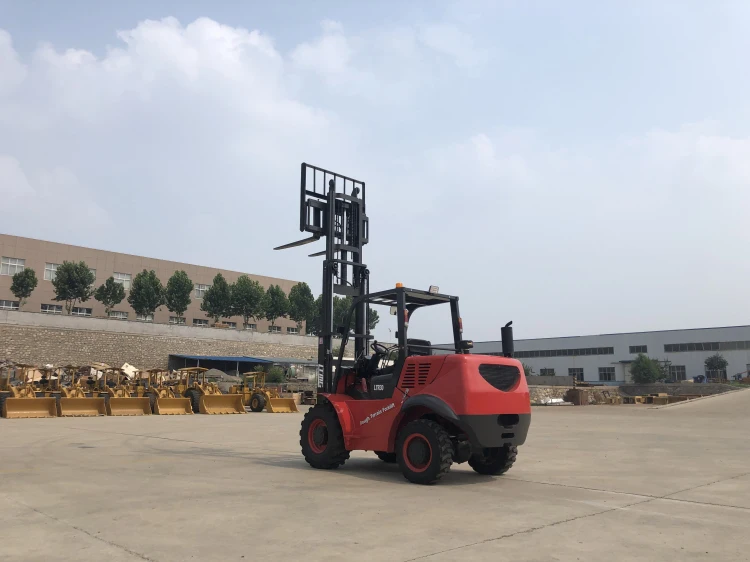

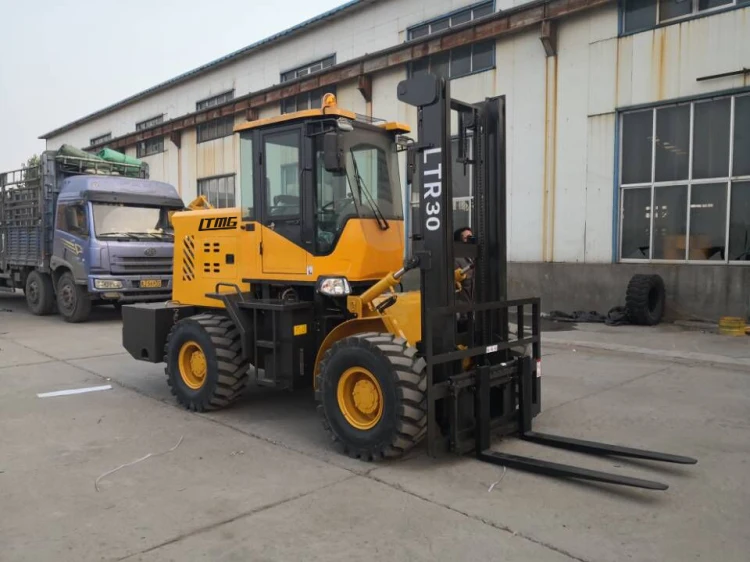

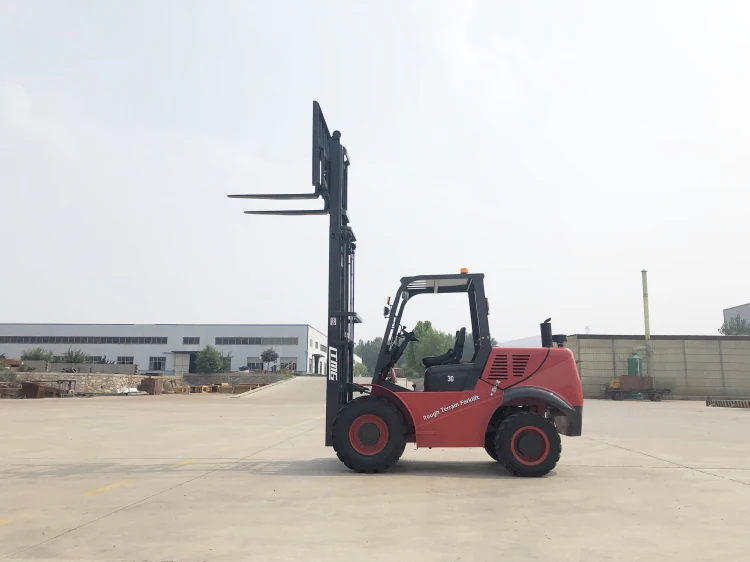

H-series rough terrain forklift-2WD

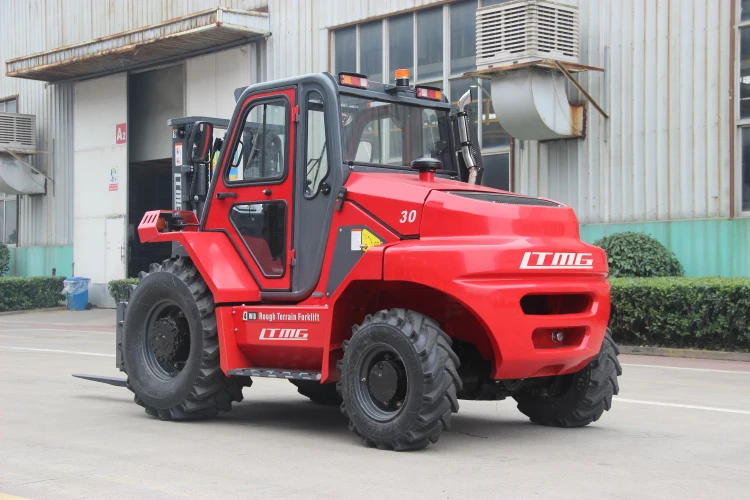

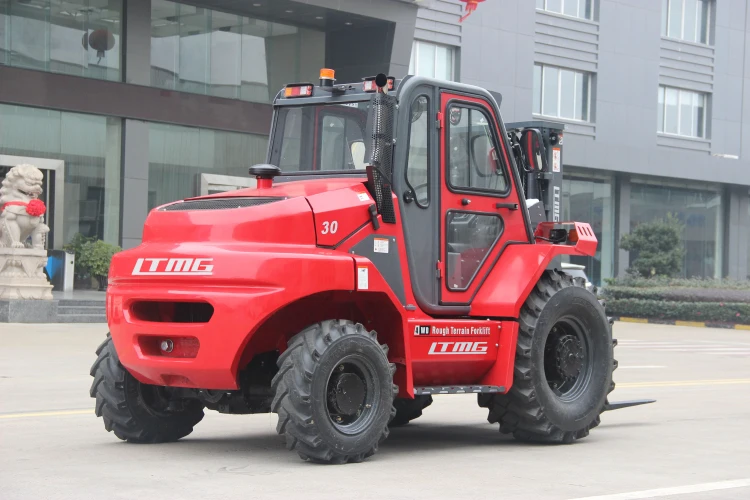

H-series rough terrain forklift-4WD

A-series rough terrain forklift

D-series rough terrain forklift

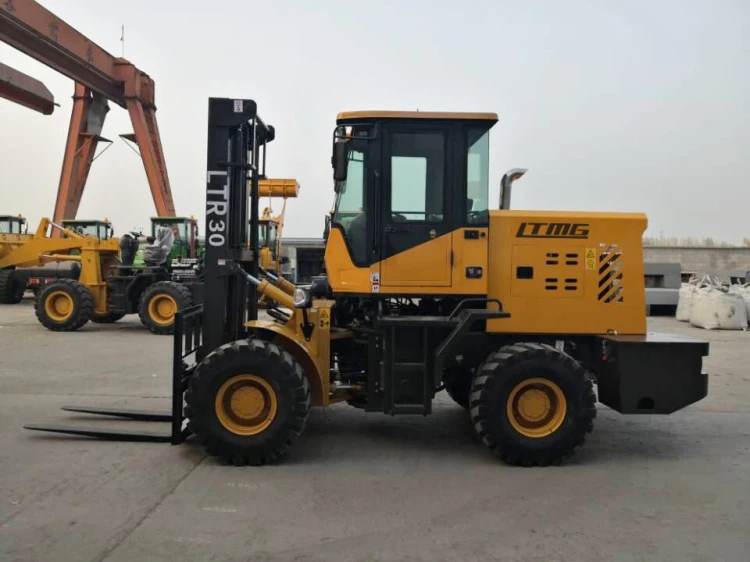

The Specification of 3ton diesel rough terrain forklift
Model		FDR30
Power Type		Diesel
Rated Capacity	kg	3000
Load Centre	mm	500
Lift Height	mm	3000
Fork Size(L×W×T )	mm	1220×125×45
Mast Tilt Angle(F/R)	Deg	10°/12°
Front Overhang (Wheel center to fork face)	mm	684
Ground Clearance（Bottom of mast）	mm	270
Length to face of fork(Without fork)	mm	3252
Overall Width	mm	1835
Mast Lowered Height	mm	2230
Mast Extended Height(With backrest)	mm	4280
Overhead Guard Height	mm	2250
Turning Radius (outside)	mm	4380
Min. insecting aisle	mm	3040
Travel Speed(Full load)	km/h	25
Lifting Speed(Full load)	mm/s	480
Max.Gradeability (No load/Full load)	%	30
Front Tire	mm	405/70-20-14PR
Rear Tire	mm	10.0/75-15.3-12PR
Wheelbase	mm	1990
Service weight	kg	5700
Battery(Voltage/Capacity)	V/Ah	12/120
Engine Model		4H50TIC
Manufacture		HATZ
Rated output/r.p.m.	kw	54.9/2600
Rated torque/r.p.m.	N·m	240/1600-1900
No.of Cylinder		4
Bore×Stroke	mm	84×88
Displacement	cc	1952
Fuel Tank Capacity	L	80
Transmission Type		Hydraulic
Stage	FWD/RVS	3/2
Driving Type		2WD/4WD

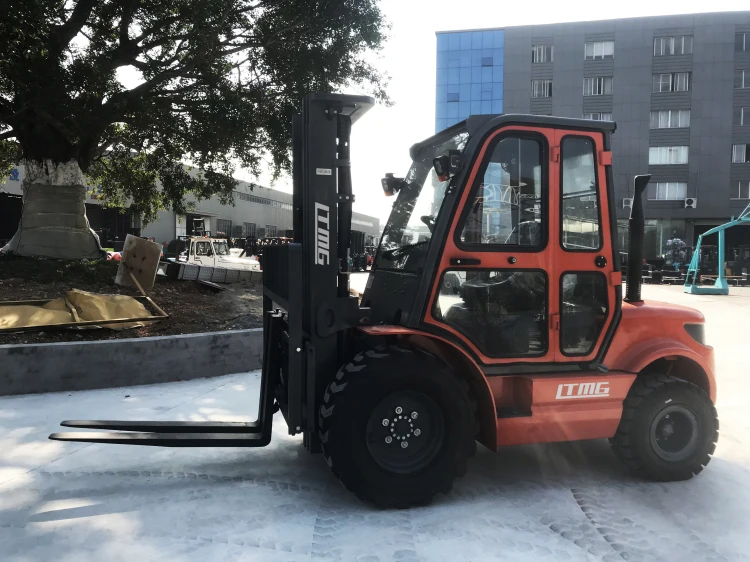

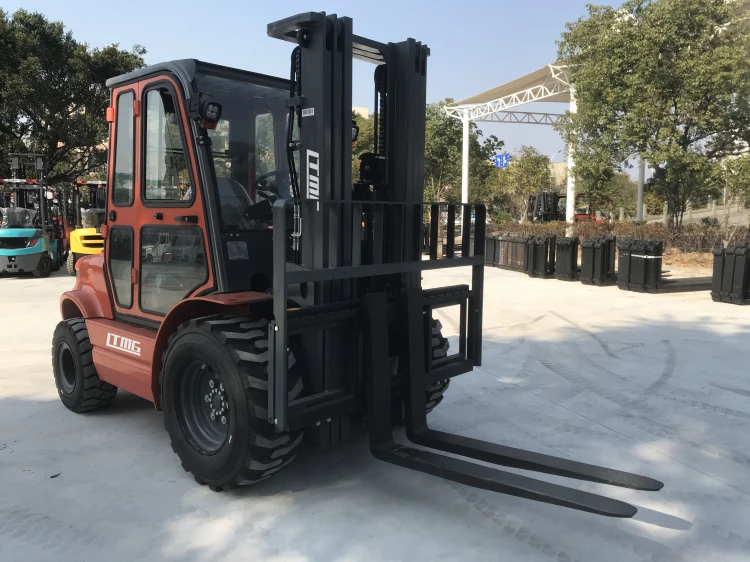

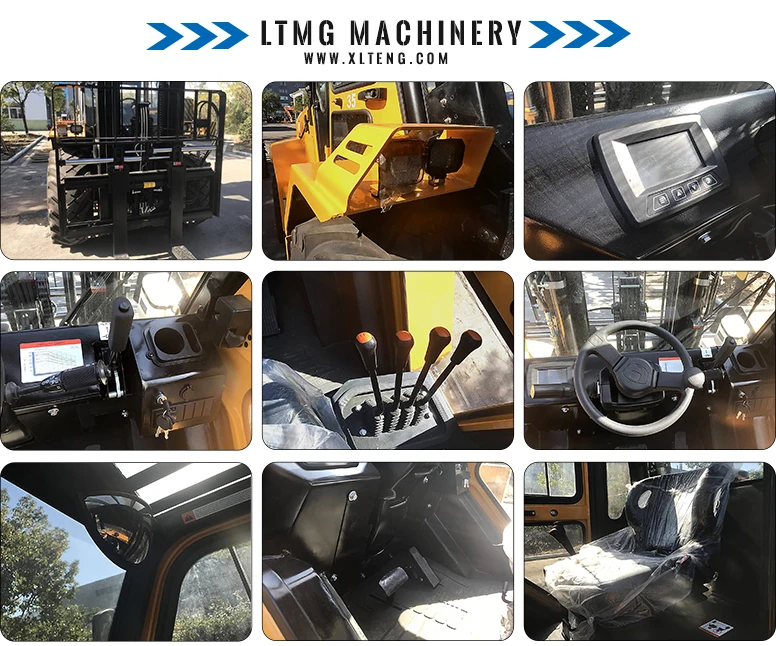

Details Images

1.High Efficient Transmission System:
A. Using switch to control between two and 4-wheel drive. Using 2-wheel mode driving on paved roads is more fuelefficient and
environmentally friendly. When driving on muddy roads, the 4-wheel drive mode help the vehicles pass smoothly and safely.
B. The forklift using 4-wheel driving system, both front and rear drive axles have adaptive limited-slip differentials.
C. Excellent off-road performance, any one wheel slip will not affect the driving.

2. High Position Intake and Exhaust System:
A. Vertical exhaust with good drainage performance, provide all weather operations.
B. Vertical exhaust effectively prevent ground dust and rain from entering the inlet.

3.Reliable Lifting System:
Wide view mast prepare driver perfect view,compare with normal mast ifs 10% wider, which provide more efficient and safety

4.Super High Ground Clearance:
A. Front and rear wheels use deep-pattern widening off-road vacuum tires, with strong off-road capability, excellent vehicle
stability and shock absorption.
B. Steering axle swings up to 7°, good maintaining grip on rugged mountain or muddy terrain.
C. 350mm ground clearance, strong pass ability.

5.Excellent Lighting System:
A. The full machine equipped with LED lights, low energy consumption, long service life and etc.
B. Additional front and rear LED lights for options.

6.High Strength Overhead Guard:
A. Standard overhead guard and full cabin for options,cabin can equip with heater and air-conditioner.
B. Top cover ceiling adopts high-strength steel plate stamping.

After-sale Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
