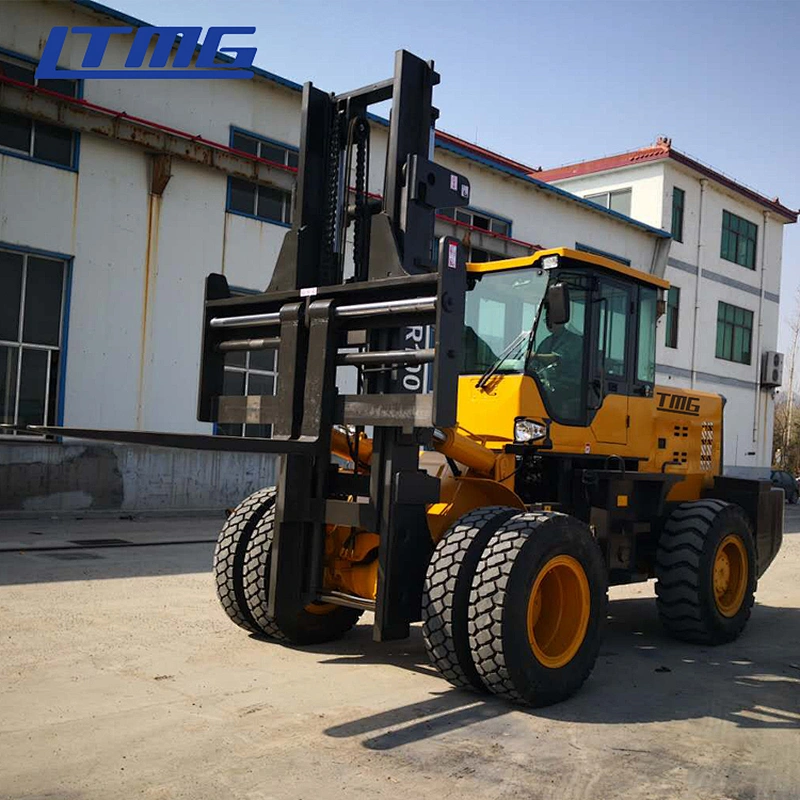

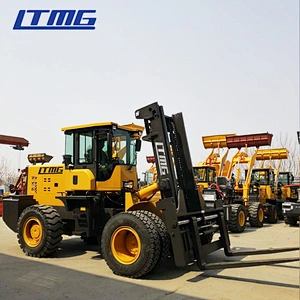

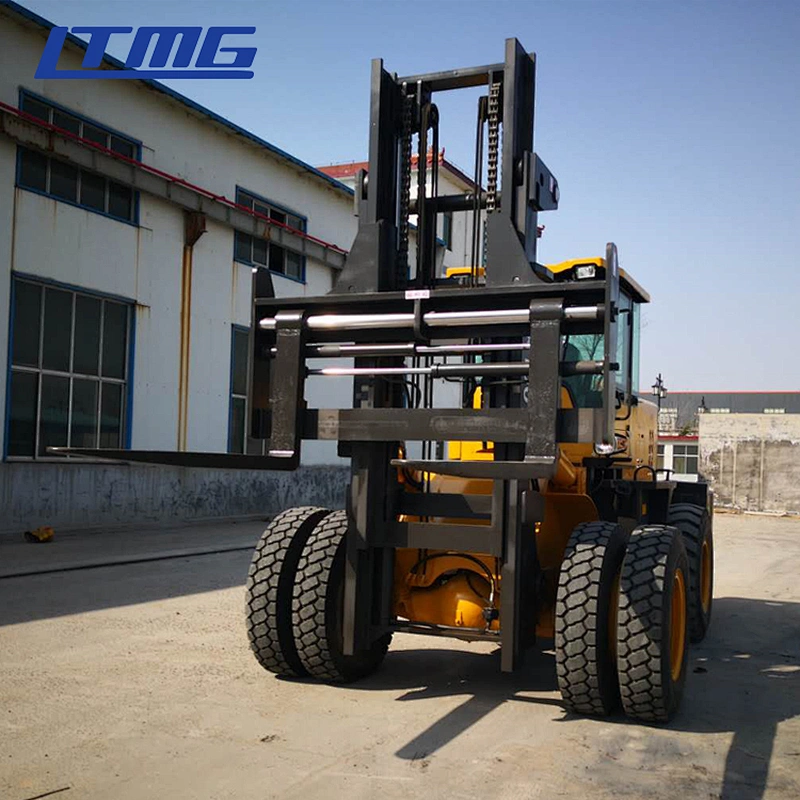

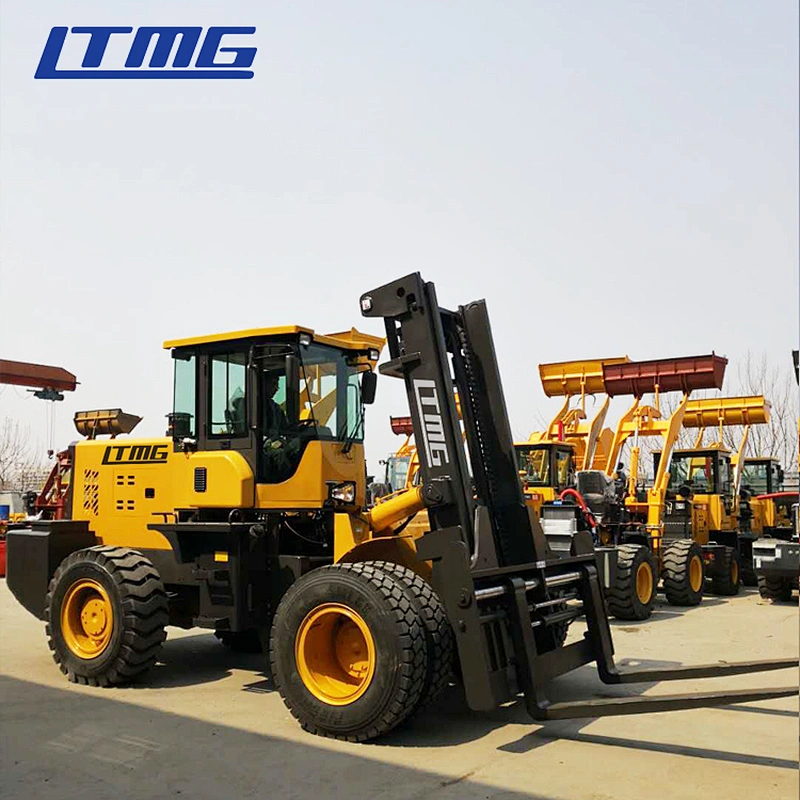

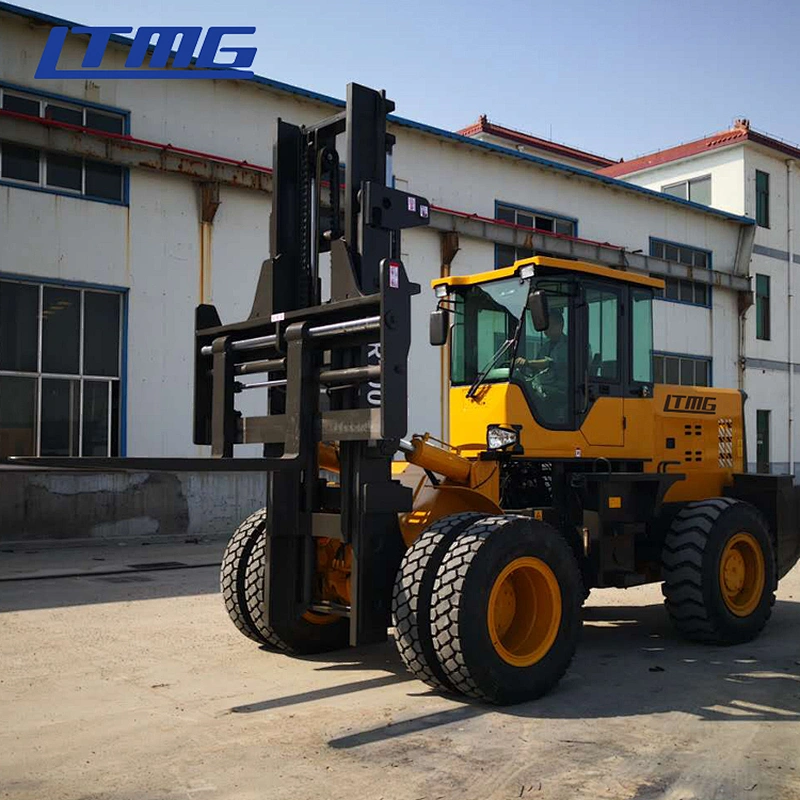

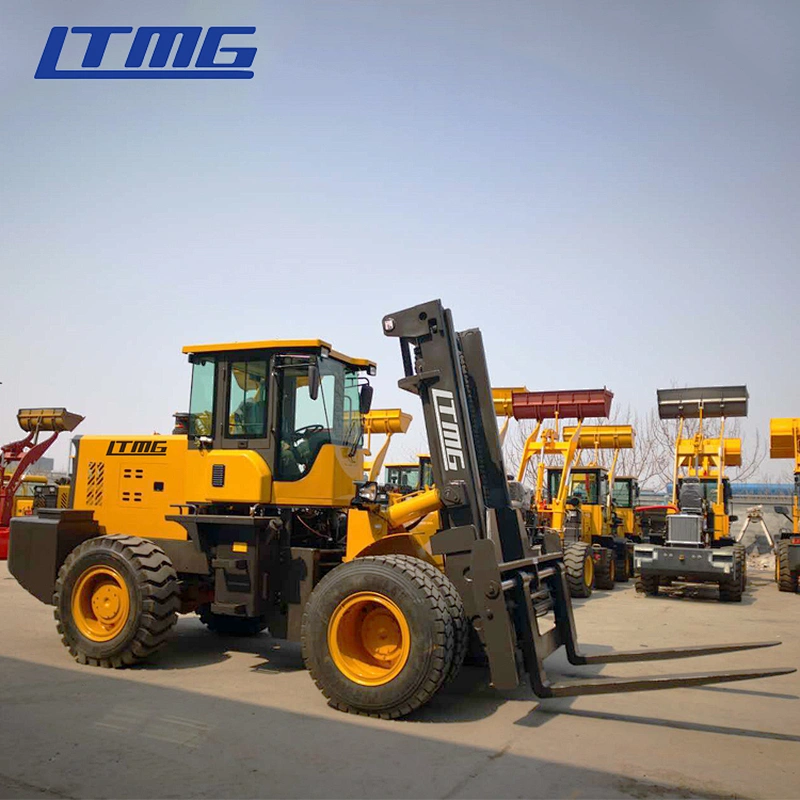

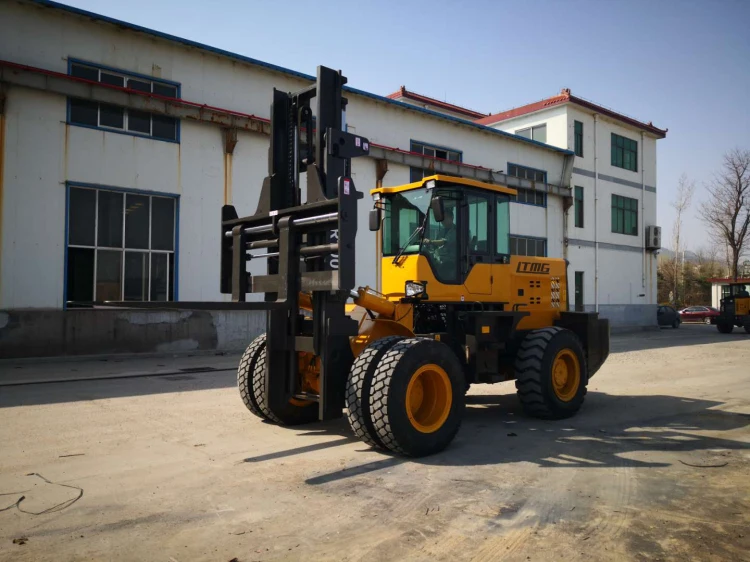

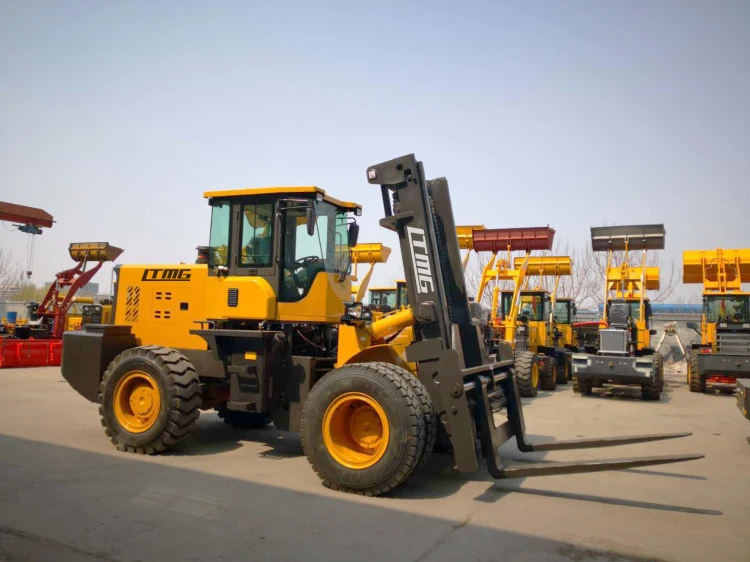

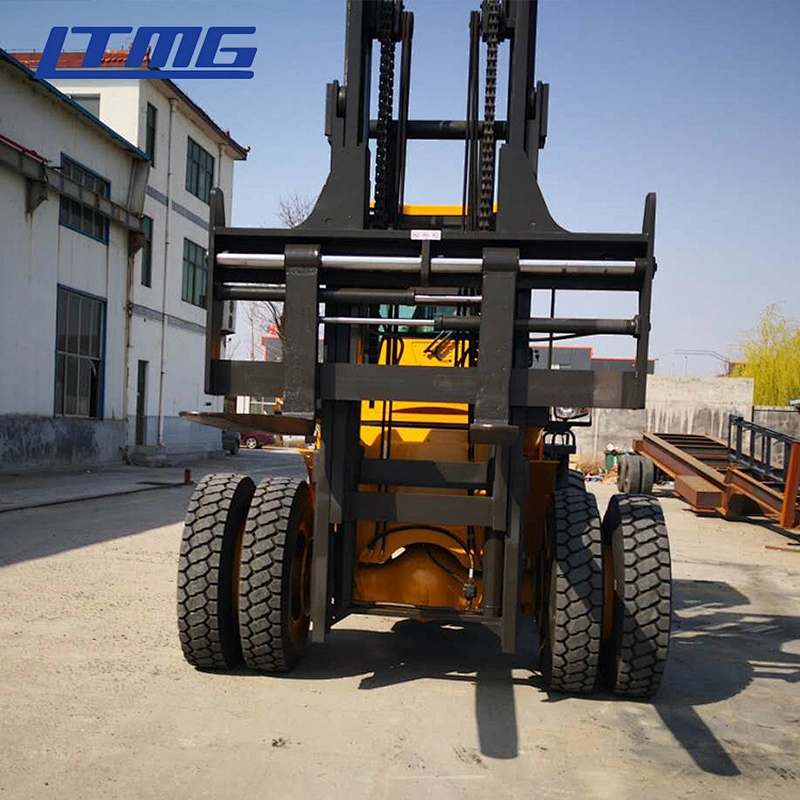

10 ton articulated rough terrain forklift

10 ton articulated rough terrain forklift

Model NO.: LTR100
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 100 unit / Month
Country of Origin: Qingdao Port, China

Quantity:

Product Description

After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Local Service Location:United States
Local Service Location:France
Local Service Location:Argentina
Local Service Location:Chile
Showroom Location:None
Condition:New
Power Souce:Diesel Engine
Warranty:1 year
After-sales Service Provided:Free spare parts
Max. Lifting Height:3m-5m
Brand Name:LTMG
Place of Origin:CN
Overall Dimensions:5800*2300*2900mm
Fork Width:180mm
Fork Length:1600mm
Certification:CE/ISO9001
Min. Lifting Height:0

Our customer

LTMG machine is working at more than 100 countries.Can you find your country here?

Product Description

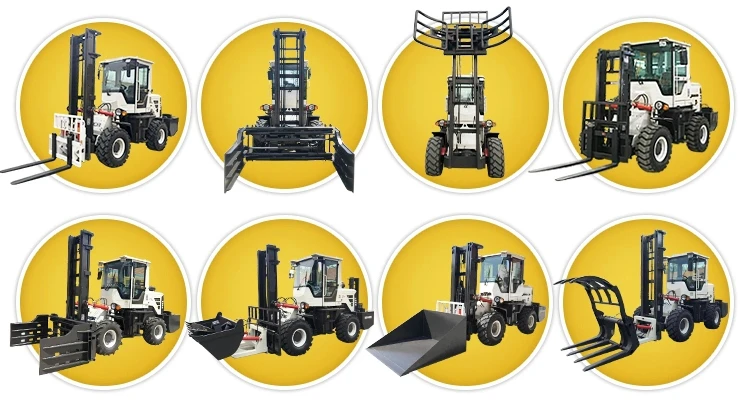

Customized attachment

Attachment production department, specializing in customizing all kinds of attachment for you.Just give us a photo and tell us the specification.

The specifications of 10 ton rough terrian forklift
Rated Power			10000kg
Rated center distance			500m
Running speed(no load)			21 Km/h
Lifting speed(full load)			490 Km/h
Max.grade ability			20%
Deadweight			8000kg
Tires	Front wheel	17.5-25
		Rear wheel	17.5-25
Tread	Front wheel	1800mm
		Rear wheel	1800mm
Wheelbase			2630 mm
Min.ground clearance			360 mm
Battery	Voltage	24V
Engine	Model	CA110/125G5
		Place of origin	Xichai
		Output power	92 Kw
		Rated torque	432 Nm
		Number of cylinders	6
		Cylinder size X trip	90 X 100 mm
		Displancement	2540 cc
		Fuel tank capacity	65L
Transmission	Gears(front and rear)	3/2
Work pressure			16 Mpa

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

Packing & Delivery

Our company

After sales service

LTMG always treat after-sale service as important as sale.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
