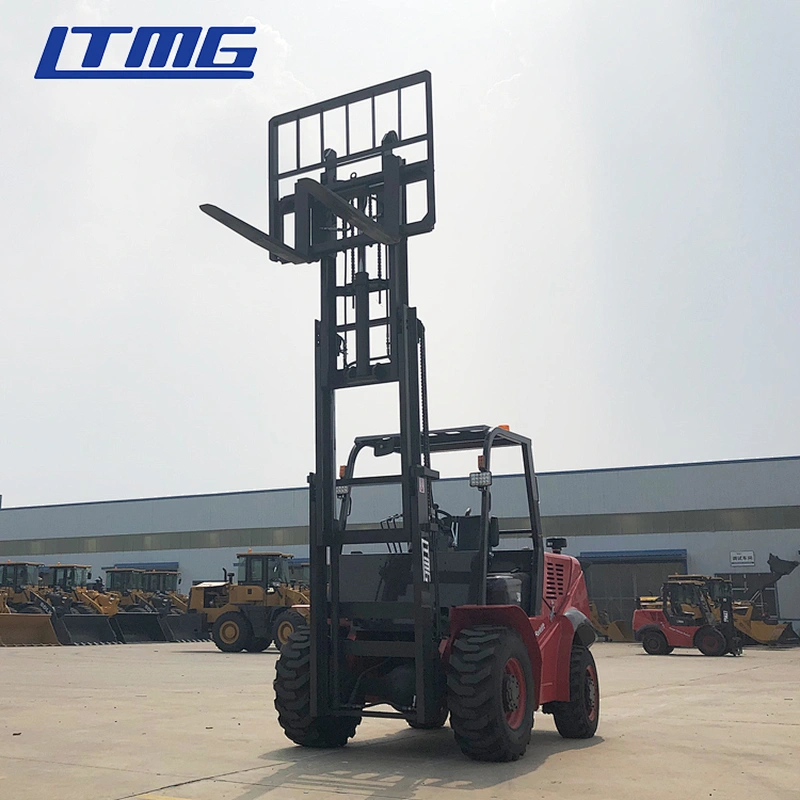

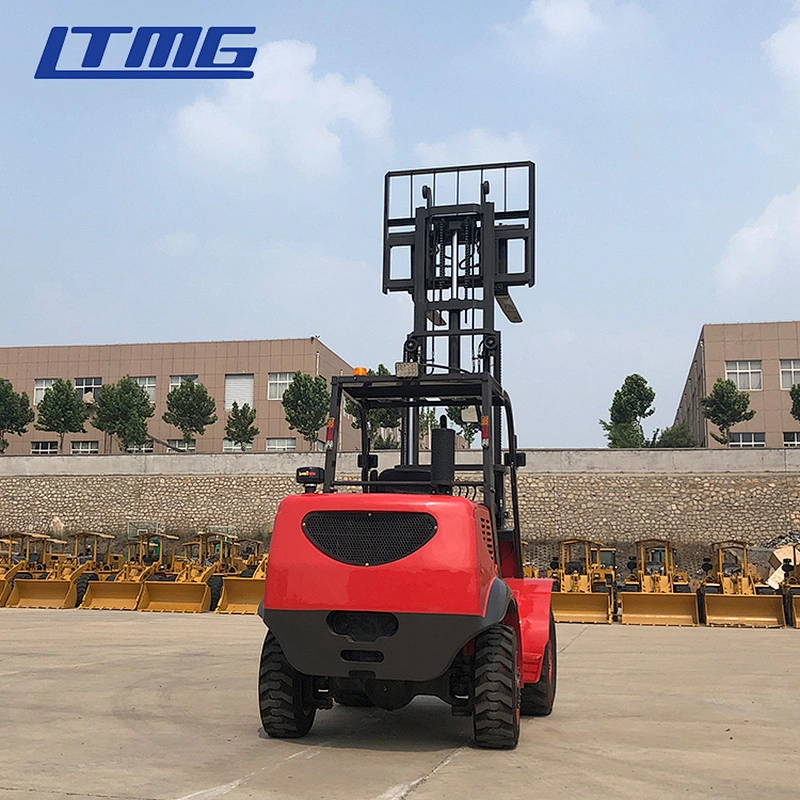

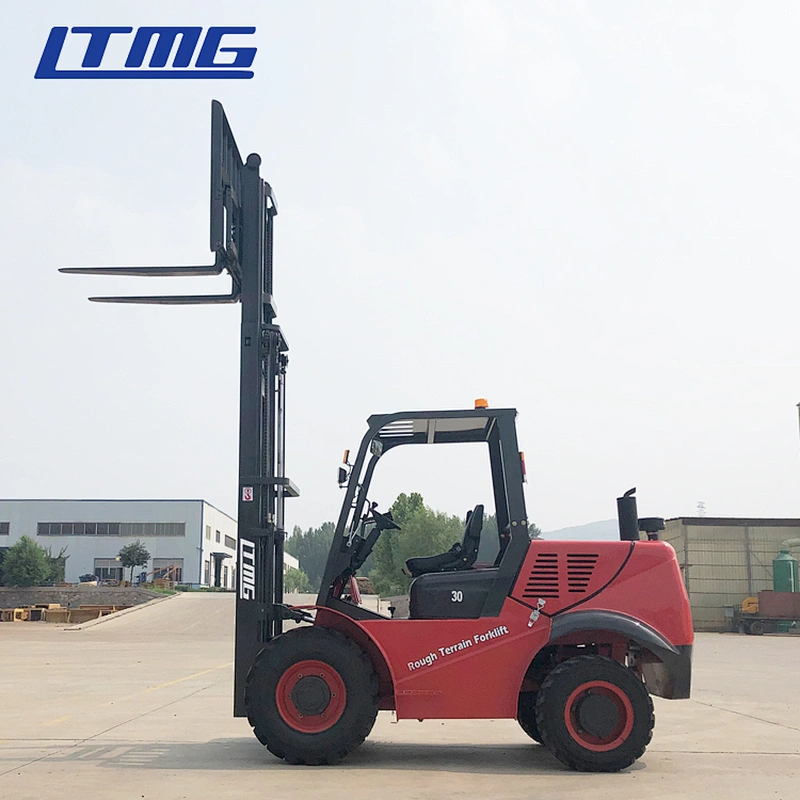

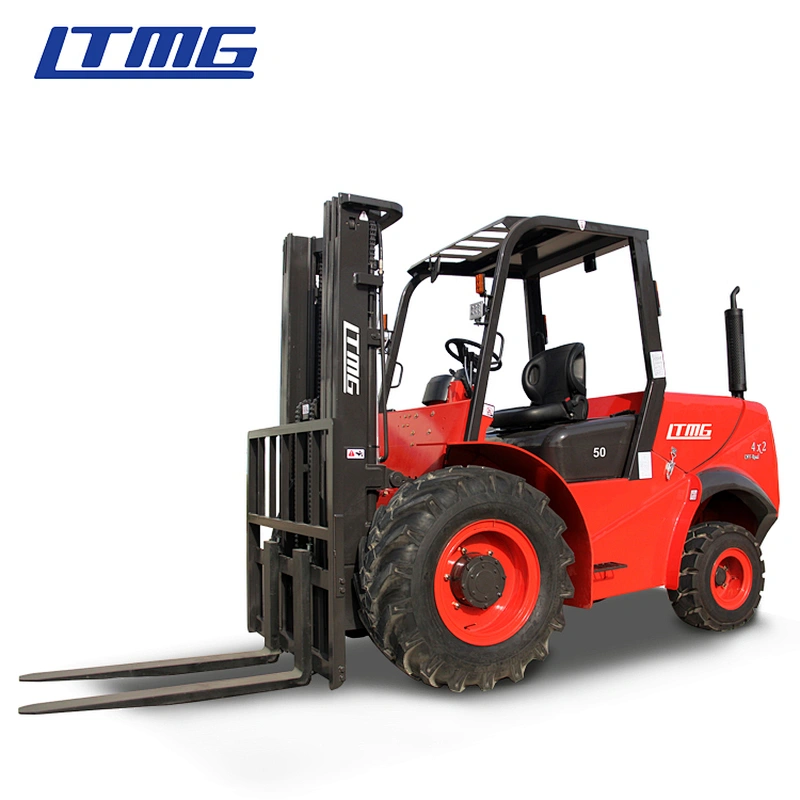

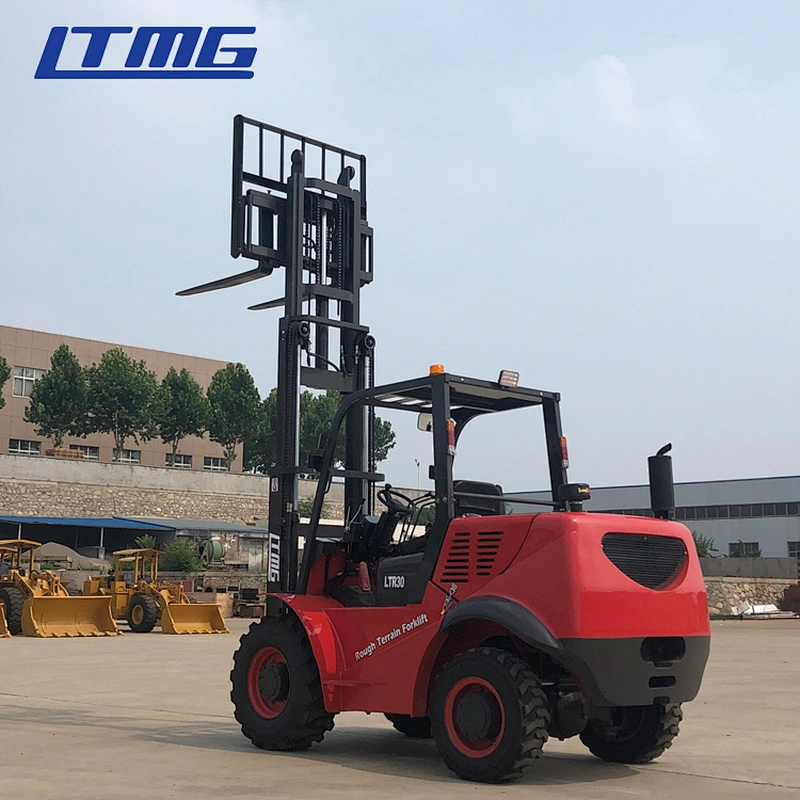

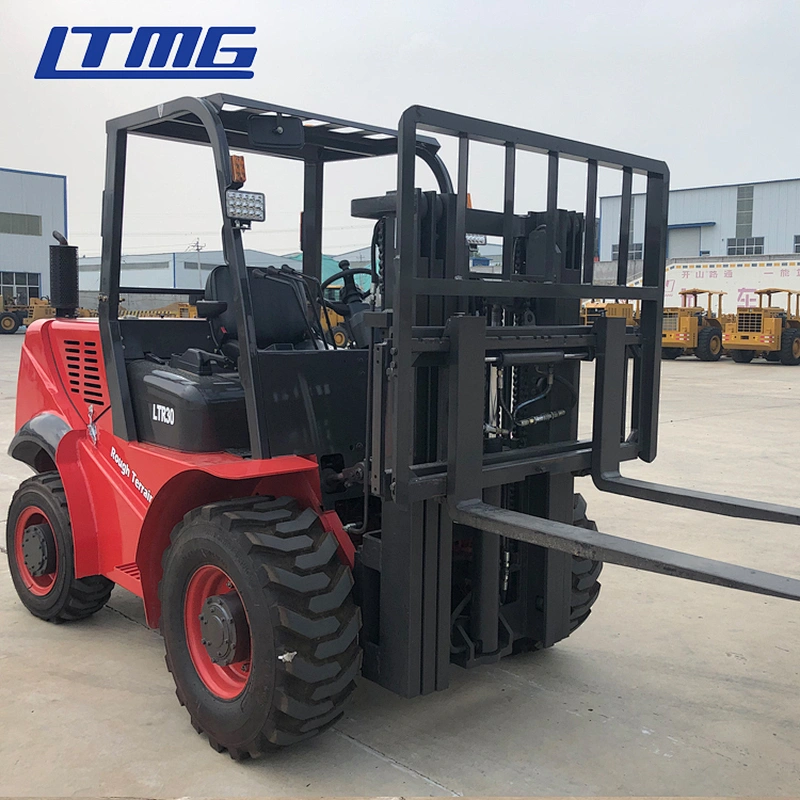

3 ton - 5 ton rough terrain forklift

Model NO.: FDR30 - FDR50 D
Price:: USD 14300.00-16900.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 300 unit / Month
Country of Origin: Qingdao

Quantity:

Product Description

Applicable Industries:Building Material Shops
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Local Service Location:Egypt
Local Service Location:Canada
Local Service Location:Turkey
Local Service Location:United Kingdom
Local Service Location:United States
Local Service Location:Italy
Local Service Location:France
Local Service Location:Viet Nam
Local Service Location:Philippines
Local Service Location:Brazil
Local Service Location:Peru
Local Service Location:Saudi Arabia
Local Service Location:Indonesia
Local Service Location:Pakistan
Local Service Location:India
Local Service Location:Mexico
Local Service Location:Russia
Local Service Location:Spain
Local Service Location:Thailand
Local Service Location:Malaysia
Local Service Location:Australia
Local Service Location:Morocco
Local Service Location:Kenya
Local Service Location:Argentina
Local Service Location:South Korea
Local Service Location:Chile
Local Service Location:UAE
Local Service Location:Colombia
Local Service Location:Algeria
Local Service Location:Sri Lanka
Local Service Location:Romania
Local Service Location:Bangladesh
Local Service Location:South Africa
Local Service Location:Kazakhstan
Local Service Location:Ukraine
Local Service Location:Kyrgyzstan
Local Service Location:Uzbekistan
Local Service Location:Tajikistan
Showroom Location:United States
Showroom Location:France
Showroom Location:Philippines
Showroom Location:Brazil
Showroom Location:Peru
Showroom Location:Saudi Arabia
Showroom Location:Indonesia
Showroom Location:Pakistan
Showroom Location:Mexico
Showroom Location:Russia
Showroom Location:Spain
Showroom Location:Thailand
Showroom Location:Argentina
Condition:New
Place of Origin:CN;FUJ
Power Souce:Diesel Engine
Warranty:1 year
After-sales Service Provided:Video technical support
Brand Name:LTMG
Max. Lifting Height:3000mm
Min. Lifting Height:0mm
Fork Length:1070mm
Fork Width:122mm
Overall Dimensions:3060x1604x2115mm
Certification:CE/ISO9001:2008
Applicable Industries:warehouse logistics

Product Description

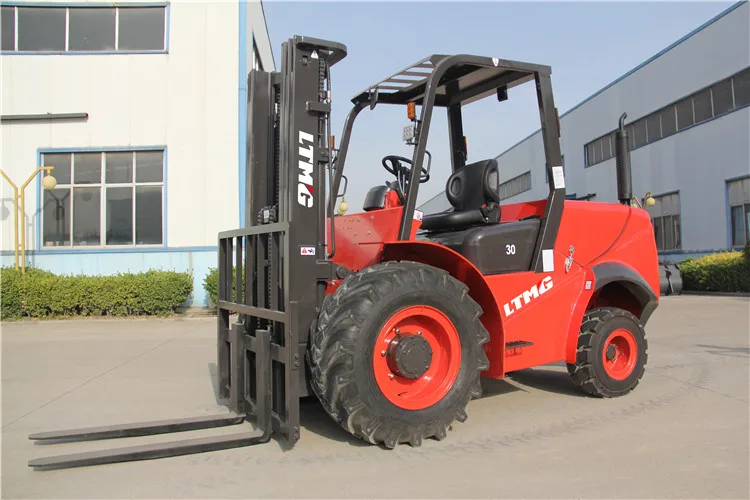

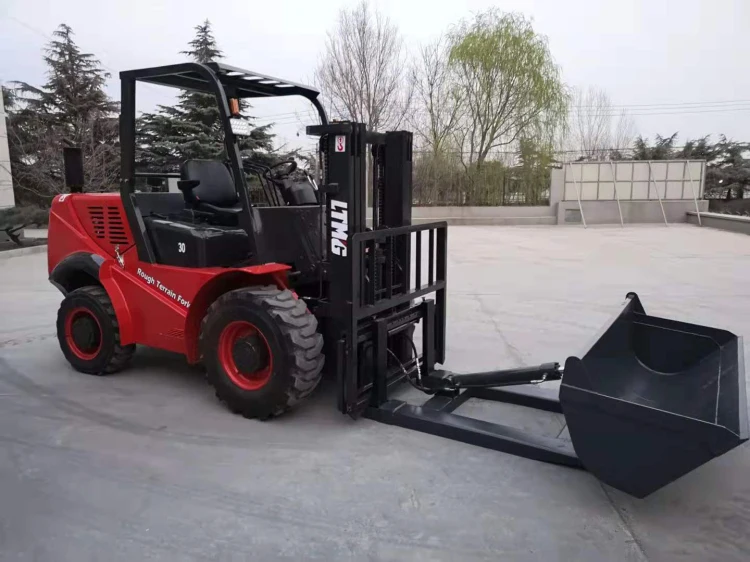

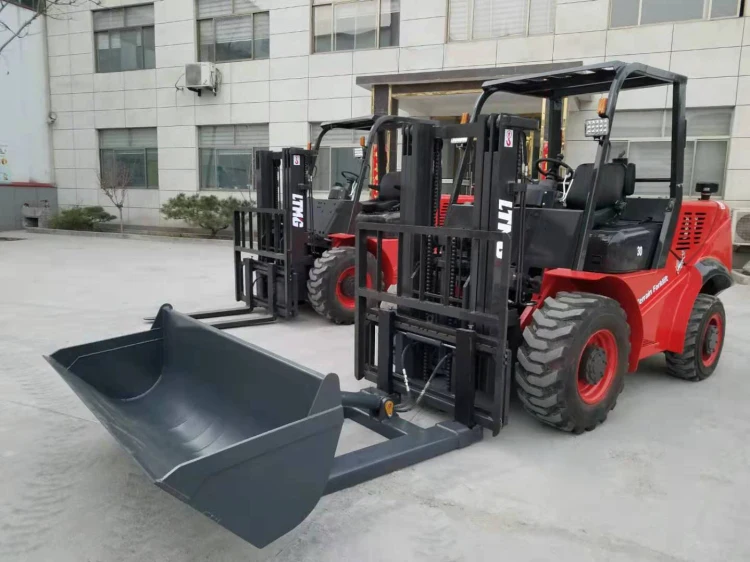

LTMG 4WD atv 3 ton 3.5 ton rough terrain forklift with Japan engine

SPECIFICATION of 3 TON ROUGH TERRAIN FORKLIFT
Model			FDR30
Power Type			Diesel
Rated Capacity			kg	3000
Load Centre			mm	600
Lift Height			mm	3000
Fork Size	L×W×T	mm	1070×120×40
Mast Tilt Angle	F/R	Deg	10°/12°
Front Overhang(Wheel center to fork face)			mm	601
Ground Clearance(Bottom of mast)			mm	265
Overall Dimension	Length to face of fork(Without fork)	mm	3060
		Overall Width	mm	1604
		Mast Lowered Height	mm	2115
		Mast Extended Height(With backrest)	mm	4250
		Overhead Guard Height	mm	2200
Turning Radius(outside)			mm	2750
Min. intersecting aisle			mm	2615
Speed	Travel (Empty load)	km/h	22
Speed		Lifting(Full load)	mm/s	480
Max.Gradeability			%	16
Tire	Front	mm	14-17.5-14PR
Tire		Rear	mm	27×10-12-12PR
Wheelbase			mm	1835
Service weight			kg	4800
Battery	Voltage/Capacity	V/Ah	12/90
Engine	Model	4TNE98
Manufacture			YANMAR
Rated output/r.p.m.			kw	42.1/2300
Rated torque/r.p.m			N·m	186-206/1700
No.of Cylinder			4
Bore×Stroke			mm	98×110
Displacement			cc	3318
Fuel Tank Capacity			L	60
Transmission Type			Automatic
Drive Type			2WD

Packing & Delivery

After-sale Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
