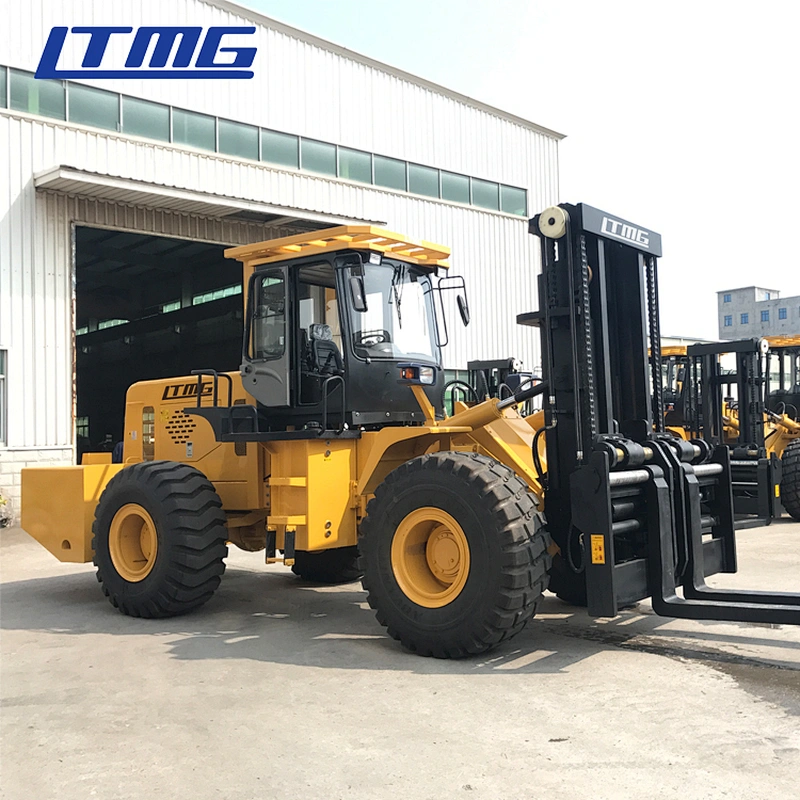

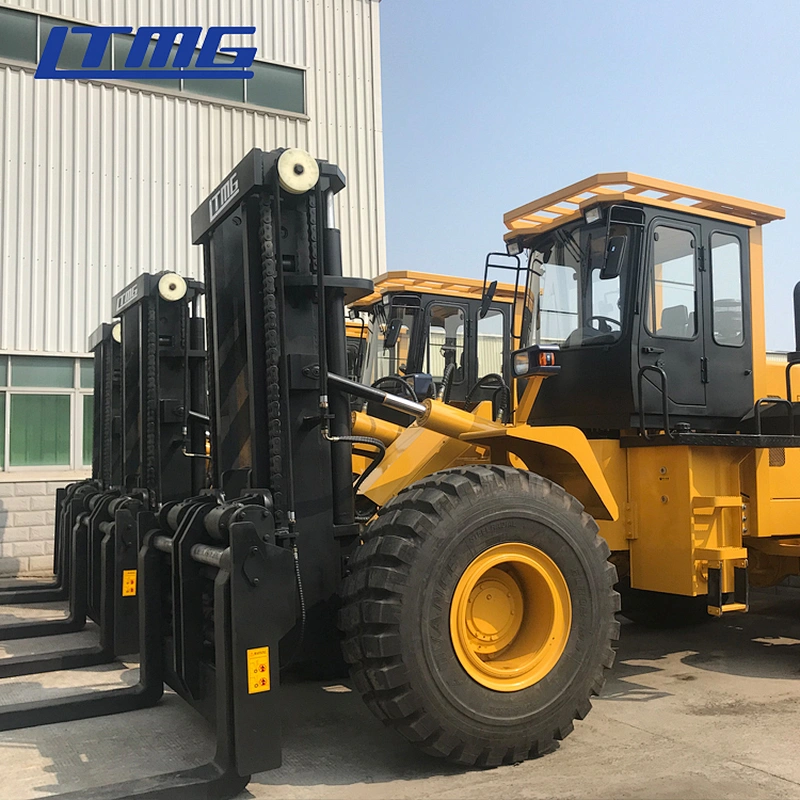

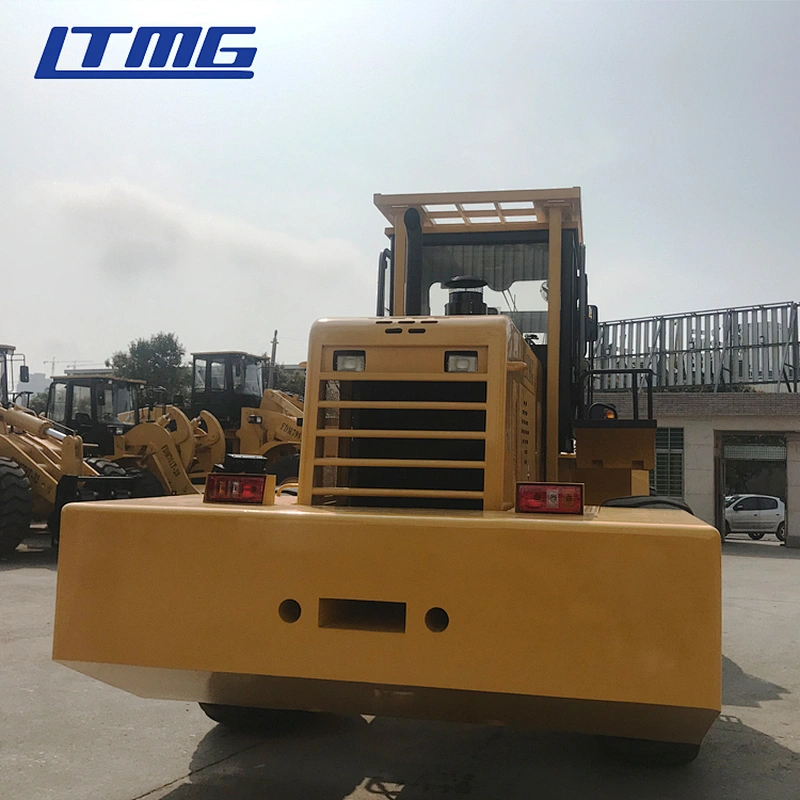

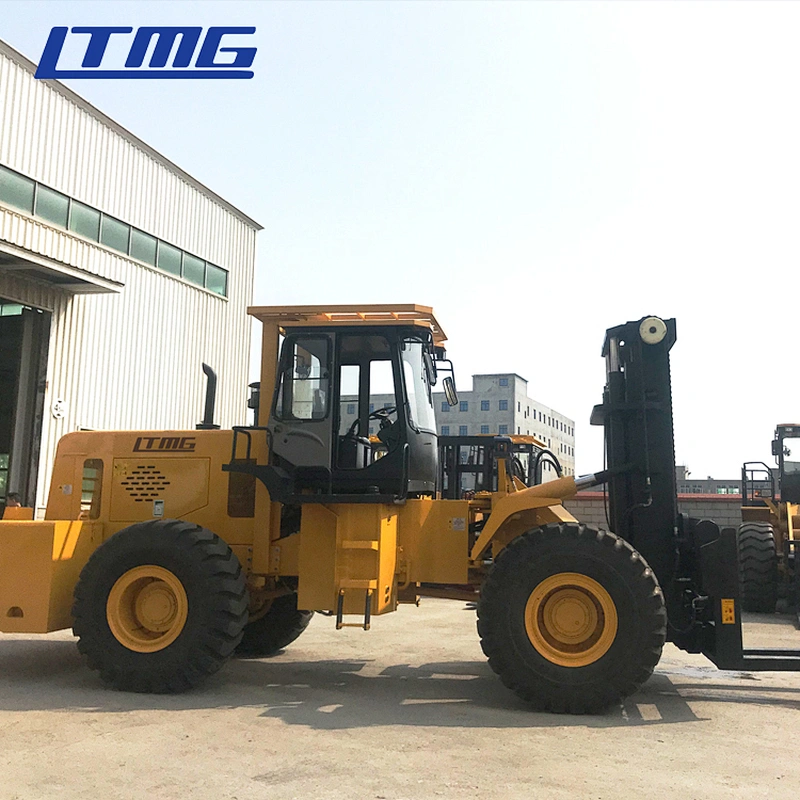

15 ton - 20 ton articulated rough terrain forklift

15 ton - 20 ton articulated rough terrain forklift

Model NO.: LTR150-LTR200
Price:: USD 58000.00-58000.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 300 unit / Month
Country of Origin: Xiamen

Quantity:

Product Description

Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Food & Beverage Factory
Applicable Industries:Farms
Applicable Industries:Construction works
After Warranty Service:Online support
Local Service Location:Brazil
Local Service Location:Peru
Local Service Location:Spain
Local Service Location:Japan
Local Service Location:Argentina
Local Service Location:UAE
Local Service Location:South Africa
Showroom Location:Canada
Showroom Location:Philippines
Showroom Location:Indonesia
Showroom Location:Kenya
Showroom Location:UAE
Condition:New
Power Souce:Diesel Engine
Warranty:1 year
After-sales Service Provided:Free spare parts
Place of Origin:CN;FUJ
Brand Name:LTMG
Max. Lifting Height:6 meter
Min. Lifting Height:0
Fork Length:2400mm
Fork Width:200mm
Overall Dimensions:9700*3040*4850
Certification:CE&ISO9001

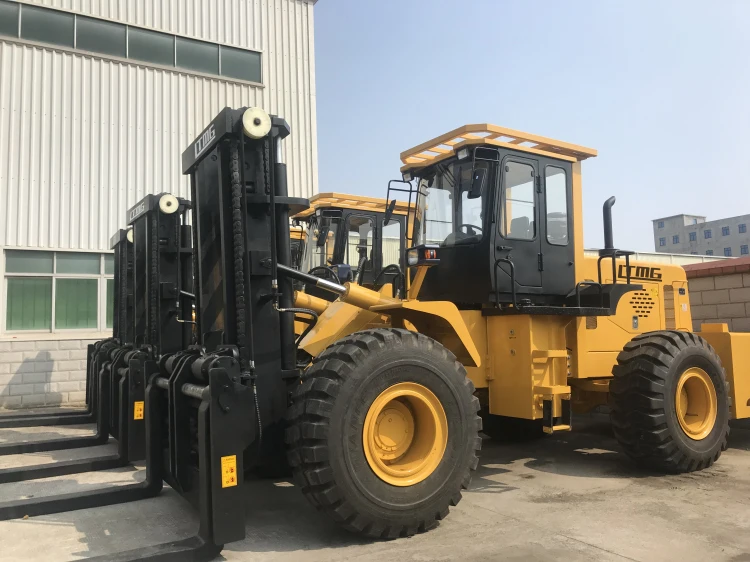

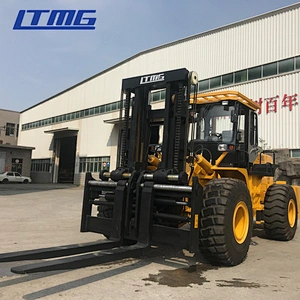

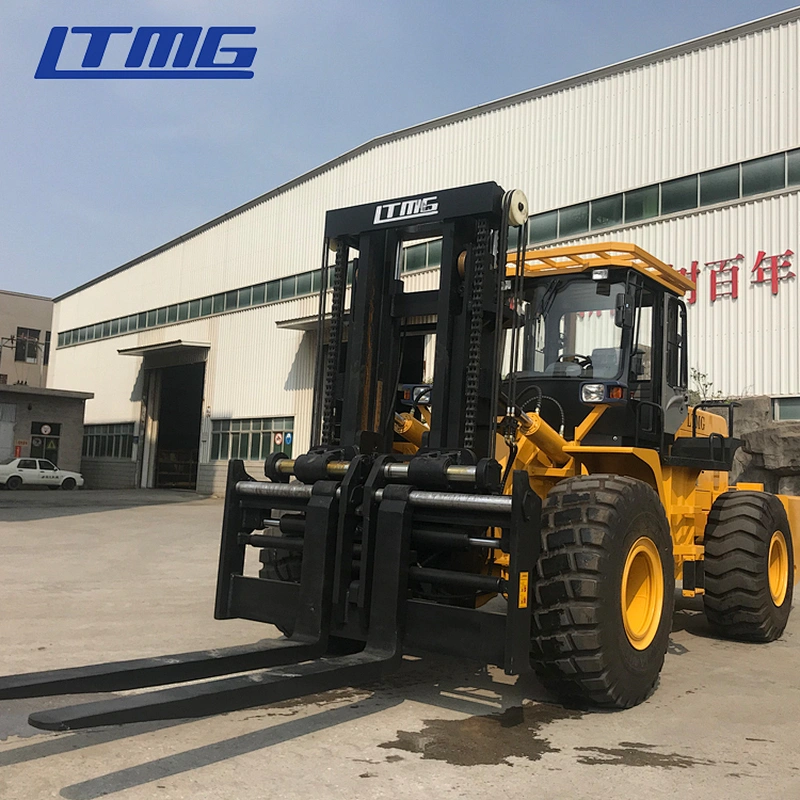

Product Show

Product Parameter

Model				LTR200
Product name				LTR200
Rated load			Kg	20000
Load center distance			mm	800
Lifting height			mm	3000
Gantry tilt angle (forward/backward tilt)			°	(6)(12)
Maximum travel speed			Km/h	30
Full load grade			﹪	30
Self weight			Kg	24200
Track (front/rear)			mm	1560
wheelbase			mm	3710
Tire	front		2*23.5-25-32PR
Tire		rear		2*23.5-25-24PR
Dimensions (length x width x height)			mm	970030404850
Full load lifting speed			mm/s	390
Minimum turning radius			mm	7800
Minimum ground clearance			mm	400

LTMG LTR50T basic configuration
Engine	model		6CTTA8.3-C240
		manufacturer		Cummins
		Rated power/speed	Kw/r/min	179/2200
Battery	Voltage	V	24
Battery		Capacity	Ah	220
transmission	Hydraulic
Frame	Articulated frame
Working system	Pilot operating system
Drive axle	Dedicated wheel side deceleration bridge	four-wheel drive	Pneumatic clamp brake
Cabin	cab with sound system

Product Advantage

Standard configuration advanced Engine Optional

Modular design aluminum radiator,quick cool heat

Steel shed to protect lamp in rough condition

High ground clearance
Offer geater maneuverability and keep the machine moving in the roughest of applications

New ergonomic design cabin,comfortable chair,integrated control panel,provide the best working condition for operator

Adjustable side shift to meet more working requirement. and assemble various attachments

Optional

1.Japan engine ISUZU or Mitsubishi,EPA koller engine
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positioner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp etc.

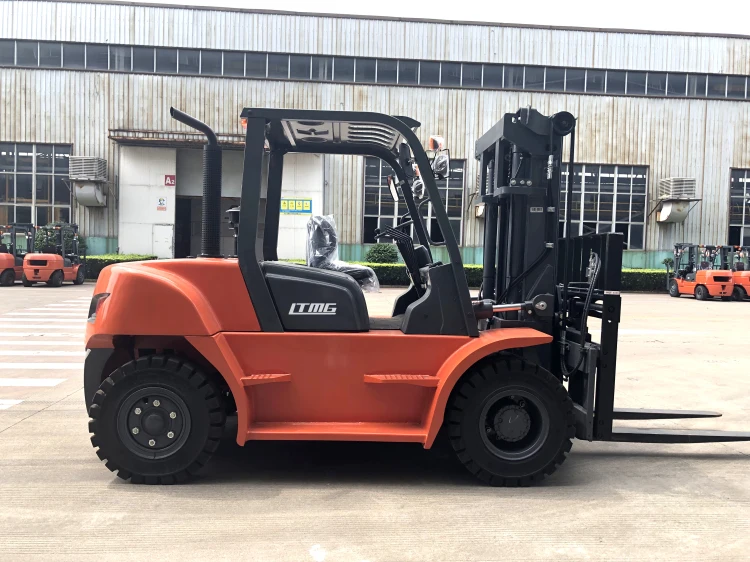

LPG&Gasoline Forklift

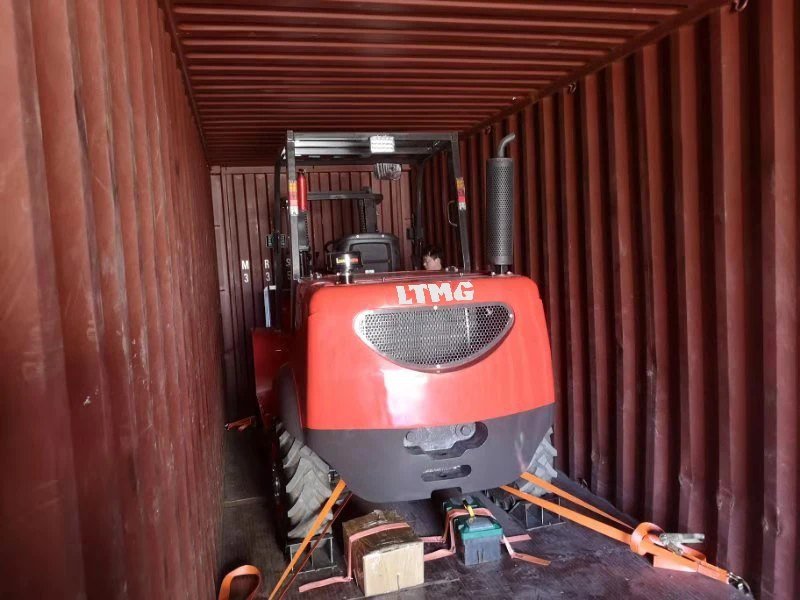

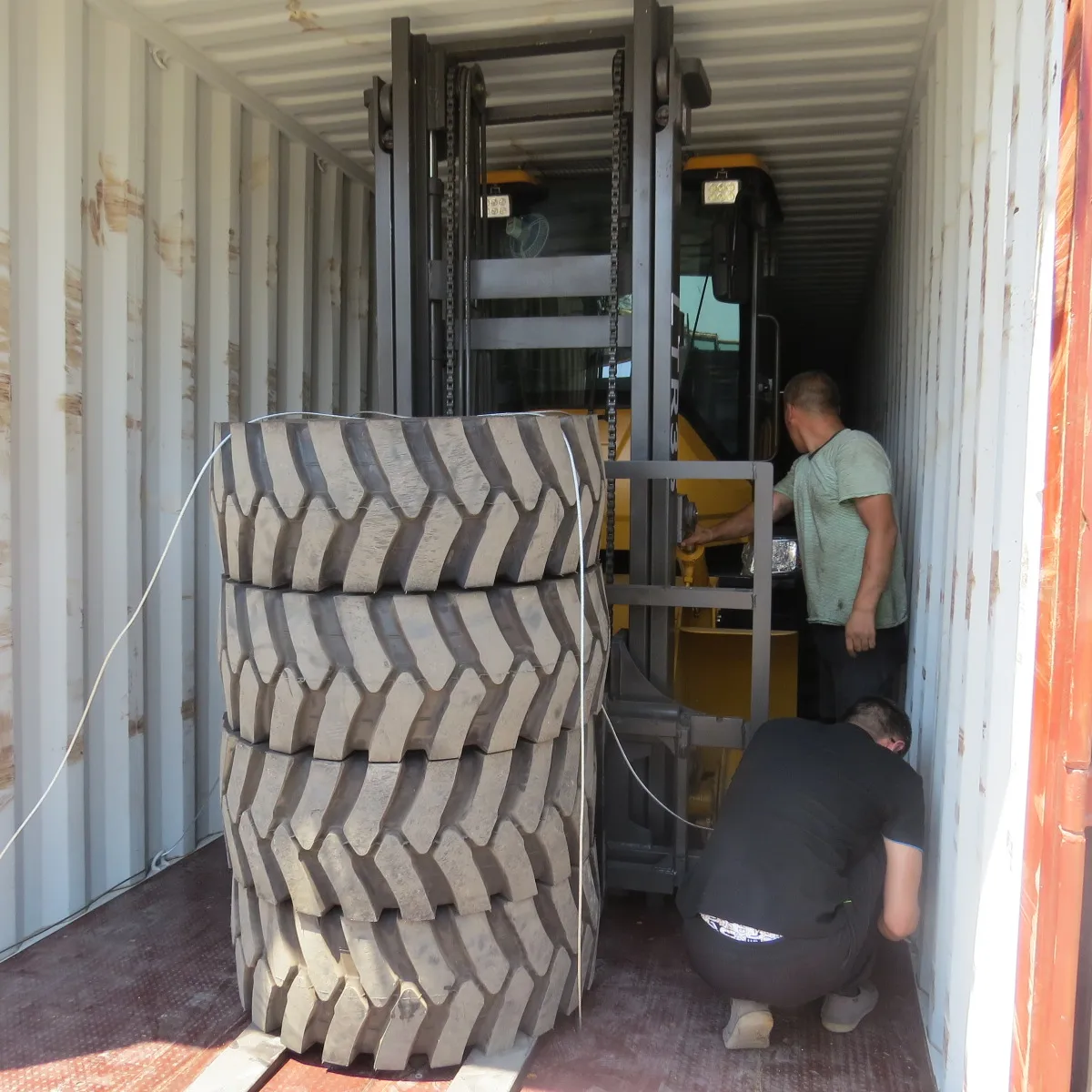

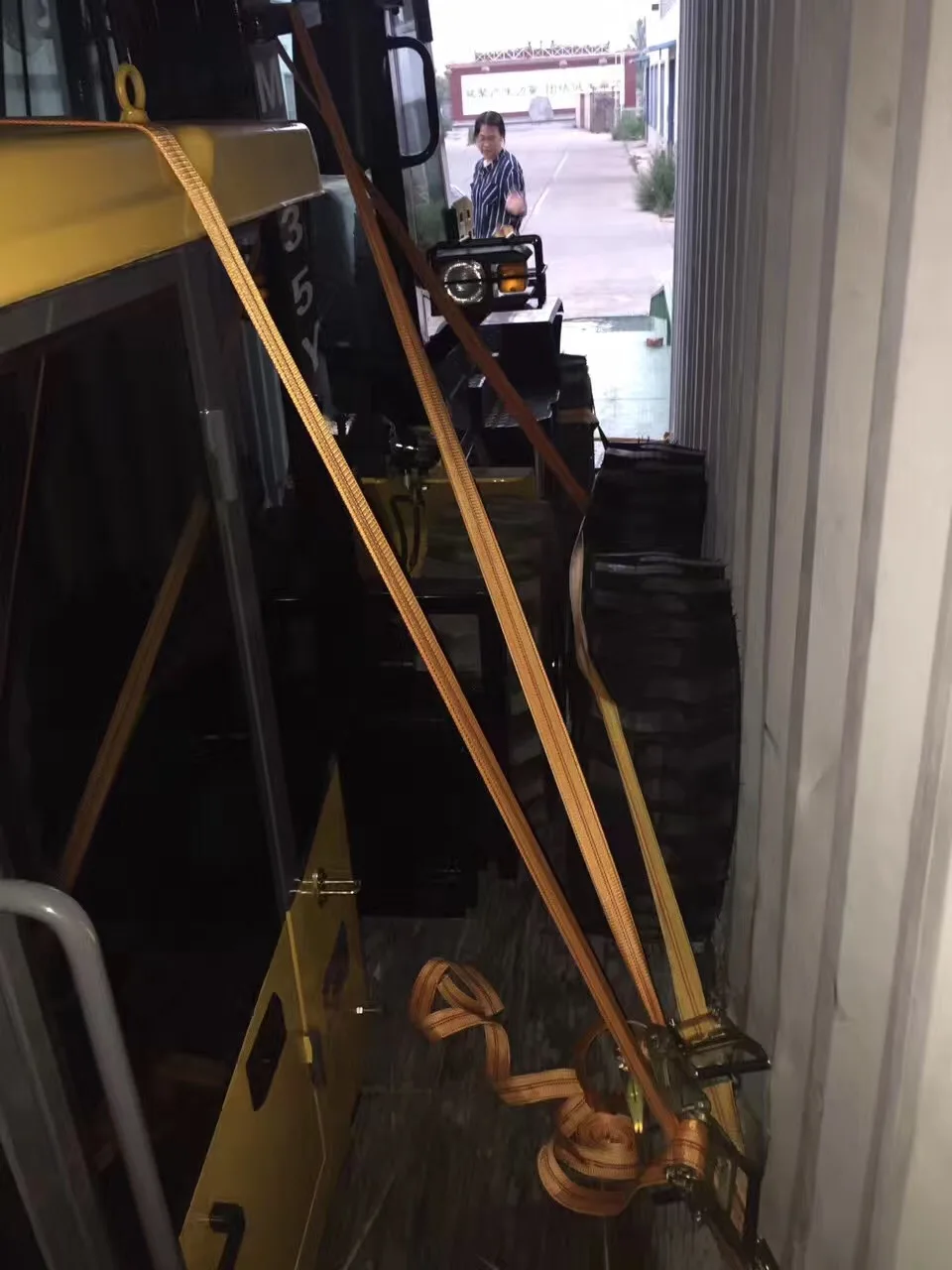

Packing&Shipping

Company Introduction

Since foundation, LTMG Machinery Group(LTMG) has always kept its professional role in Chinese Material Handling Equipment&Construction Machinery industry. At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity. with product type and series: 1-40 ton Forklift Trucks(diesel, gas online, LPG, battery),1-20 ton Rough Terrain Forklifts, Electric Pallet Trucks, Side Loader Forklift, Reach Stacker, 1-8 ton wheel loaders,10-40 ton forklift,loaders,(as well as grapple loaders, side loaders.)， wheel excavators and so on .
