- After Warranty Service:Spare parts
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Colombia
- Condition:New
- Place of Origin:CN;FUJ
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 year
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- UNIQUE SELLING POINT:High operating efficiency
- Applicable Industries:logistics transportation
- Hydraulic Cylinder Brand:JINHU
- Hydraulic Pump Brand:JI NAN
- Hydraulic Valve Brand:GAOYU
- Engine Brand:Weichai
- Brand Name:LTMG
- Dimension(Long * Breadth * High):8600*3230*3800mm
- Certification:ce
- Machine Weight:25.1 ton
- Power(W):199kw
- Bucket capacity:6m3

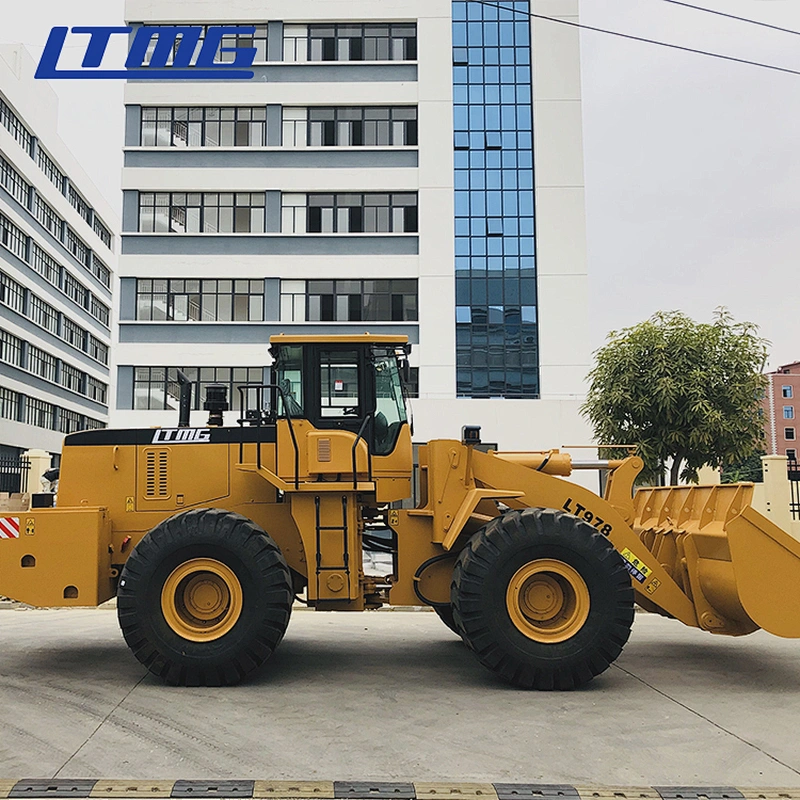

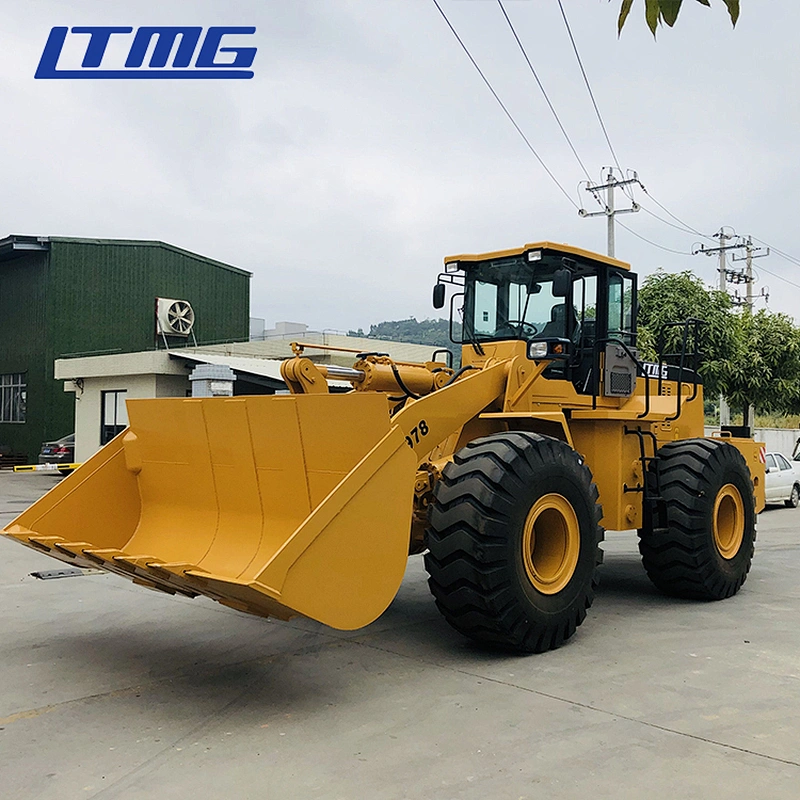

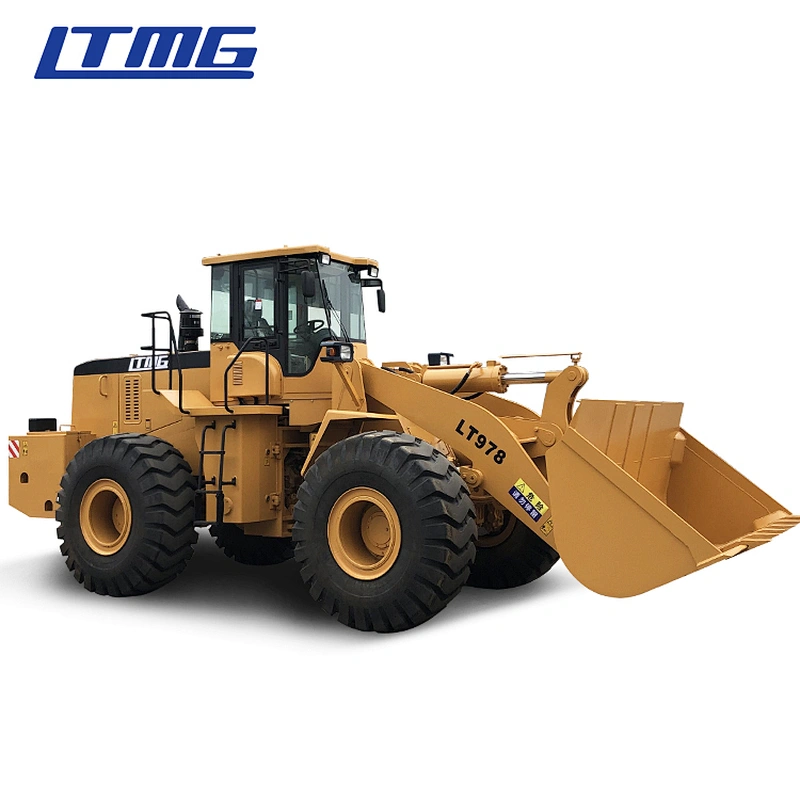

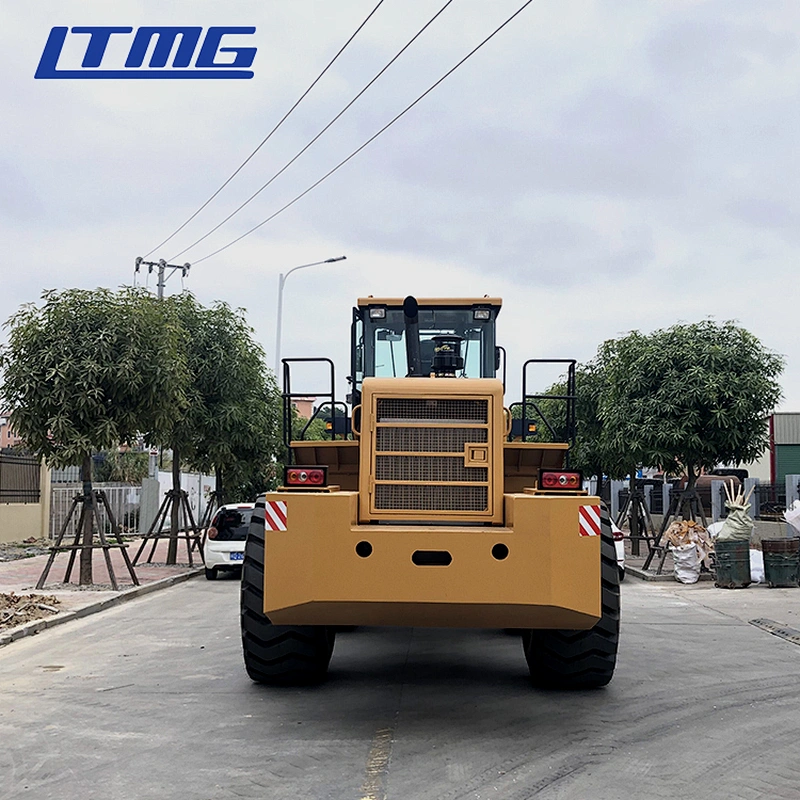

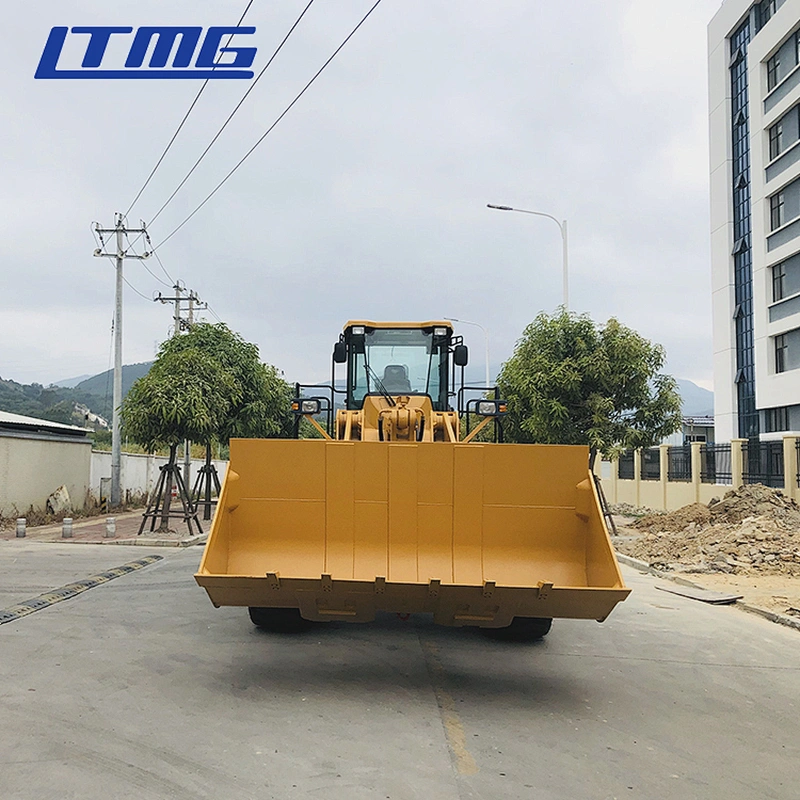

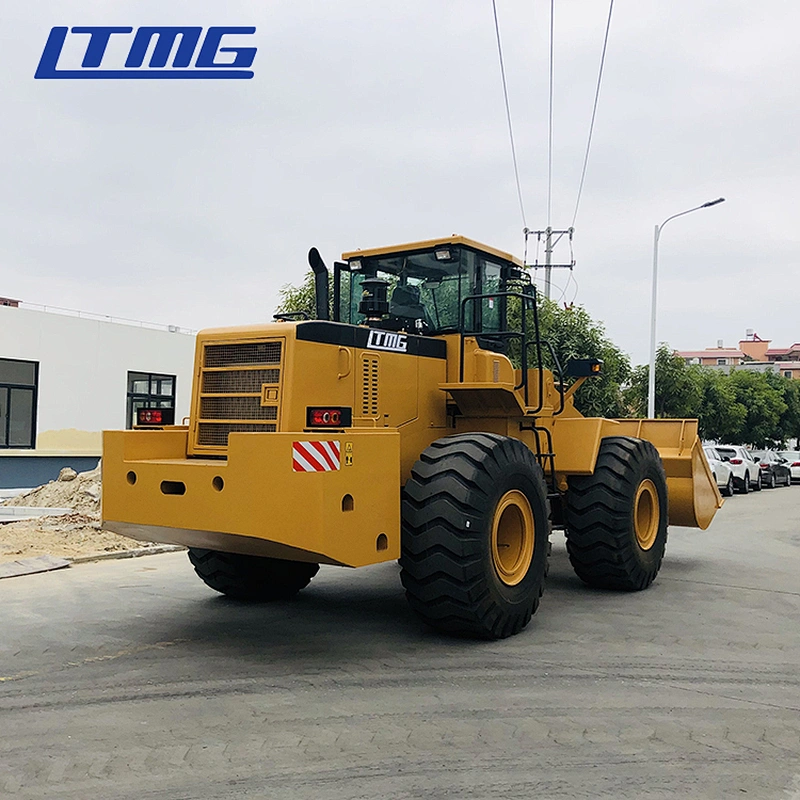

The specification of LTMG Heavy Loader 7 ton Wheel Loader | ||
Model | LT978 | |
Operating weight | 25,000kg | |
Bucket Volume | 4 -6 m3 | |
Engine | Weichai | |
Rated engine power | 199KW | |
Rated rotate speed | 2200r/nin | |
Max. torque | 920N.m | |
Max. dumping height | 3450mm | |
Rated load | 7,000 KG | |
NO. of shifts | Forward 4 For Reverse2 | |
Driving speed | ||
Forward/Reverse I | 0-7km/h | |
Forward/Reverse II | 0-11km/h | |
Forward/Reverse III | 0-23km/h | |
Forward/Reverse IV | 0-38km/h | |
Grade ability | ≥25° | |
Turning angle | 35° | |
Overall length | 8600mm | |
Overall width | 3230mm | |
Overall height | 3800mm | |
Wheel base | 3600mm | |
Track base | 2410mm | |
Transmission | Beilian | |
Cycling time | 12s | |
Tire type | 26.5R25 | |
1. Axle: Reinforced Q axle features larger carrying capacity and can forbid the oil leak efficiently, high reliability and convenient to maintenance.
2. Brake systems: Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation.
3. Steering system: The coaxes flow-amplified, hydraulic compensated steering system makes operation easy and performance reliable.
4. Hydraulic systems: To adopt confluence of dual-pump confluence and difference technology, rational use of engine power, reduce energy consumption effectively.
5. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
6.Optional attachment: floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
