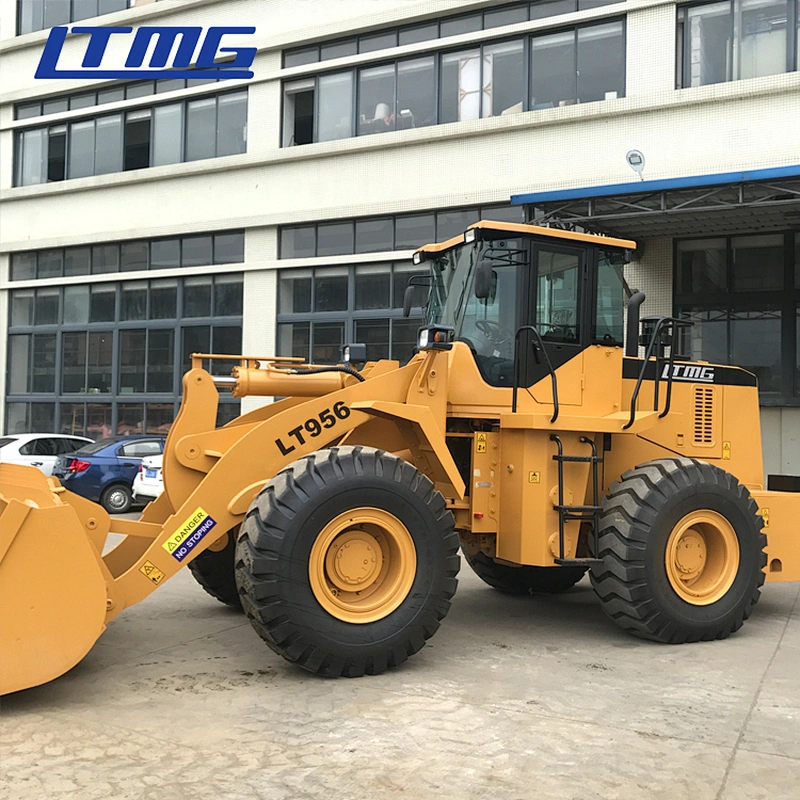

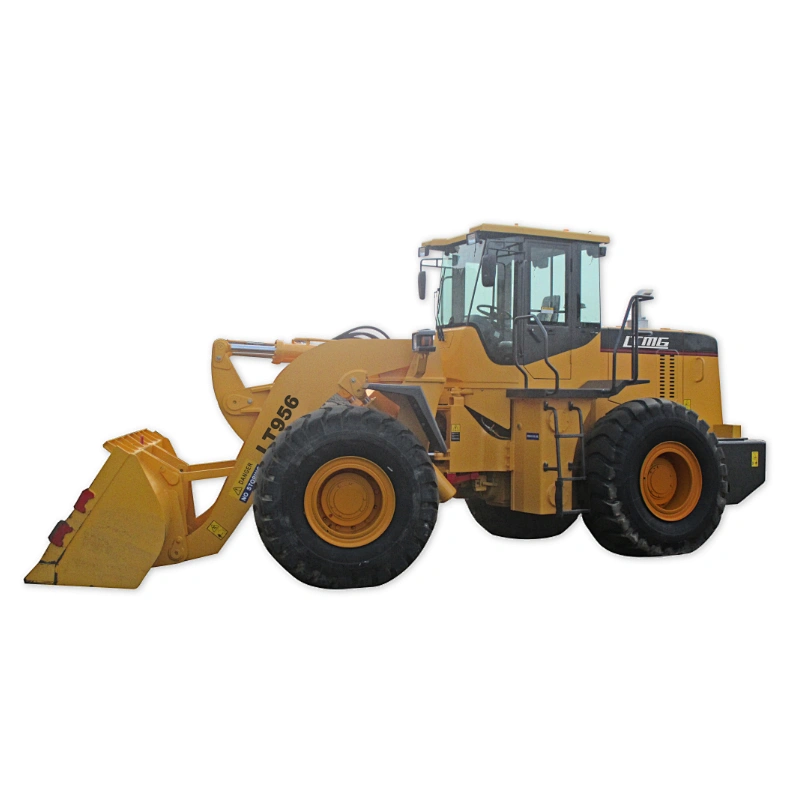

- Product name:5 tonnes wheel loader china top brand wheel loader with Attachments
- Warranty:1 Year or 2000 working hours
- Color:Yellow
- wheel base:2870mm
- Operating weight:16200kg
- Max.dumping height:3140mm
- Maximum dumping reach:1120mm
- Minimum ground clearance:470mm
- Item:5t wheel loader
- Brand:LTMG
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:South Africa
- Local Service Location:Kazakhstan
- Showroom Location:Egypt
- Showroom Location:United Kingdom
- Showroom Location:United States
- Showroom Location:Germany
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Spain
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Malaysia
- Condition:New
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:Longyan Jinhu
- Hydraulic Pump Brand:Jinan
- Hydraulic Valve Brand:Libao
- Engine Brand:Weichai
- UNIQUE SELLING POINT:Longlife time
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Engine
- Core Components:Gear
- Core Components:Motor
- Core Components:Pump
- Core Components:Bearing
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Farms
- Applicable Industries:Printing Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Applicable Industries:Municipal Works
- Brand Name:LTMG
- Dimension(Long * Breadth * High):7600mm*3000mm * 3380mm
- Certification:CE
- Machine Weight:16.2T
- Power:162KW
- Bucket capacity:3m3

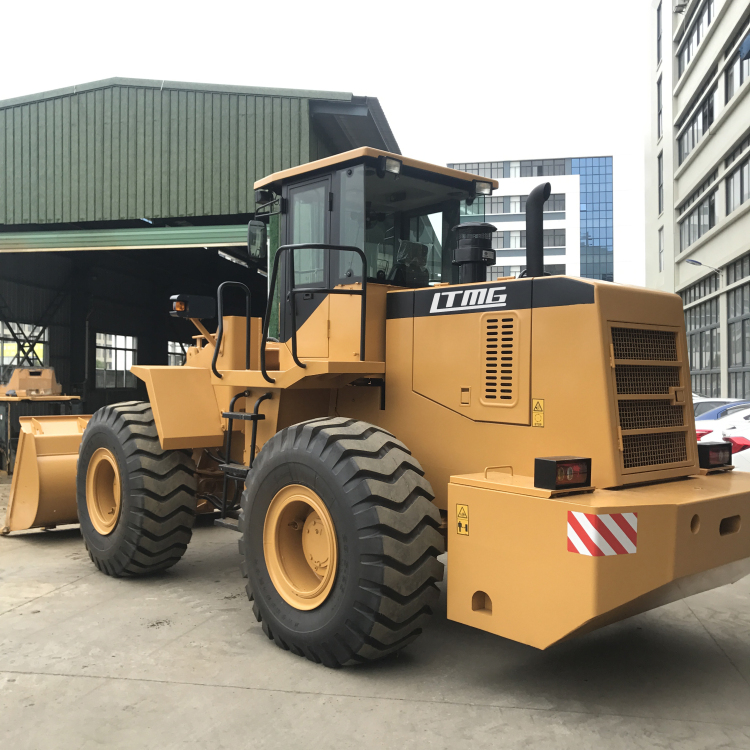

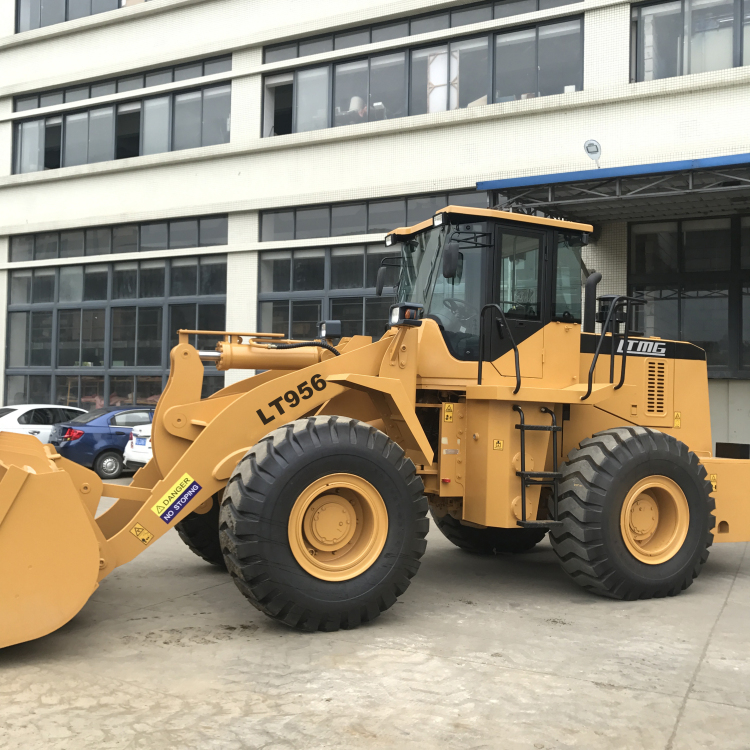

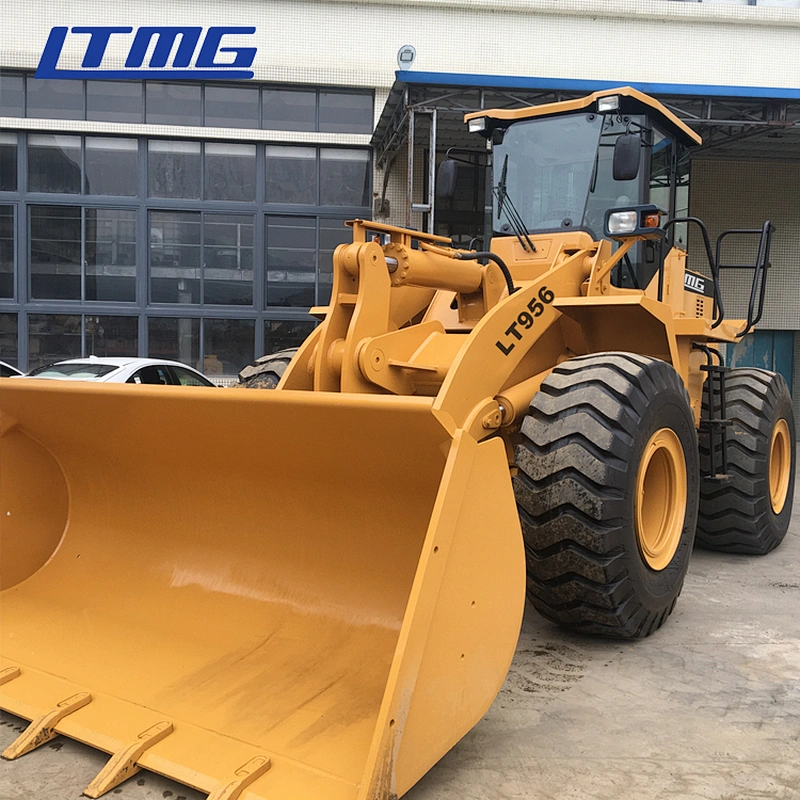

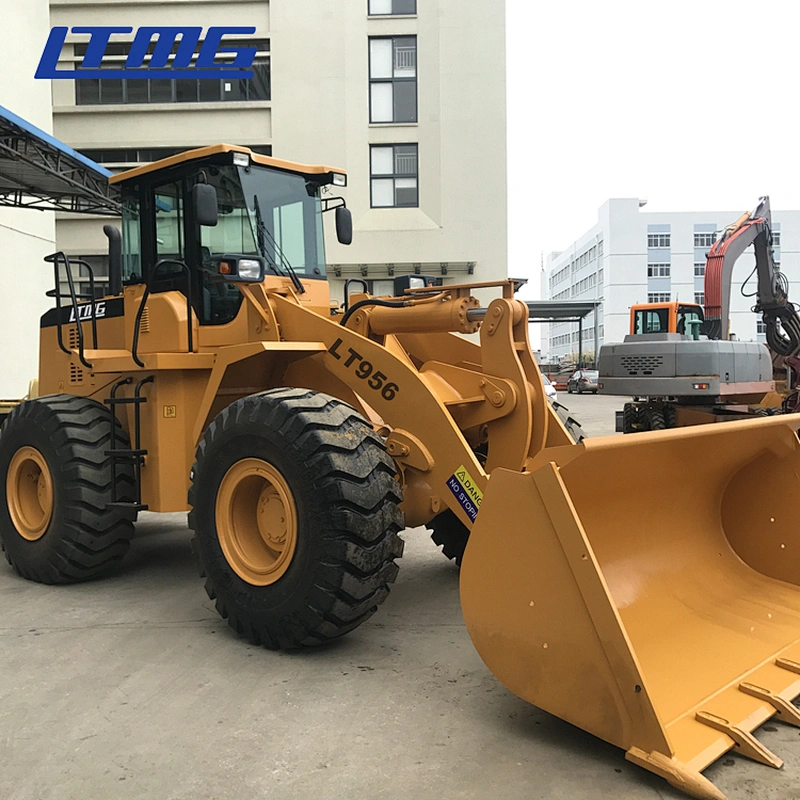

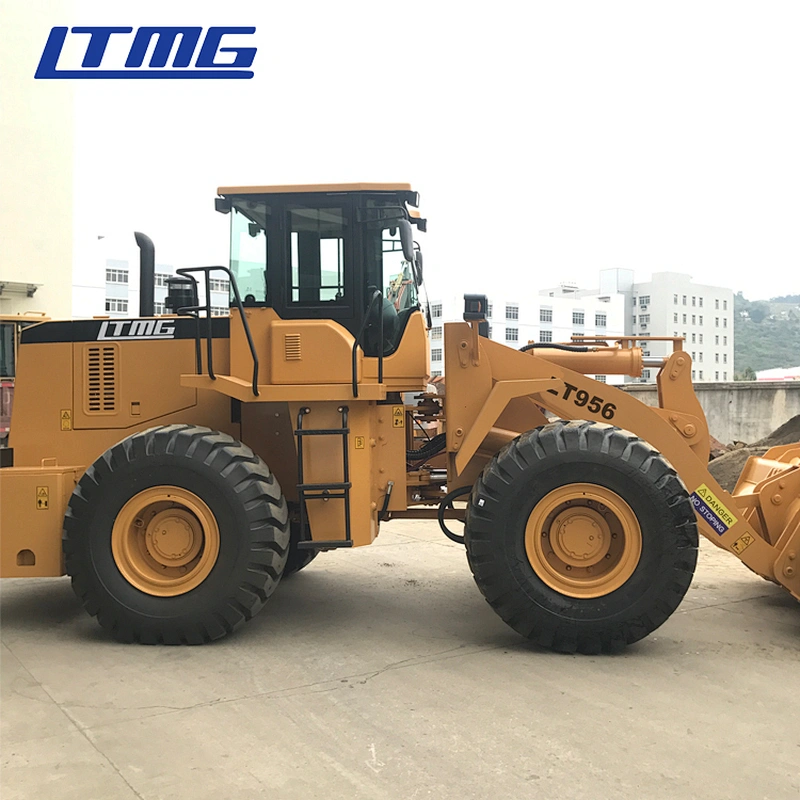

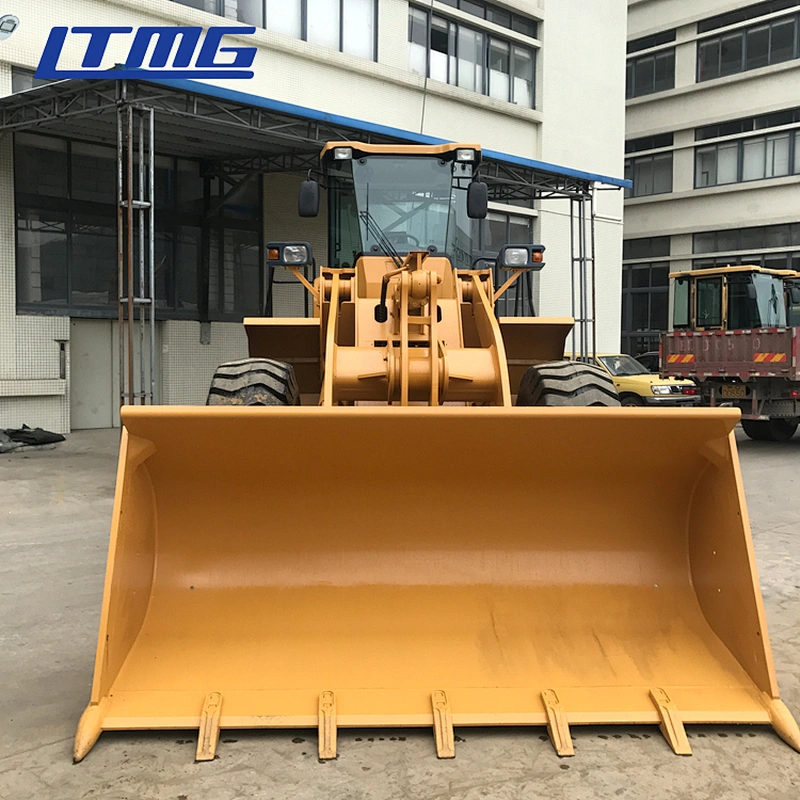

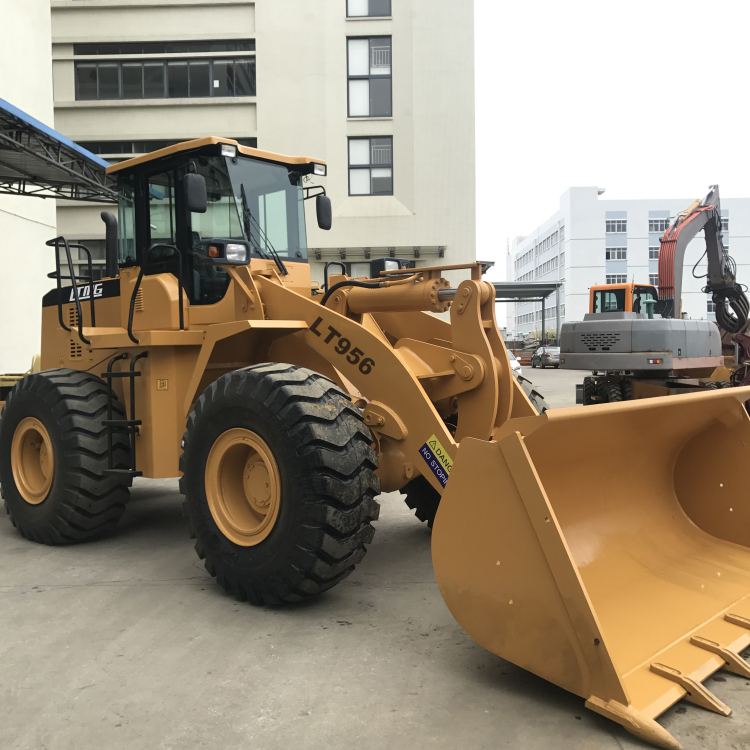

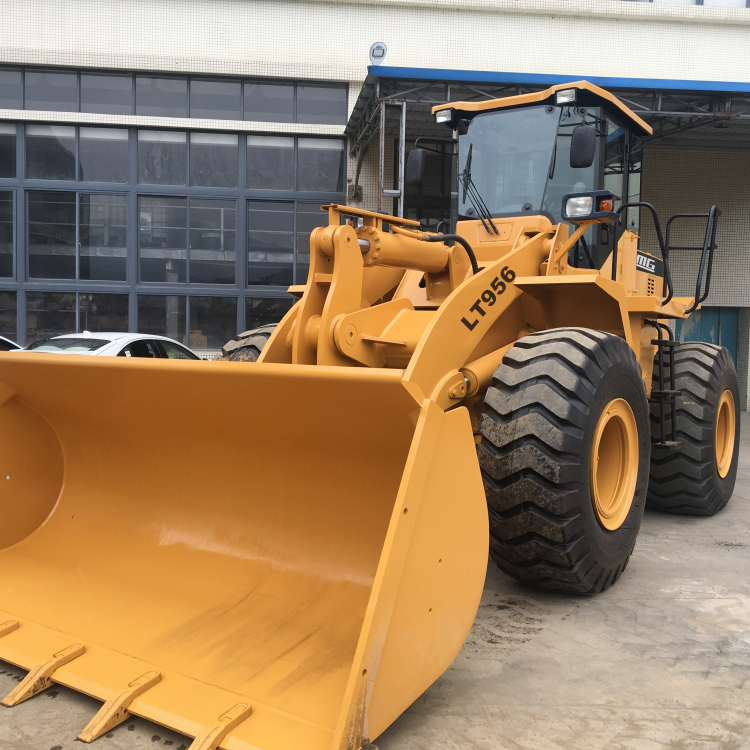

The specification of LTMG LT956 heavy duty loader 5t wheel loader with joystick | ||
Model | LT956 | |
Rated power | 162KW/2200r/min | |
Overall dimensions | 7600mm*3000mm*3380mm | |
Operating weight | 16800KGS | |
Rated loading capacity | 5000KGS | |
Bucket capacity | 3m3 | |
Bucket width | 3000mm | |
Wheel base | 2870mm | |
Tread width | 2250mm | |
Dumping height | 3140mm | |
Dumping reach | 1120mm | |
Turning angle | 35°± 1° | |
Max.climbing Gradient | 28° | |
Turning radius | 6650mm | |
Max.breakout forth | 145kN | |
Max.torque | 745.3N.m | |
Lifting time | ≤6.8s | |
Hydraulic cylinder time | ≤12.55s | |
Specification of tire | 23.5-25 | |
Travel speed | ||
Forward gear I | 11.5km/h | |
Forward gear II | 38km/h | |
Reserve gear I | 16km/h | |
1.Exclusive patent:
6 proprietary technologies are applied in our loaders make them more fuel-efficient and safety,such as Auto Cooling Technology on brake system improve the safety.
And the dust-proof layer make the axle more durable.
2.Details in structure:
Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful.
The exclusive dust-proof layer and sealed articulated points make the loader more durable.

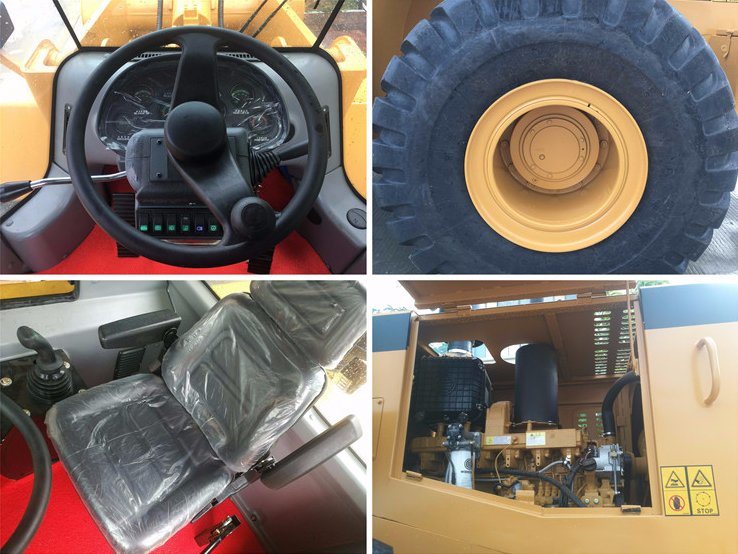

3.Novel appearance and humanized design:
Cabin with broad view.
Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
4.Hydraulic systems:
To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.
Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
5.Optional attachment:
Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
