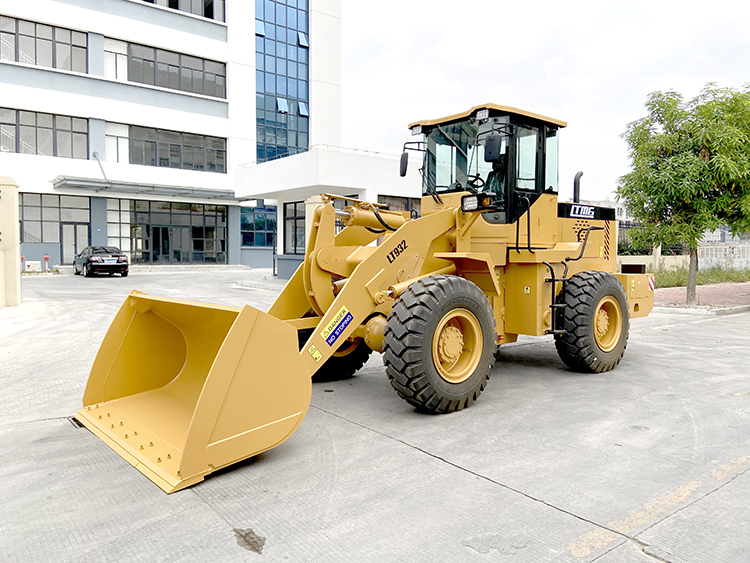

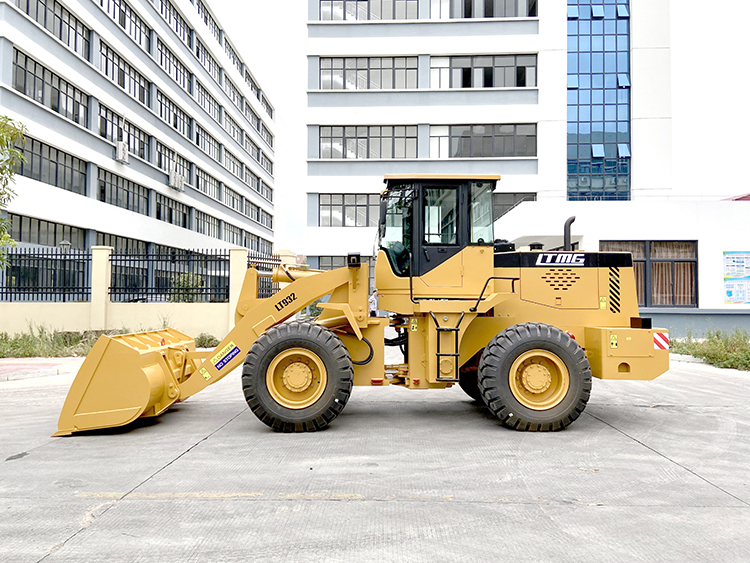

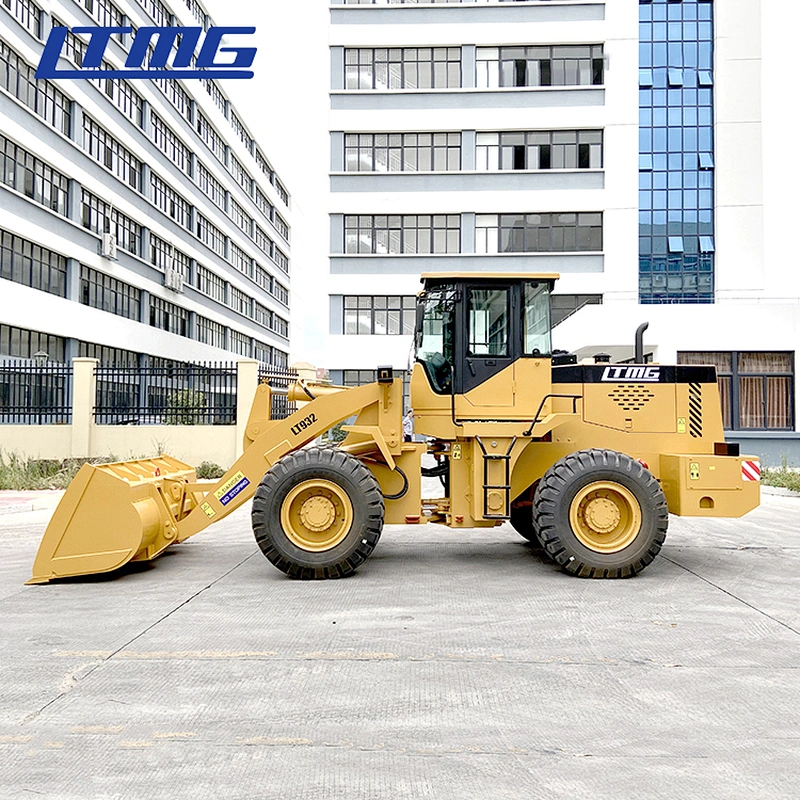

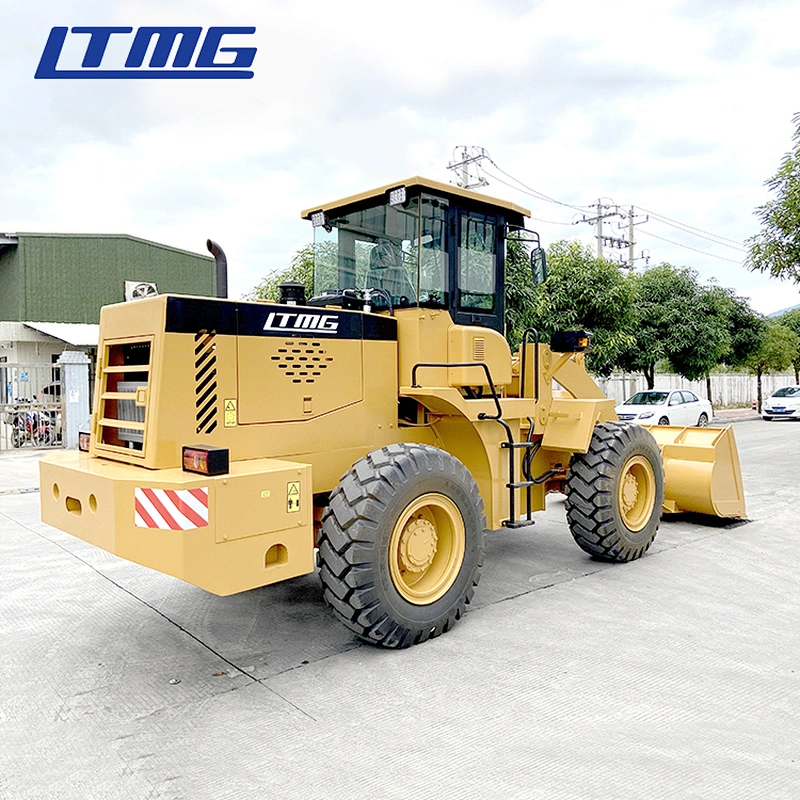

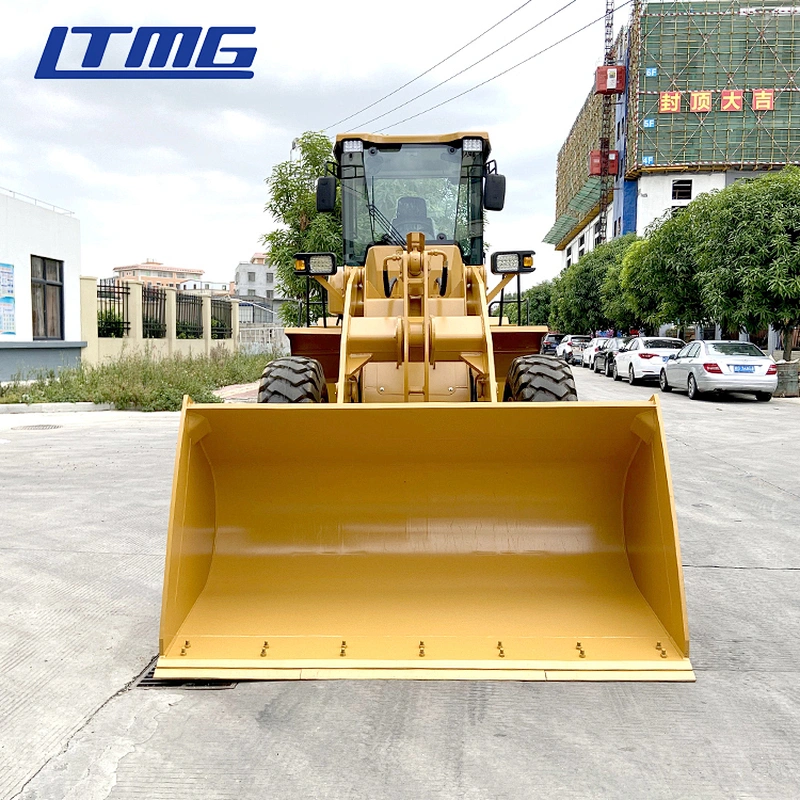

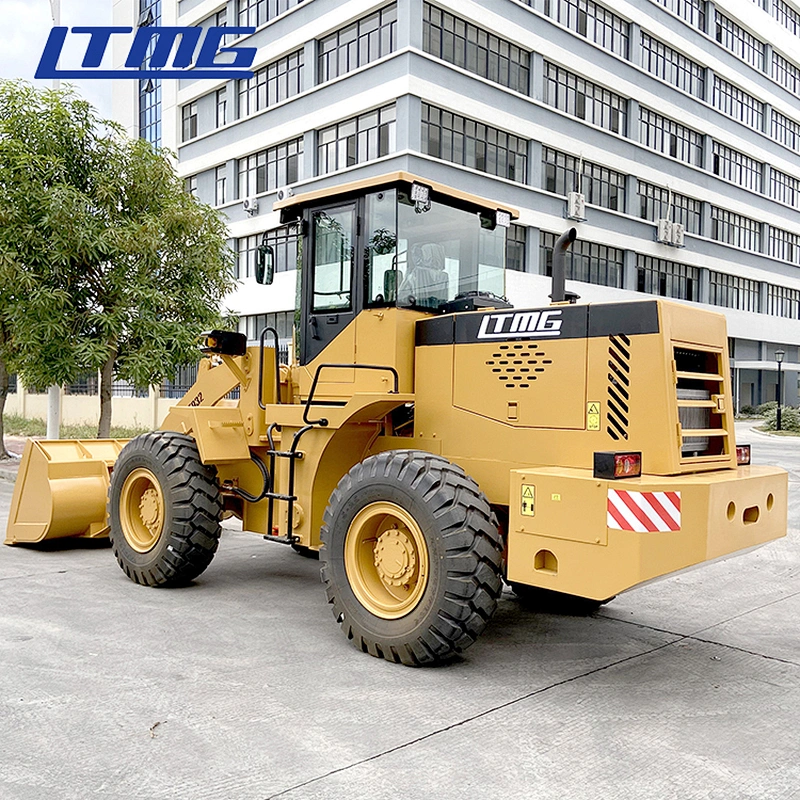

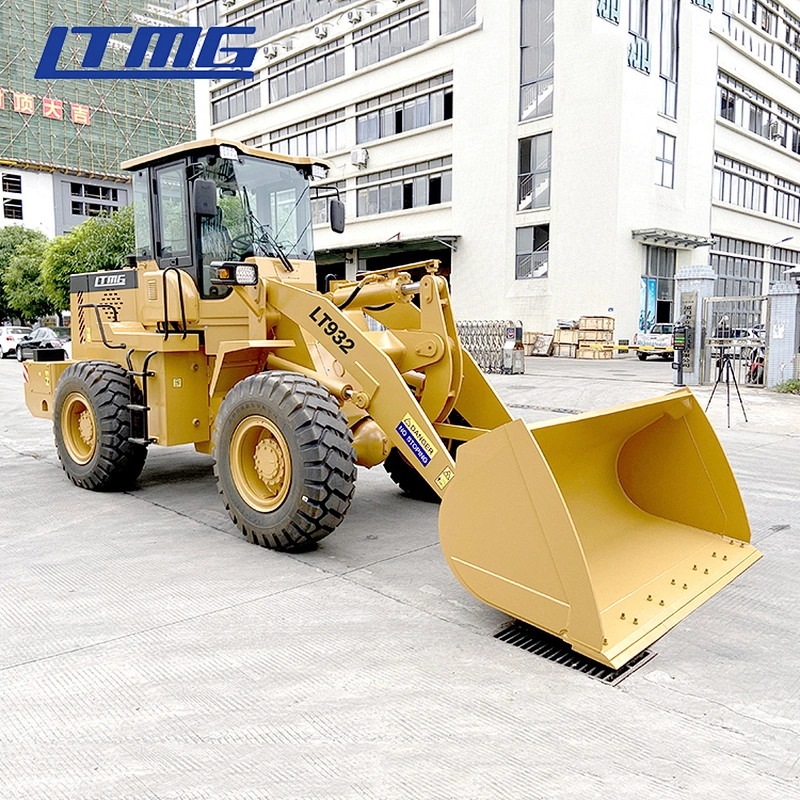

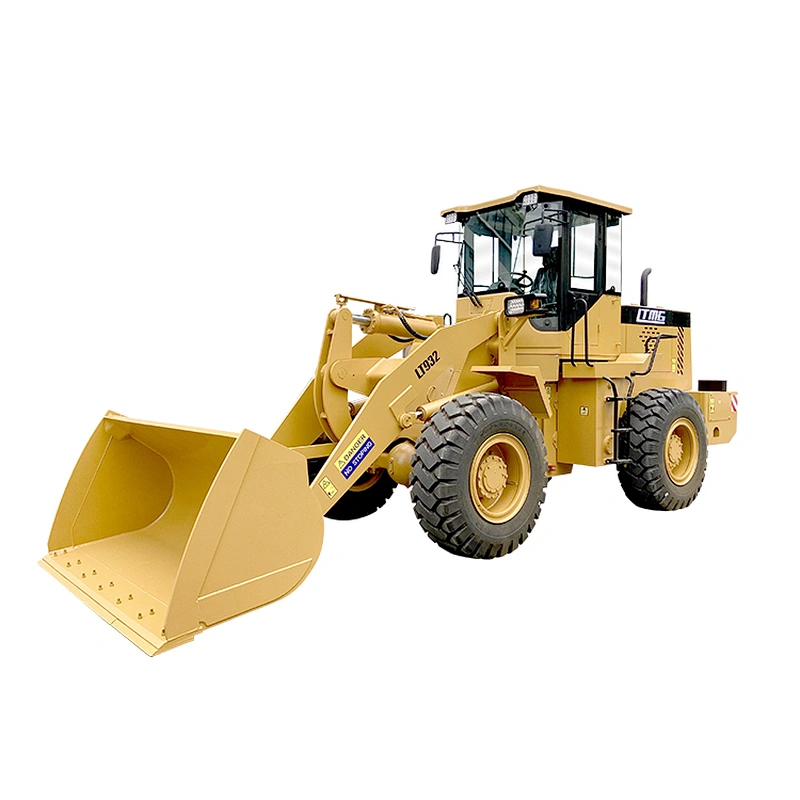

- product name:Chinese bucket loader 2ton 3 ton 3.5 ton small wheel loader
- Warranty:1 Year/2000 working hours, which occurs earlier
- Engine:weichai
- Operating weight:10100kg
- wheel base:2850mm
- Max.dumping height:3400mm
- Tyre brand:Advance

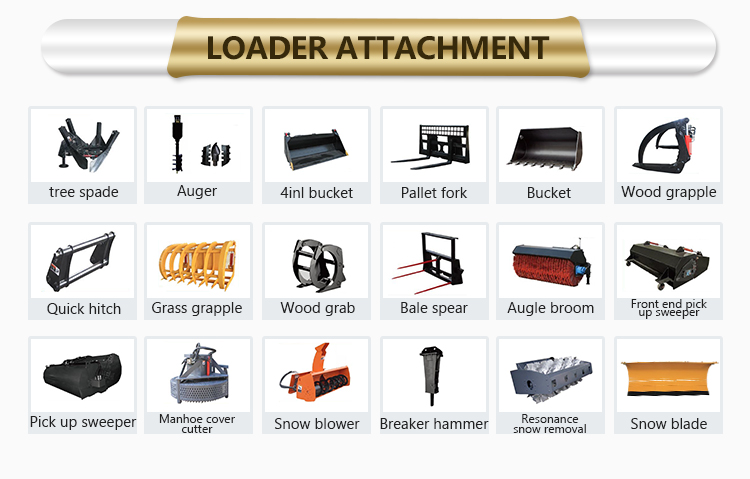

- quick hitch:fork, log grapple, grass fork , enlarged bucket, rock bucket ,etc
- bucket:1.7m3
- Applicable Industries:Building Material Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Philippines
- Local Service Location:Peru
- Local Service Location:Indonesia
- Local Service Location:Argentina
- Local Service Location:Chile
- Local Service Location:Colombia
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Peru
- Showroom Location:Indonesia
- Showroom Location:Spain
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:Nigeria
- Condition:New
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:Jinhu
- Hydraulic Pump Brand:Jinan
- Hydraulic Valve Brand:Jinan
- Engine Brand:Weichai
- UNIQUE SELLING POINT:Long lifetime
- Power:92 KW
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Core Components:Gear
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Dimension(Long * Breadth * High):7200*2350*3200mm
- Certification:ISO9001:2008 / CE
- Machine Weight:10.1 ton
- Bucket capacity:1.7m3

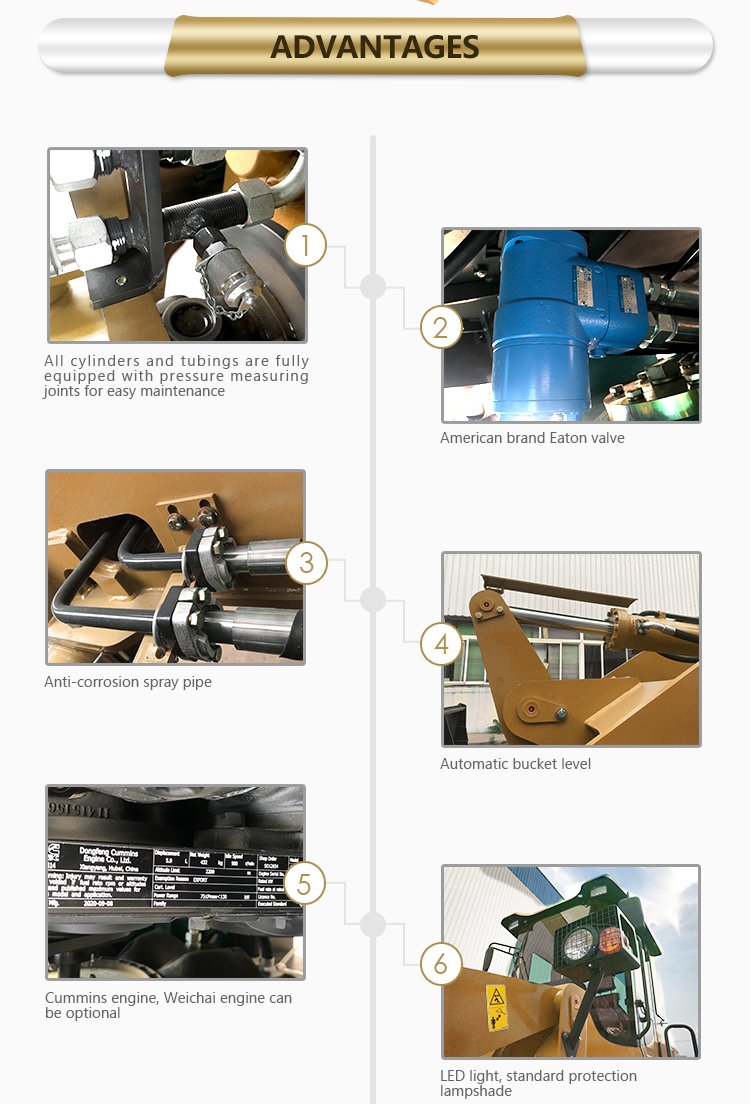

1.Weichai Engine, low RPM speed Engine, strong power, energy conservation and environmental protection.DF-Cummins engine, Steyr engine, Shangchai engine is optional.
2.The maximum dumping height is 3400mm. Articulated frame with small turning radius makes the wheel loader flexible and convenient
to operate.
3.The single rocker arm Z-form reversal mechanism working device has large breakout force due to the optimization design.
4.Chinese famous Brand Yunyu axle features larger carrying capacity and can forbid the oil leak efficiency, high reliability and
convenient maintenance.
5.Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation. ROPS/FOPS cab is optional.
to operate.
3.The single rocker arm Z-form reversal mechanism working device has large breakout force due to the optimization design.
4.Chinese famous Brand Yunyu axle features larger carrying capacity and can forbid the oil leak efficiency, high reliability and
convenient maintenance.
5.Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation. ROPS/FOPS cab is optional.
Specification of LTMG 3T wheel loader LT936 | ||
Operating Weight | 10100kg | |
Standard Bucket capacity | 1.7m3 | |
Rated Load | 3000kg | |
MAX-Tractive Force | ≥100KN | |
MAX-Breakout Force | 98KN | |
MAX-Climbing Angle | 28° | |
MAX-Dumping Height | 3400mm | |
Dumping Reach | 1290mm | |
Overall dimension(L×W×H) | 7200×2350×3200mm | |
Engine | WEICHAI DEUTZ | |
Model | WP6G125E22 | |
Type | 4-Stroke, Inline diesel engine, turbo charged direct-injection | |
Qty of Cylinder-Bore/Stroke | 6-105×120mm | |
Rated Power | 92KW | |
Rated Speed | 2200r/min | |
Transmission System | ||
Torque Convertor | Single-stage four-element double-turbine hydraulic converter | |
Transmission | Planetary hydraulic gearbox | |
Gear Shift | 2 Forwards, 1 Reverse | |
Service Speed | Forward 1/2………0-8km/h 0-13.5km/h | |
Forward 3/4………0-25km/h 0-36km/h | ||
Reverse 1/2………0-9.5km/h 0-30km/h | ||
Tyre Type | 17.5-25 | |
Tyre Pressure | 0.27-0.32MPa | |
Sheering System | ||
Type | All Hydraulic Coaxial Flow Amplificationg Steering System | |
Sheering Angle | 35° Each Side | |
Min-Turning Radius | Outside of bucket 6415mm | |
Outside if the rear tyre 5720mm | ||
Hydraulic System | ||
System Working Pressure | 16.0MPa | |
Boom Lifting Time | ≤6.8s | |
Total | ≤12.5s | |
Brake System | ||
Service Brake | Air Over Hydraulic Disc Brake | |
Parking brake | Flexible shaft control and clamp-type disc parking brake | |
Fill Capacity | ||
Fuel tank | 180L | |
Hydraulic tank | 200L | |
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
