- After-sales Service Provided:Overseas third-party support available
- Brand:LTMG

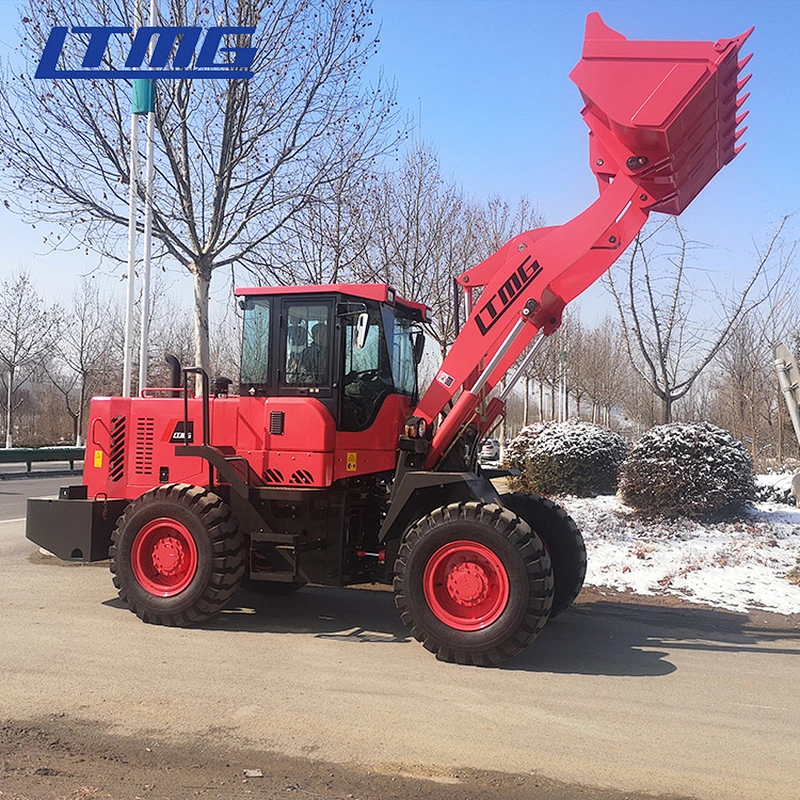

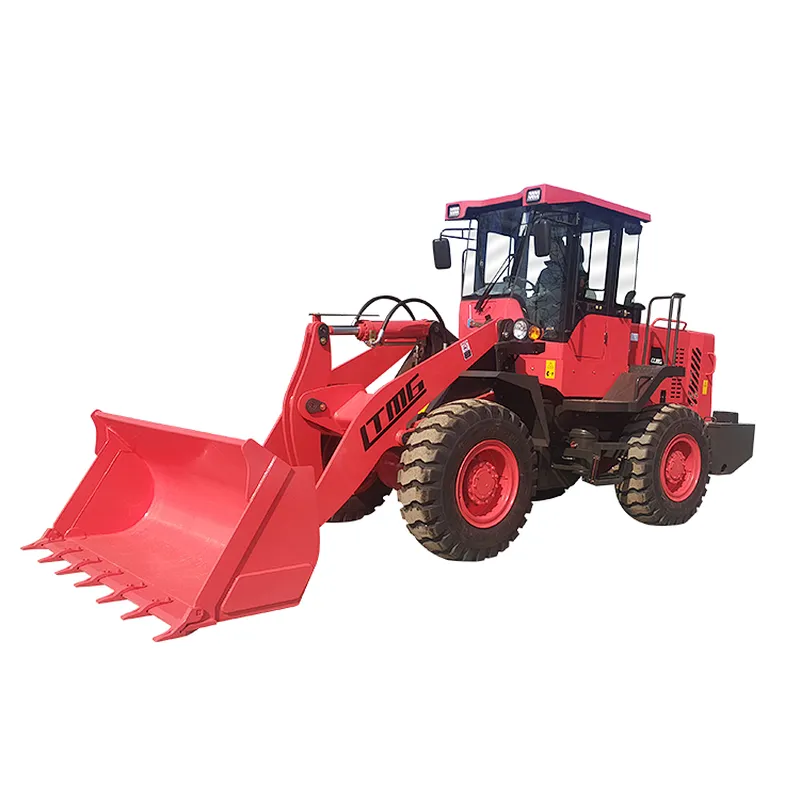

- Item:3ton wheel loader
- Engine:Weichai
- Bucket capacity:1.7 CBM

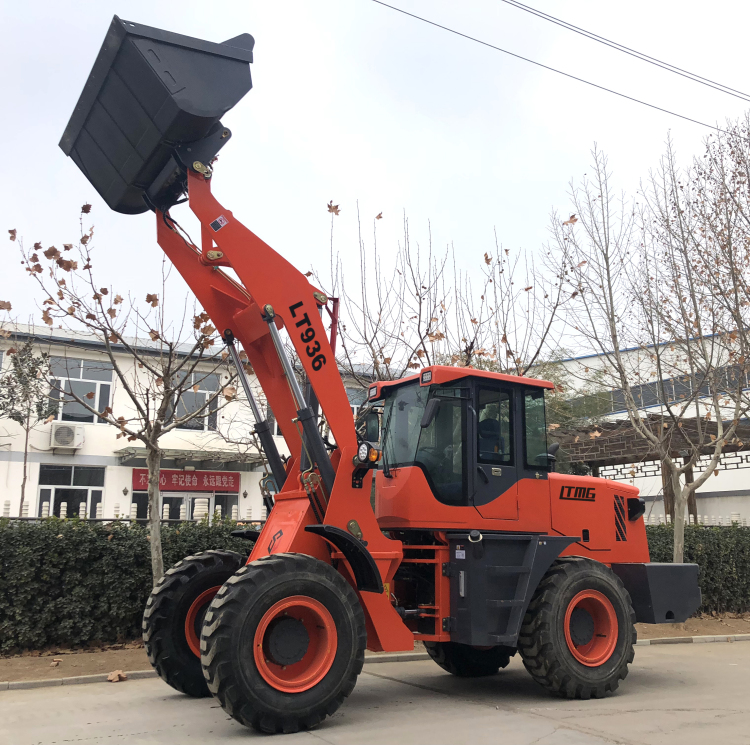

- Model:LT936
- Tire:17.5-25
- Warranty:1 year or 2000 working hours
- Web:www.ltmg.cn
- Fuel tank:180L
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Canada
- Local Service Location:United Kingdom
- Local Service Location:Germany
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:Malaysia
- Local Service Location:Australia
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:United Kingdom
- Showroom Location:France
- Showroom Location:Germany
- Showroom Location:Brazil
- Showroom Location:Spain
- Showroom Location:Thailand
- Showroom Location:Malaysia
- Showroom Location:Australia
- Condition:New
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 Year
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:JINHU
- Hydraulic Pump Brand:JINAN
- Hydraulic Valve Brand:JINAN
- Engine Brand:WEICHAI
- UNIQUE SELLING POINT:High operating efficiency
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1 Year
- Core Components:Pressure vessel
- Core Components:Engine
- Core Components:Gear
- Core Components:Motor
- Core Components:Pump
- Core Components:Bearing
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Dimension(Long * Breadth * High):7200*2350*3200mm
- Certification:ISO9001:2008 / CE
- Machine Weight:10400KG
- Power:92KW
- Bucket capacity:1.7 m3
- Marketing Type:New Product 2021
The Specification of 3ton wheel loader | ||

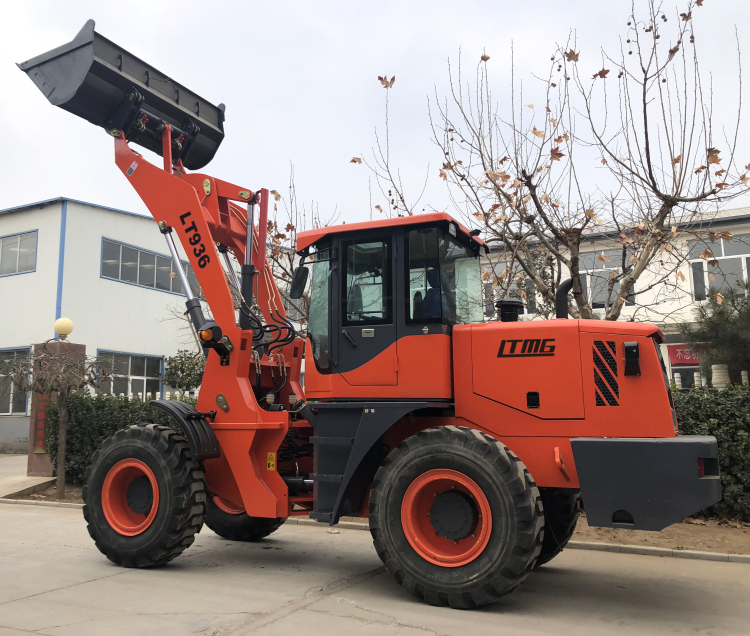

Model | LT936 | |
Operating weight | 10,400 kg | |
Rated load | 3,000 kg | |
Bucket capacity | 1.7m³ | |
Engine model | Deutz WP6G125E22 | |
Rated engine power | 92kw | |
Rated rotate speed | 2200r/min | |
Maximum torque | 500N.m | |
Breakout force | 98KN | |
Driving speed | ||
Forward Ⅰ | 0-8km/h | |
Forward Ⅱ | 0-13.5km/h | |
Forward Ⅲ | 0-25km/h | |
Forward IV | 0-36km/h | |
Reverse Ⅰ | 0-9.5km/h | |
Reverse Ⅱ | 0-30km/h | |
Grade ability | 28° | |
Overall length | 7200mm | |
Overall width | 2350mm | |
Overall height | 3200mm | |
Wheel base | 2850mm | |
Track base | 1800mm | |
Minimum ground clearance | 450mm | |
Maximum dumping height | 3400mm | |
Maximum dumping reach | 1290mm | |
Raise time | ≤6.8s | |
Total | ≤12.5s | |
Main Features:
1.Quick hitch for special needs such as the log grapple, block fork, snow blade, grass fork,enlarged bucket and teeth etc.
2.Weichai-DeutzDeutz WP6G125E22 92KW Engine, low RPM speed Engine, strong power, energy conservation and environmental protection. Import engine, Shangchai engine is optional.
3. To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
4. The maximum dumping height is 3400mm. Articulated frame with small turning radius makes the wheel loader flexible and convenient to operate.

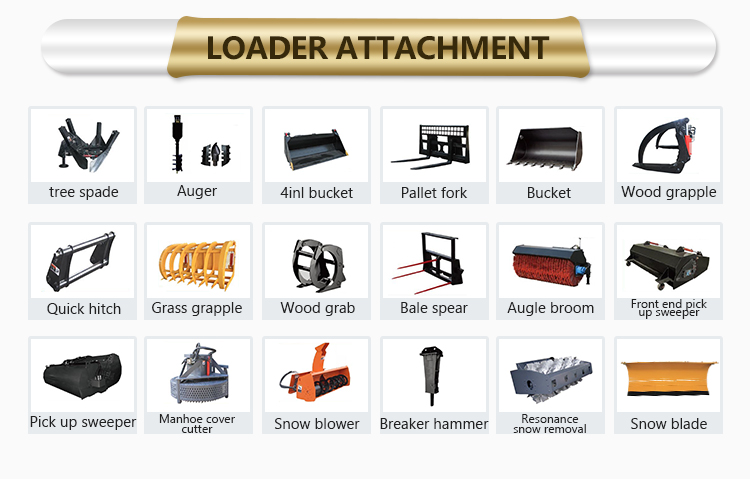

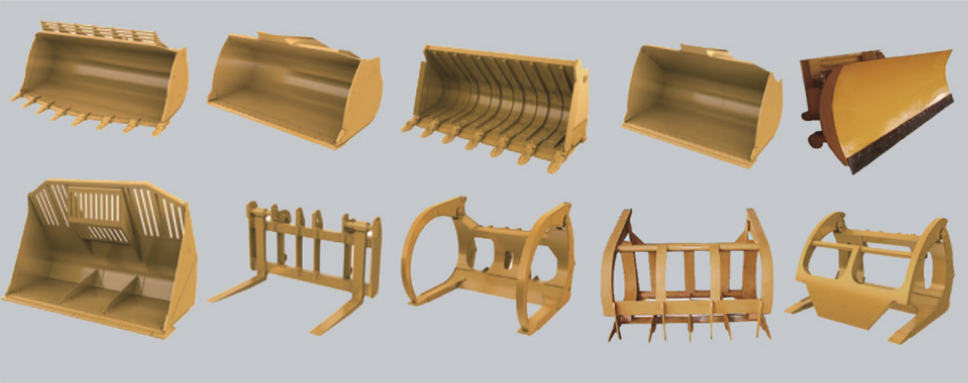

5.Optional attachment: Floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
