- Applicable Industries:Farms
- Applicable Industries:Construction works
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:United States
- Local Service Location:France
- Local Service Location:Chile
- Local Service Location:Algeria
- Local Service Location:Nigeria
- Showroom Location:United States
- Showroom Location:France
- Showroom Location:Argentina
- Showroom Location:Australia
- Showroom Location:Morocco
- Condition:New
- Place of Origin:CN;FUJ
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 year
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- UNIQUE SELLING POINT:High power engine
- Brand Name:LTMG
- Dimension(Long * Breadth * High):8600*3230*3800mm
- Certification:CE/ISO
- Machine Weight:25000kg
- Power(W):239KW
- Bucket capacity:4.5 - 6m3
- Applicable Industries:Construction Machinery industry
- Hydraulic Cylinder Brand:Longyan Jinhu
- Hydraulic Pump Brand:Jinan
- Hydraulic Valve Brand:Libao
- Engine Brand:WEICHAI

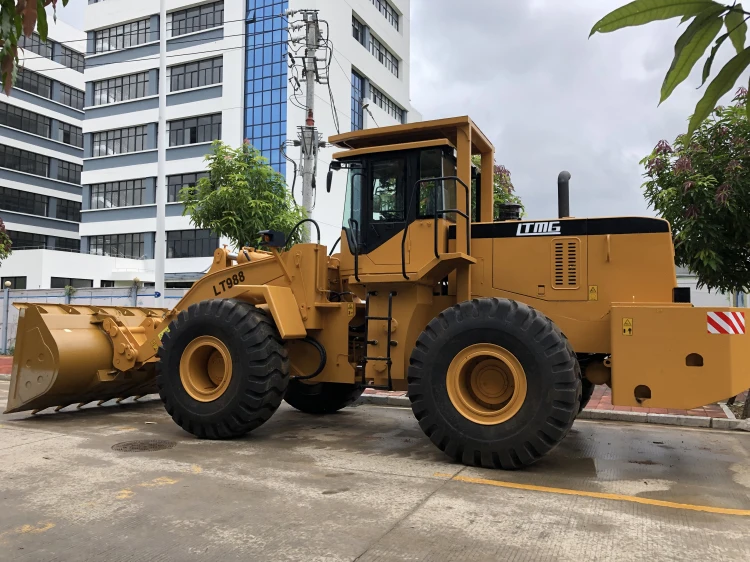

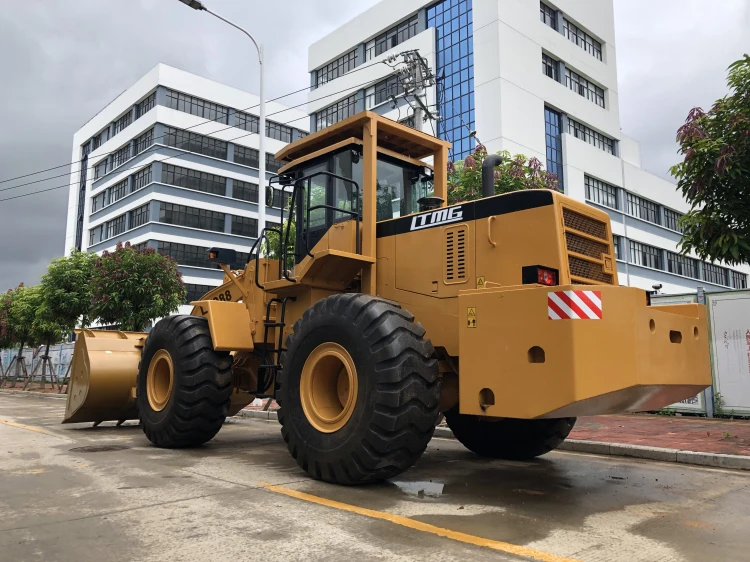

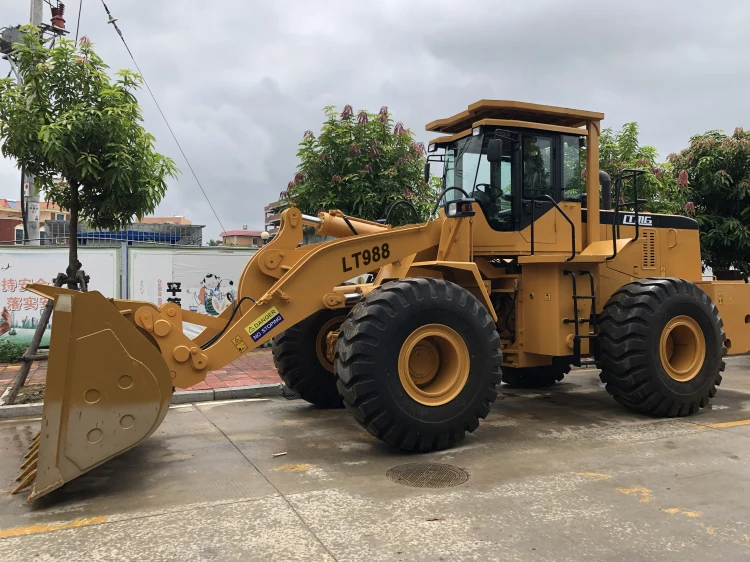

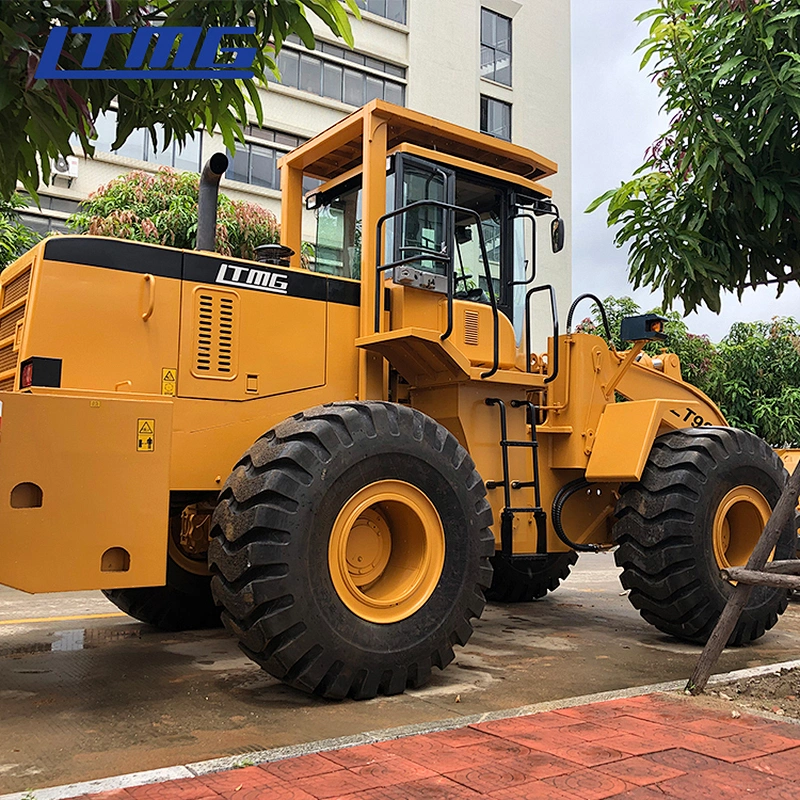

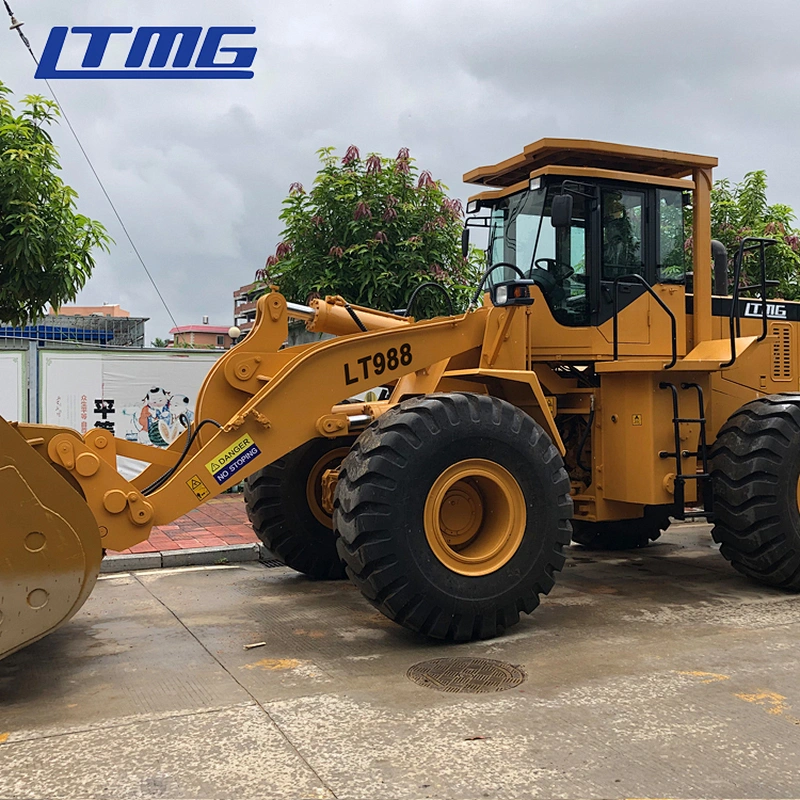

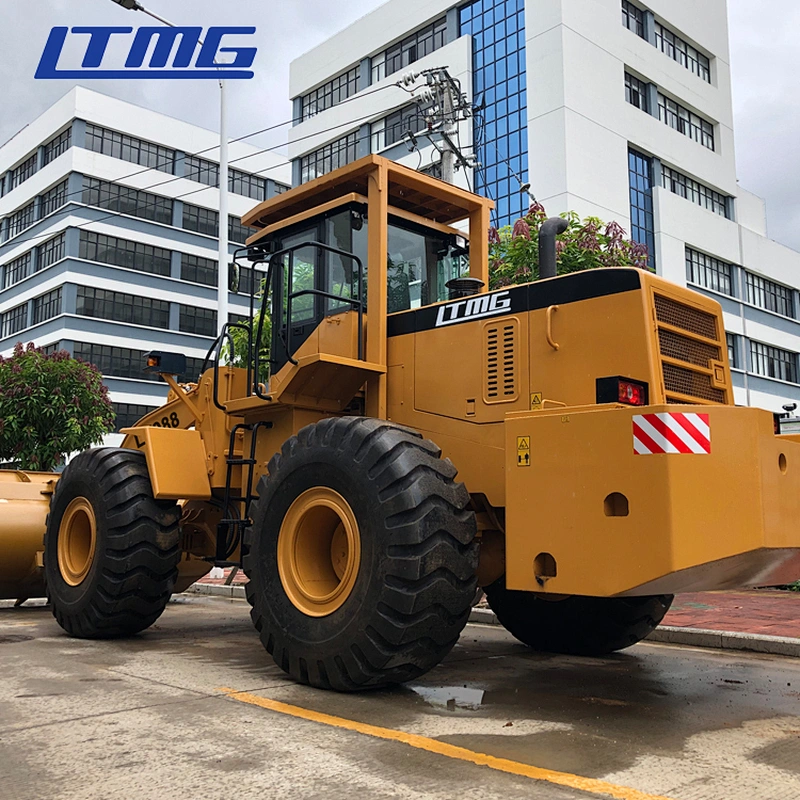

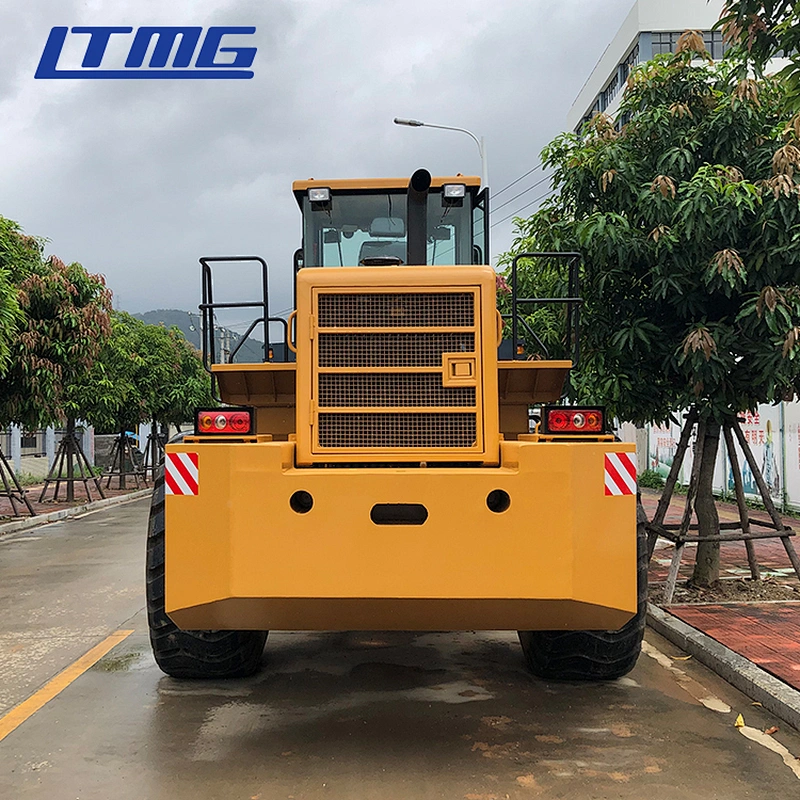

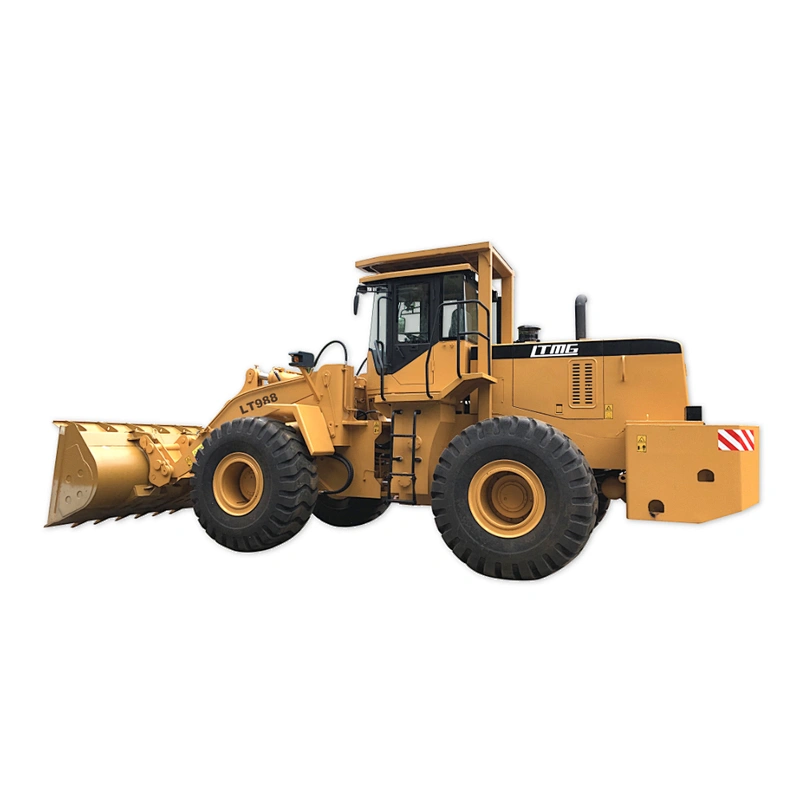

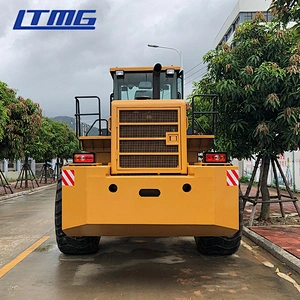

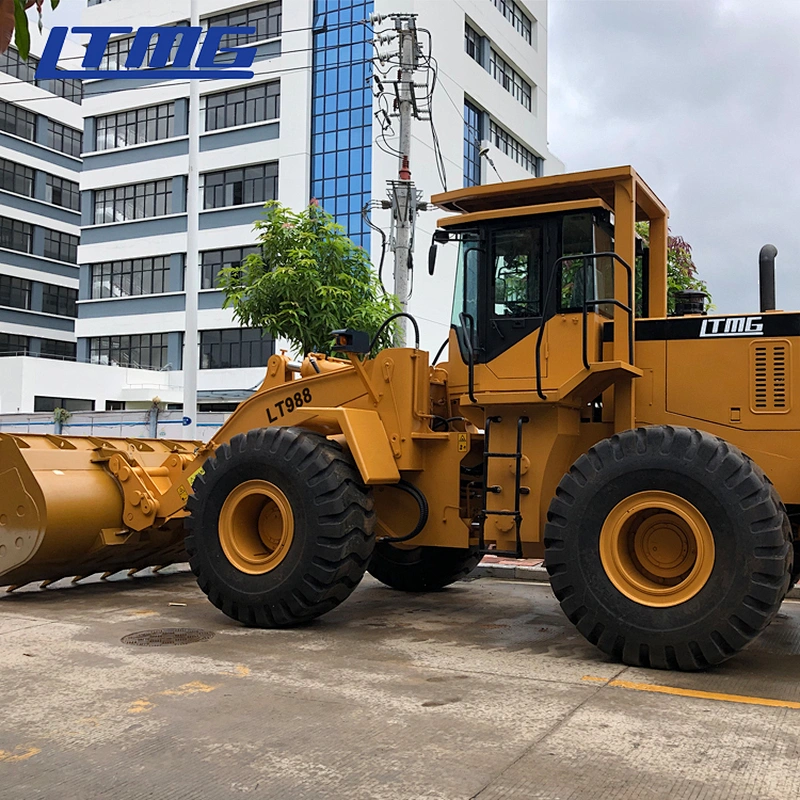

The specification of LTMG wheel loader 8 ton Payloader | ||||
Model | LT988 | |||
Rated bucket capacity | 4.5-6cm3 | |||
Rated load | 8000kg | |||
Operating weight | 28500kg | |||
Min.clearance | 480mm | |||
Max.traction | 245KN | |||
Max.drawing force | 260KN | |||
Boom lifting time | 6.9s | |||
Engine | Type | Cummins/6LTAA8.9-C325 | ||
emission standard | 国II | |||
Rated kw/rpm | 239@2200 | |||
Max torque/rpm | 1350@1400 | |||
No.of cylinder | 6 | |||
displacement | 8.9L | |||
Total time of three devices | 11.8s | |||
Rated power | 250KW | |||
Rated rotary speed | 2100r/min | |||
Travel speed | Forward/Backward I Gear | 7/7km/h | ||
Forward/Backward II Gear | 11.5/11.5km/h | |||
Forward/Backward III Gear | 24.5/24.5km/h | |||
Forward/Backward IV Gear | 35.5km/h | |||
Tyre Model | 29.5-25-22PR | |||
1. Axle: Reinforced Q axle features larger carrying capacity and can forbid the oil leak efficiently, high reliability and convenient to maintenance.
2. Brake systems: Four wheel double-line caliper disc braking system with a gas container in the back to guarantee a more safety and reliable operation.
3. Steering system: The coaxes flow-amplified, hydraulic compensated steering system makes operation easy and performance reliable.
4. Hydraulic systems: To adopt confluence of dual-pump confluence and difference technology, rational use of engine power, reduce energy consumption effectively.
5. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
6.Optional attachment: floating forks, tire chain, log grapple, block fork, snow blade, grass fork, enlarged bucket and teeth etc.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
