- Applicable Industries:Construction works
- After Warranty Service:Spare parts
- Local Service Location:Brazil
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:South Africa
- Showroom Location:Brazil
- Showroom Location:Mexico
- Showroom Location:Colombia
- Condition:New
- Place of Origin:CN;FUJ
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Engine Brand:WEICHAI
- UNIQUE SELLING POINT:Long lifetime
- Brand Name:LTMG
- Dimension(Long * Breadth * High):8380*3100*3560mm
- Certification:CE,ISO
- Machine Weight:19.7T
- Power(W):199KW
- Bucket capacity:3.5m3
- Applicable Industries:earthwork
- Hydraulic Cylinder Brand:Longyan Jinhu
- Hydraulic Pump Brand:Jinan
- Hydraulic Valve Brand:Libao

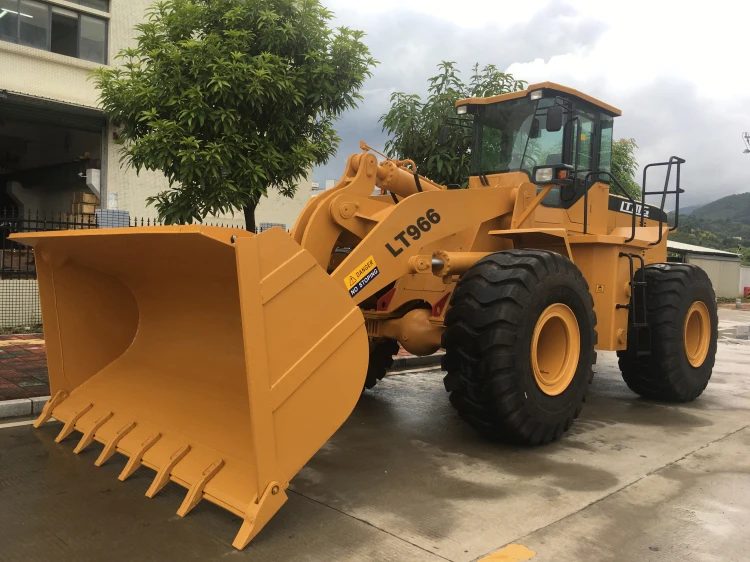

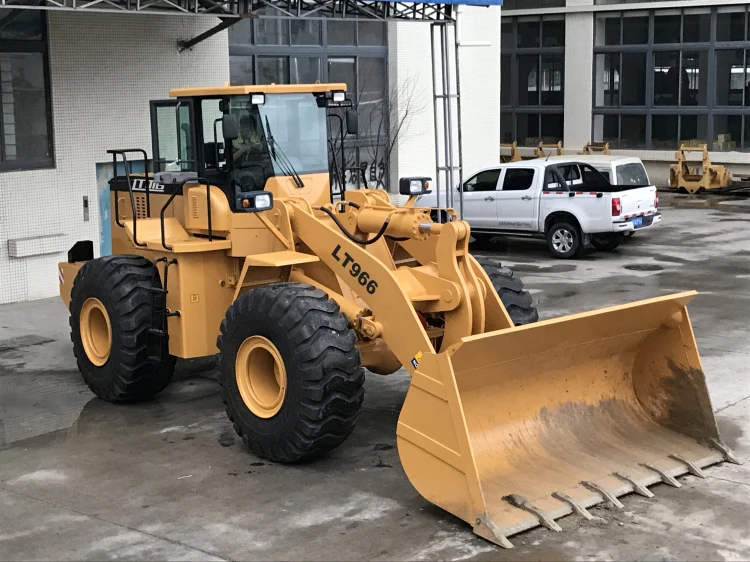

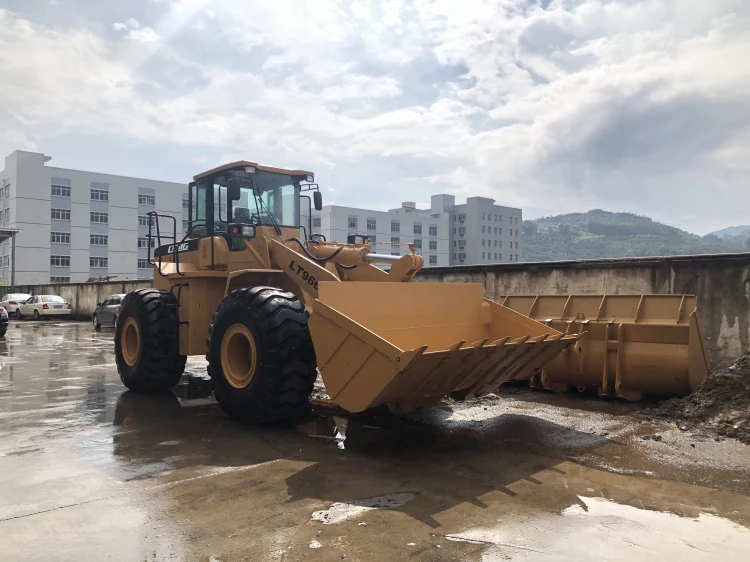

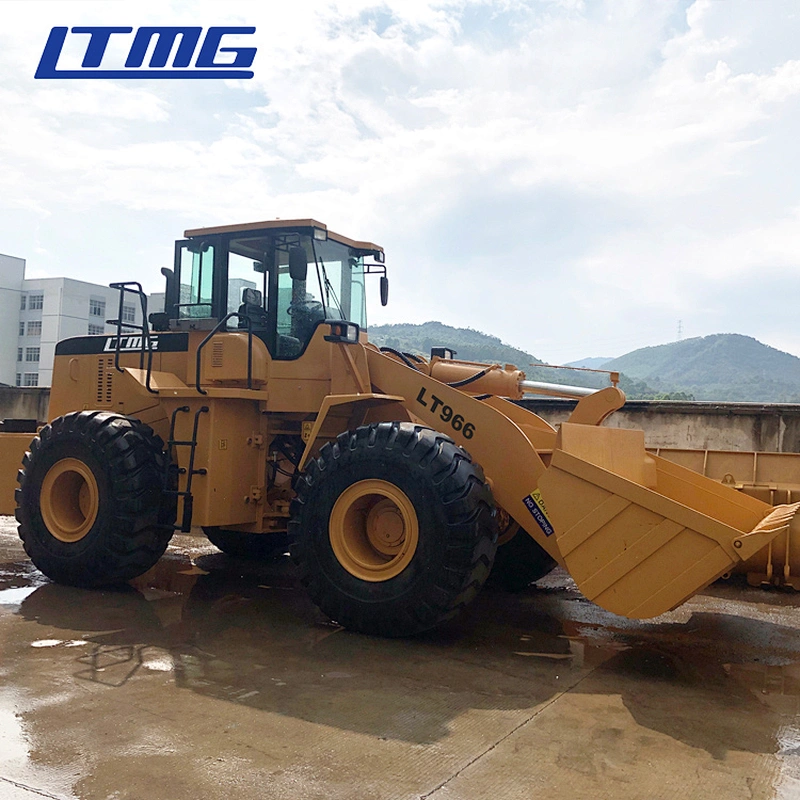

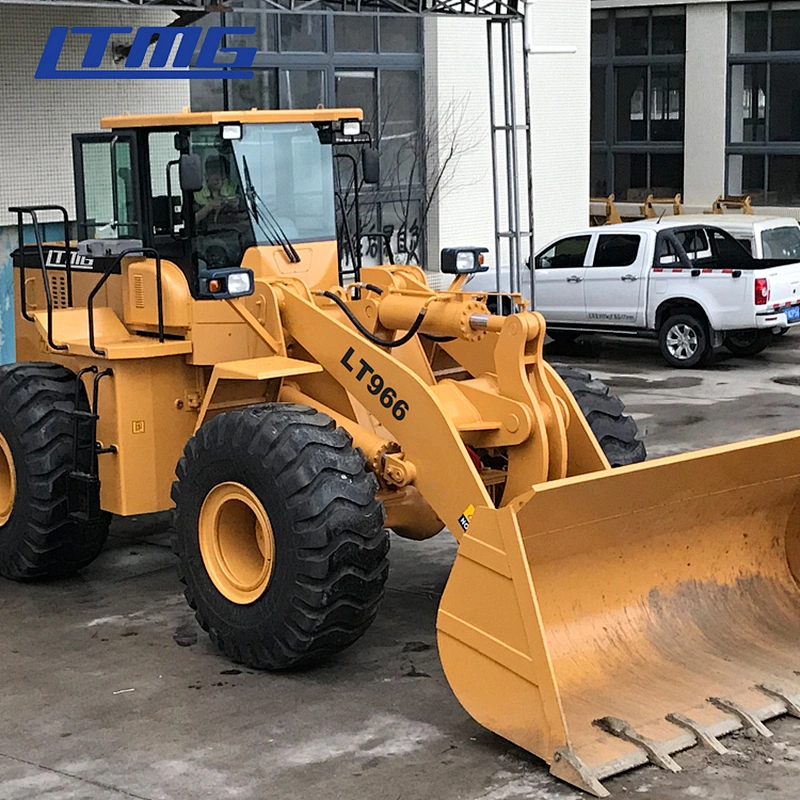

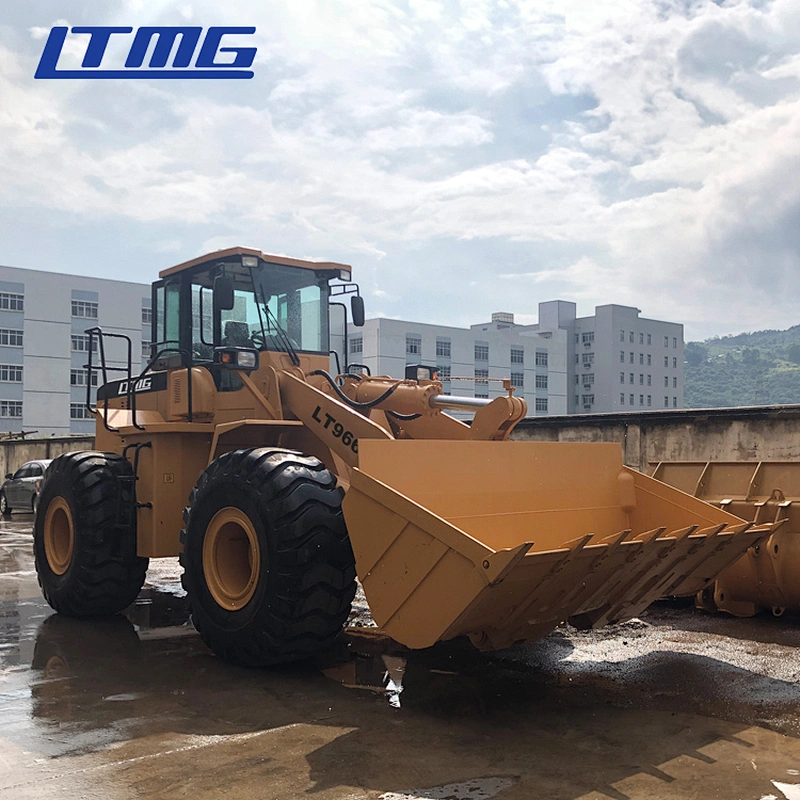

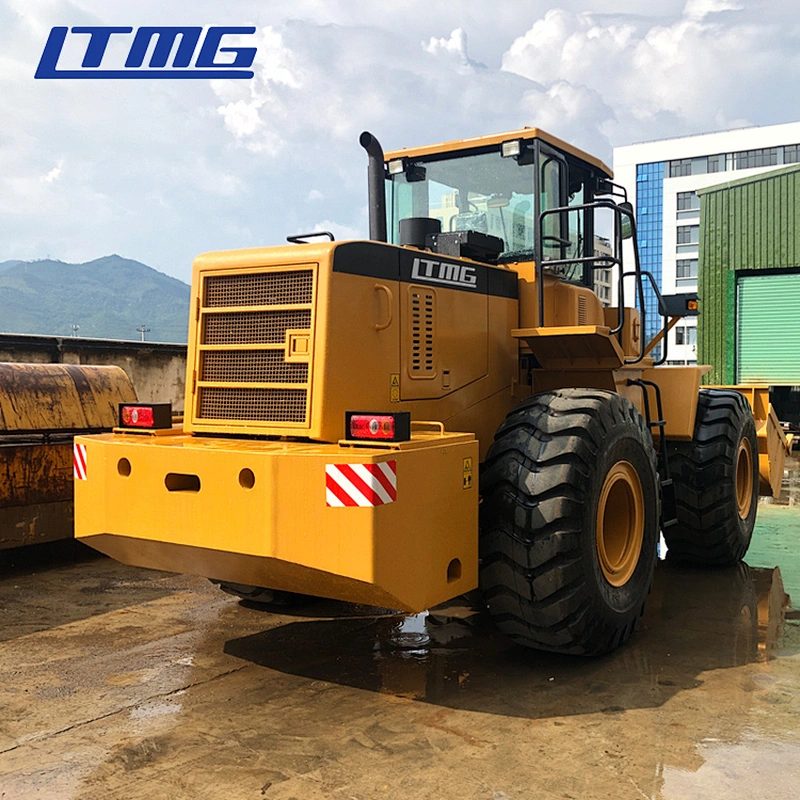

The configuration description of front loading 6 ton wheel loader front shovel loader with CE | ||
Operating weight | 19.5T | |
Rated load | 6000KG | |
Bucket capacity | 3.5m3 | |
Engine model | WEICHAI WD10G270E201 | |
Rated engine power | 199KW | |
Rated rotate speed | 2200r/min | |
Max.torque | 920N.m | |
Max.traction force | ≥185KN | |
Driving speed | ≥200KN | |
Forward I | 0-8.5km/h | |
Forward II | 0-16.5km/h | |
Forward III | 0-25km/h | |
Forward IV | 0-42km/h | |
Reverse I | 0-8.5km/h | |
Reverse II | 0-16km/h | |
Grade ability | 28° | |
Overall length | 8380mm | |
Overall width | 3100mm | |
Overall height | 3560mm | |
Bucket width | 3170mm | |
Wheel base | 3350mm | |
Track base | 2360mm | |
Min.ground clearence | 470mm | |
Max.dumping height | 3300mm | |
Max.dumping reach | 1290mm | |
Transmission | countershaft | |
Fuel tank | 230L | |
Hydraulic tank | 270L | |
Raise time | ≤6.8s | |
Total | ≤12.5s | |
Tyre type | 26.5-25 | |
1.Load sense hydraulic system featuring automatic adjusting operation condition, improving fuel efficiency. 2.Intelligent independent cooling system, fan rotation on request for energy and noise reduction.
3.Separated cooling layout with improved cooling efficiency and fuel efficiency. 4.Full automatic torque converter, two working mode, enabling the operator match the optimum efficiency according to working requirement. 5.Pilot control lever integrating F-N-R shifting function minimizing operation motions with higher working efficiency. 6.Improved traveling performance and load retention.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
