- Condition:New
- Place of Origin:CN;FUJ
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 year
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- UNIQUE SELLING POINT:High power engine
- Brand Name:LTMG
- Dimension(Long * Breadth * High):4960*1620*2420mm
- Certification:CE ISO
- Machine Weight:2990kg
- Hydraulic Cylinder Brand:Jinhu
- Hydraulic Pump Brand:Jinan
- Hydraulic Valve Brand:jinan
- Engine Brand:Xinchai

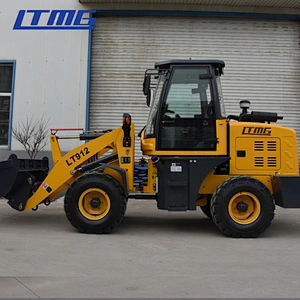

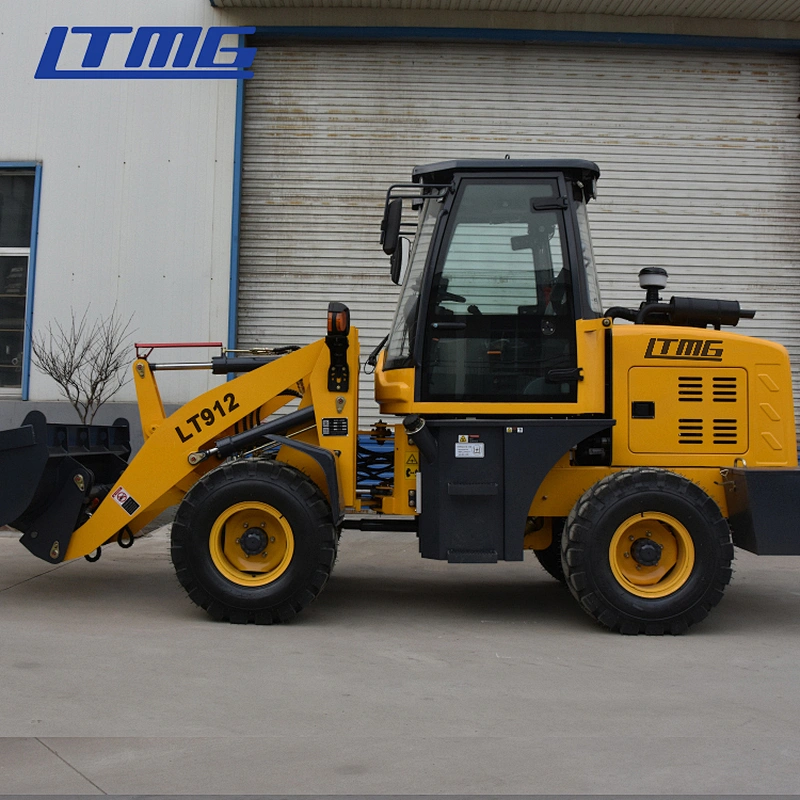

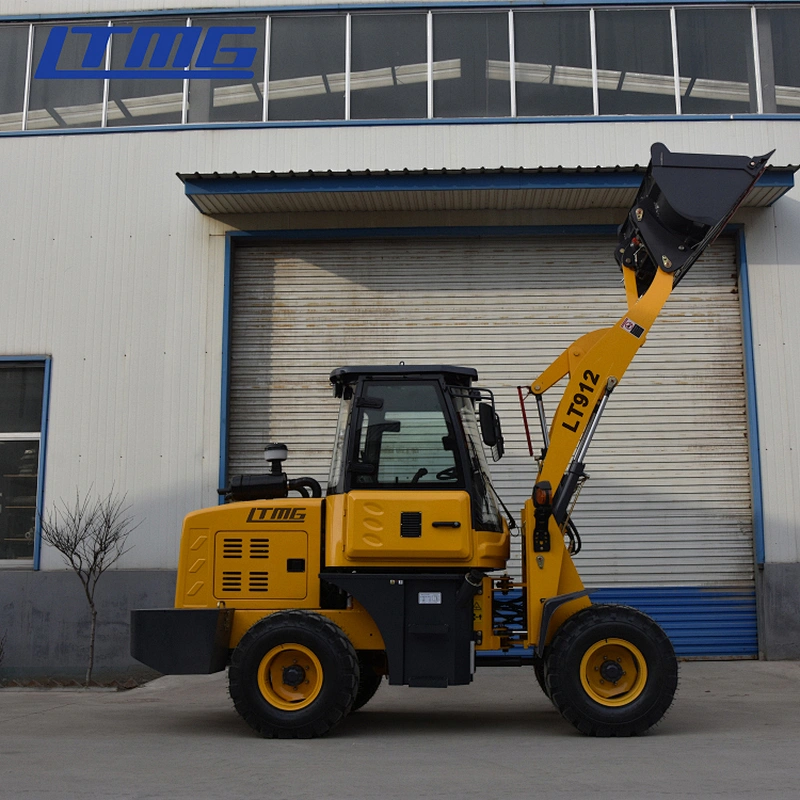

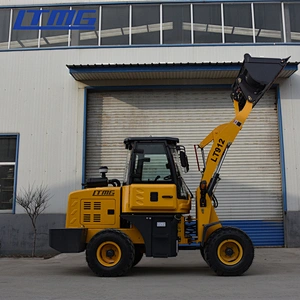

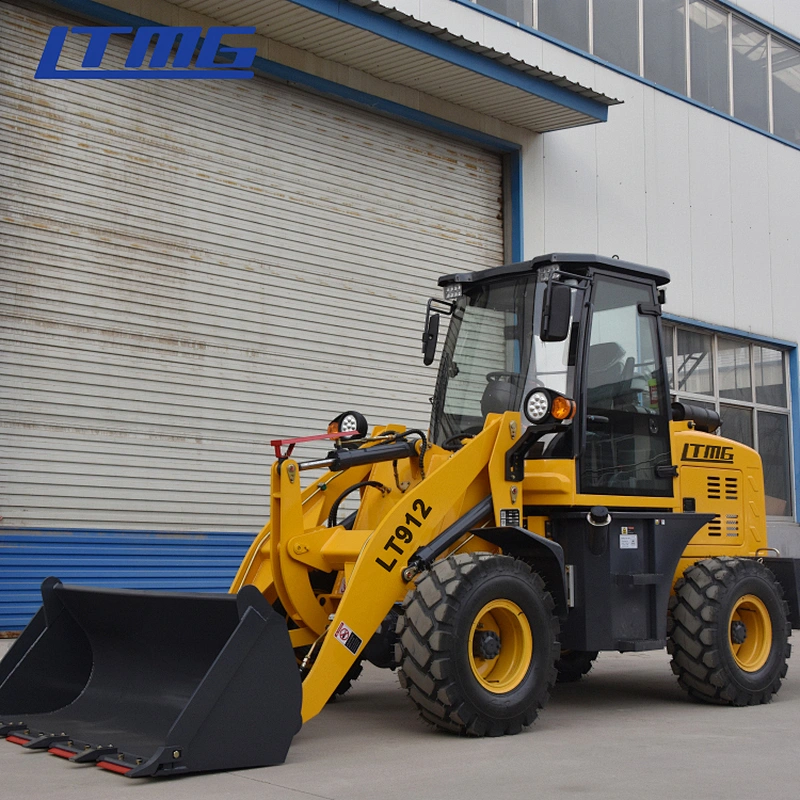

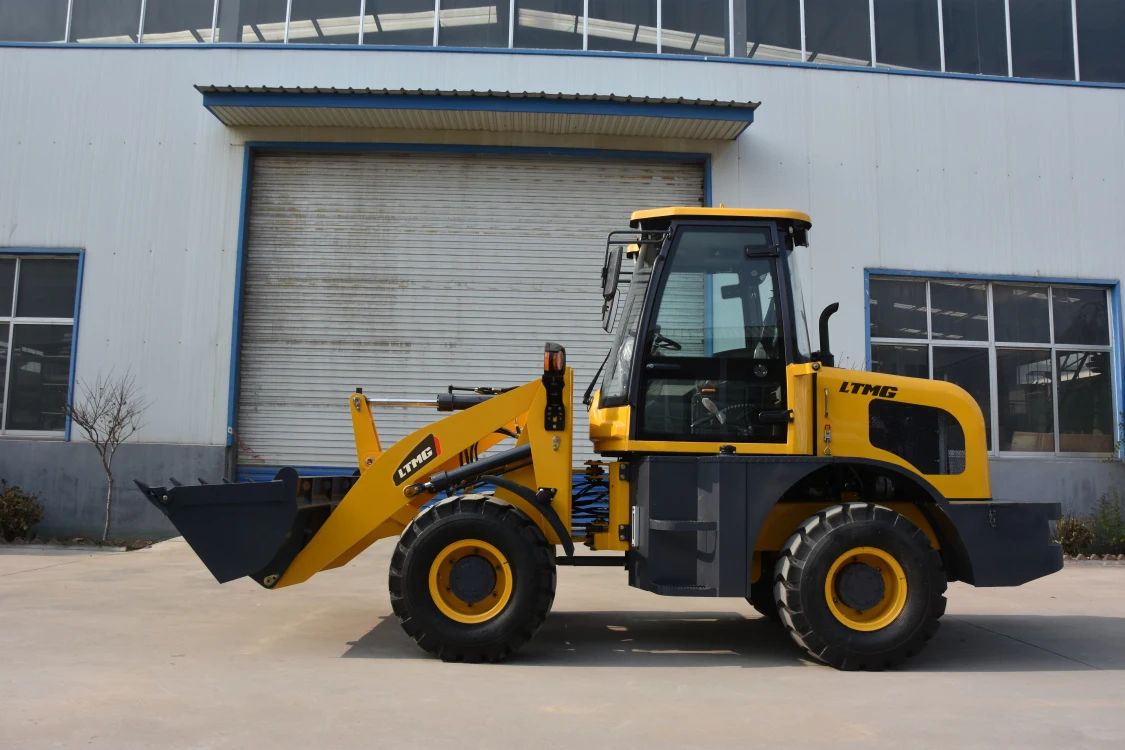

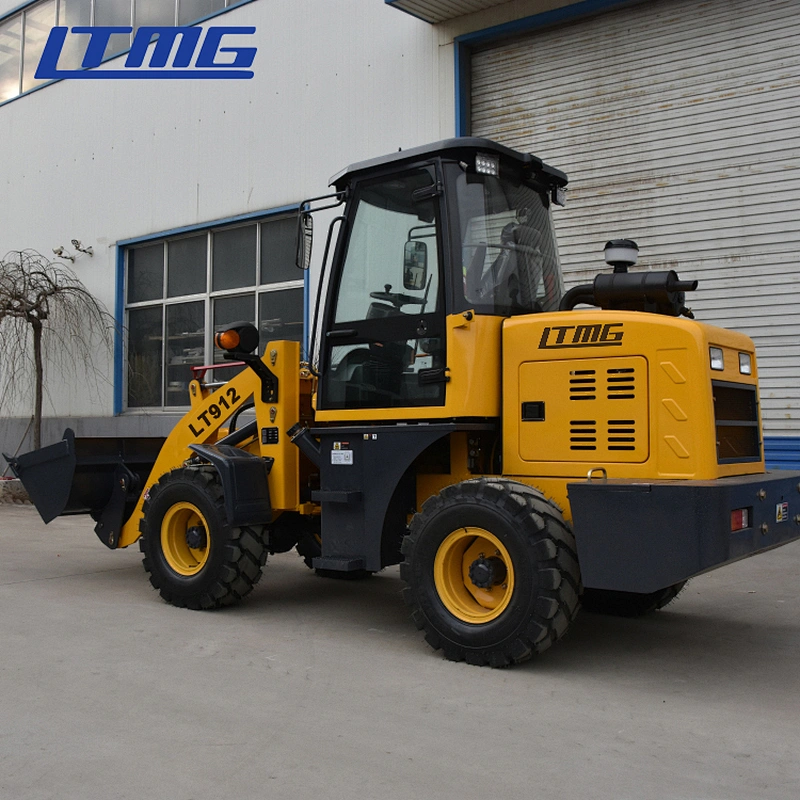

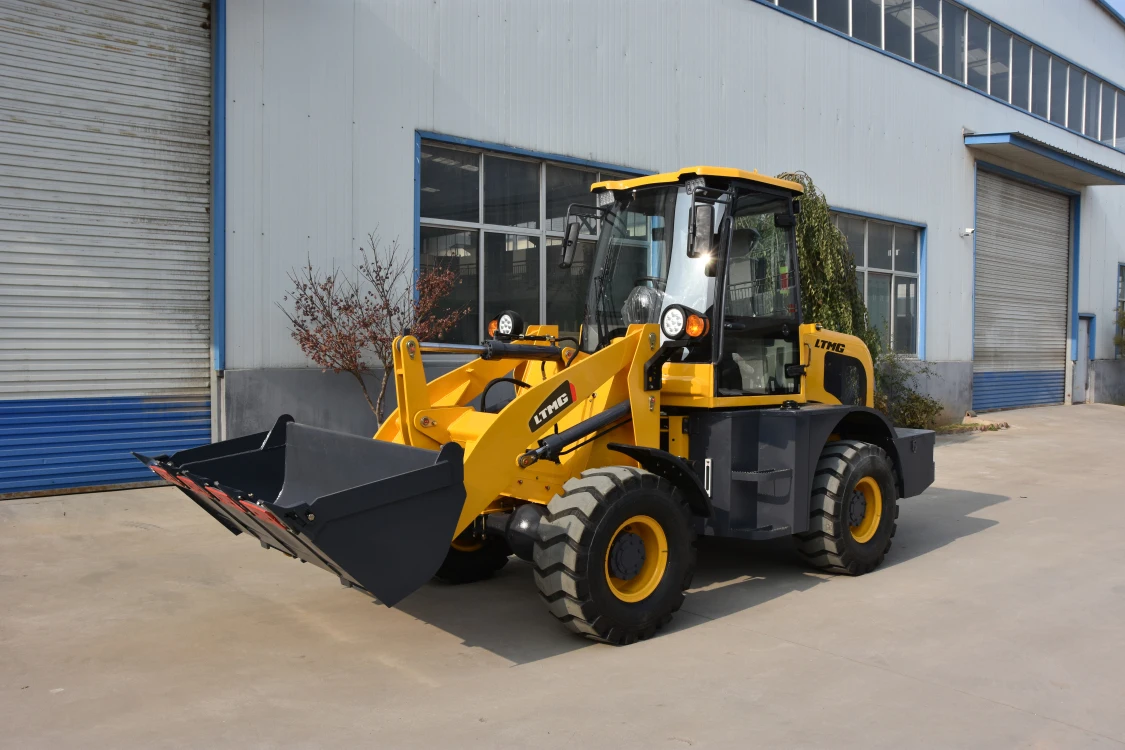

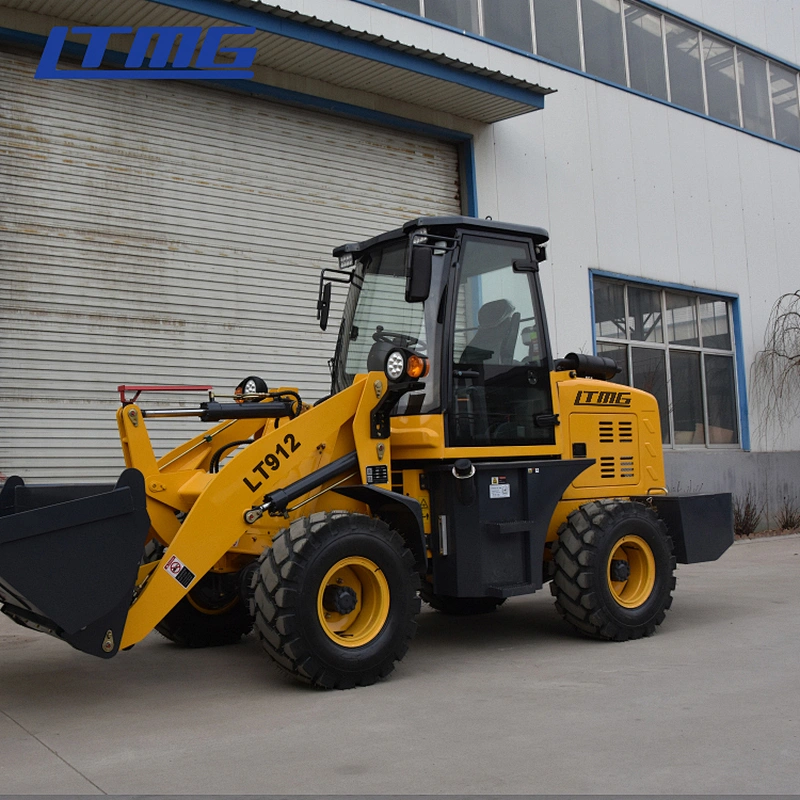

Features of China LTMG mini 1 ton wheel loader with competitive price
1.Hangzhou Advance Gear Group WG180 torque converter and fix-shaft gearbox.
2.Strengthened axles owns large bearing capacities and high reliability.
3.Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
4.Air over hydraulic brake system; eight caliper disc brakes,.air break control, expand hoof type parking brake and emergency brake.
5.Large space articulated frame makes operation and traveling stable,working device with automatically leveling ability at high position.
The specifications of China LTMG mini 1 ton wheel loader with competitive price | ||
Operating weight | 2990KG | |
Rated load | 1000kg | |
Bucket capacity | 0.5m³ | |
Engine model | Xinchai C490 | |
Rated engine power | 33KW | |
Rated rotate speed | 2400r/min | |
Max.torque | 221.9N.m | |
Breakout force | 55KN | |
Driving speed | ||
Forward Ⅰ | 0-9km/h | |
Forward Ⅱ | 0-22km/h | |
Reverse Ⅰ | 0-9km/h | |
Reverse Ⅱ | 0-22km/h | |
Gradeability | 30° | |
Overall length | 4960mm | |
Overall width | 1620mm | |
Overall height | 2420mm | |
Wheel base | 1820mm | |
Min.ground clearance | 230mm | |
Max.dumping height | 2750mm | |
Max.dumping reach | 895mm | |
Raise time | 5s | |
Total | 10s | |
Tyre type | 8.25-16 | |
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
