- Applicable Industries:Construction works
- Condition:New
- Type:Front Loader
- Moving Type:Wheel Loader
- After-sales Service Provided:Field installation, commissioning and training
- Engine Brand:WEICHAI
- UNIQUE SELLING POINT:Fully hydraulic system
- Warranty:One Year or 2000 Working Hours
- Hydraulic Cylinder Brand:Longyan Jinhu
- Hydraulic Pump Brand:Jinan
- Hydraulic Valve Brand:Libao
- Brand Name:LTMG
- Dimension(Long * Breadth * High):9850*3130*3680mm
- Certification:CE/ISO
- Machine Weight:33000kg
- Place of Origin:CN;FUJ

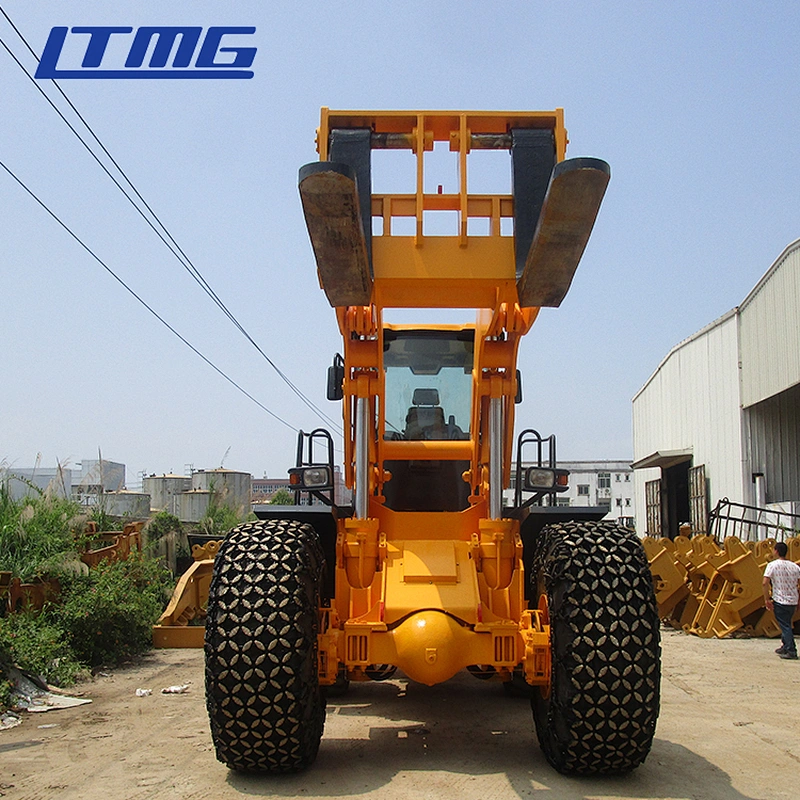

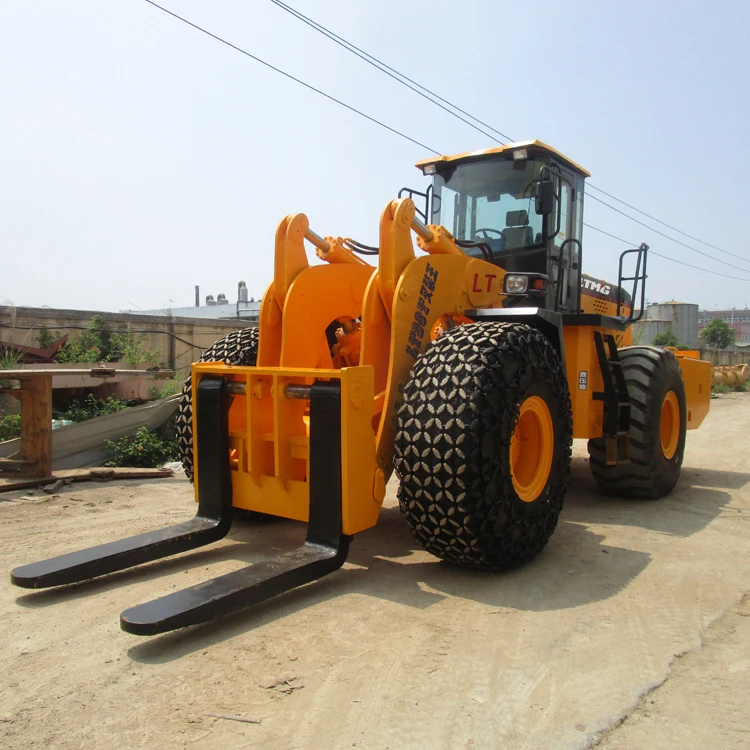

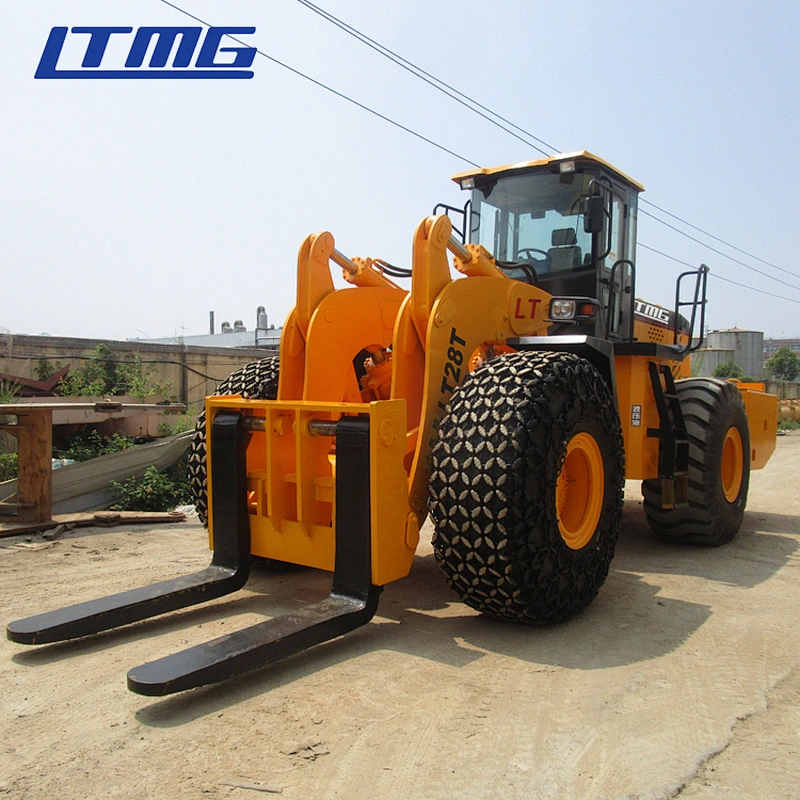

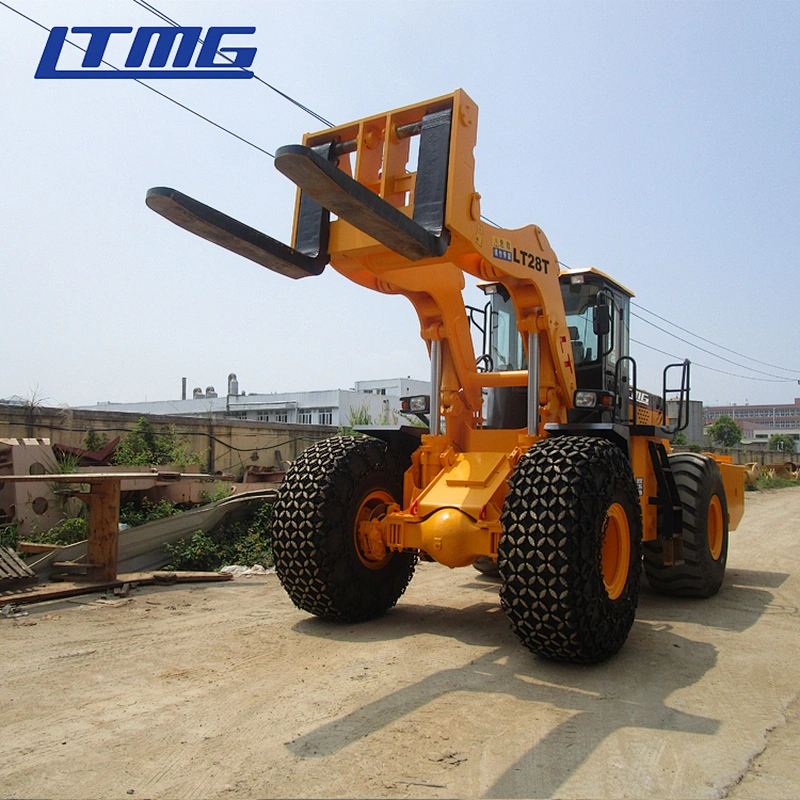

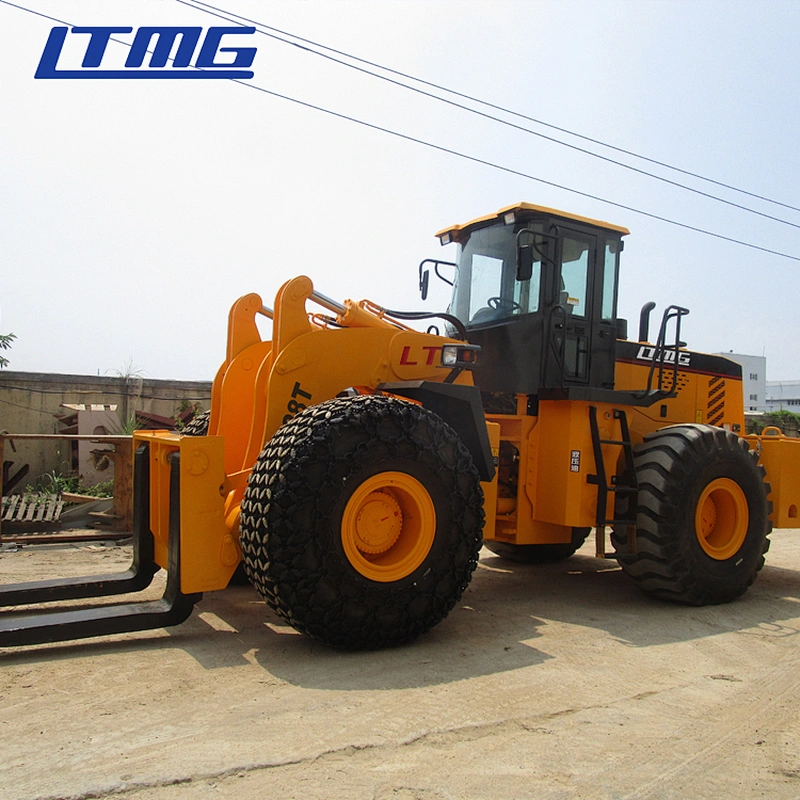

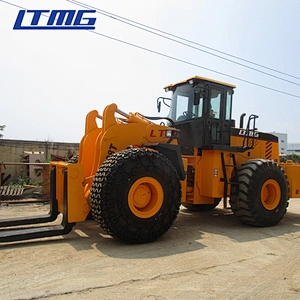

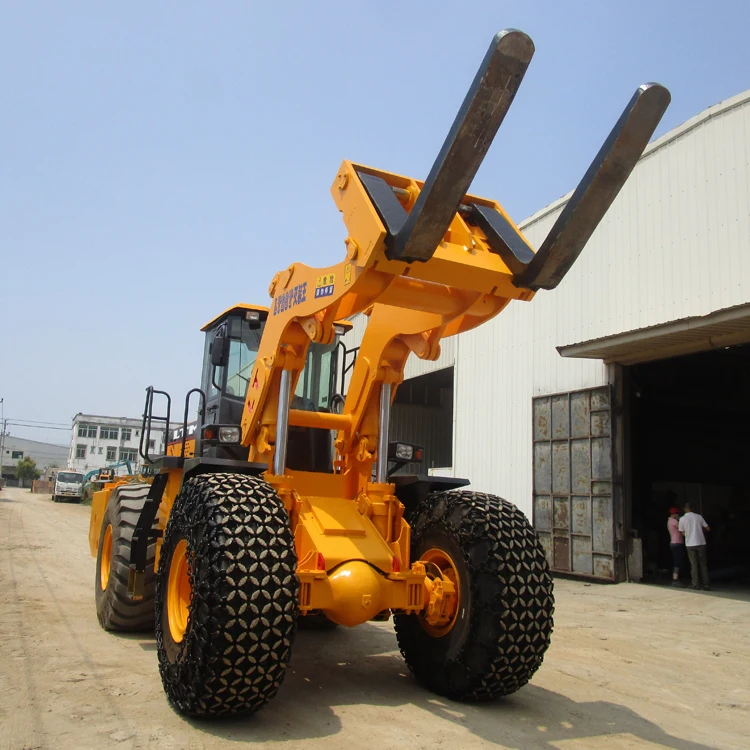

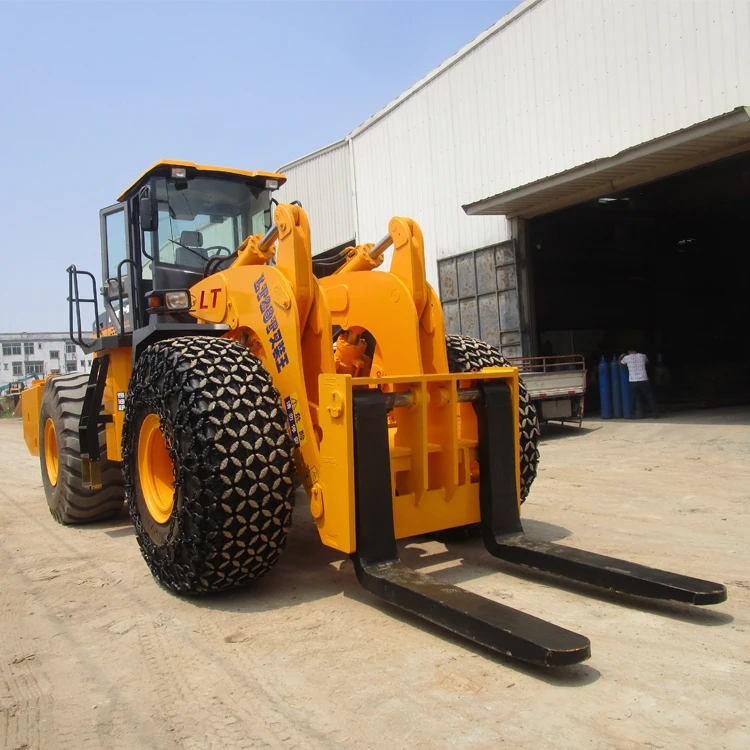

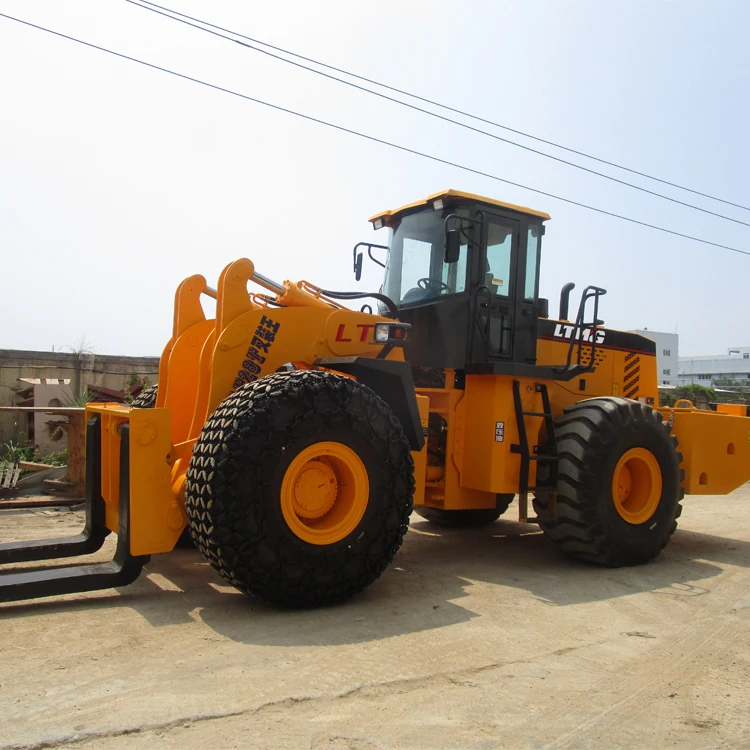

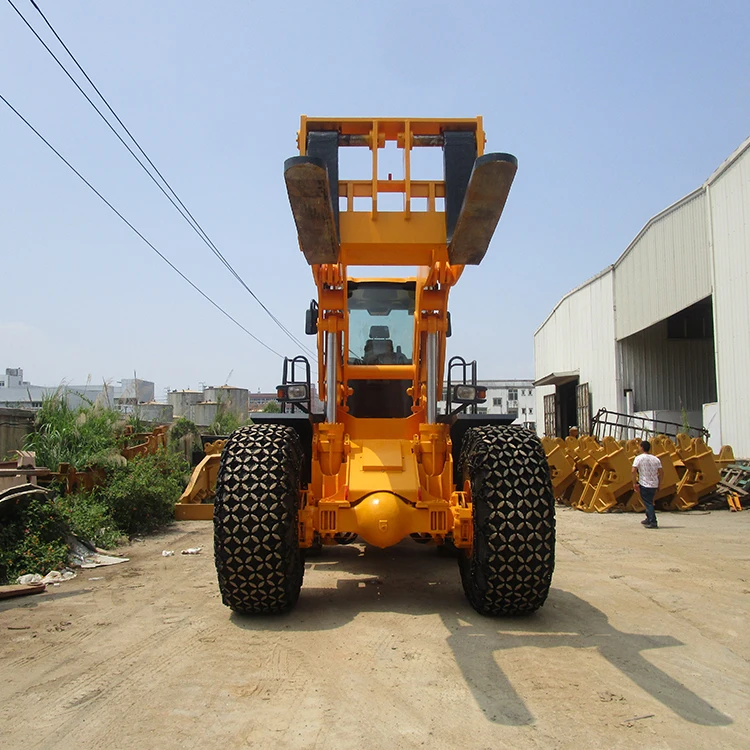

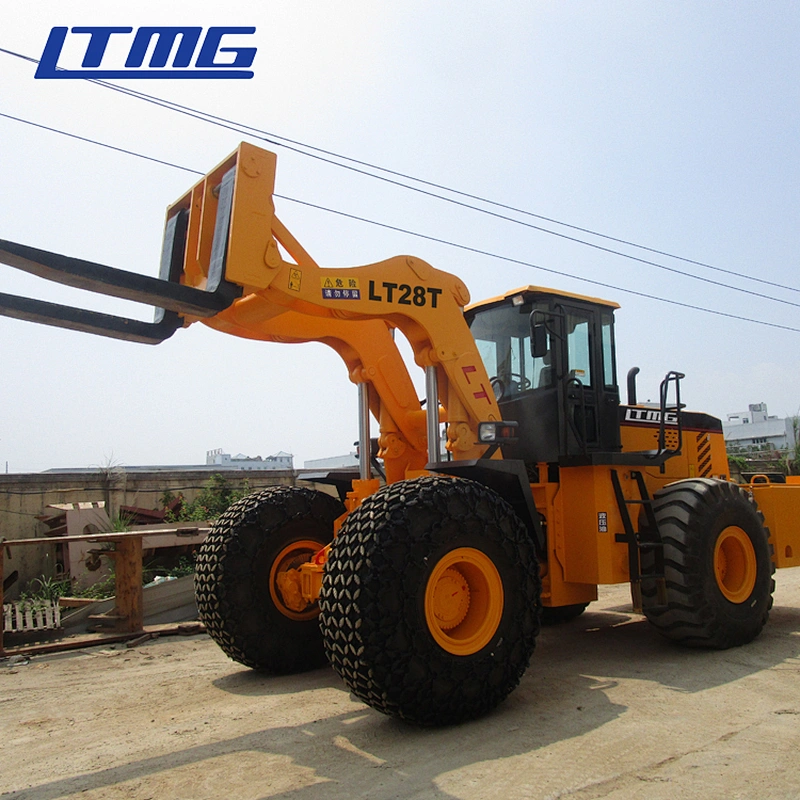

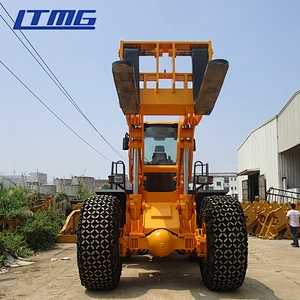

The specification of 28 ton forklift loader
The specifications of 28 ton forklift loader | ||
Model | LT28T | |
Operating weight | 33,000kg | |
Engine model | WD 10G270E201 | |
Rated engine power | 199KW | |
Rated rotate speed | 2200r/min | |
Max.torque | 920N.m | |
Max.dumping height | 3600mm | |
Rated load | 28T/3600mm 30T/1600mm | |
NO.of shifts | Forward 4 For Reverse 2 | |
Driving speed | ||
Forward/ReverseⅠ | 6.5km/h | |
Forward/ReverseⅠ | 12.3km/h | |
Forward | 24km/h | |
Forward | 41km/h | |
Grade ability | >= 25° | |
Max. tranction force | >= 192KN | |
Breakout force | >= 331Kn | |
Overall length | 9850mm | |
Overall width | 3130mm | |
Overall height | 3680mm | |
Wheel base | 4200mm | |
Track base | 3147mm | |
Dimension of the fork | 1500*200*100mm | |
Torque converter | Model: YJ375X3 torque ratio: 3.166 | |
Transmission | 1.5-1.8MPa | |
Raise time | 13.7s | |
Tire type | 26.5-25 | |
1. Bigger hinge pin and hinge bearing raise the carrying capacity, machine more powerful. The exclusive dust-proof layer and sealed articulated points make the loader more durable.

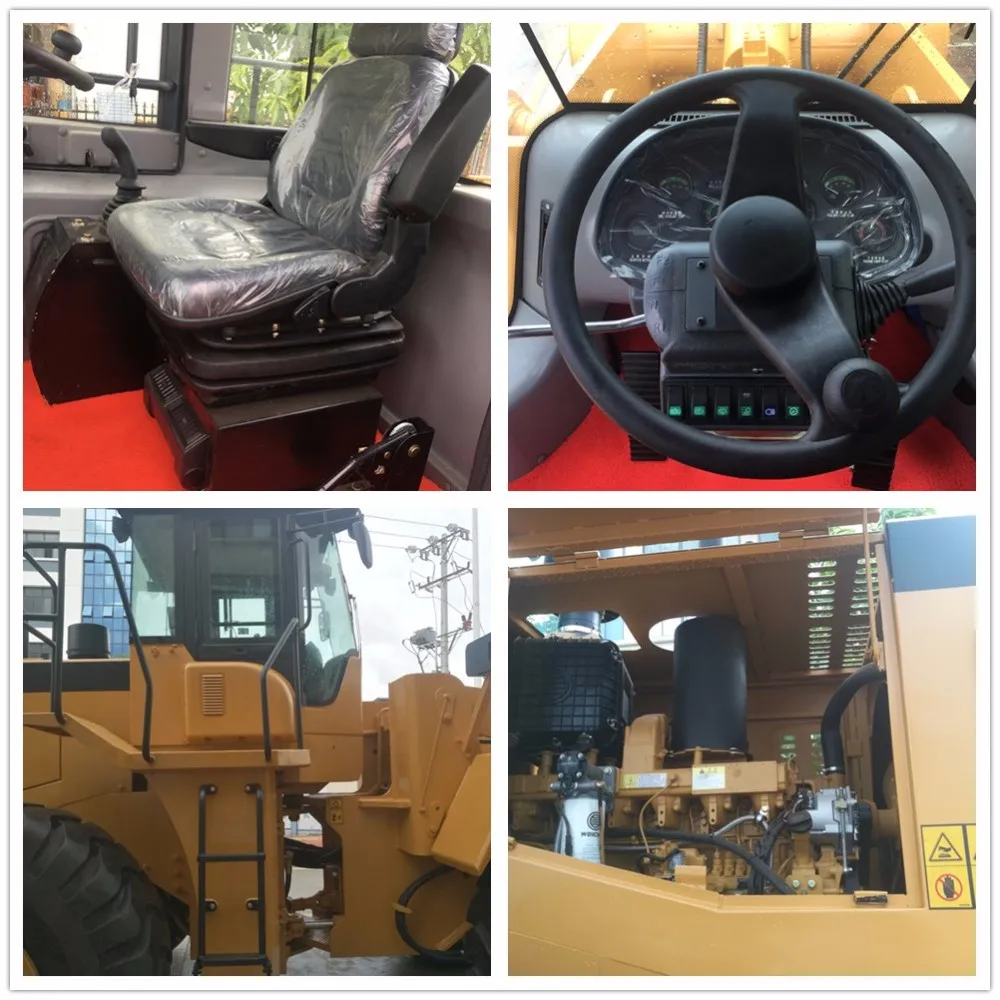

2. Cabin with broad view. Single (double)-handle pilot control system, electronic control gearshift to ensure easy operation and more comfortable.
3. To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
4.Brake systems: Four wheel double-line caliper disc braking system with a gas container in the back to ensure a safety and reliable operation.
5.Powerful engine: Weichai low rated rotate speed engine, strong power,energy conservation and environmental

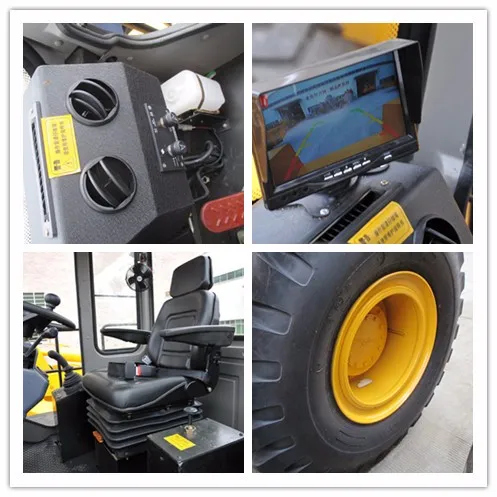

6.Optional: bucket tyre protection chain brake system automatic constant temperature cooling system air conditioning tires, joystick.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
