- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- Condition:New
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 year
- After-sales Service Provided:Online support
- UNIQUE SELLING POINT:High power engine
- Place of Origin:CN;FUJ
- Hydraulic Cylinder Brand:Longyan Jinhu
- Hydraulic Pump Brand:Jinan
- Hydraulic Valve Brand:Libao
- Engine Brand:WEICHAI
- Brand Name:LTMG
- Dimension(Long * Breadth * High):11000mm*3500mm*4000mm
- Certification:CE ISO
- Machine Weight:45000KG
- Power(W):251KW

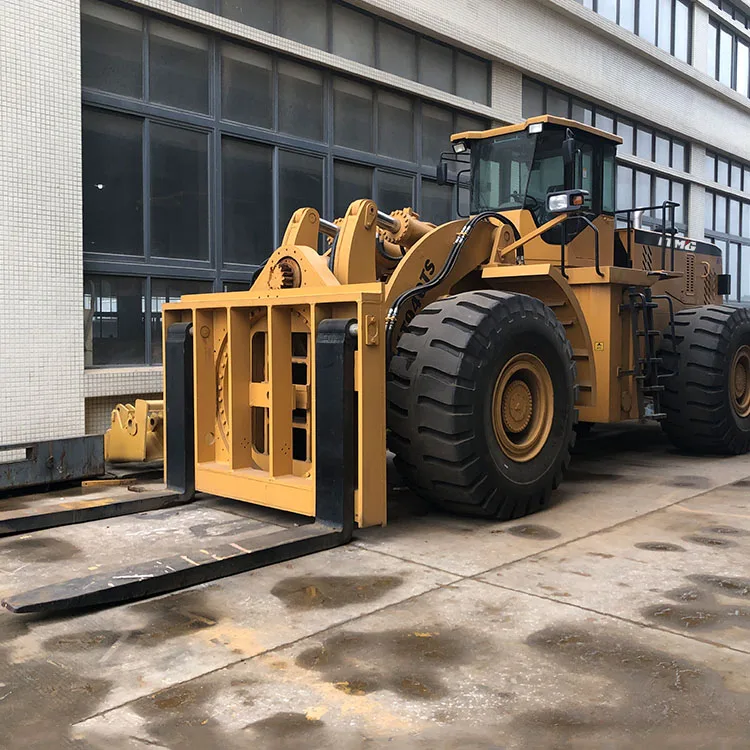

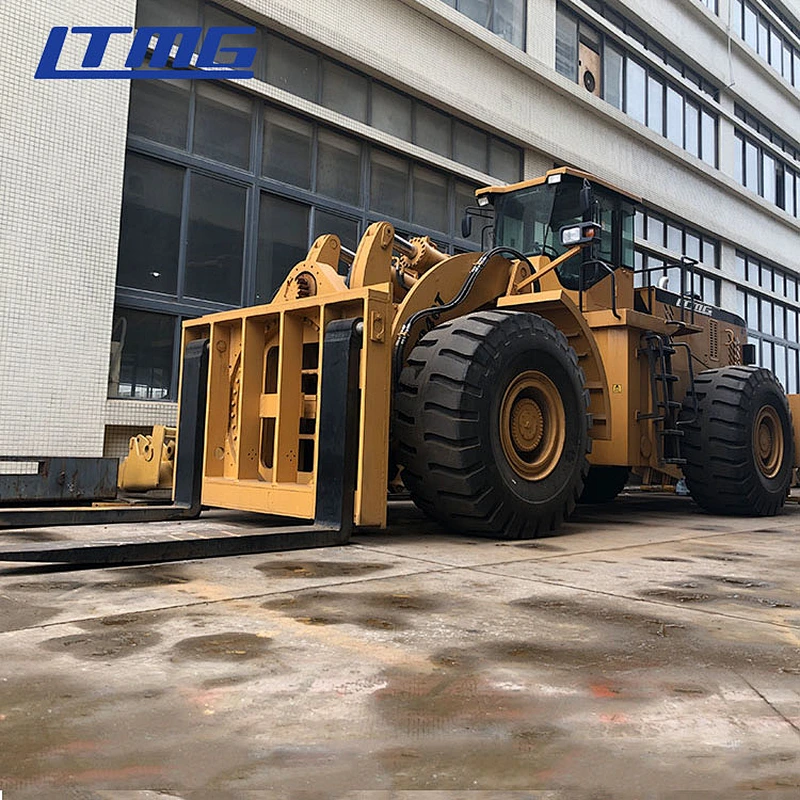

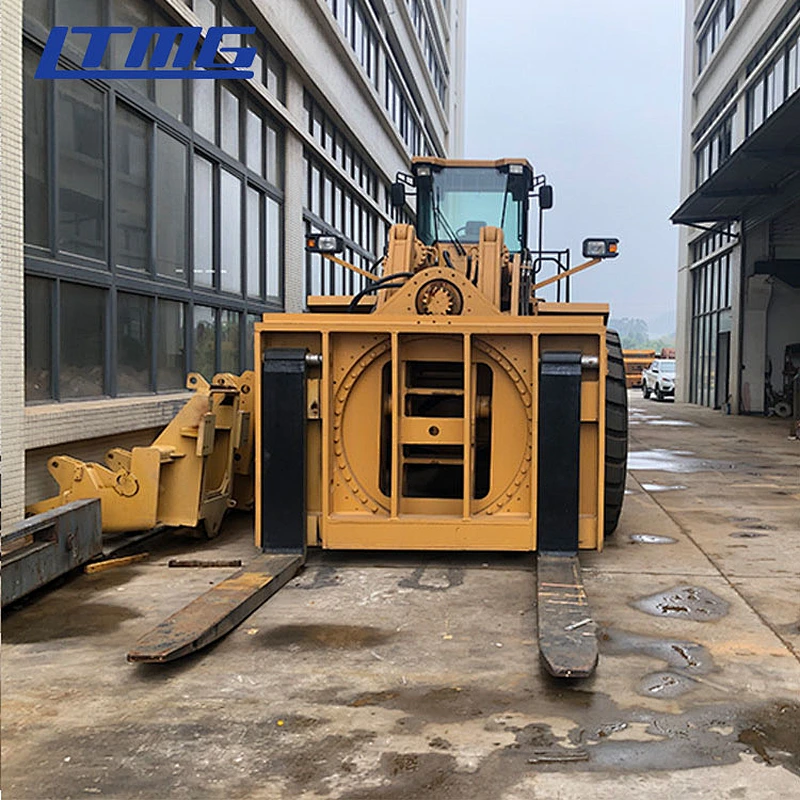

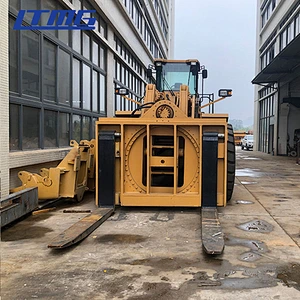

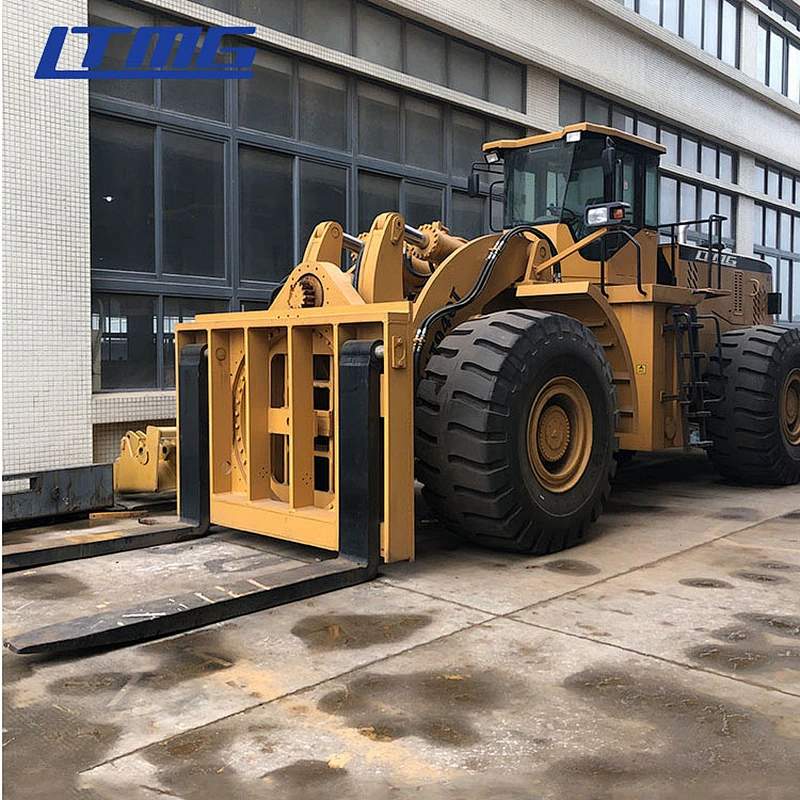

The specification of LTMG 40 ton forklift loader | ||
Model | LT40T | |
Rated power | 251KW | |
Overall length | 11000mm | |
Overall width | 3500mm | |
Overall height | 4000mm | |
Max.lifting height | 3450mm | |
Operating weight | 44300kg | |
Max.Limited load | 40t(1800mm) | |
Fork dimensions L*W*H | 1800*400*135mm | |
Distance of fork | 1820mm | |
Rated loading capacity | 40t | |
Max.climbing Gradient | 28° | |
Turning radius | 7250mm | |
Wheel base | 5444mm | |
Tread | 2660mm | |
Min.ground clearance | 400mm | |
Unloading angle | 15.3° | |
Haul location height(Ground clearance of material | 300mm | |
Fuel tank capacity | 280L | |
Hydraulic fuel tank capacity | 280L | |
Front wheel | 29.5R29 | |
Rear wheel | 29.5-29 | |

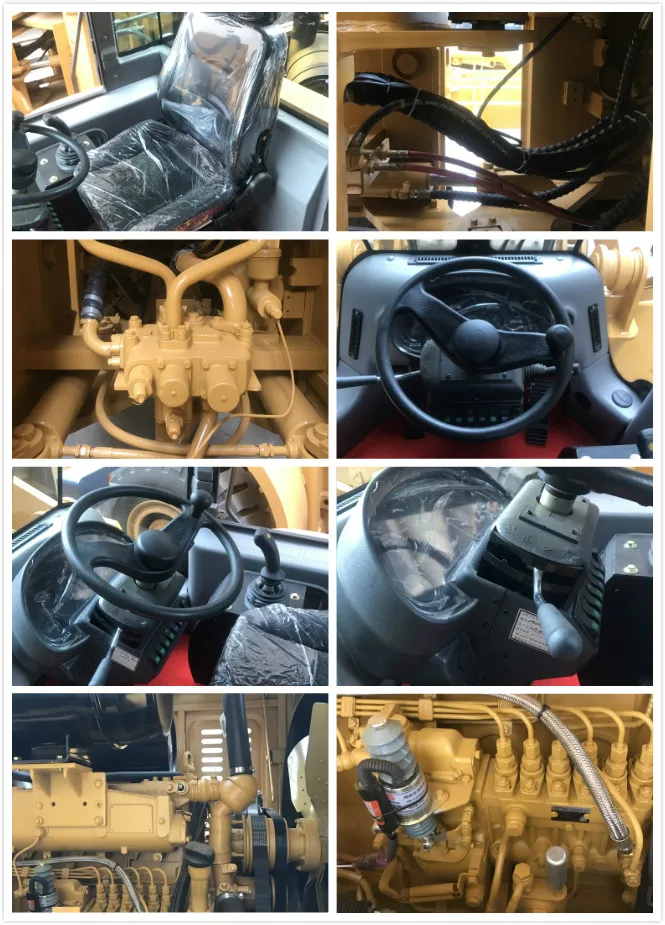

1. Joystick control, which make the operation more convenient and flexible.
2. Equip the electronic control countershaft transmission, which is powerful and easy to maintain.
3. Reinforced axle with bigger axle hub/gears, which features 50% stronger bearing capacity than the normal ones and can forbid the oil leak efficiently.
4. Use enhanced front tires, specially designed for the poor road conditions in mines.
5. Increase steering cylinder to improve the vehicle longitudinal stability, the strong structure increases the total weight, which improves the quality and durability.
6. To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
7. Four wheel double-line caliper disc braking system with a gas container in the back to ensure a safety and reliable operation.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
