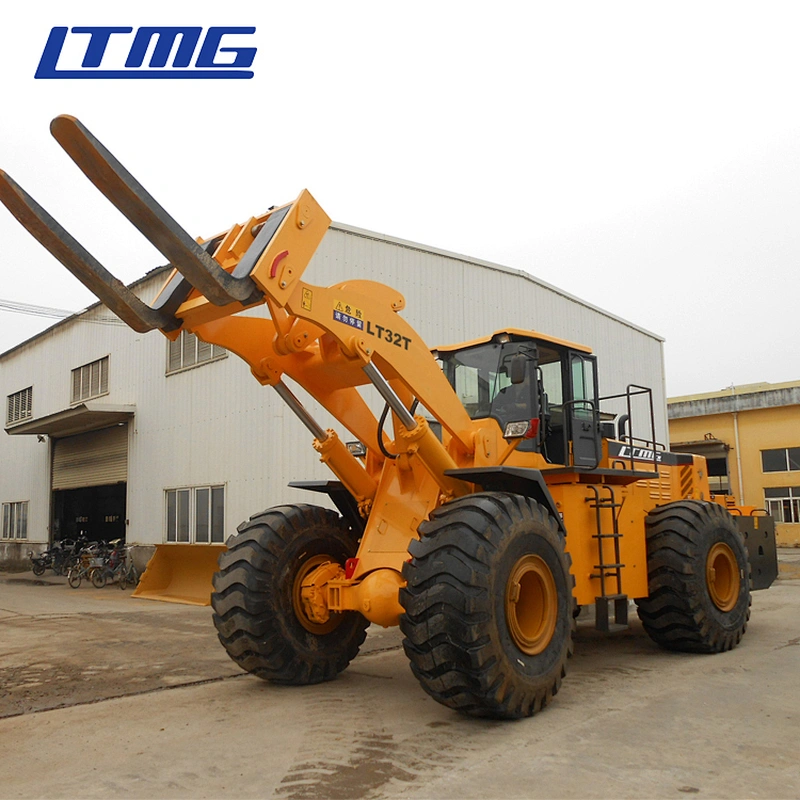

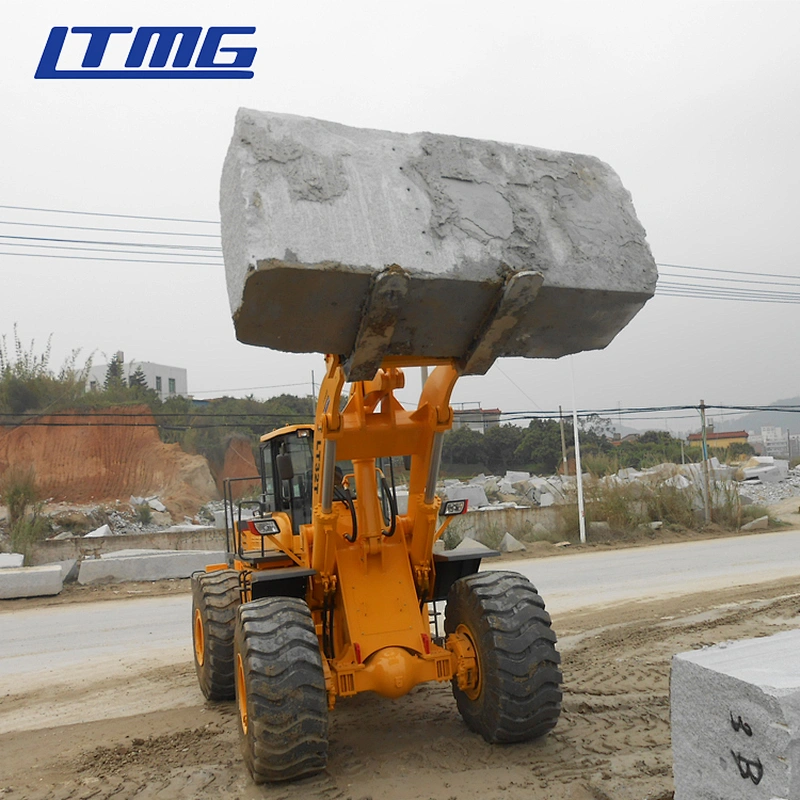

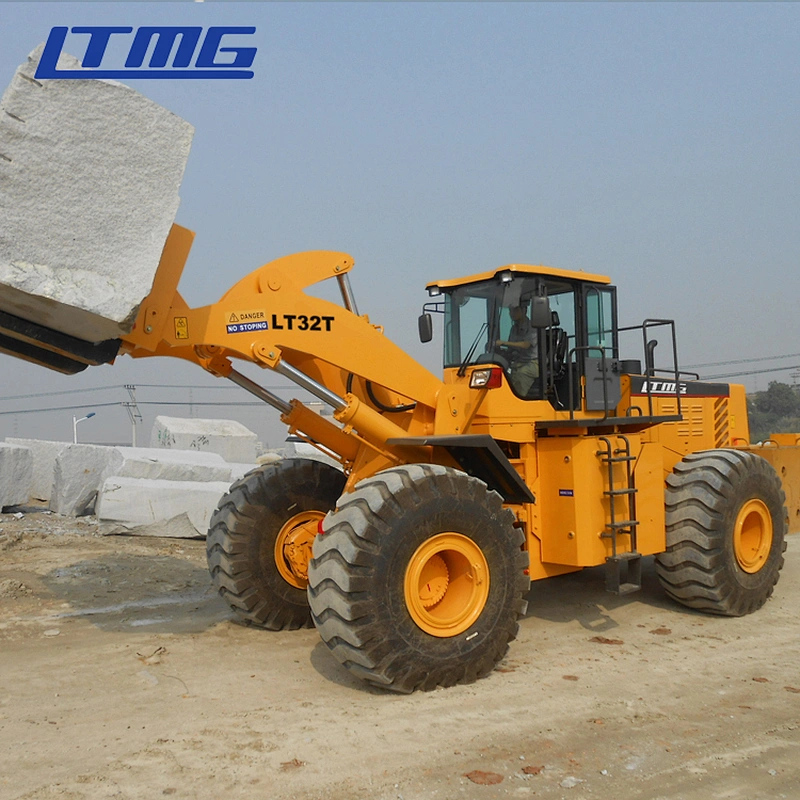

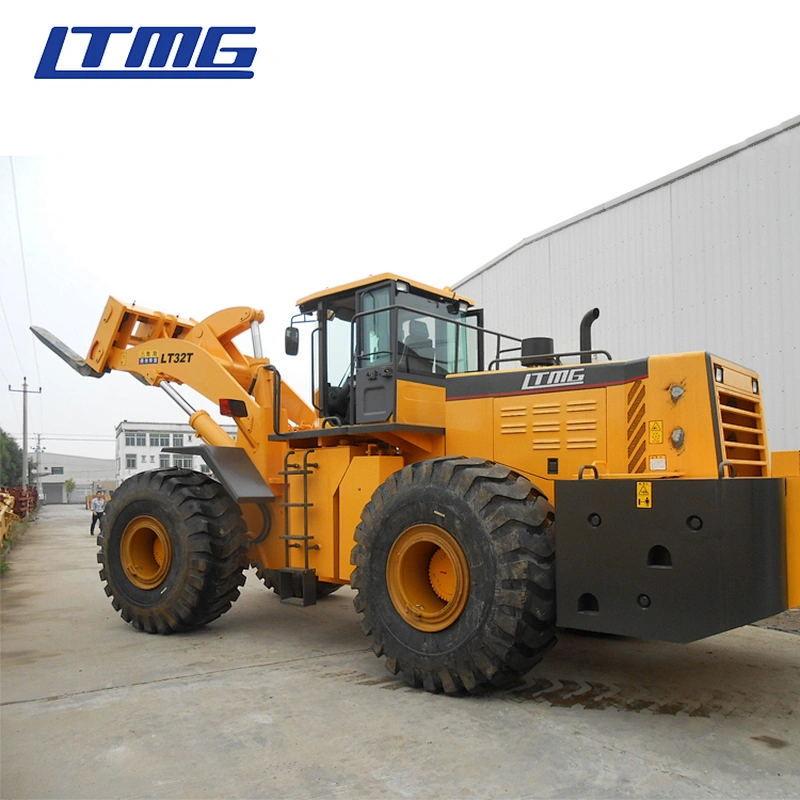

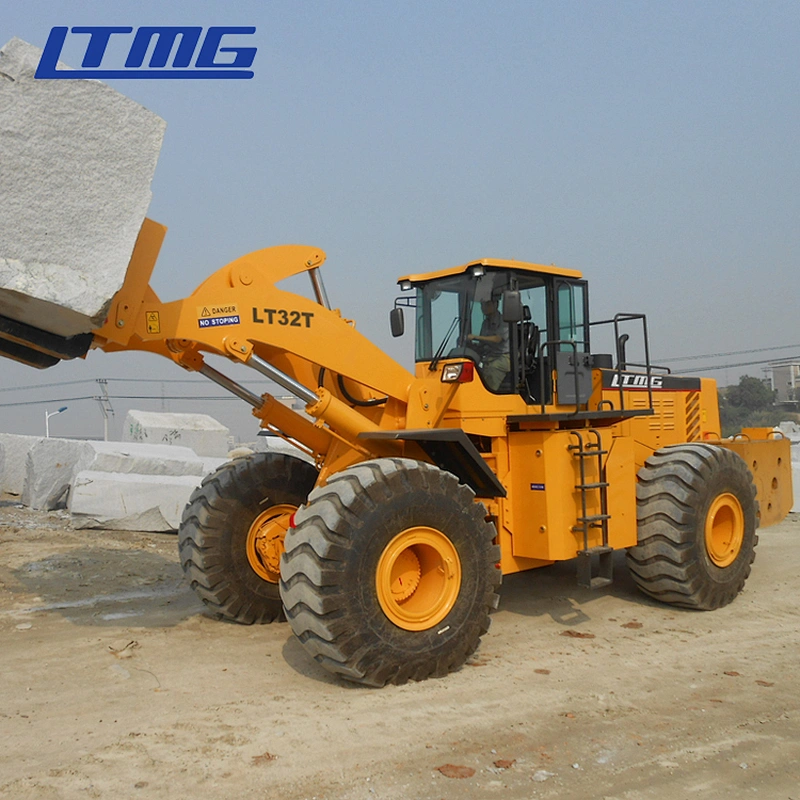

32 ton forklift loader

Model NO.: LT32T
Price:: USD 88760.00-97850.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 300 unit / Month
Country of Origin: Xiamen Port, China

Quantity:

Product Description

Applicable Industries:Construction works
Condition:New
Place of Origin:CN;FUJ
Type:Front Loader
Moving Type:Wheel Loader
Warranty:1 year
After-sales Service Provided:Free spare parts
UNIQUE SELLING POINT:High power engine
Hydraulic Cylinder Brand:Longyan Jinhu
Hydraulic Pump Brand:Jinan
Hydraulic Valve Brand:Libao
Engine Brand:WEICHAI
Brand Name:LTMG
Dimension(Long * Breadth * High):9900*3300*3900mm
Certification:CE ISO
Machine Weight:35000kg
Power(W):193KW

Product Description

The specification of LTMG 32 ton forklift loader
Model	LT32T
Engine	Weichai
Rated power	193KW
Overall length	9900mm
Overall width	3300mm
Overall height	3900mm
Dumping height	3600mm
Specification of tire	29.5-25
Wheel base	4400mm
Tread width	2700mm
Fork dimensions LWH	1700350120mm
Distance of fork	≤820mm
Operating weight	35000kgs
Rated loading capacity	32t
Maximum load	35t(1800mm)
Max.climbing Gradient	28°
Rated speed	2200r/min
Lifting time	≤6.8s
Hydraulic cylinder time	≤12.55s
Travel speed
Forward gear I	11.5km/h
Forward gear II	38km/h
Reserve gear I	16km/h

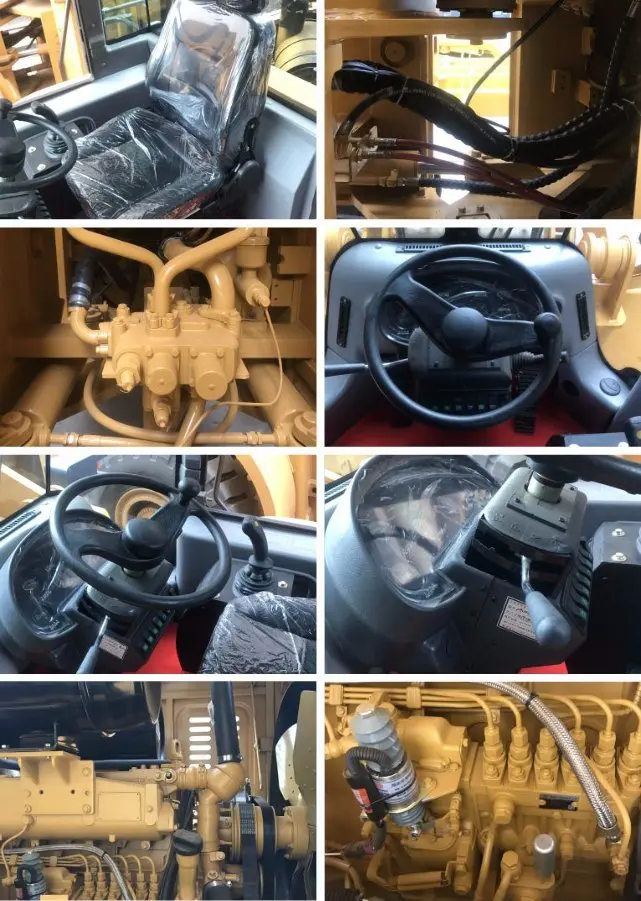

Product Features

1. Joystick control, which make the operation more convenient and flexible.

2. Equip the electronic control countershaft transmission, which is powerful and easy to maintain.

3. Reinforced axle with bigger axle hub/gears, which features 50% stronger bearing capacity than the normal ones and can forbid the oil leak efficiently.

4. Use enhanced front tires, specially designed for the poor road conditions in mines.

5. Increase steering cylinder to improve the vehicle longitudinal stability, the strong structure increases the total weight, which improves the quality and durability.

6. To adopt confluence of double pumps and equivalents unloading hydraulic systems, rational use of engine power, reduce energy consumption effectively.Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.

7. Four wheel double-line caliper disc braking system with a gas container in the back to ensure a safety and reliable operation.

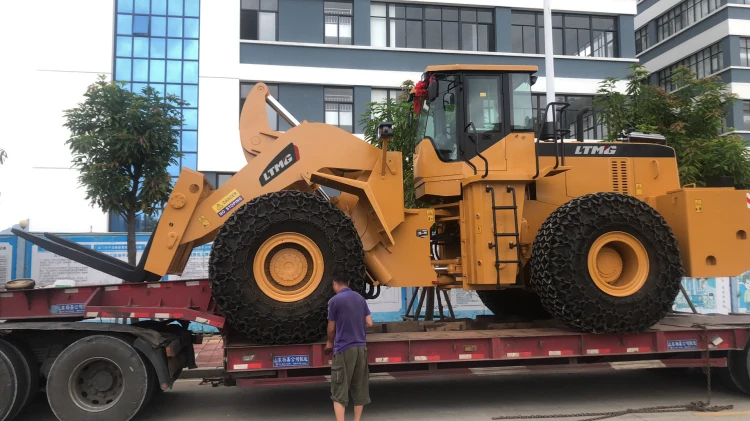

Packing & Delivery

Our Factory

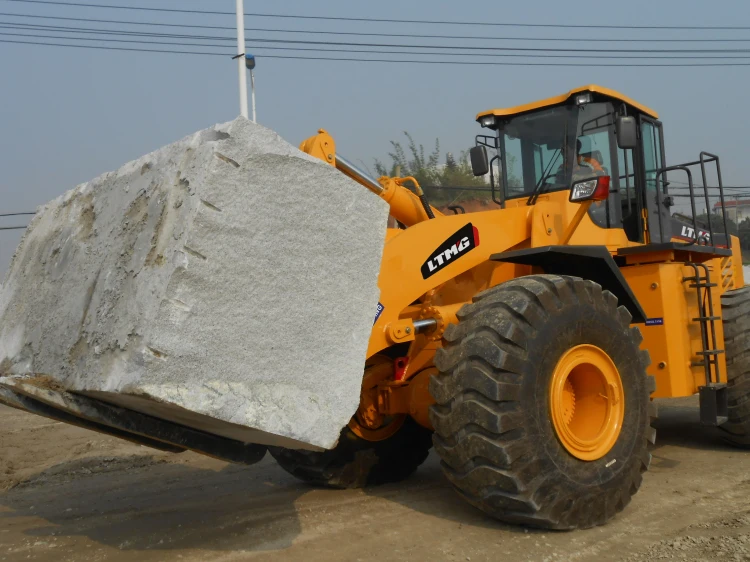

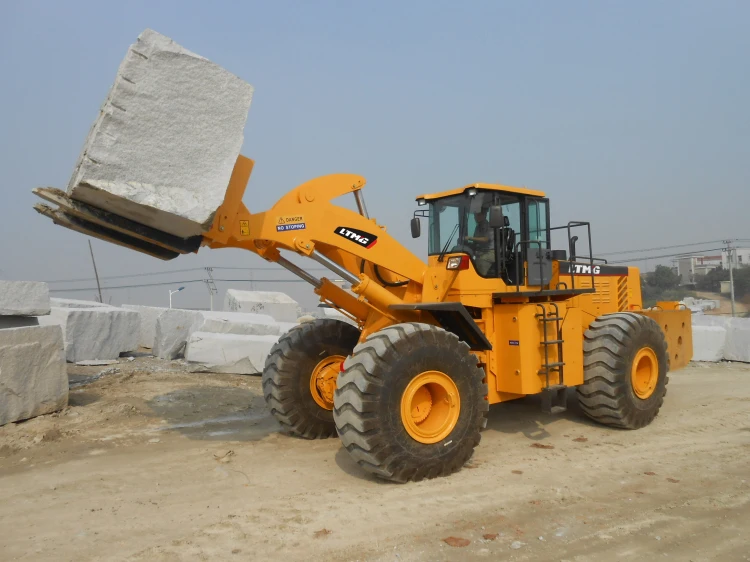

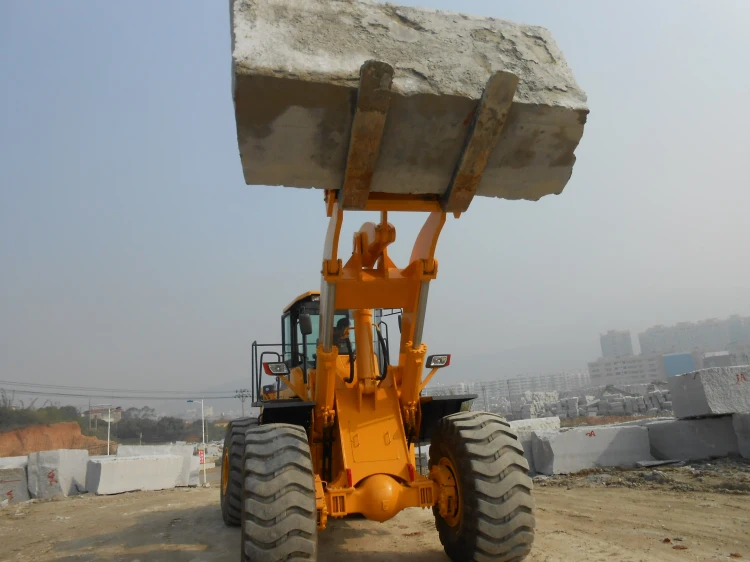

Product Application

After-Sales Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
