- Applicable Industries:Construction works
- Condition:New
- Place of Origin:CN
- Type:Powered Pallet Truck
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2705*1225*2075
- Certification:CE/ISO9001

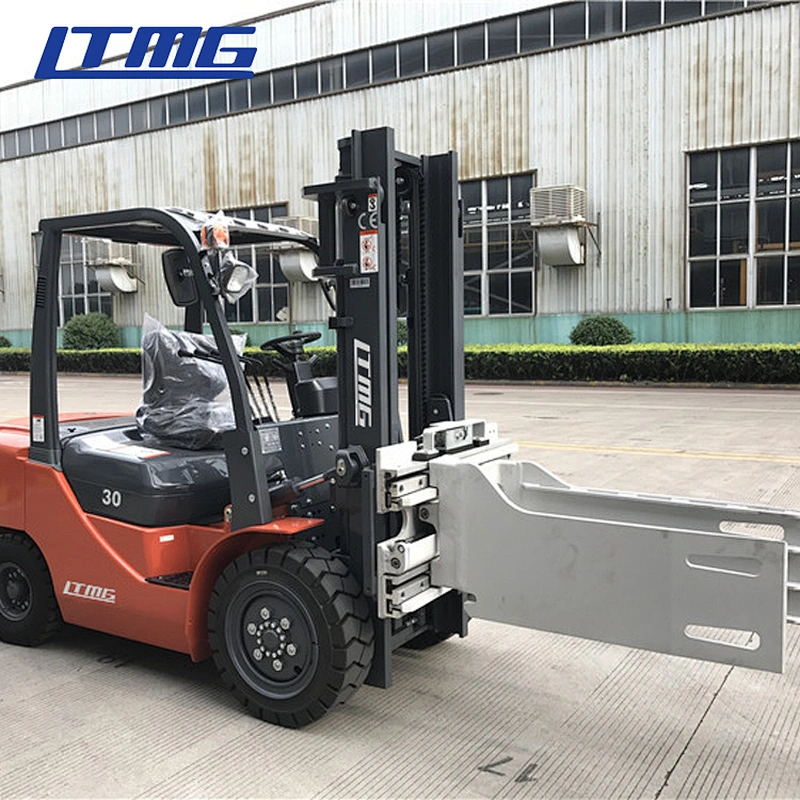

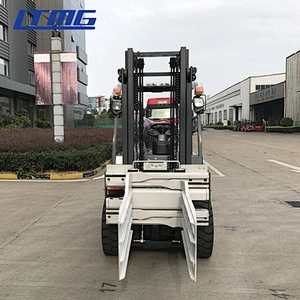

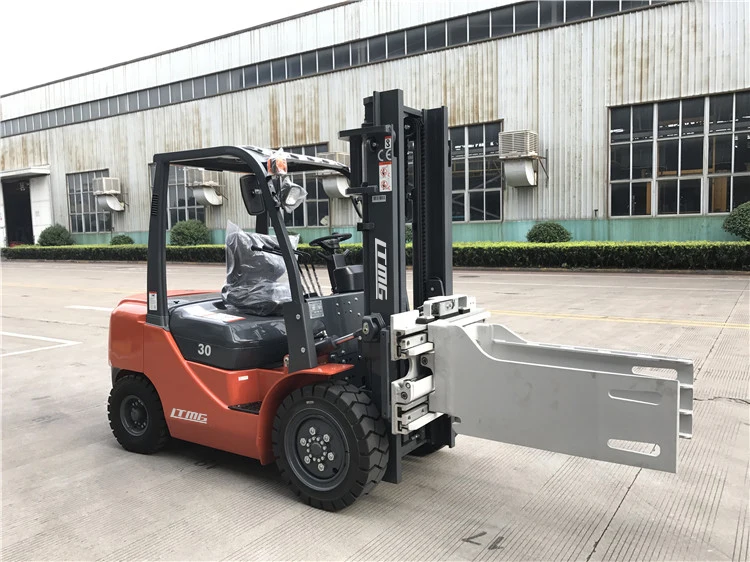

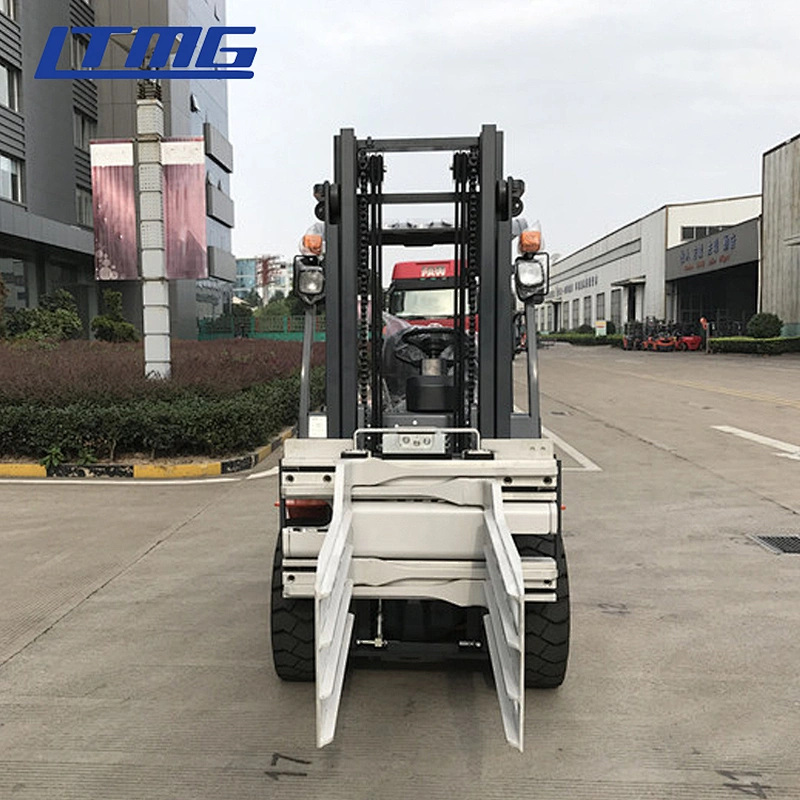

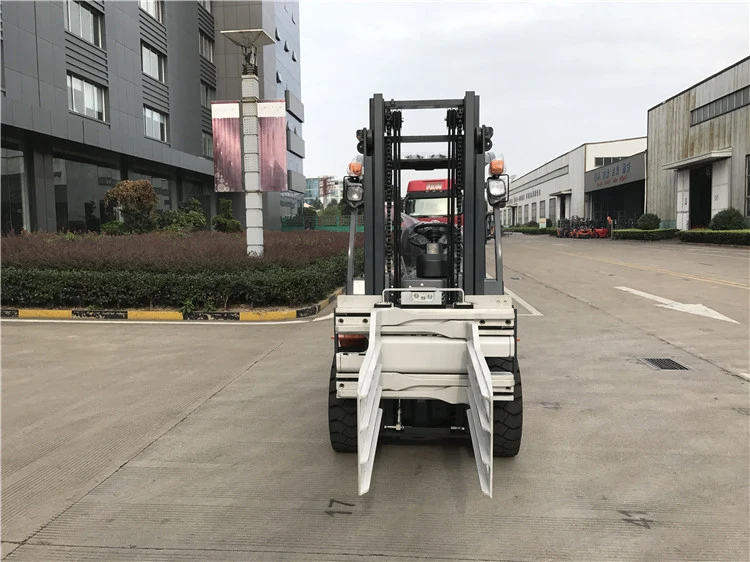

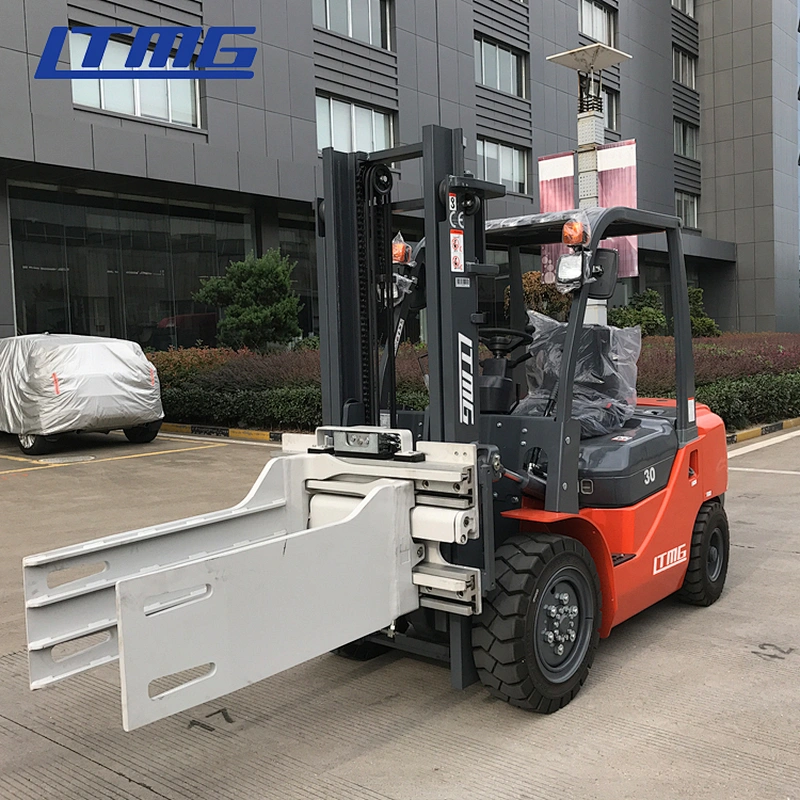

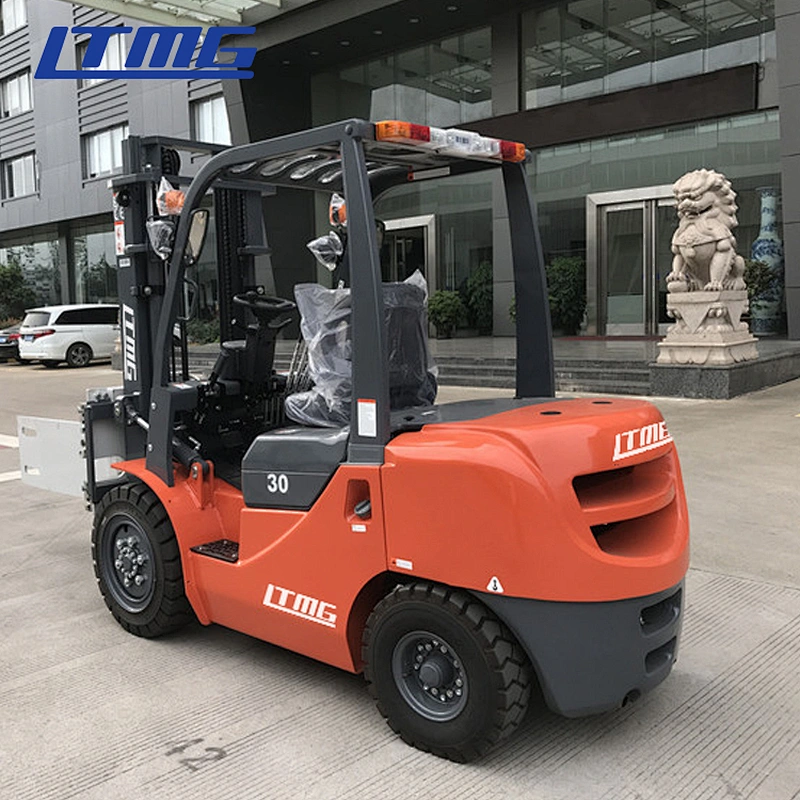

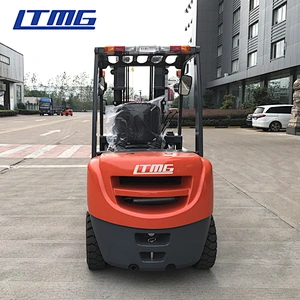

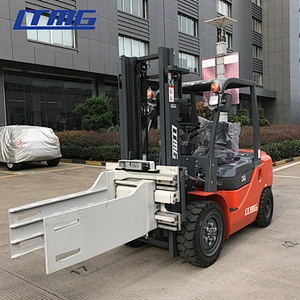

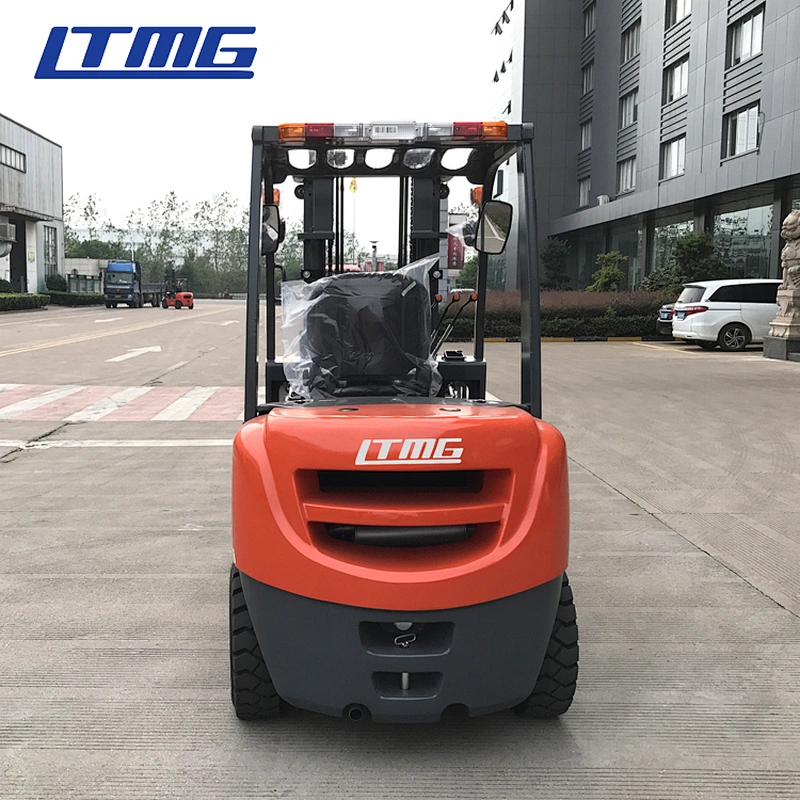

LTMG 3 ton diesel forklift with bale clamp
The specification of LTMG 3 ton diesel forklift | ||||||||||
General | Model | FD30 | ||||||||
Power Type | Diesel | |||||||||
Rated Capacity | kg | 3000 | ||||||||
Load Centre | mm | 500 | ||||||||
Characteristic&Dimension | Lift Height | mm | 3000 | |||||||
Fork Size | L×W×T | mm | 1070×125×45 | |||||||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||||||
Front Overhang (Wheel center to fork face) | mm | 480 | ||||||||
Ground Clearance(Bottom of mast) | mm | 140 | ||||||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2730 | |||||||
Overall Width | mm | 1225 | ||||||||
Mast Lowered Height | mm | 2115 | ||||||||
Mast Extended Height(With backrest) | mm | 4150 | ||||||||
Overhead Guard Height | mm | 2090 | ||||||||
Turning Radius (outside) | mm | 2440 | ||||||||
Performance | Speed | Travel (Empty load) | km/h | 20 | ||||||
Lifting (Full load) | mm/s | 510 | ||||||||
Max.Gradeability (No load/Full load) | % | 20 | ||||||||
Chassis | Tire | Front | mm | 28×9-15-12PR | ||||||
Rear | mm | 6.50-10-10PR | ||||||||
Wheelbase | mm | 1700 | ||||||||
Service weight | kg | 4300 | ||||||||
Power&Transmission | Battery | Voltage/Capacity | V/Ah | 12/80 | ||||||
Engine | Model | C240 | ||||||||
Manufacture | ISUZU | |||||||||
Rated output/r.p.m. | kw | 35.4/2500 | ||||||||
Rated torque/r.p.m. | N·m | 137.7/1800 | ||||||||
No.of Cylinder | 4 | |||||||||
Bore×Stroke | mm | 86×102 | ||||||||
Displacement | cc | 2369 | ||||||||
Fuel Tank Capacity | L | 60 | ||||||||
Transmission | Type | Hydraulic | ||||||||
Stage | FWD/RVS | 1/1 | ||||||||

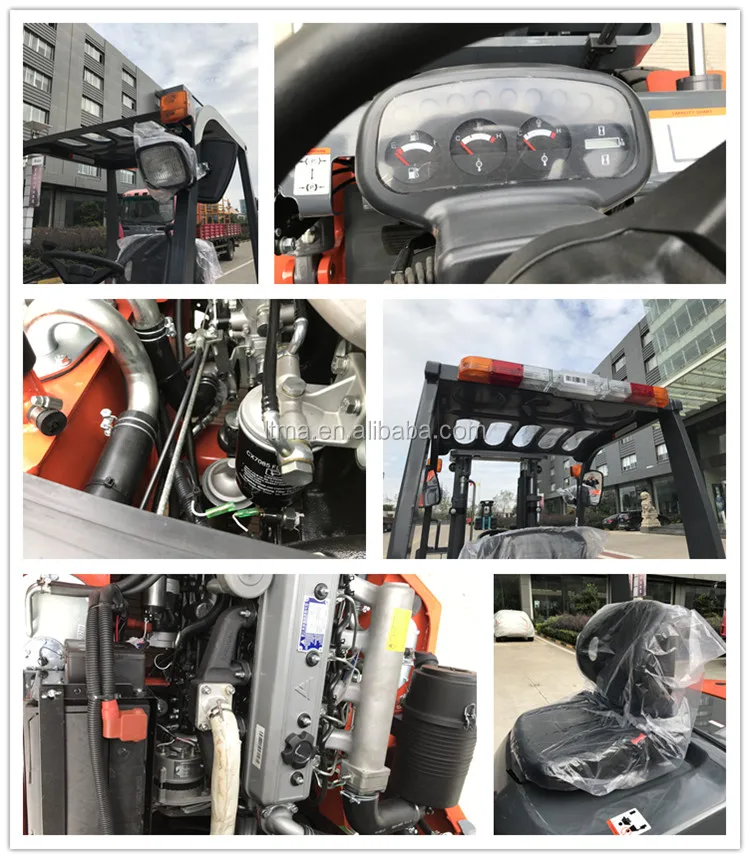

1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
