- Applicable Industries:Hotels
- Applicable Industries:Garment Shops
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Farms
- Applicable Industries:Restaurant
- Applicable Industries:Home Use
- Applicable Industries:Retail
- Condition:New
- Place of Origin:CN
- Type:Powered Pallet Truck
- Power Souce:Diesel Engine
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0mm
- Fork Length:1070mm
- Fork Width:125mm
- Overall Dimensions:2760*1285*2075mm
- Certification:CE/ISO9001
Product Description

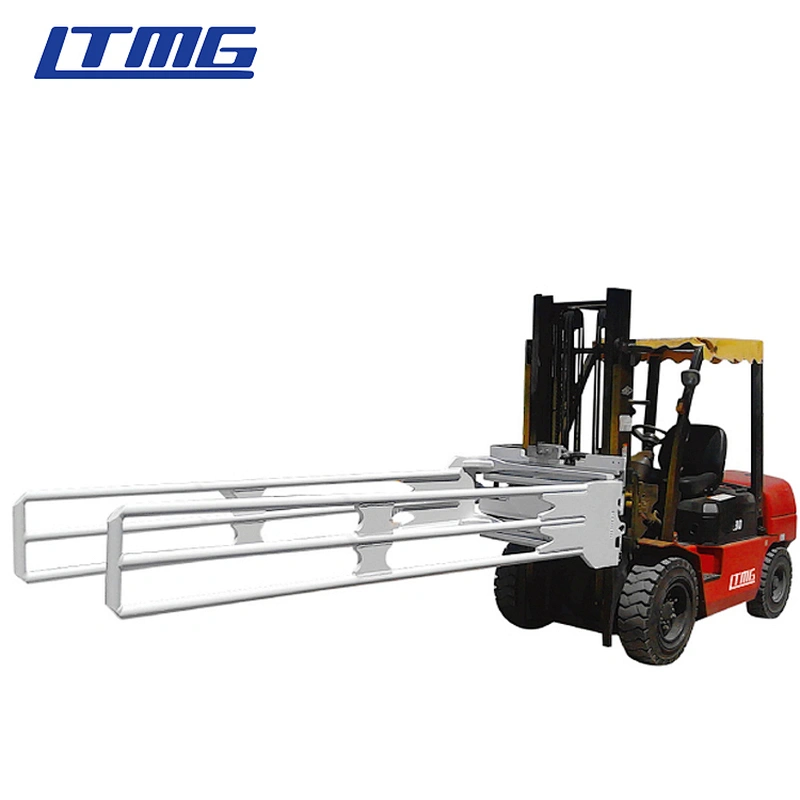

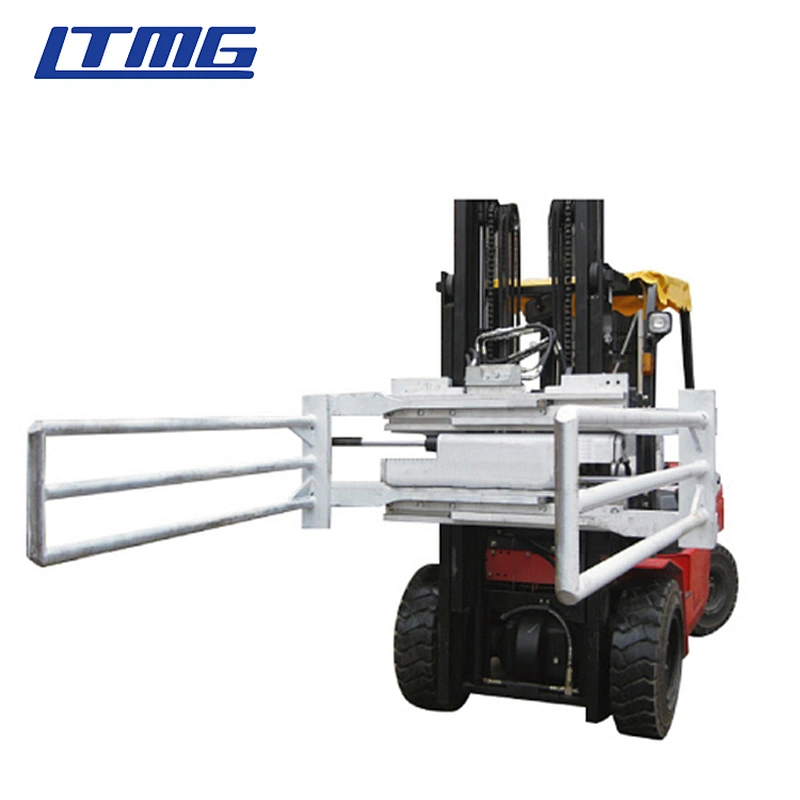

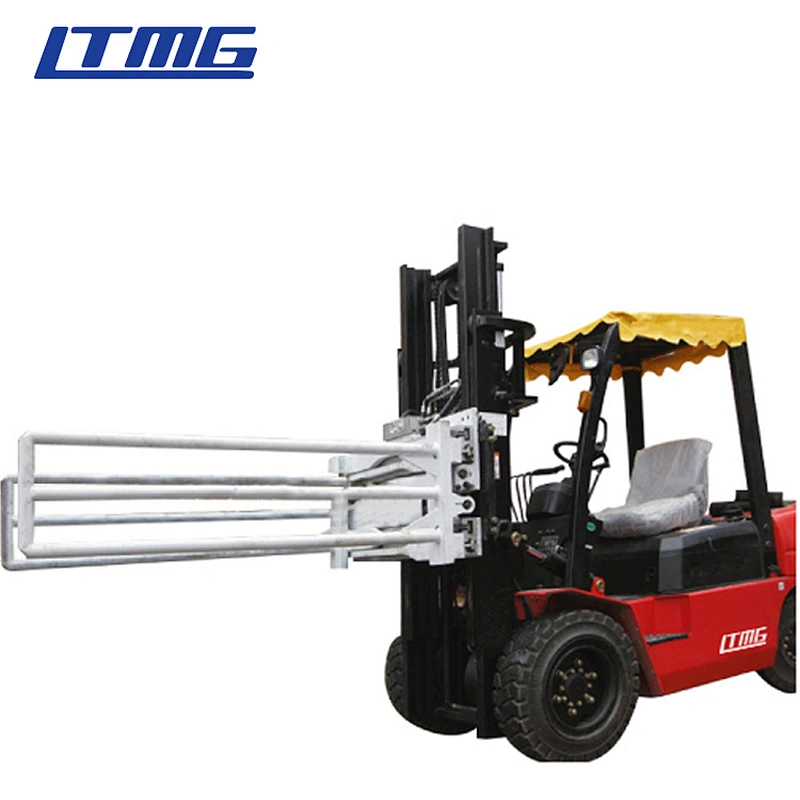

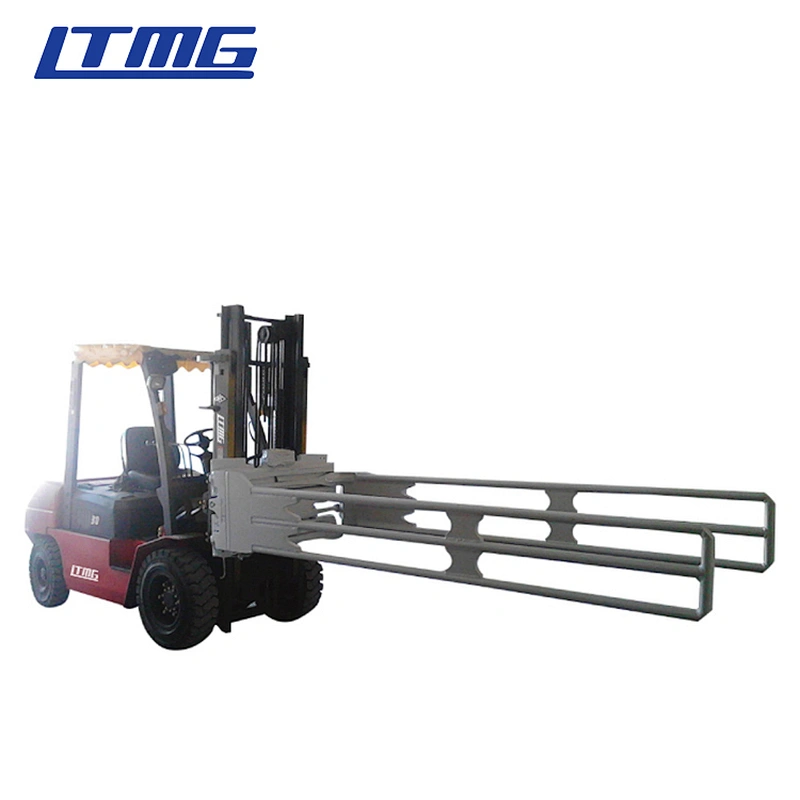

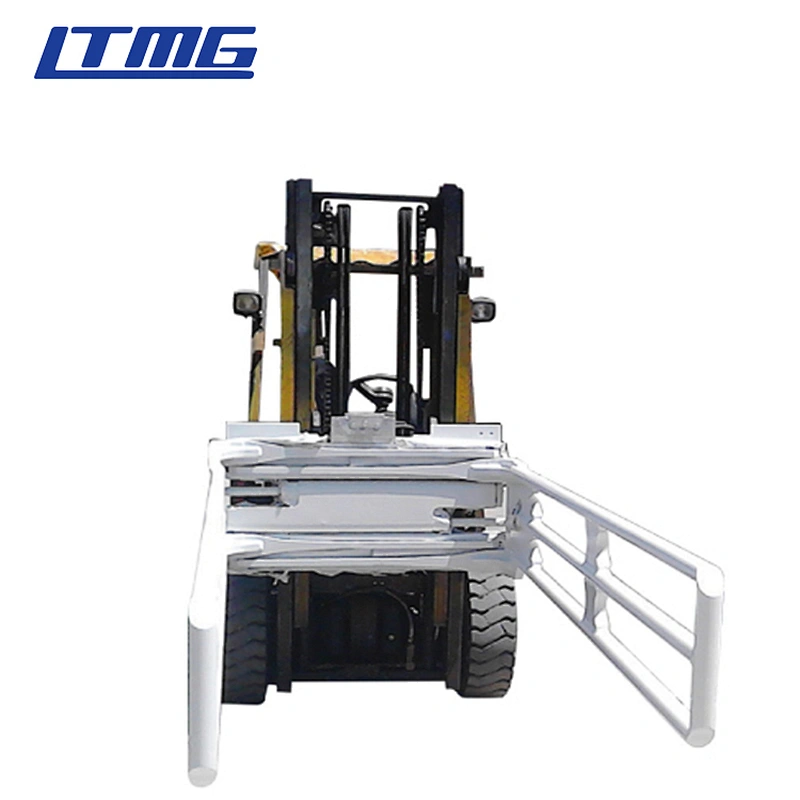

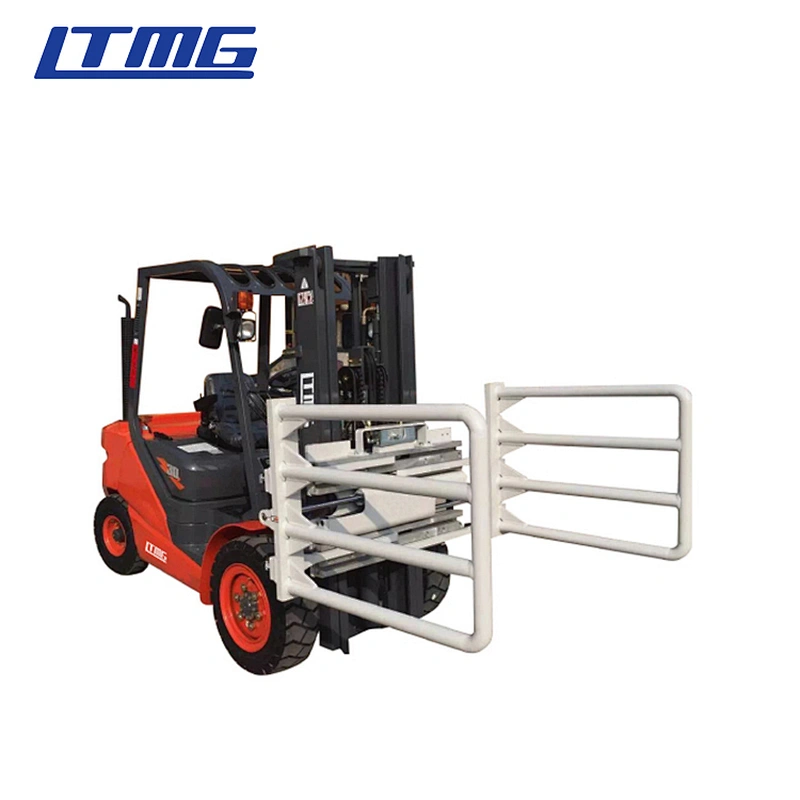

3 ton 3.5 ton diesel forklift truck with customized foam clamp forklift attachment
Model | FD30 | |||||
Power Type | Diesel | |||||
Rated Capacity | kg | 3000 | ||||
Load Centre | mm | 500 | ||||
Lift Height | mm | 3000 | ||||
Fork Size | L×W×T | mm | 1070×125×45 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 480 | ||||
Ground Clearance（Bottom of mast） | mm | 140 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2730 | |||
Overall Width | mm | 1225 | ||||
Mast Lowered Height | mm | 2115 | ||||
Mast Extended Height(With backrest) | mm | 4150 | ||||
Overhead Guard Height | mm | 2090 | ||||
Turning Radius (outside) | mm | 2440 | ||||
Speed | Travel (Empty load) | km/h | 20 | |||
Lifting (Full load) | mm/s | 510 | ||||
Max.Gradeability (No load/Full load) | % | 20 | ||||
Tire | Front | mm | 28×9-15-12PR | |||
Rear | mm | 6.50-10-10PR | ||||
Wheelbase | mm | 1700 | ||||
Service weight | kg | 4300 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | |||
Engine | Model | C240 | ||||
Manufacture | ISUZU | |||||
Rated output/r.p.m. | kw | 35.4/2500 | ||||
Rated torque/r.p.m. | N·m | 137.7/1800 | ||||
No.of Cylinder | 4 | |||||
Bore×Stroke | mm | 86×102 | ||||
Displacement | cc | 2369 | ||||
Fuel Tank Capacity | L | 60 | ||||
Transmission | Type | Hydraulic | ||||
Stage | FWD/RVS | 1/1 | ||||

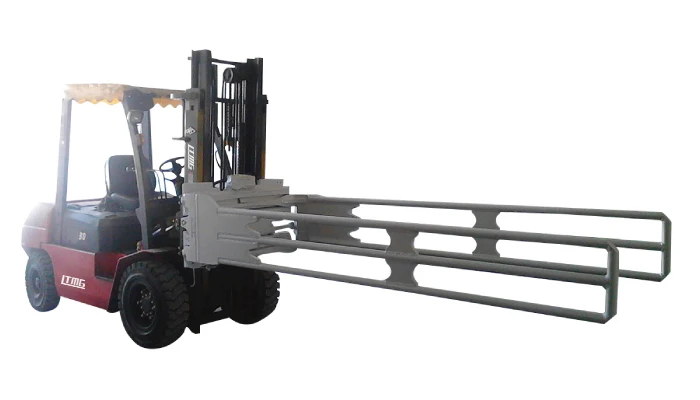

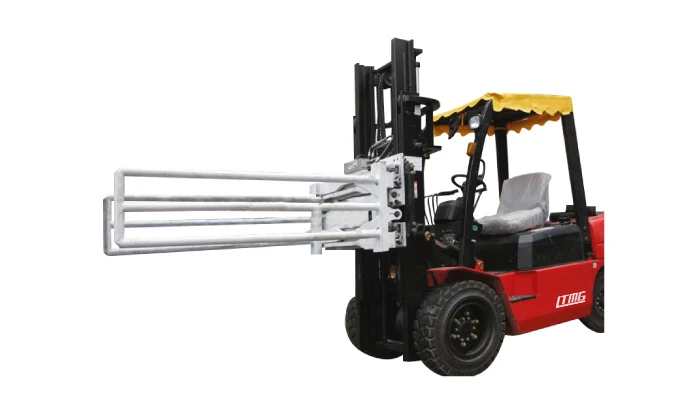

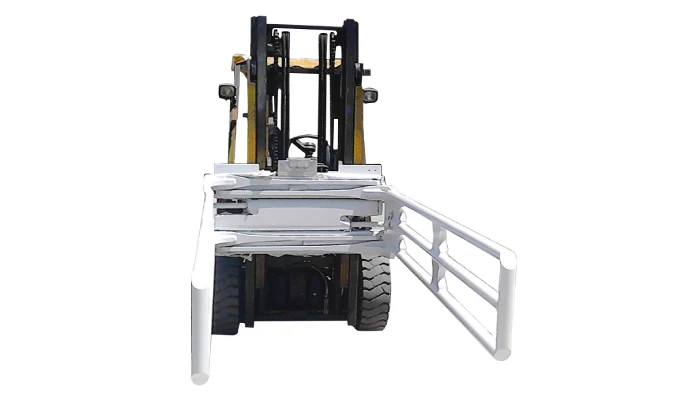

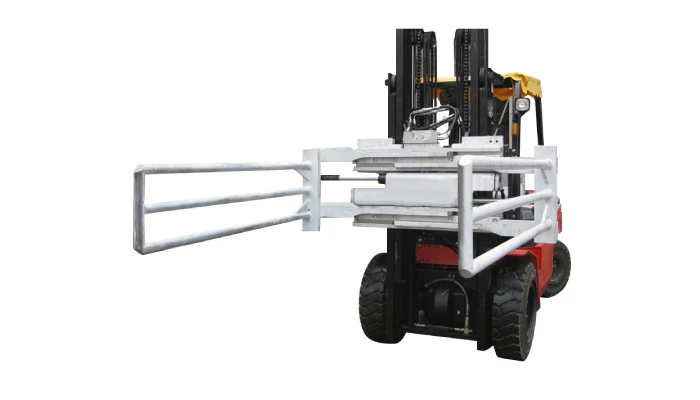

Detailed Images
*Proven durable T- beam arm aluminium frame construction
*Superior arm-slide bearing for extended service lift *Thin arm designed, easy to permit clost stacking
*Regenerative hydraulic valving for optimal arm speed
&Excellent driver visibility

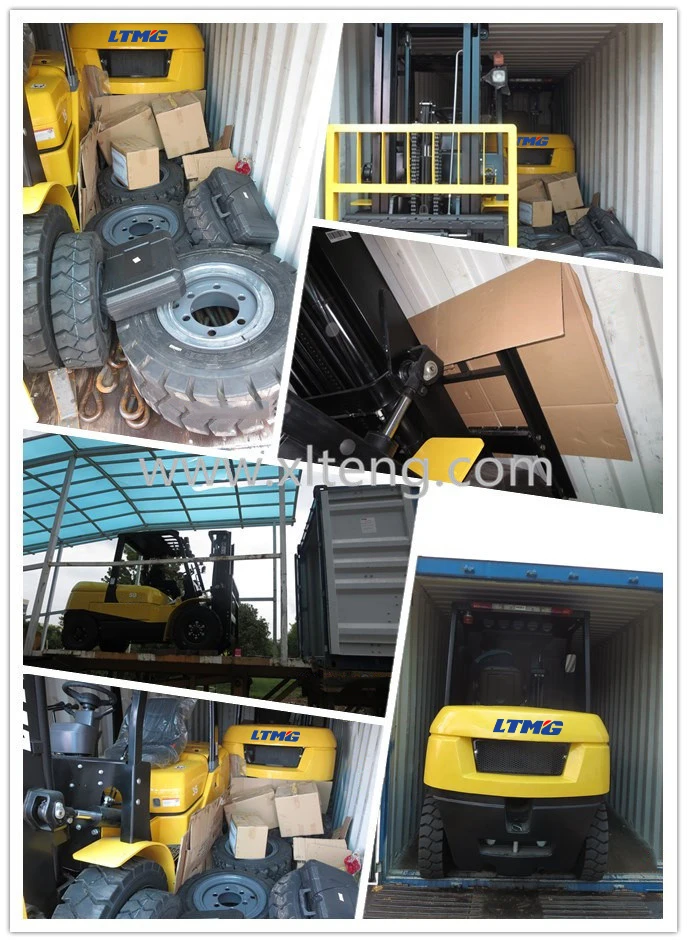

Packing&Shipping
Company Introduction
Exhibition and Clients
After Sales Service
Related Products
Send Message
Related Products

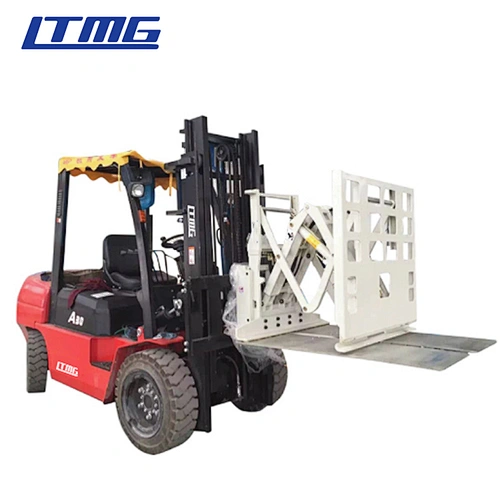

Model NO. Pull push attachment

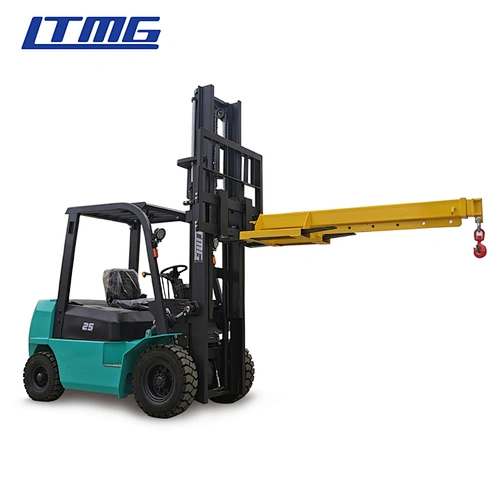

Model NO. Crane arm attachment

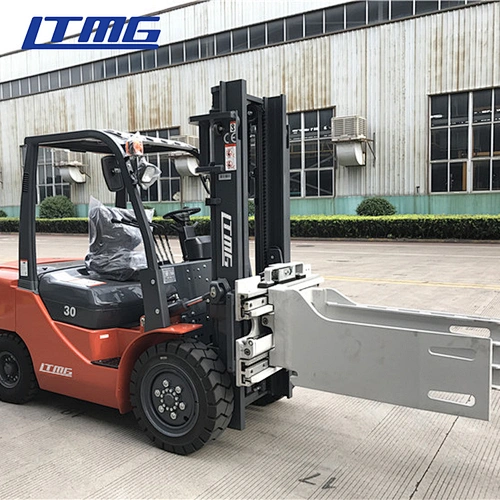

Model NO. Bale clamp attachment

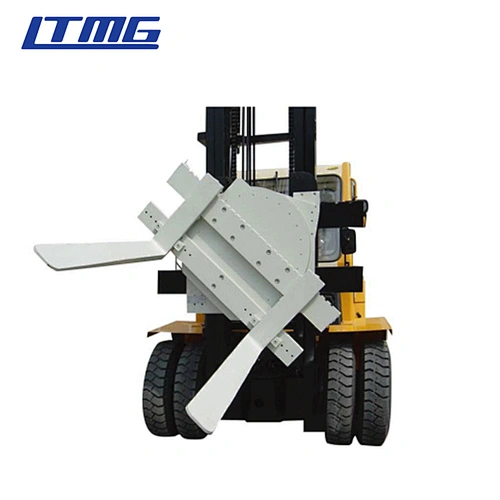

Model NO. Rotator attachment
