- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Food & Beverage Factory
- Applicable Industries:Food & Beverage Shops
- Condition:New
- Place of Origin:CN
- Type:Powered Pallet Truck
- Power Souce:AC Motor
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Applicable Industries:logistics transportation
- Brand Name:LTMG
- Max. Lifting Height:3000mm
- Min. Lifting Height:0
- Fork Length:1070mm
- Fork Width:122mm
- Overall Dimensions:2285*1150*1995mm
- Certification:CE/ISO9001:2008
Product Description

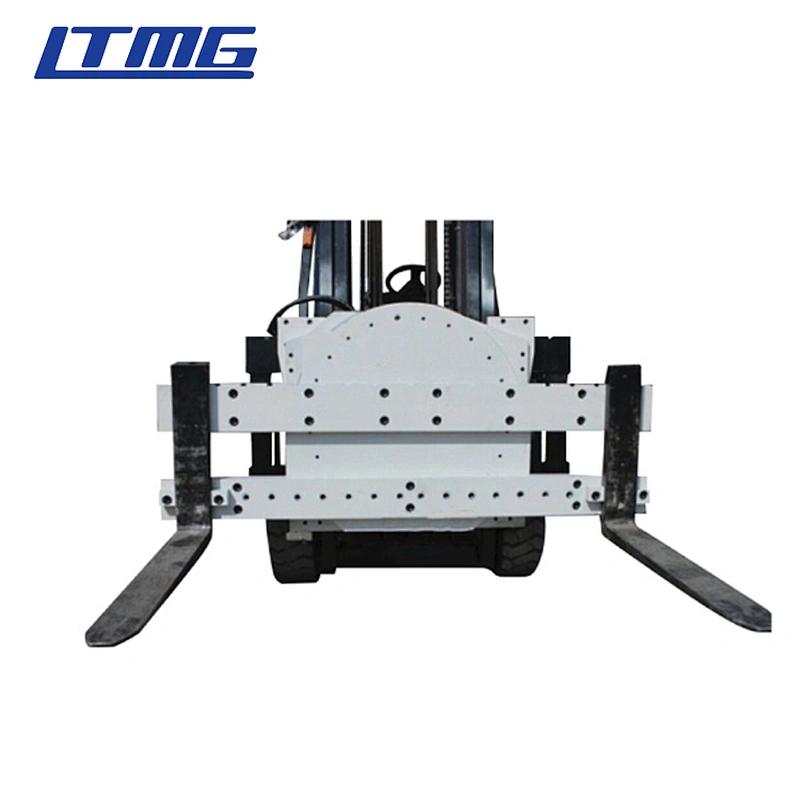

2.5 ton electric forklift with rotator attachment
Specification of 2.5 ton electric forklift with rotator attachment | ||||||
Specification | Model | FB25 | ||||
Load capacity | 2500 kg | |||||
Load center | 500 mm | |||||
Power unit | Battery | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel(x=driving),Front/rear | 2X/2 | |||||
Dimensions | Max. lifting height | 3000 mm | ||||
Free lift | 160 mm | |||||
Fork size(L*W*T) | 1070*122*40 mm | |||||
Tilt range(Mast forward/backward) | 6/12 deg | |||||
Overall length(without fork) | 2285 mm | |||||
Total width | 1150 mm | |||||
Mast height (fork lowering) | 1995 mm | |||||
Overall height fork raised(With backrest ) | 4030 mm | |||||
Height to head guard | 2145 mm | |||||
Turning raduis(outside) | 2000 mm | |||||
Load distance | 445 mm | |||||
Min. right angle stacking aisle(not add load length & clearence) | 2445 mm | |||||
Performance | Max Travelling speed (full load) | 13.5 km/h | ||||
Max Travelling speed (no load) | 14.5 km/h | |||||
Lifting speed (full load) | 240 mm/s | |||||
Lifting speed (no load) | 450 mm/s | |||||
Gradeability (full load ) | 12.5% | |||||
Weight | Truck weight(with standard battery) | 3820 kg | ||||
Weight distribution(full load,front/rear) | 5425/895 kg | |||||
Weight distribution(no load,front/rear) | 1425/2395 kg | |||||
Chassis & Wheels | Tire number(front/rear ) | 2/2 | ||||
Tire model(front axle ) | 21*8-9-16PR | |||||
Tire model(rear axle ) | 18*7-8-14PR | |||||
Wheelbase | 1400 mm | |||||
Tread(Front/rear ) | 955/950 mm | |||||
Ground clearence:At lowest point(mast) | 110 mm | |||||
Service brake | Hydraulic-foot pedal | |||||
Parking brak | Mechanical-hand lever | |||||
Battery | Voltage/capacity | 48V-450(V/AH/5hr) | ||||
Weight with box (standard) | 825 kg | |||||
Electric motor | AC Driving motor | 11 kw | ||||
DC Hydraulic driving motor | 8.6 kw | |||||
Control type | Driving AC , lifting DC Driving AC , lifting AC(as option ) | |||||
Operating pressure | 175 kg/cm² | |||||
Product Features
Forklift
1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.
2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.
3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.
4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.
5.Environmental:
Middle muffler, more environmental.
6.High technology:
Maintenance free radiators adopt Germany technology.

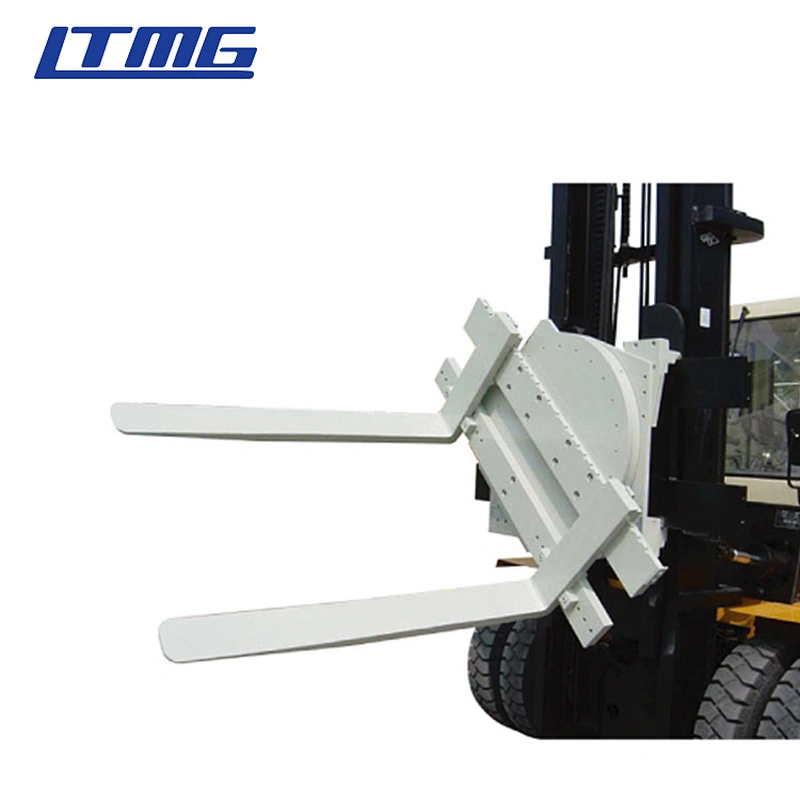

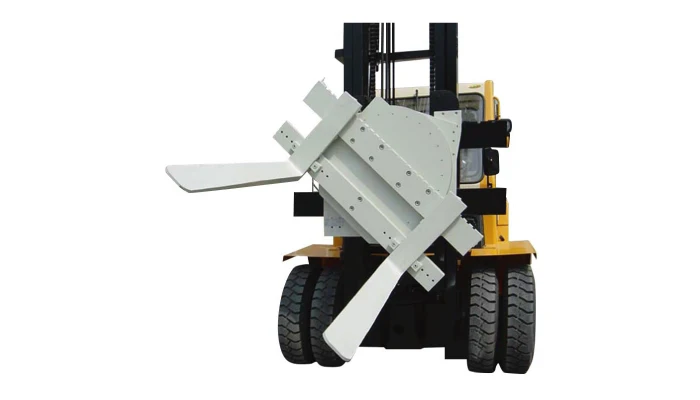

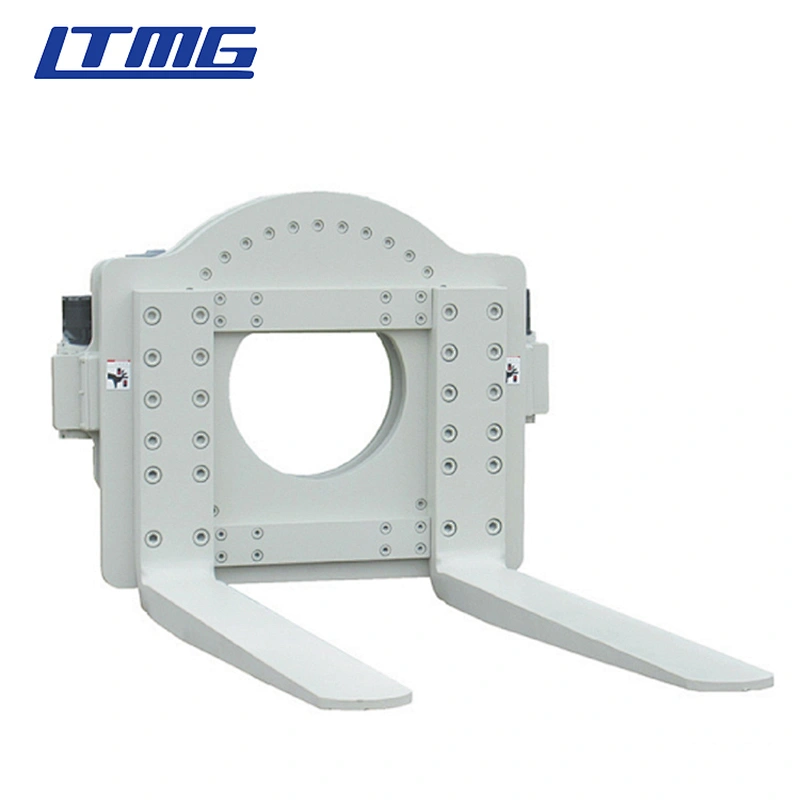

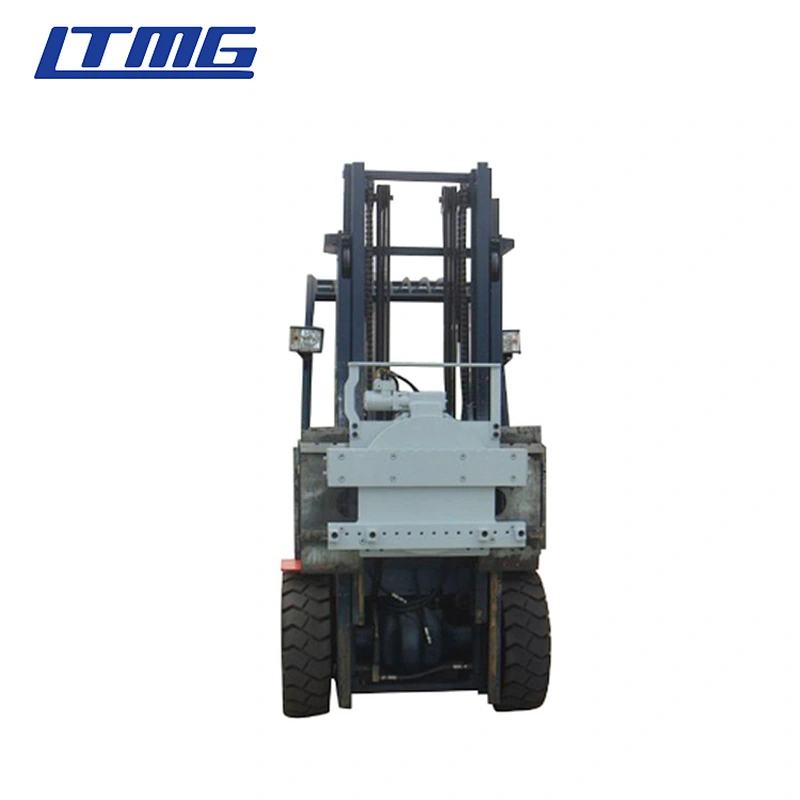

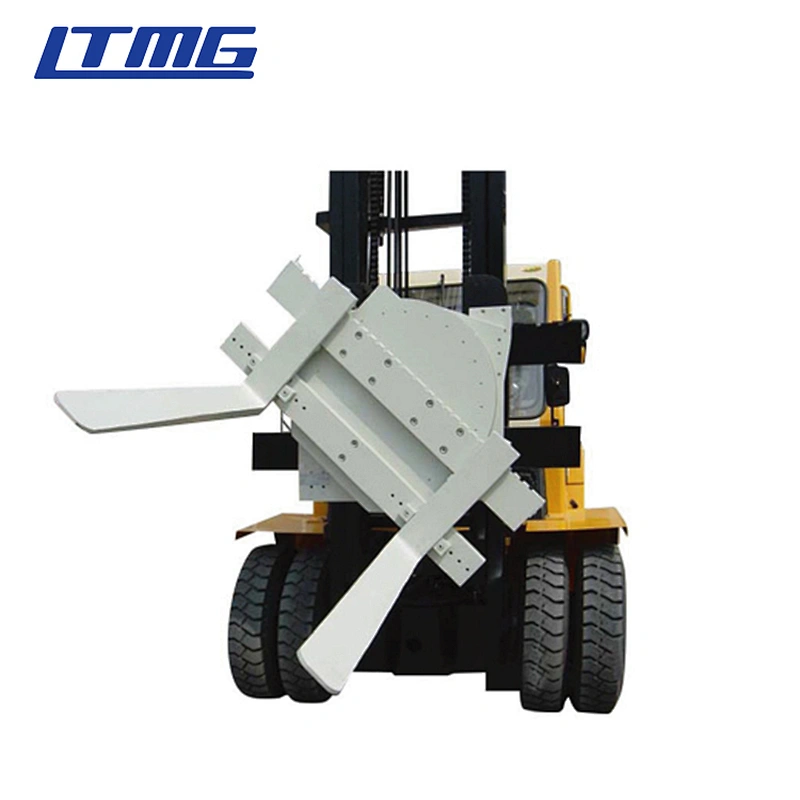

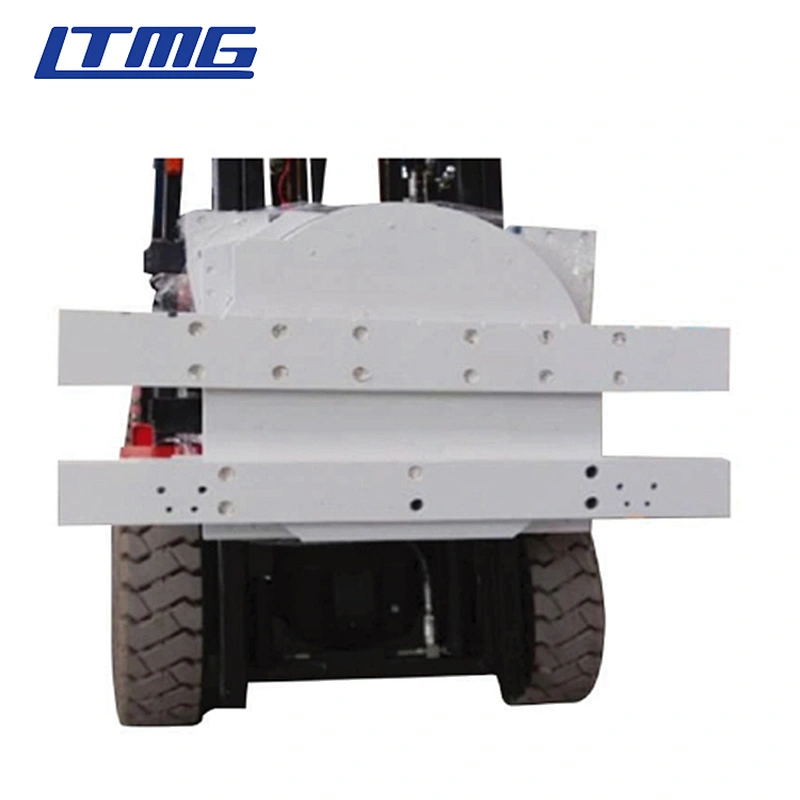

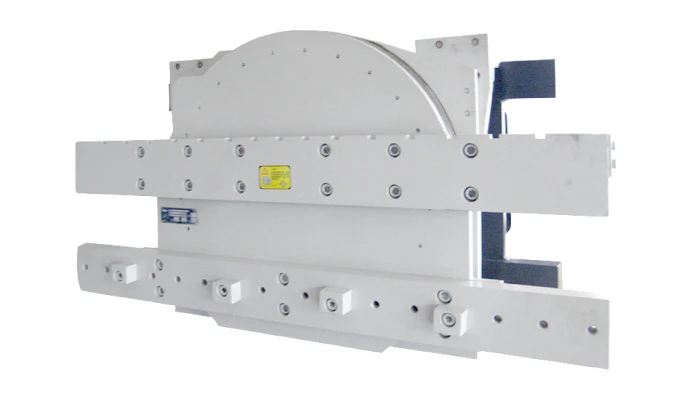

Rotator attachment
1.Proven durable construction design,unique rotating drive system,meet the high strength continuous operation
2.Strong rotating driving torque achieved the stable and reliable rotating function
3. Hydraulic motor fixed with reversible hydraulic lock,any angle position of lock function
optional attachment
Packing & Delivery

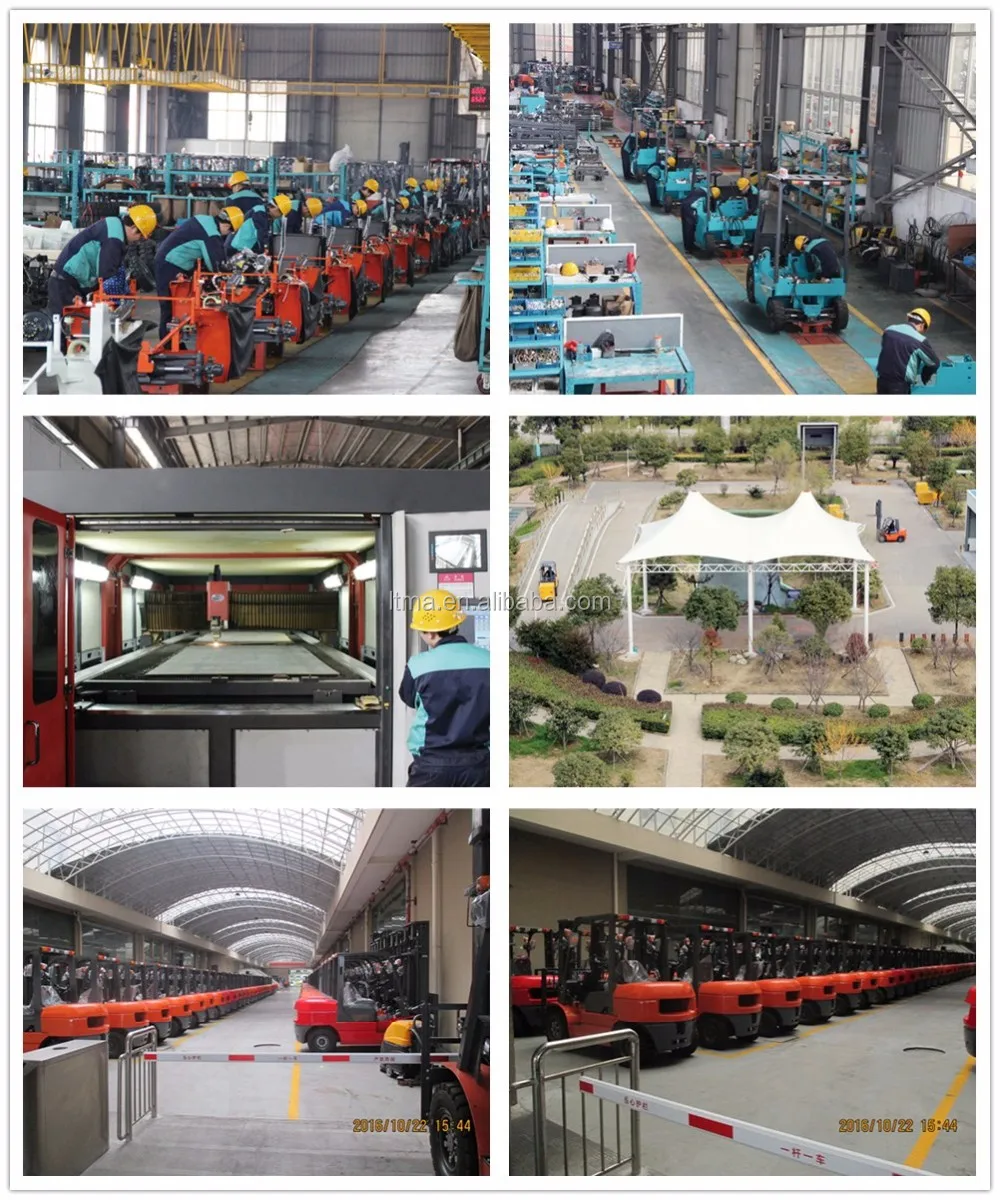

Our Company
Our Service
After-sale Service
Nowadays our products have been sold to more than 110 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
If the machine have any problem within the warranty time, but not caused by man-made, we will send you spare parts for free.
Detail clauses and policies please see to our website and product's quality certificate.
