- Hydraulic working pressure:34Mpa
- Gradeability:30°
- Max. Digging Radius:9936mm
- Max. Digging Depth:6550mm
- Rated power:124KW/2050rpm
- Max. Digging Height:9680mm
- Max. Dumping Height:6730mm
- Track Height:950mm
- Product type:Excavator
- Item:23 ton Excavator
- Applicable Industries:Construction works
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Canada
- Local Service Location:Italy
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Showroom Location:Egypt
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Uzbekistan
- Showroom Location:Australia
- Condition:New
- Moving Type:Wheel Excavator
- Operating Weight:23000Kg
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:YUCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:1.1m3
- Maximum Digging Height:9680mm
- Maximum Digging Depth:6730mm
- Rated Speed:32km/h
- Certification:CE
- Power:50Kw
Model | Cunmins QSB7 124KW/2050rpm | ||
Type | Turbo,Electric injection, water cooled, with air intercooler | ||
No. of cylinder | 6 | ||
Swing Speed | r/min | 0-13 | |
Traveling Speed | km/H | 3.8-4.2 | |
Grade ability | 30° | ||
Hydraulic system working pressure | Mpa | 34 | |
Hydraulic Pump | PNM | ||
Hydraulic Valve | Parker | ||
Swing Motor | Strong(Sunjin) | ||
Traveling Motor | Doosan | ||
Overall Length | mm | 9565 | |
Overall Width | mm | 2990 | |
Overall Height | mm | 3000 | |
Boom Length | mm | 5700 | |
Arm Length | mm | 2920 | |
Track width | mm | 600 | |
Distance from swing center to tail | Mm | 2880 | |
Operation Weight | KG | 23000 | |
Bucket Capacity | m3 | 1.1 | |
Max. Digging Radius | mm | 9936 | |
Max. Digging Depth | mm | 6550 | |
Max. Digging Height | mm | 9680 | |
Max. Dumping Height | mm | 6730 | |
Boom Length | mm | 5700 | |
Arm Length | mm | 2920 | |
Track Height | Mm | 950 | |
Track shoe thickness | Mm | 100 | |
2. Famous brand hydraulic system parts ensure the stable quality.
3. Equippedwith double fuel filter to guarantee fuel purity to protect engine

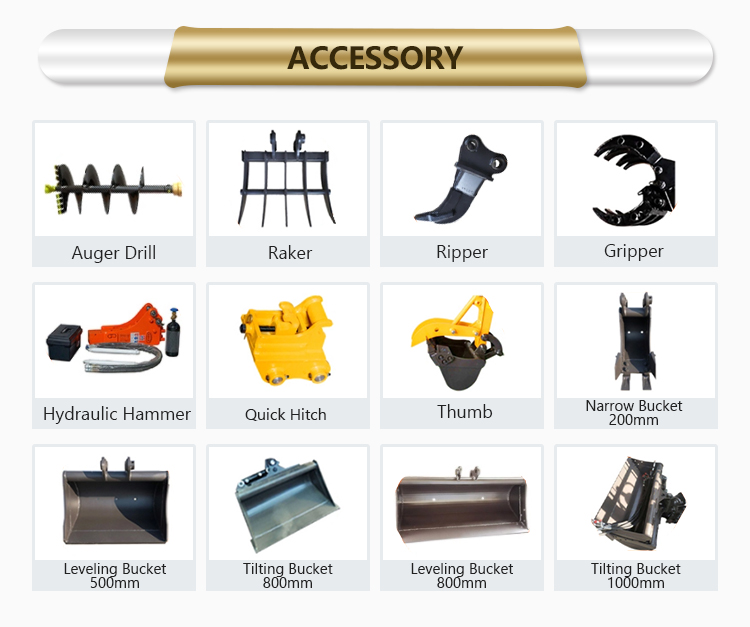

4. Extend hydraulic line for various attachments.

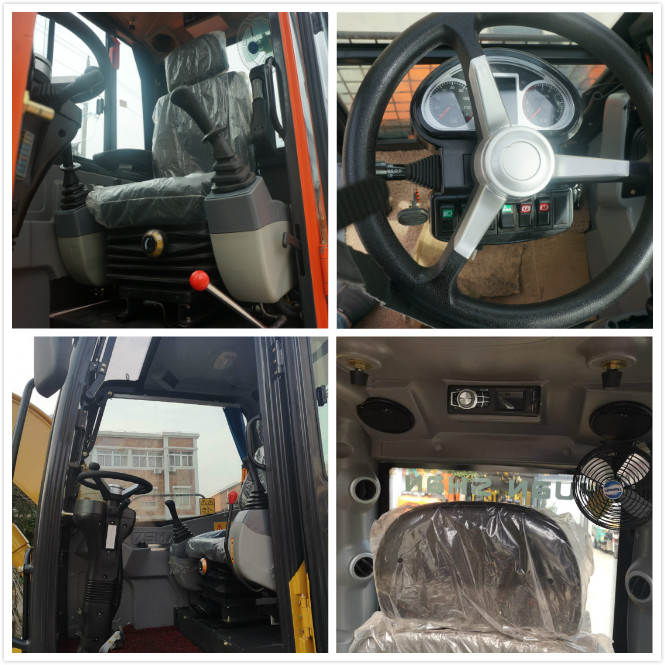

5. Comfort cabin, wide and open sight make operator easy to work.
6. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
7. Imported pilot control joystick make your operation easy &joyful
8. Strong structural parts make sure the working quality duration.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
