- Item:1.2 ton Excavator
- Bucket capacity:0.025m3
- Operating Weight:1040
- Max. dumping height:1850mm
- Wheelbase:910mm
- Overall dimensions:2770x896x1490mm
- Bucket width:350 mm
- Engine:japanese engine /optional epa engine
- Max. Digging height:2610mm
- Color:Customized
- Applicable Industries:Building Material Shops
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Crawler Excavator
- Operating Weight:1.84 ton
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:NACHI
- Hydraulic Valve Brand:RUILONG
- Engine Brand:KUBOTA
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.04m3
- Maximum Digging Height:2310mm
- Maximum Digging Depth:1910mm
- Max Digging Radius:3900mm
- Rated Speed:11.2/2400 kW/rpm
- Certification:CE ISO
- Power:10kw

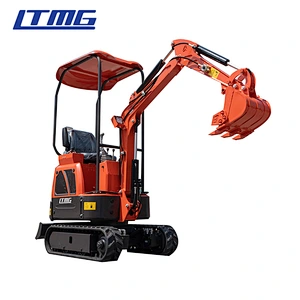

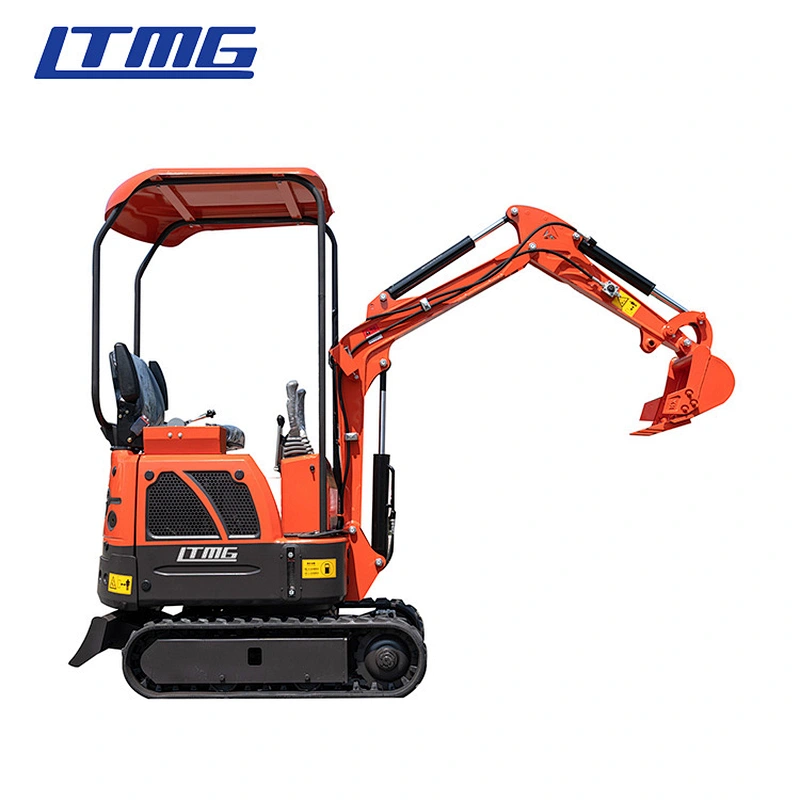

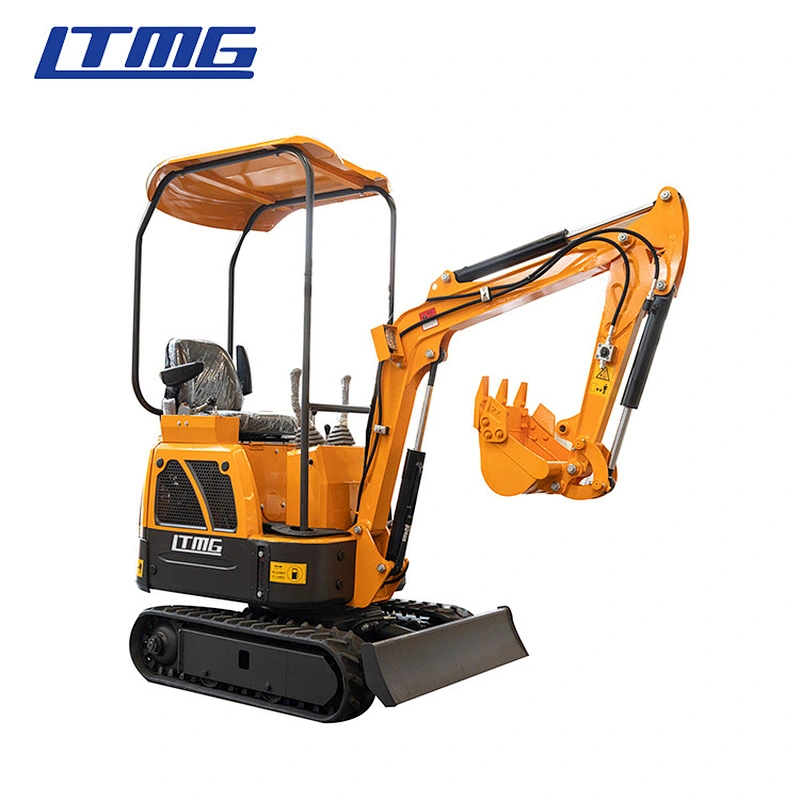

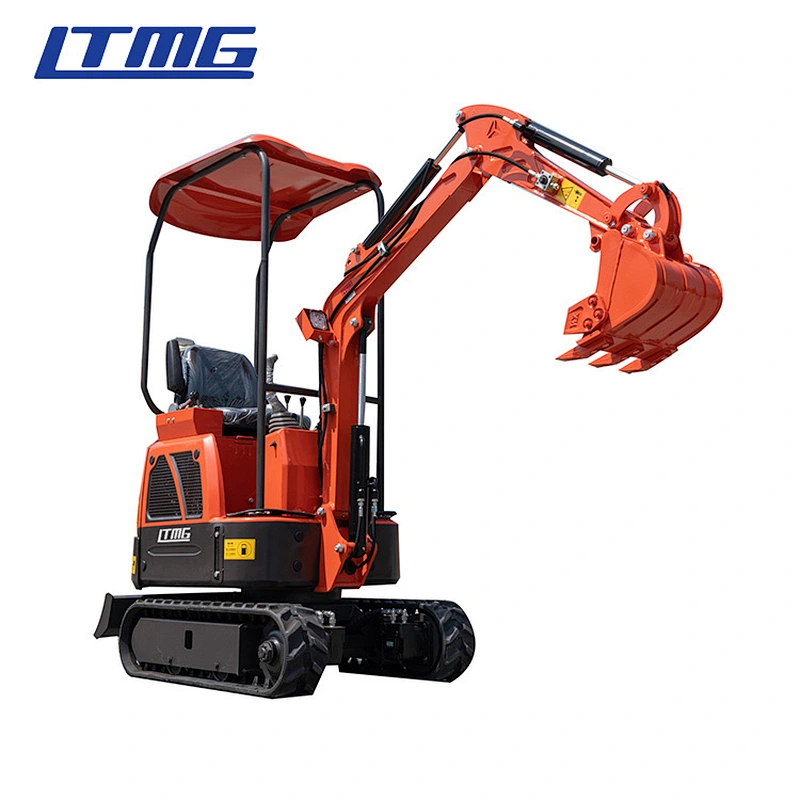

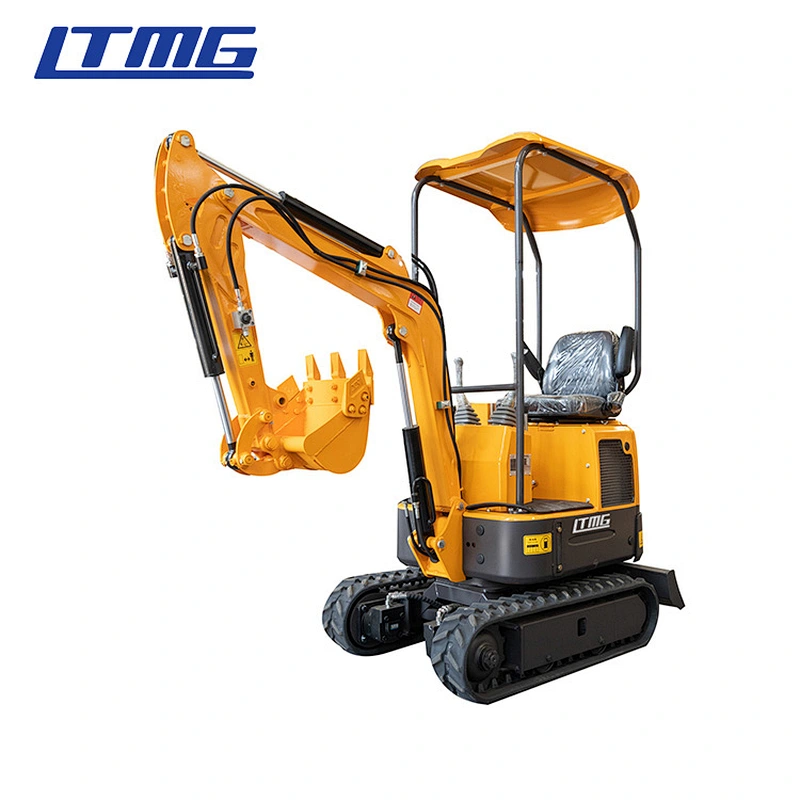

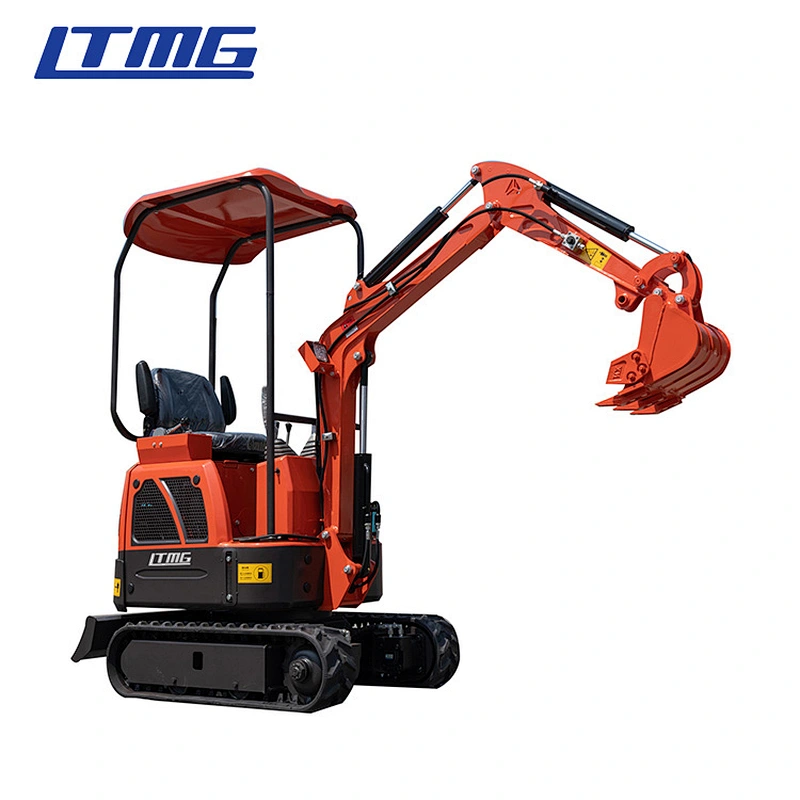

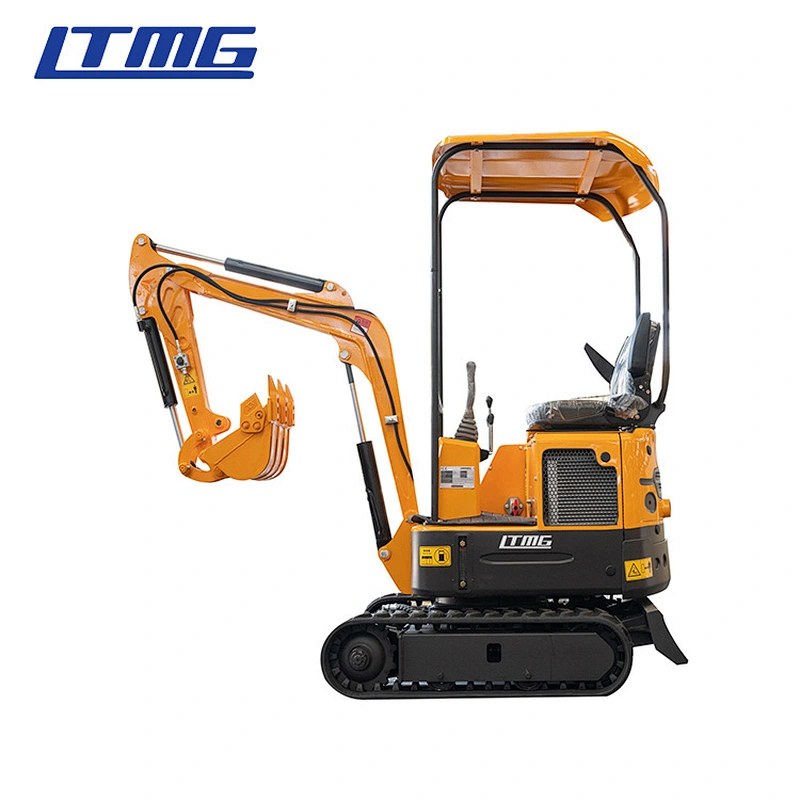

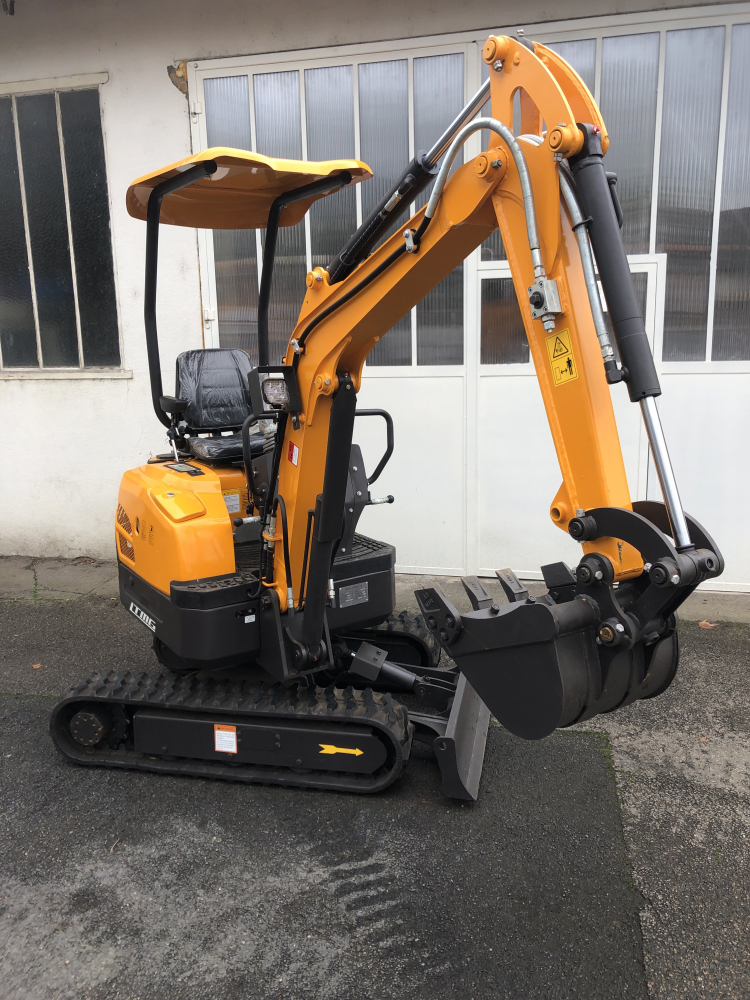

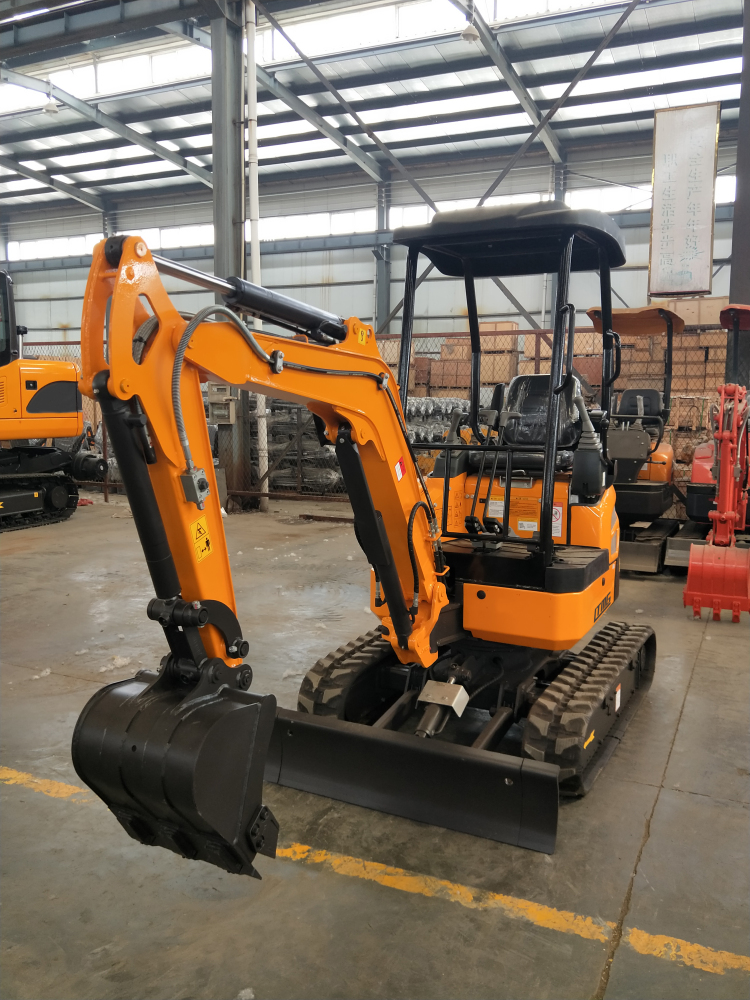

The Specification of LTMG 1.2 ton mini Excavator | ||
Model | LTE12 | |
Operating Weight | 1040kg | |
Digging bucket capacity | 0.025cbm/100kg | |
Bucket width | 350mm | |
Engine | YANMAR(3TNV70) | |
Rated power | 10 kw/2200r/min | |
Displacement | 0.499 L | |
Bore stroke | three cylinder, water cool | |
Main pump | SAISIDA | |
Displacement | 6.8ml/r | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | KERSEN (OMS-2450) | |
Travel speed | 3 km/h | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 2770x896x1490mm | |
Wheelbase | 910 mm | |
Total length of track | 1230 mm | |
Platform ground clearance | 380 mm | |
Platform back turning radius | 784 mm | |
Chassis width | 896 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 1650 mm | |
Max. Vertical digging depth | 1375 mm | |
Max. Digging height | 2610 mm | |
Max. Dumping height | 1850 mm | |
Max. Digging radius on ground | 2850 mm | |
Min. Rotation radius | 1330 mm | |
Max. Upgrade height of bulldozer blade | 345 mm | |
Max. Digging depth of bulldozer blade | 255 mm | |

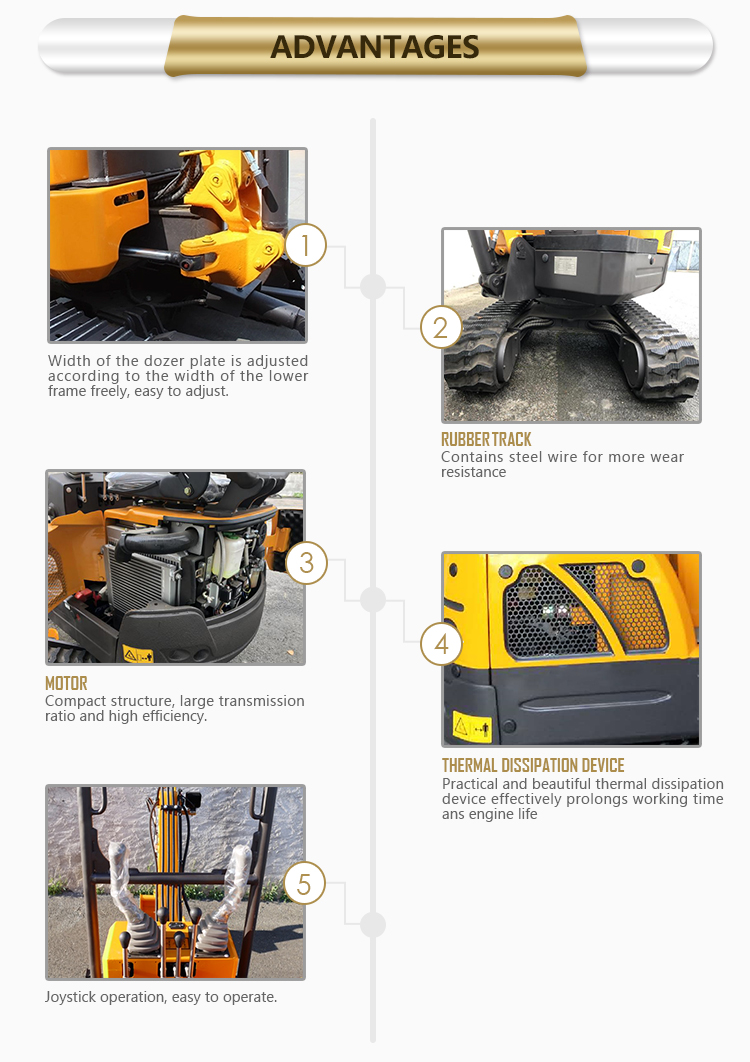

Product Features
1.The use of high-strength welding plate, strong lifting capacity, U-shaped cross-section main arm, more uniform force and higher safety.2.The chassis can be flexibly matched, the structure is simple, the steering is light, the power transmission is stronger and more fuel-efficient, and the luxurious cab is more comfortable.3.Adopt high-strength sheet composite structure, increase the weight of the frame, prevent distortion and breakage.4.Equilibrium valve for smooth operation.Hardened gear with surface hardening, low noise and smooth operation, modular design, high temperature resistance, anti-seepage oil.
5. With Japanese NACHI hydraulic pump , Italy famous brand hydraulic pipe.
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
