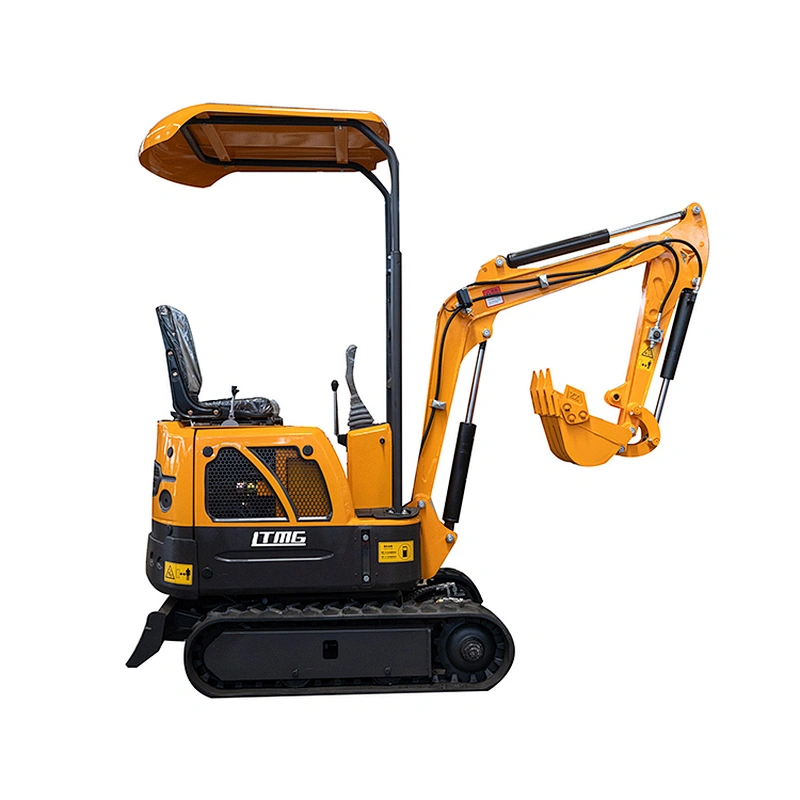

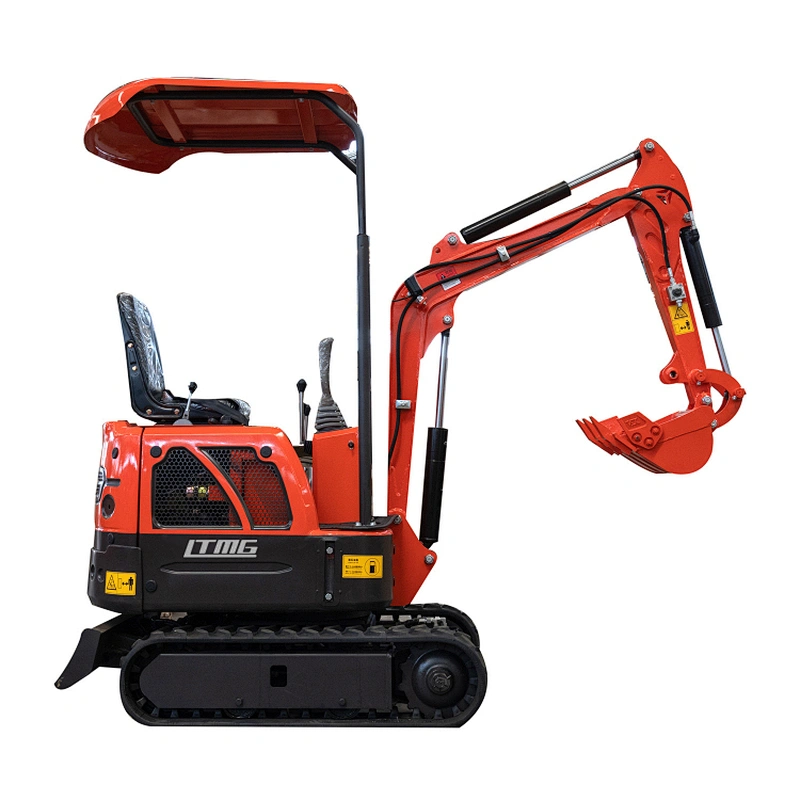

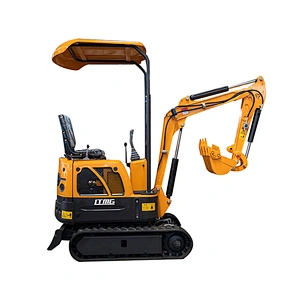

- Product name:LTMG digger mini excavator 0.8 ton 0.9 ton crawler excavator
- Item:0.8 ton Excavator
- Product type:Excavator
- Digging bucket capacity:0.025cbm/100kg
- Track height:320 mm
- Max. Dumping height:1655 mm
- Max. Digging height:2365 mm
- Max.digging depth:1650 mm
- Max. Vertical digging depth:1376 mm
- Rated power:7.5 kw/1800r/min
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Wheel Excavator
- Operating Weight:800Kg
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:KOOP / CHANGCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.025m3
- Maximum Digging Height:2365mm
- Maximum Digging Depth:1650mm
- Max Digging Radius:2560mm
- Rated Speed:1.5km/h
- Certification:CE
- Power:7.5Kw

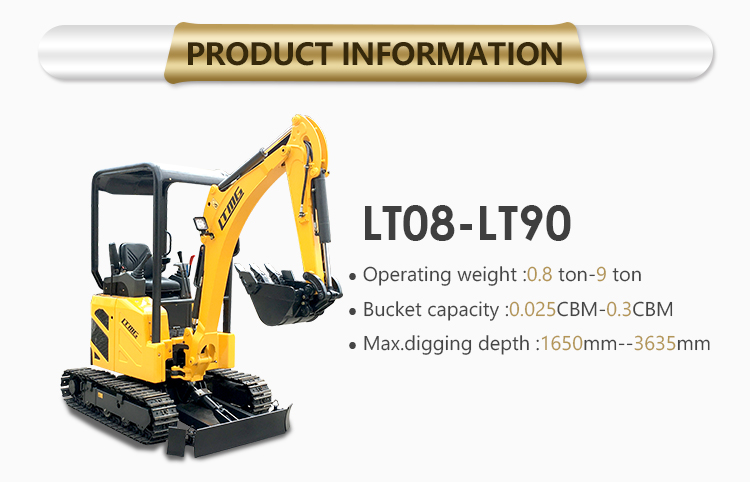

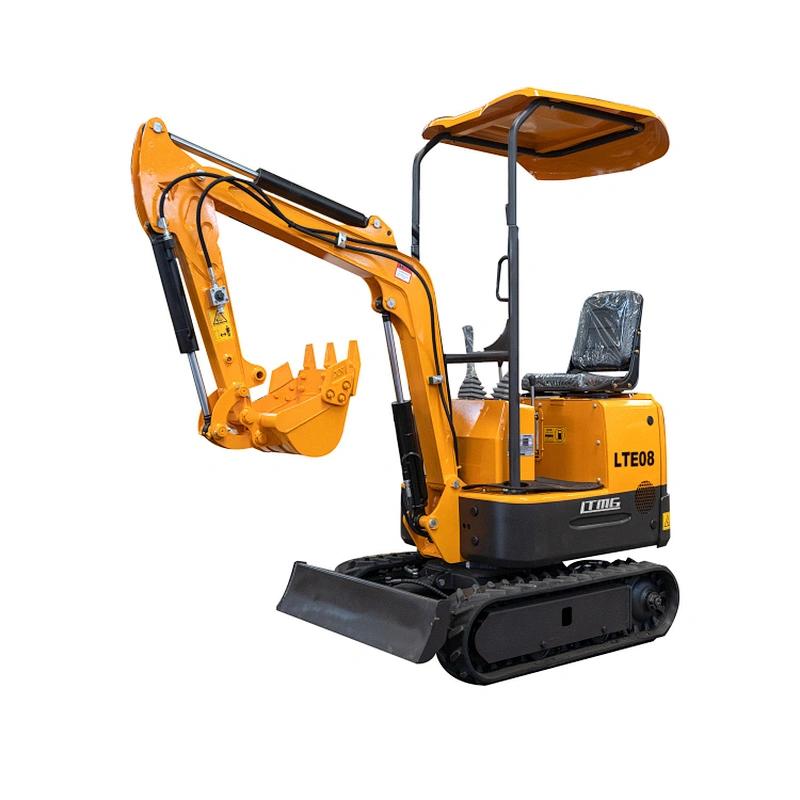

The pecification of LTMG 0.8 ton mini Excavator | ||
Model | LTE08 | |
Operating Weight | 800kg | |
Digging bucket capacity | 0.025cbm/100kg | |
Bucket width | 340mm | |
Engine | KOOP / CHANGCHAI | |
Rated power | 7.5 kw/1800r/min | |
Displacement | 0.499 L | |
Bore stroke | 70x55 | |
Main pump | CBK-F6.8 | |
Displacement | 6.8ml/r | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | KERSEN 310 | |
Travel speed | 1.5km/h | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 1877x896x1990 mm | |
Wheelbase | 770 mm | |
Total length of track | 960mm | |
Platform ground clearance | 376 mm | |
Platform back turning radius | 664 mm | |
Chassis width | 896 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 1650 mm | |
Max. Vertical digging depth | 1376 mm | |
Max. Digging height | 2365 mm | |
Max. Dumping height | 1655 mm | |
Max. Digging radius on ground | 2560 mm | |
Min. Rotation radius | 1200 mm | |
Max. Upgrade height of bulldozer blade | 165 mm | |
Max. Digging depth of bulldozer blade | 170 mm | |
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

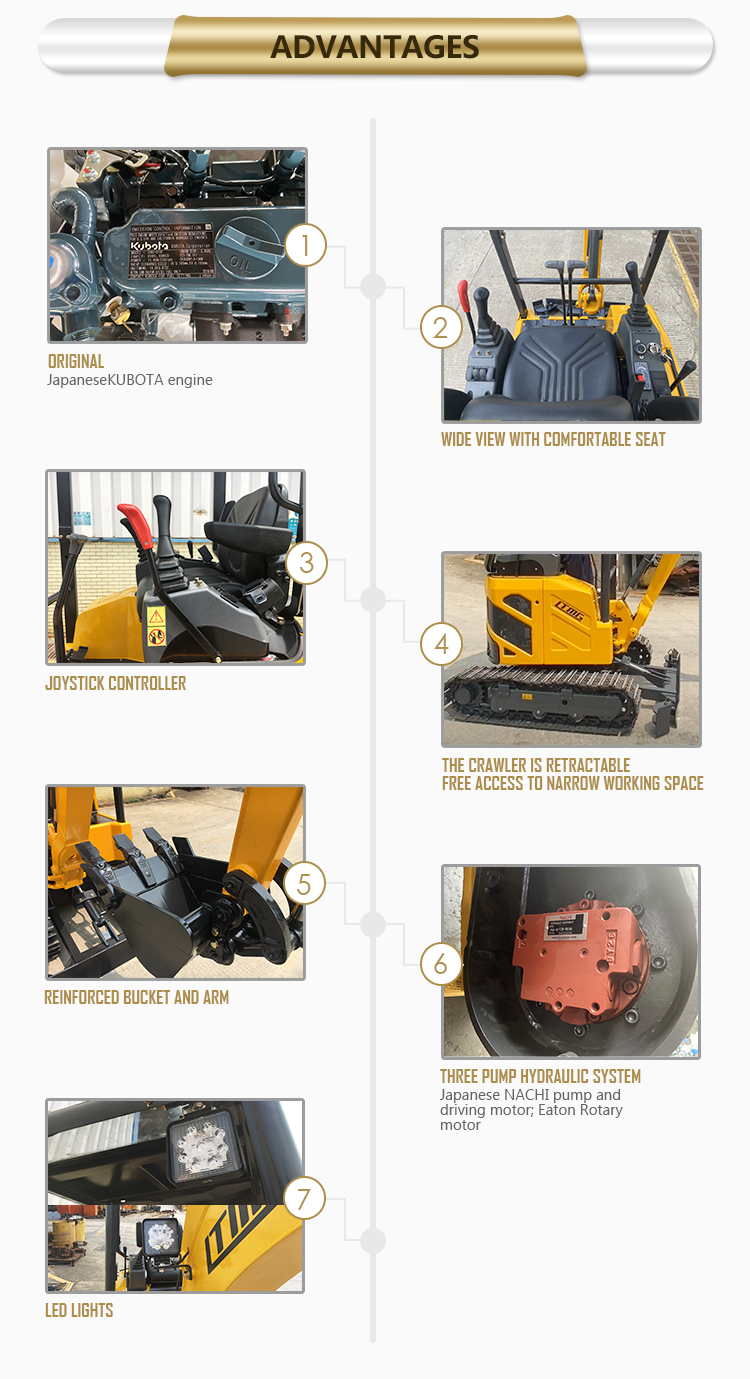

1.The use of high-strength welding plate, strong lifting capacity, U-shaped cross-section main arm, more uniform force and higher safety.2.The chassis can be flexibly matched, the structure is simple, the steering is light, the power transmission is stronger and more fuel-efficient, and the luxurious cab is more comfortable.3.Adopt high-strength sheet composite structure, increase the weight of the frame, prevent distortion and breakage.4.Equilibrium valve for smooth operation.Hardened gear with surface hardening, low noise and smooth operation, modular design, high temperature resistance, anti-seepage oil.
