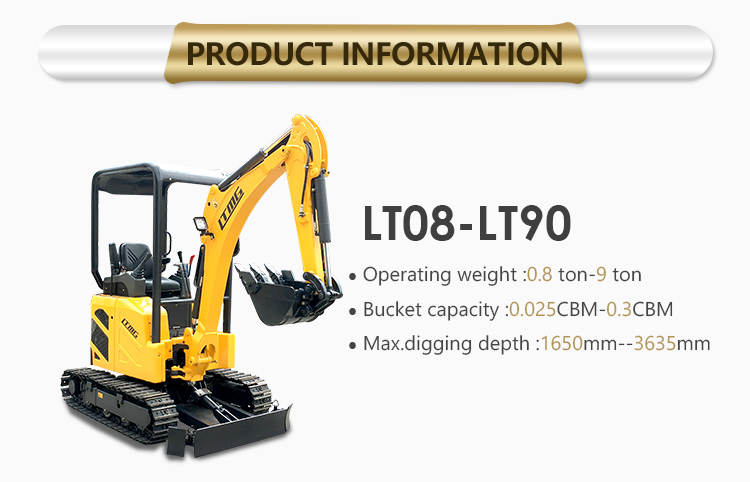

- Item:2 ton Excavator
- Product type:Excavator
- Digging bucket capacity:0.1cbm/100kg
- Track height:1630mm
- Max. Digging height:2290 mm
- Max.digging depth:2450 mm
- Max. Digging Radius:4370 mm
- Swing Speed:12 -- 14 r/min
- Bucket Digging Force:11.5KN
- Tracking Force:15KN
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Crawler Excavator
- Operating Weight:2000Kg
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:KOOP / CHANGCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.1m3
- Maximum Digging Height:2290mm
- Maximum Digging Depth:3700mm
- Max Digging Radius:4370mm
- Rated Speed:2.8km/h
- Certification:CE
- Power:22.1Kw
- Marketing Type:New Product 2021
Model | LTE22 | |||
Engine | ||||
Engine Model | Laidong 3TE30 22.1kW/2200rpm | |||
Type | Electronic injection, water cooled, natural intake | |||
No. of cylinder | 3 | |||
Main Performance | ||||
Swing Speed | r/min | 12 -- 14 | ||
Traveling Speed | km/H | 2.8 | ||
Grade ability | % | 70(35°) | ||
Traveling Tracking Force | kN | 15 | ||
Bucket Digging Force | kN | 11.5 | ||
Arm Digging Force | kN | 9.3 | ||
Hydraulic System | ||||
Hydraulic system working pressure | Mpa | 16 | ||
Hydraulic Pump | Gear Pump | AHWY | ||
Hydraulic pump flow | L/min | 2×12+5 | ||
Swing Motor | Eaton | |||
Traveling Motor | Eaton | |||
Fuel Tank Capacity | L | 26 | ||
Hydraulic Tank Capacity | L | 27 | ||
Overall Dimensions | ||||
Overall Length | mm | 4080 | ||
Overall Width | mm | 1300 | ||
Overall Height | mm | 2280 | ||
Ground clearance | mm | 490 | ||
Track length | mm | 1630 | ||
Track width | mm | 250 | ||
Undercarriage width | mm | 1270 | ||
Undercarriage ground clearance | mm | 235 | ||
Dozer Blade | mm | 1270×240 | ||
Operation parameters | ||||
Operation Weight | KG | 2200 | ||
Bucket Capacity | m3 | 0.1 | ||
Max. Digging Radius | mm | 4370 | ||
Max. Digging Depth | mm | 2450 | ||
Max. Digging Height | mm | 2290 | ||
Max. Dumping Height | mm | 3700 | ||
Max. Dozer Cutting | mm | 310 | ||
Max. Dozer Lifting | mm | 240 | ||
Boom Deflexion (Left/Right) | ° | 70/50 | ||
Tail Swing Radius | mm | 1180 | ||
Front Min. Swing Radius | mm | 2020 | ||

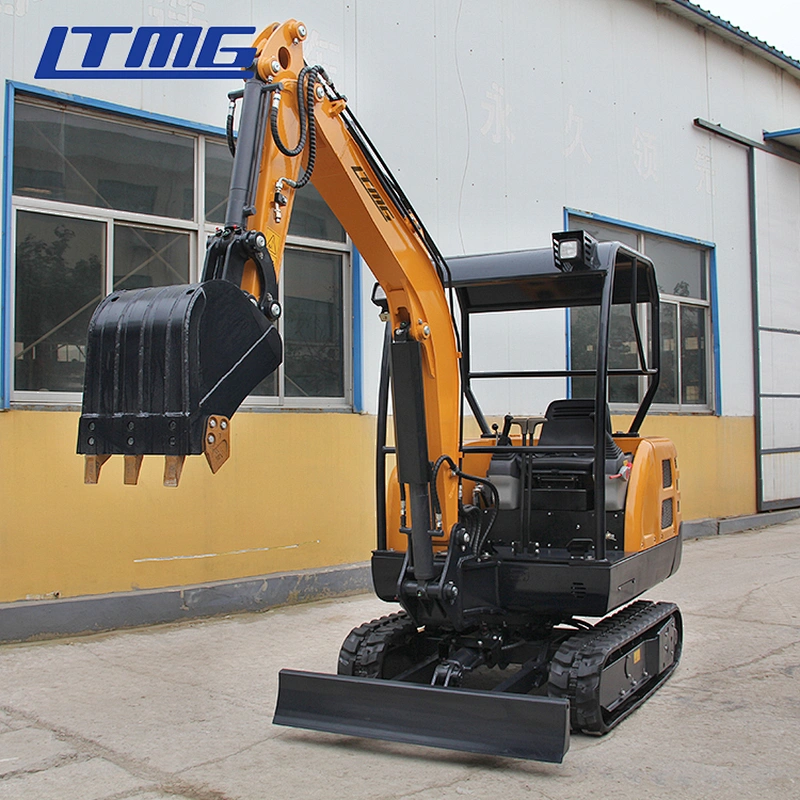

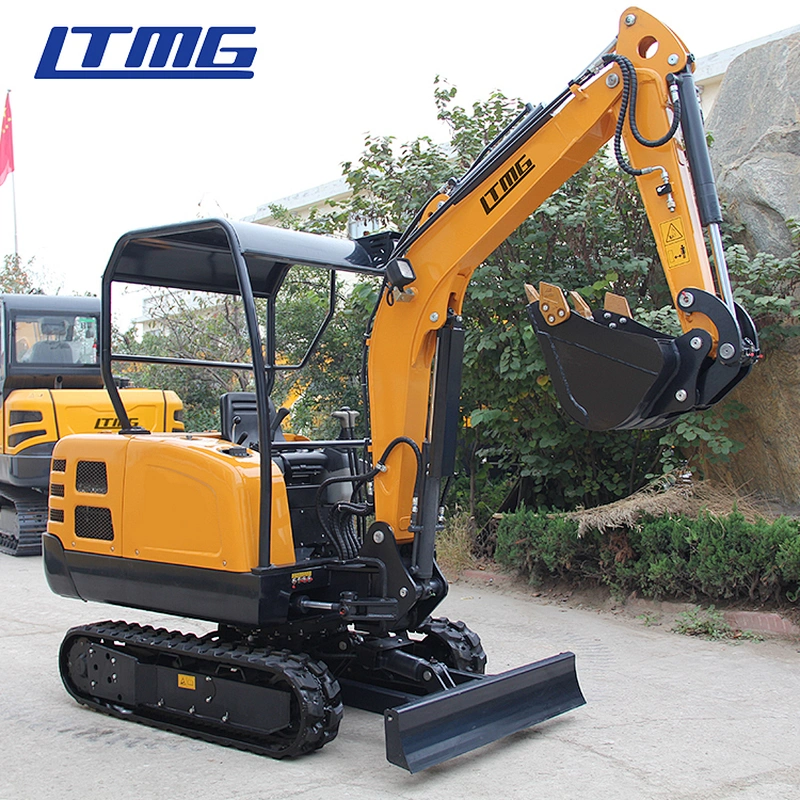

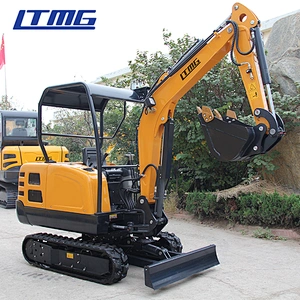

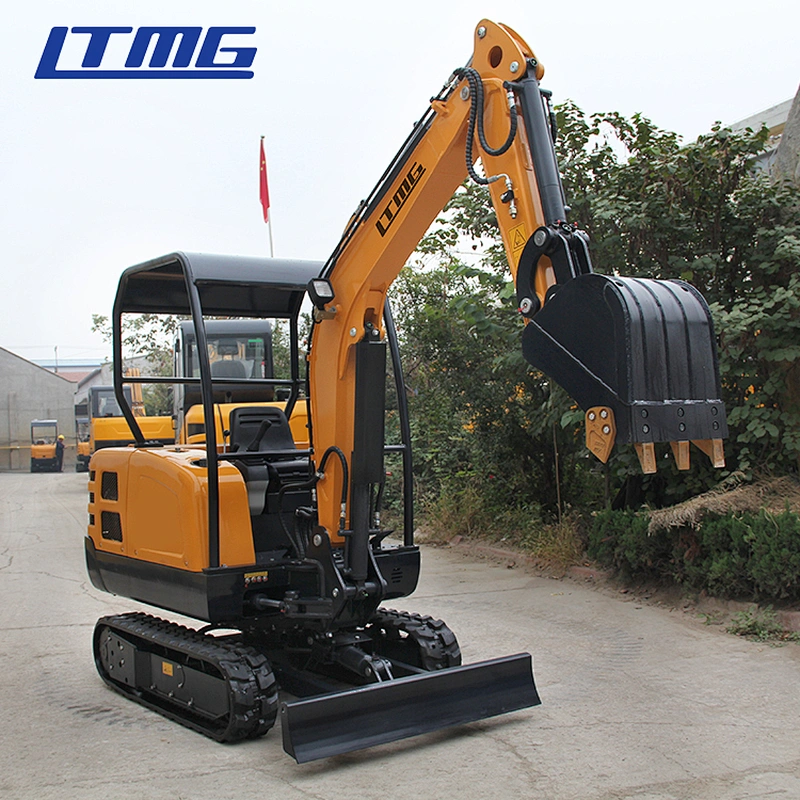

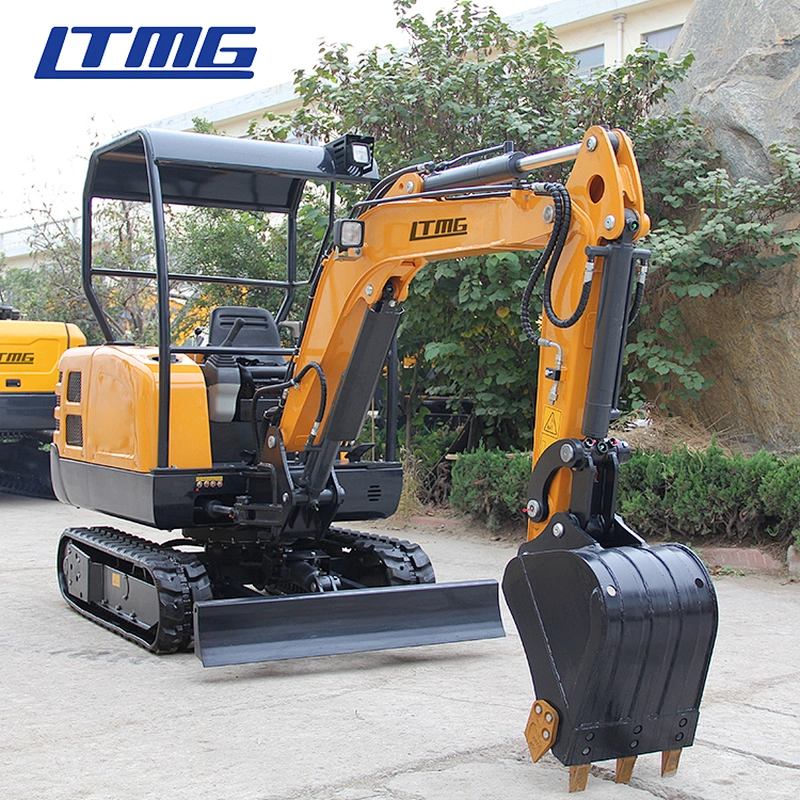

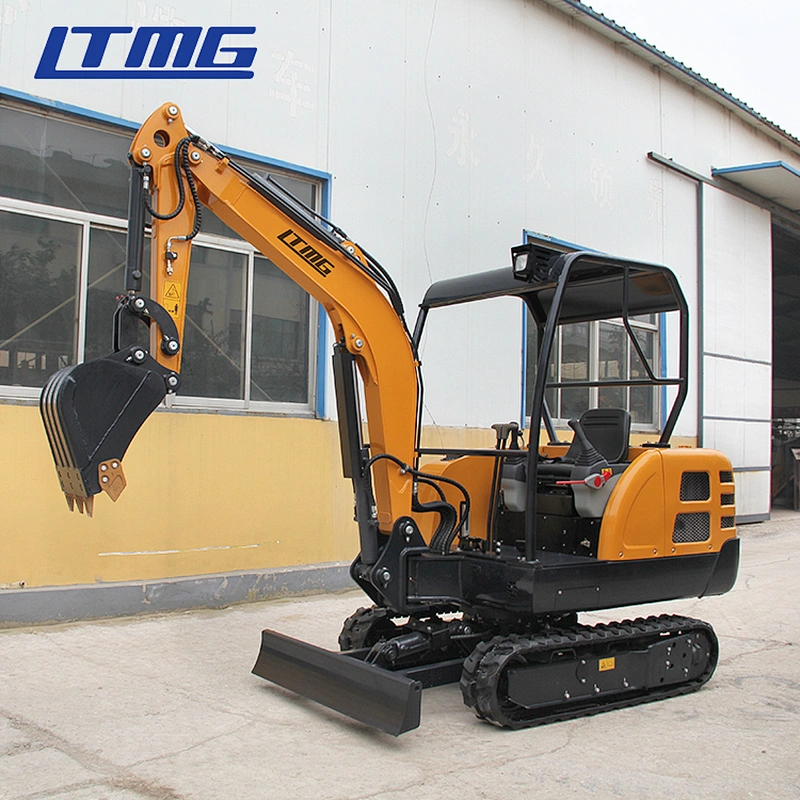

This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

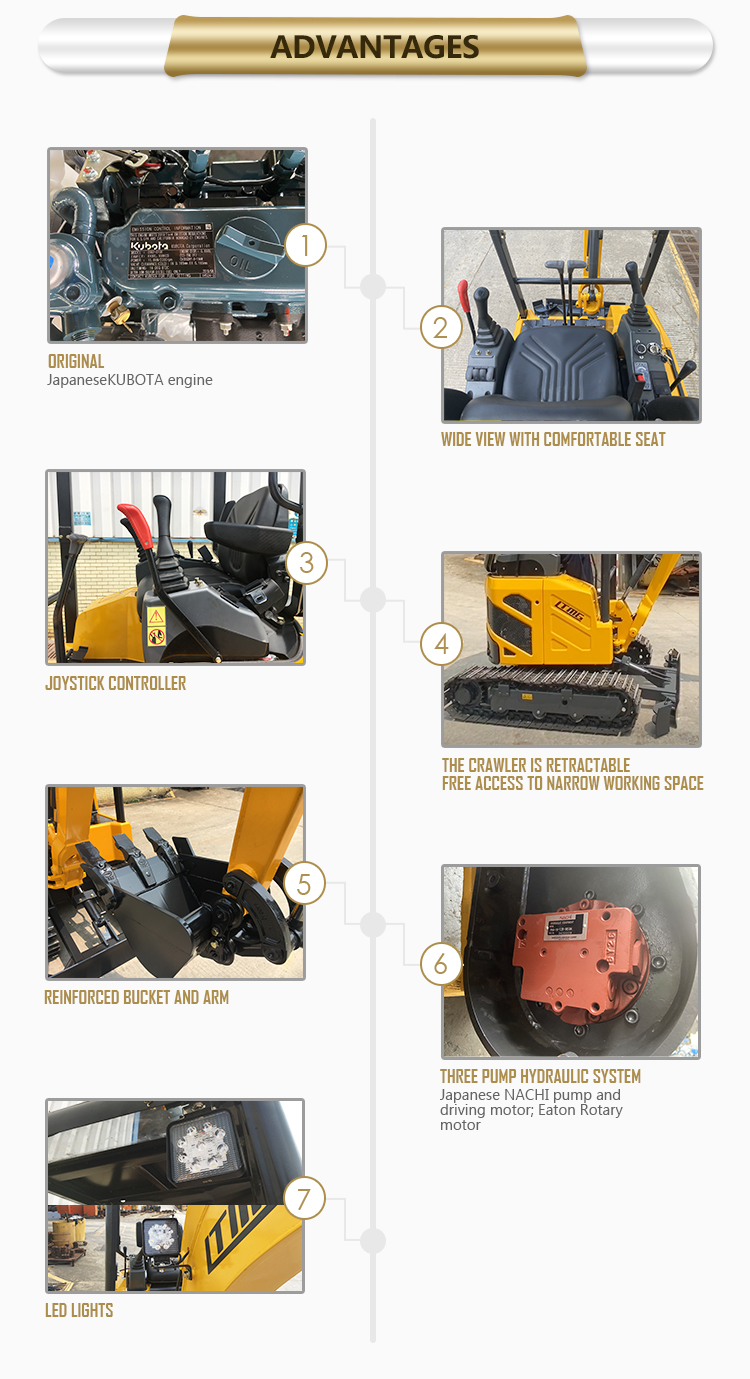

1.The use of high-strength welding plate, strong lifting capacity, U-shaped cross-section main arm, more uniform force and higher safety.2.The chassis can be flexibly matched, the structure is simple, the steering is light, the power transmission is stronger and more fuel-efficient, and the luxurious cab is more comfortable.3.Adopt high-strength sheet composite structure, increase the weight of the frame, prevent distortion and breakage.4.Equilibrium valve for smooth operation.Hardened gear with surface hardening, low noise and smooth operation, modular design, high temperature resistance, anti-seepage oil.
