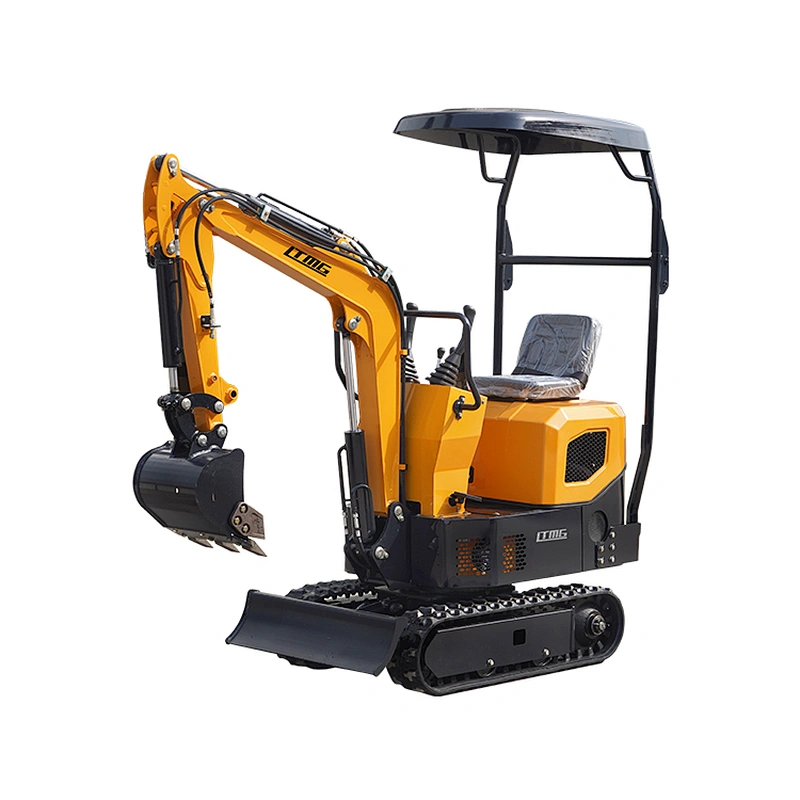

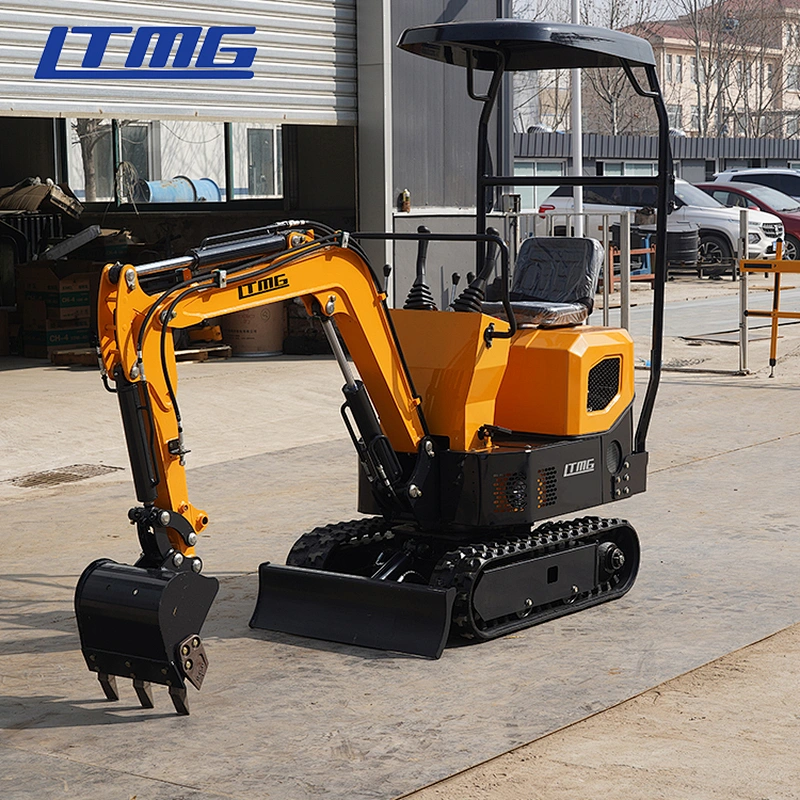

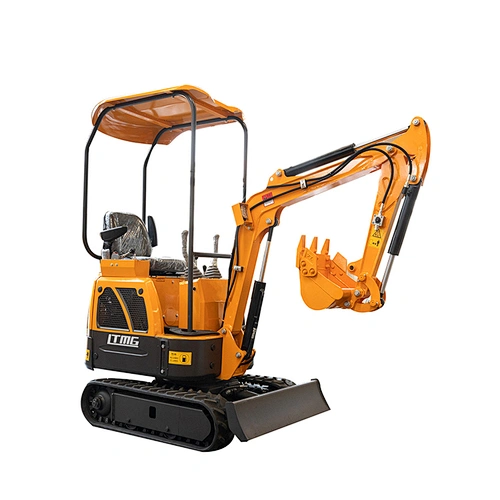

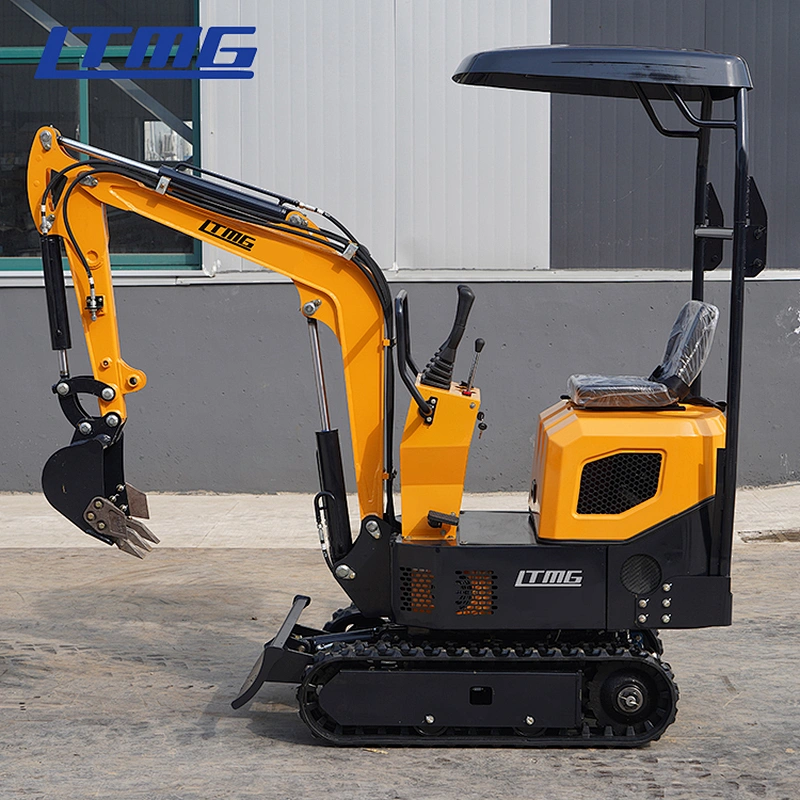

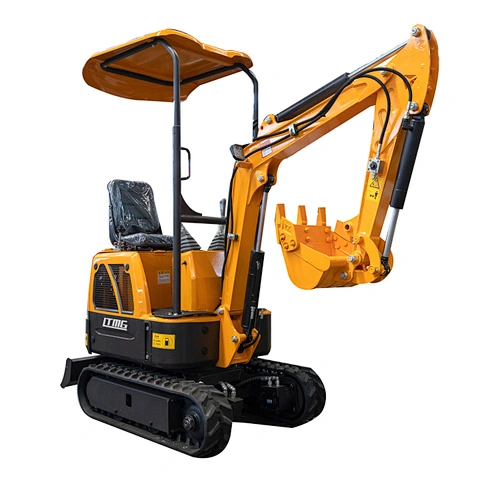

- Item:1 ton Excavator
- Product type:Excavator
- Digging bucket capacity:0.025cbm/100kg
- Track height:320 mm
- Max. Dumping height:1655 mm
- Max. Digging height:2365 mm
- Max.digging depth:1650 mm
- Max. Vertical digging depth:1376 mm
- Rated power:7.5 kw/1800r/min
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Crawler Excavator
- Operating Weight:800Kg
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:KOOP / CHANGCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.025m3
- Maximum Digging Height:2365mm
- Maximum Digging Depth:1650mm
- Max Digging Radius:2560mm
- Rated Speed:1.5km/h
- Certification:CE
- Power:7.5Kw

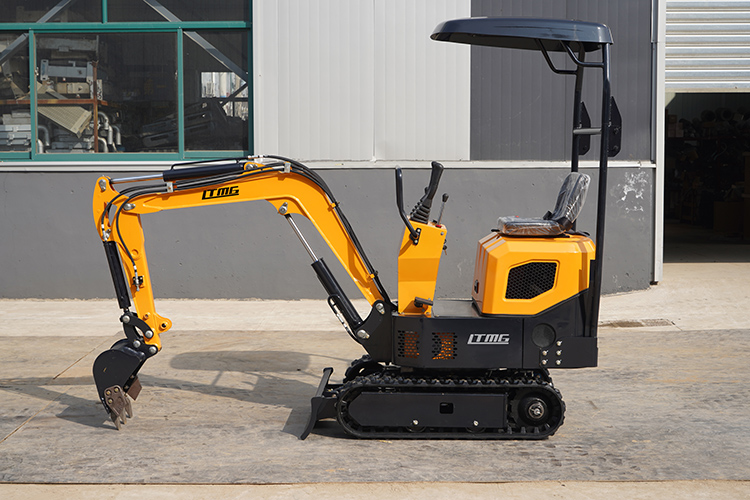

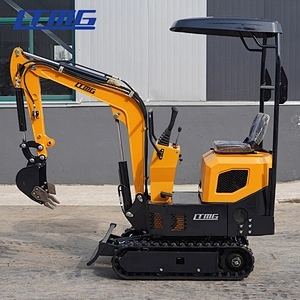

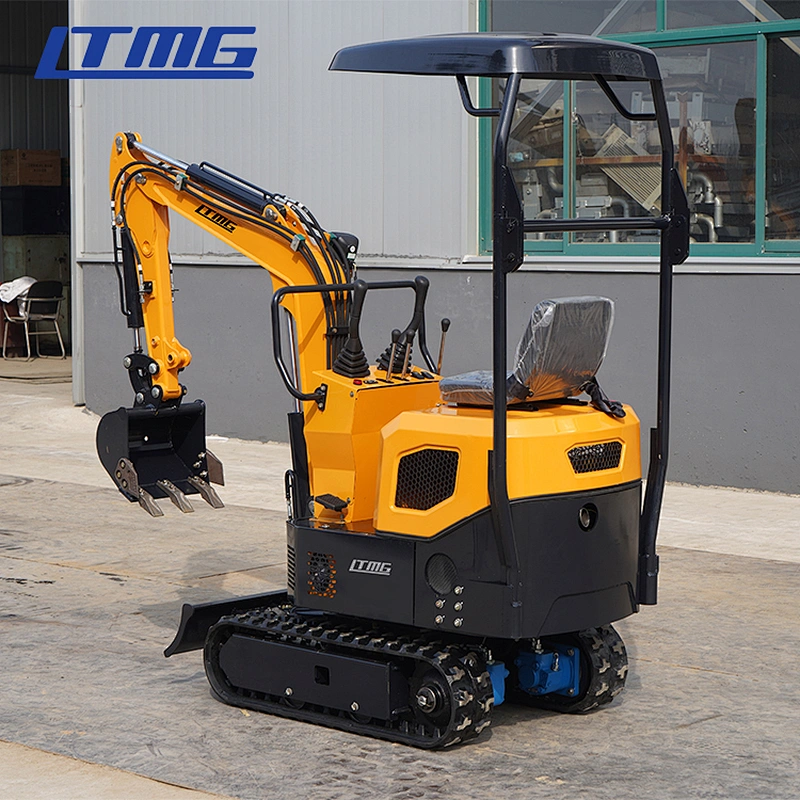

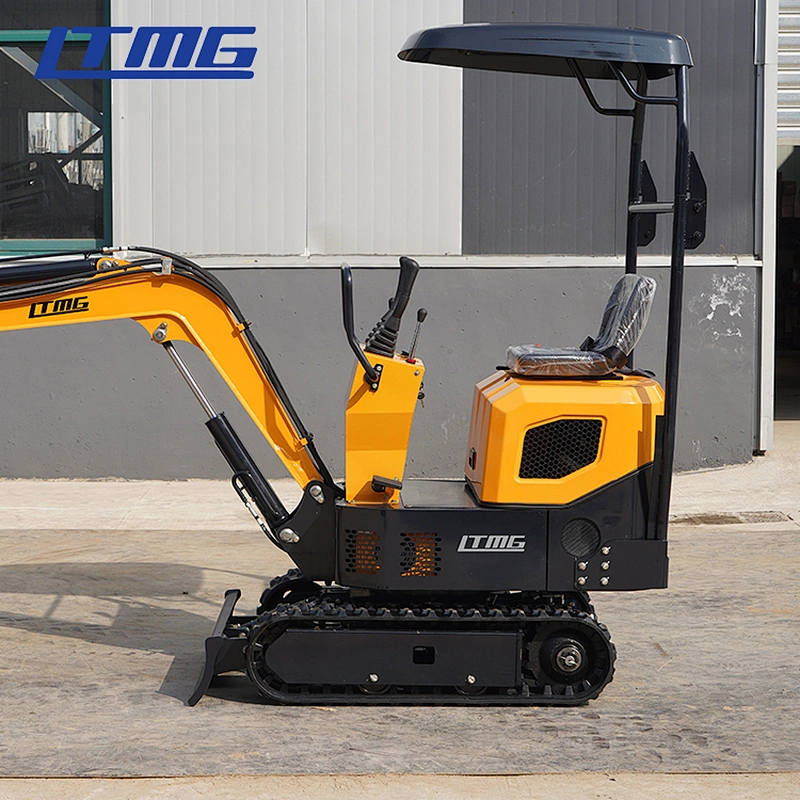

Model | LTE10 | |||
Engine | ||||
Engine Model | KOOP KD192F-1 7kW/3000rpm EURO V Emission | |||
Type | Direct injection, wind cooled, natural intake | |||
No. of cylinder | 1 | |||
Main Performance | ||||
Swing Speed | r/min | 0-13 | ||
Traveling Speed | km/H | 2 | ||
Grade ability | % | 30° | ||
Traveling Tracking Force | kN | 8.3 | ||
Bucket Digging Force | kN | 7.2 | ||
Arm Digging Force | kN | 4.6 | ||
Hydraulic System | ||||
Hydraulic system working pressure | Mpa | 16 | ||
Hydraulic Pump | Gear Pump | |||
Hydraulic pump flow | L/min | 18 | ||
Fuel Tank Capacity | L | 26 | ||
Hydraulic Tank Capacity | L | 14.5 in Hydraulic tank 21.5 in Hydraulic system | ||
Overall Dimensions | ||||
Overall Length | mm | 2840 | ||
Overall Width | mm | 880 | ||
Overall Height | mm | 2200 | ||
Counterweight Ground clearance | mm | 385 | ||
Axle Base | mm | 900 | ||
Track width | mm | 180 | ||
Undercarriage width | mm | 840 | ||
Undercarriage ground clearance | mm | 132 | ||
Operation parameters | ||||
Operation Weight | KG | 950 | ||
Bucket Capacity | m3 | 0.023 | ||
Max. Digging Radius | mm | 3065 | ||
Max. Digging Depth | mm | 1715 | ||
Max. Digging Height | mm | 2600 | ||
Max. Dumping Height | mm | 1830 | ||
Tail Swing Radius | mm | 800 | ||
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

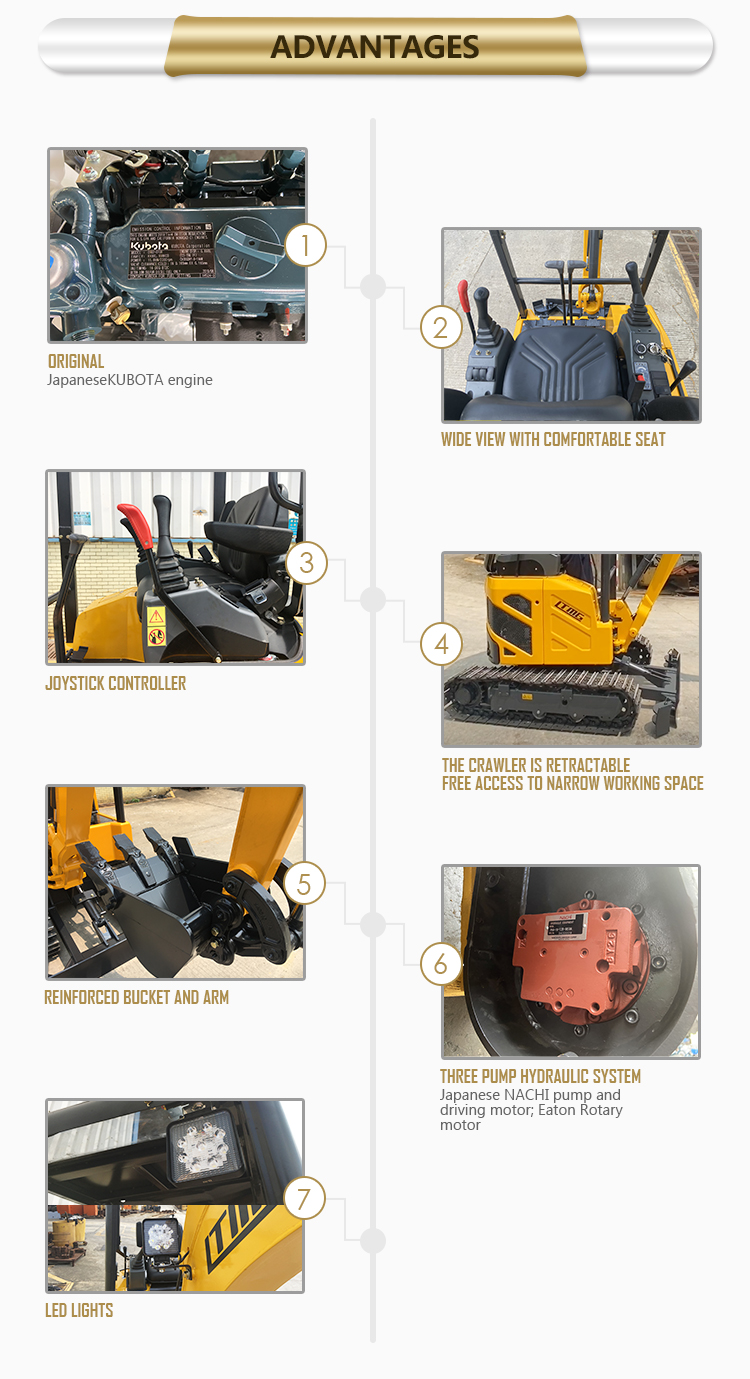

1.The use of high-strength welding plate, strong lifting capacity, U-shaped cross-section main arm, more uniform force and higher safety.2.The chassis can be flexibly matched, the structure is simple, the steering is light, the power transmission is stronger and more fuel-efficient, and the luxurious cab is more comfortable.3.Adopt high-strength sheet composite structure, increase the weight of the frame, prevent distortion and breakage.4.Equilibrium valve for smooth operation.Hardened gear with surface hardening, low noise and smooth operation, modular design, high temperature resistance, anti-seepage oil.
