- Item:0.8 ton Excavator
- engine:changchai
- Digging bucket capacity:0.025cbm/100kg
- Track height:320 mm
- Max. Dumping height:1655 mm
- Max. Digging height:2365 mm
- Max.digging depth:1650 mm
- Max. Vertical digging depth:1376 mm
- Max. Digging radius on ground:2560 mm
- Color:customized
- Applicable Industries:Building Material Shops
- Applicable Industries:Farms
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Wheel Excavator
- Operating Weight:800Kg
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:CHANGCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.025m3
- Maximum Digging Height:2365mm
- Maximum Digging Depth:1650mm
- Max Digging Radius:2560mm
- Rated Speed:1.5km/h
- Certification:CE
- Power:7.5Kw

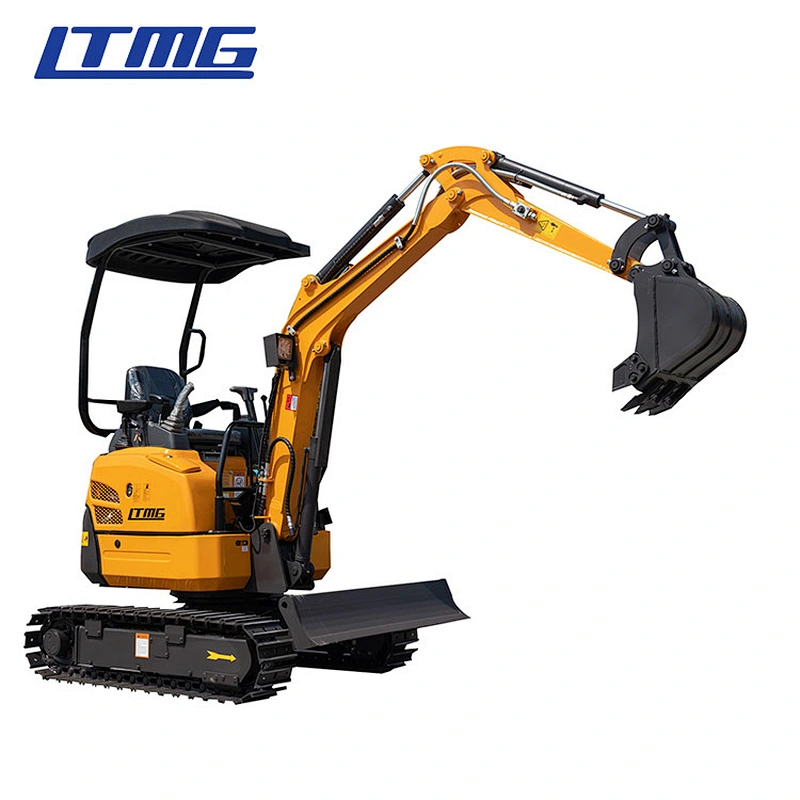

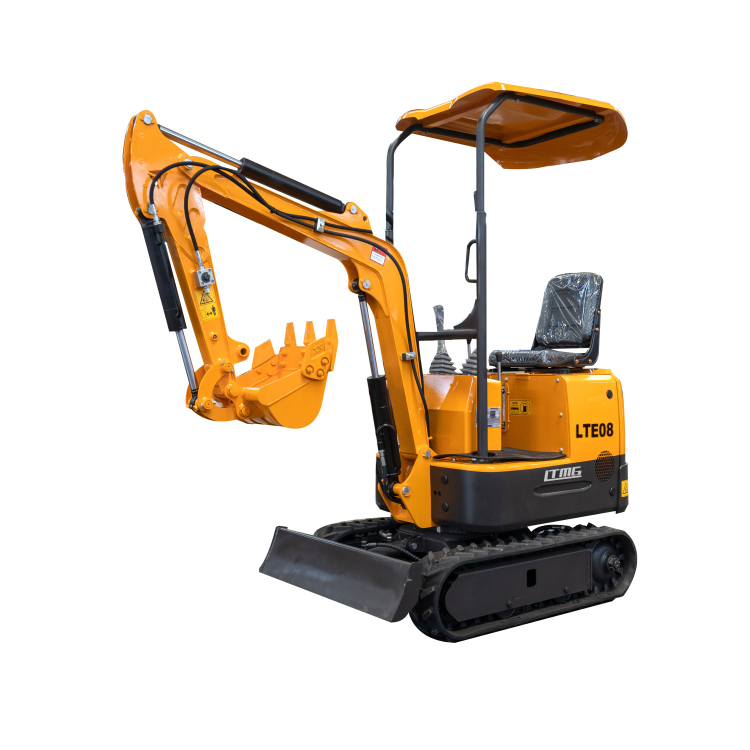

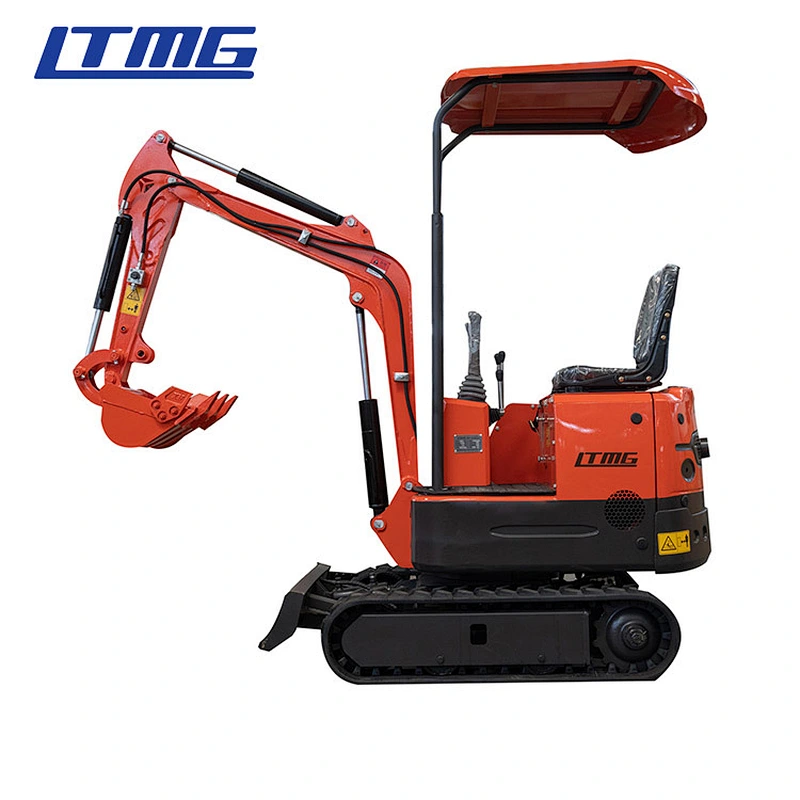

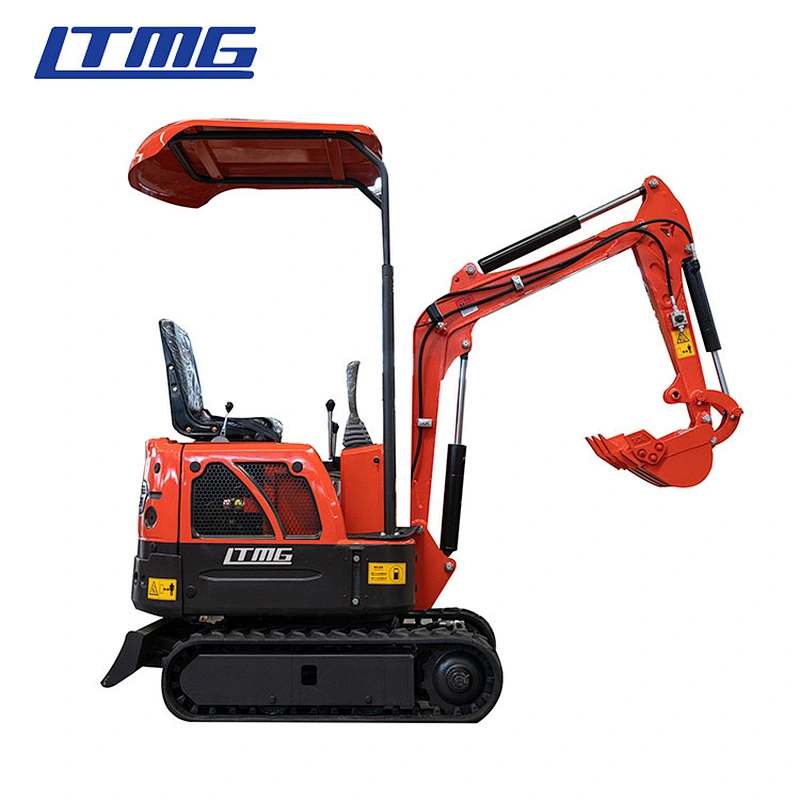

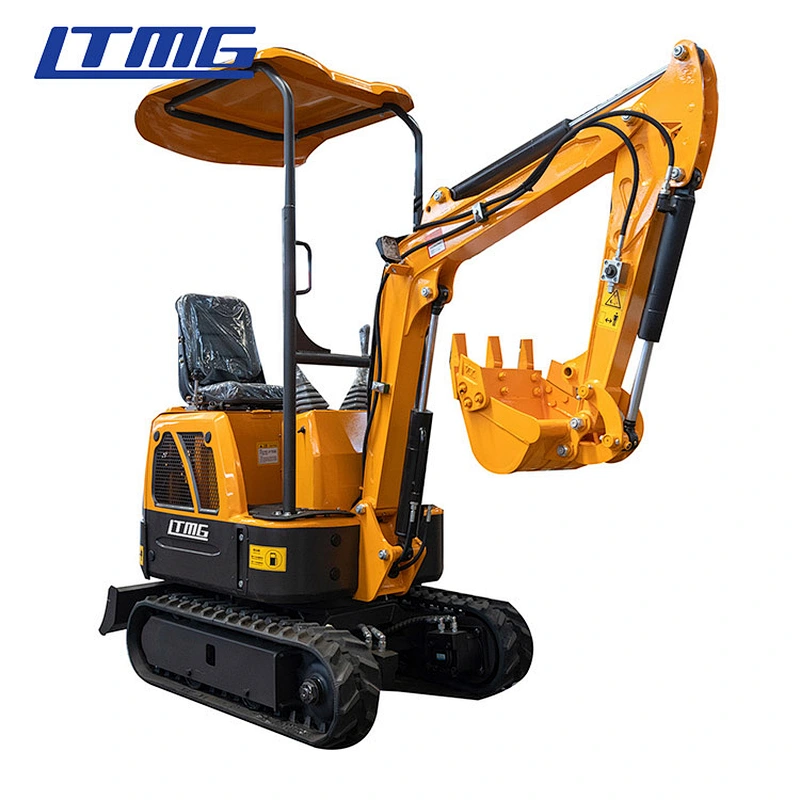

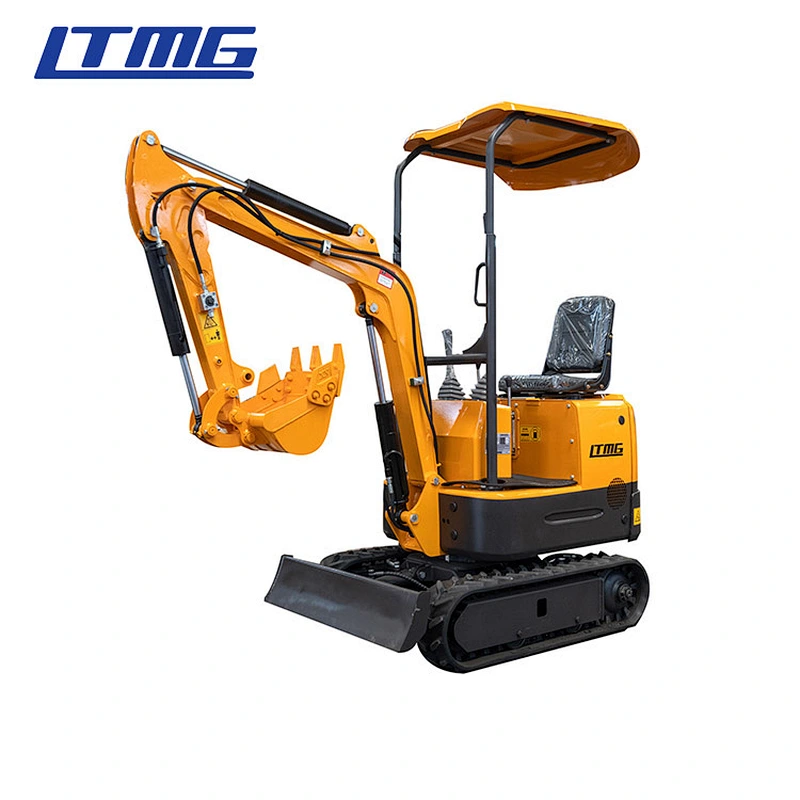

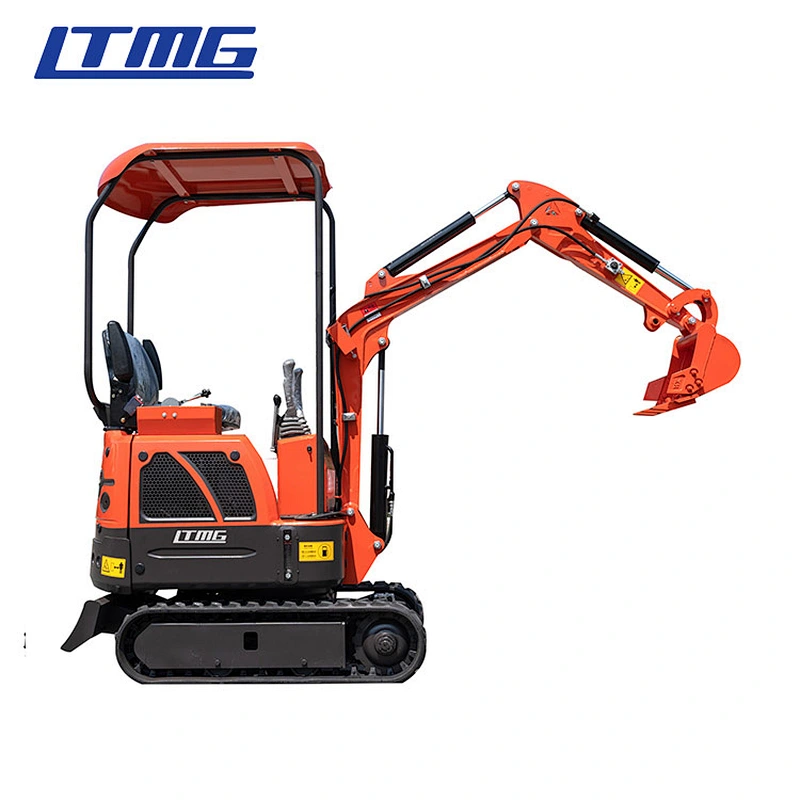

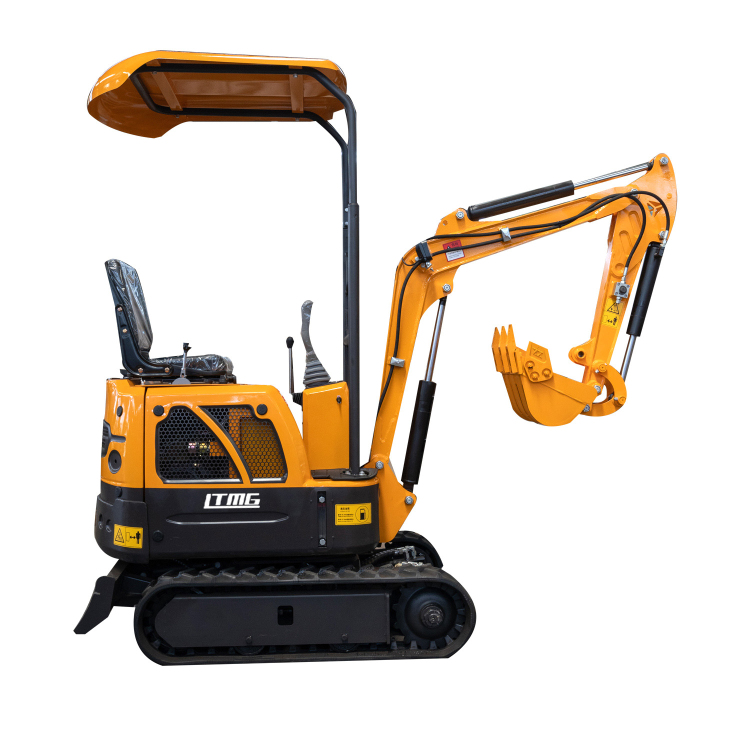

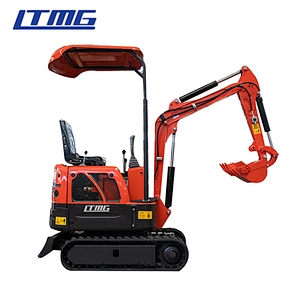

The specification of LTMG 0.8 ton mini Excavator | ||
Model | LT08 | |
Operating Weight | 800kg | |
Digging bucket capacity | 0.025cbm/100kg | |
Bucket width | 340mm | |
Engine | KOOP / CHANGCHAI | |
Rated power | 7.5 kw/1800r/min | |
Displacement | 0.499 L | |
Bore stroke | 70x55 | |
Main pump | CBK-F6.8 | |
Displacement | 6.8ml/r | |
Swing motor | SJ-TECH (MP-1-160) | |
Traveling motor | KERSEN 310 | |
Travel speed | 1.5km/h | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 1877x896x1990 mm | |
Wheelbase | 770 mm | |
Total length of track | 960mm | |
Platform ground clearance | 376 mm | |
Platform back turning radius | 664 mm | |
Chassis width | 896 mm | |
Track width | 180 mm | |
Chassis ground clearance | 132 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 1650 mm | |
Max. Vertical digging depth | 1376 mm | |
Max. Digging height | 2365 mm | |
Max. Dumping height | 1655 mm | |
Max. Digging radius on ground | 2560 mm | |
Min. Rotation radius | 1200 mm | |
Max. Upgrade height of bulldozer blade | 165 mm | |
Max. Digging depth of bulldozer blade | 170 mm | |

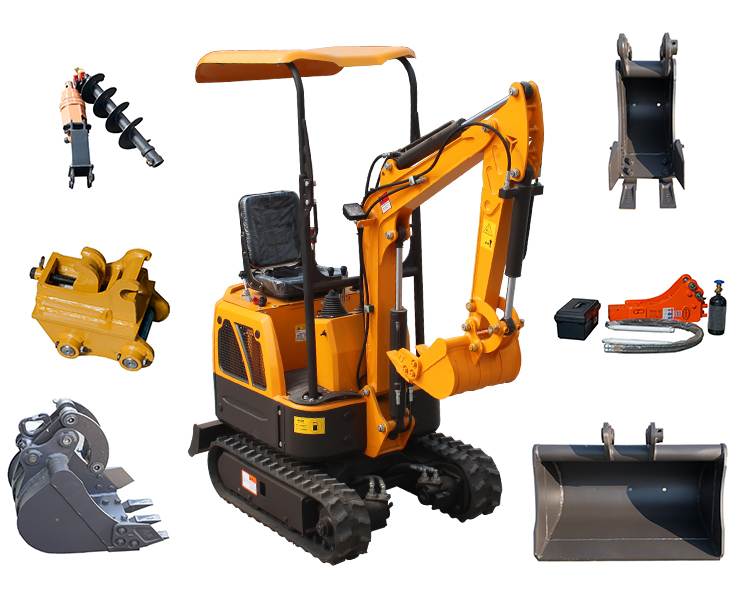

Attachments
Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
FAQ
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
