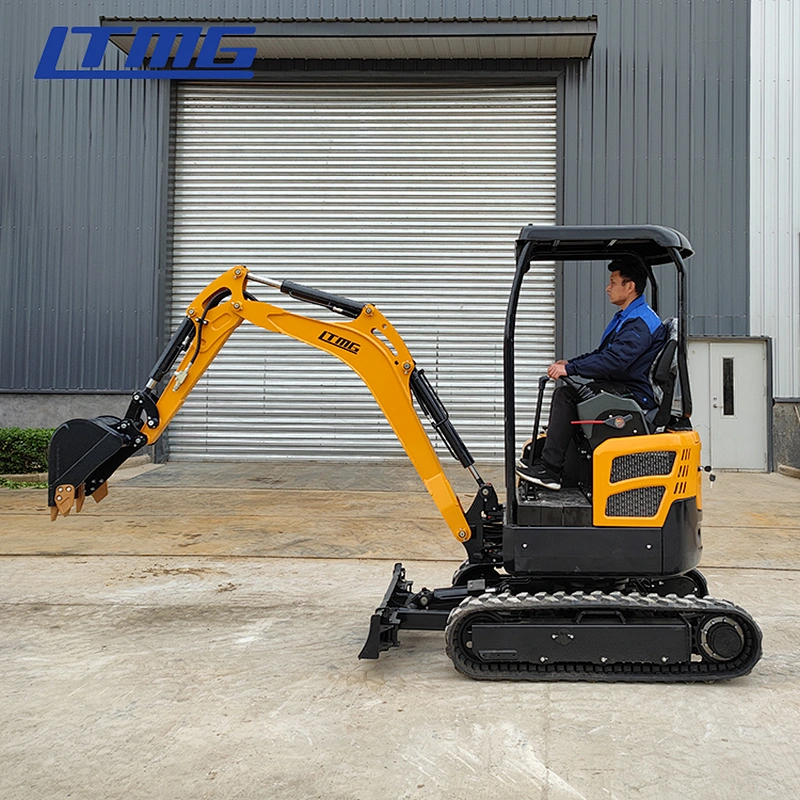

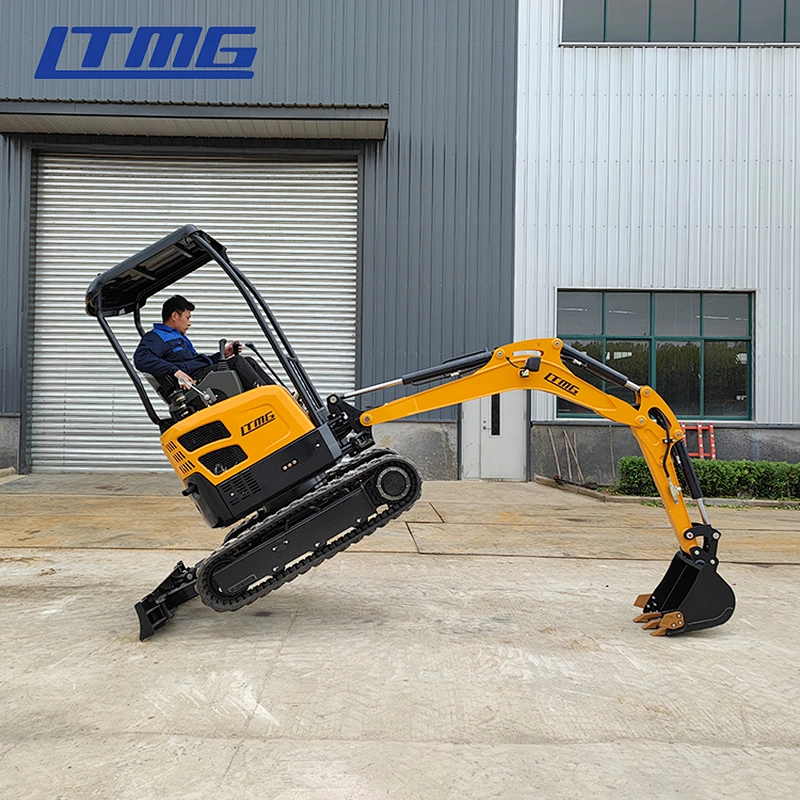

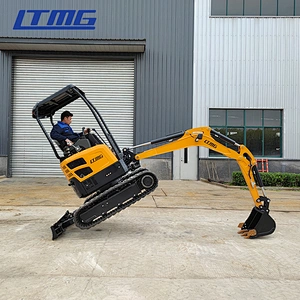

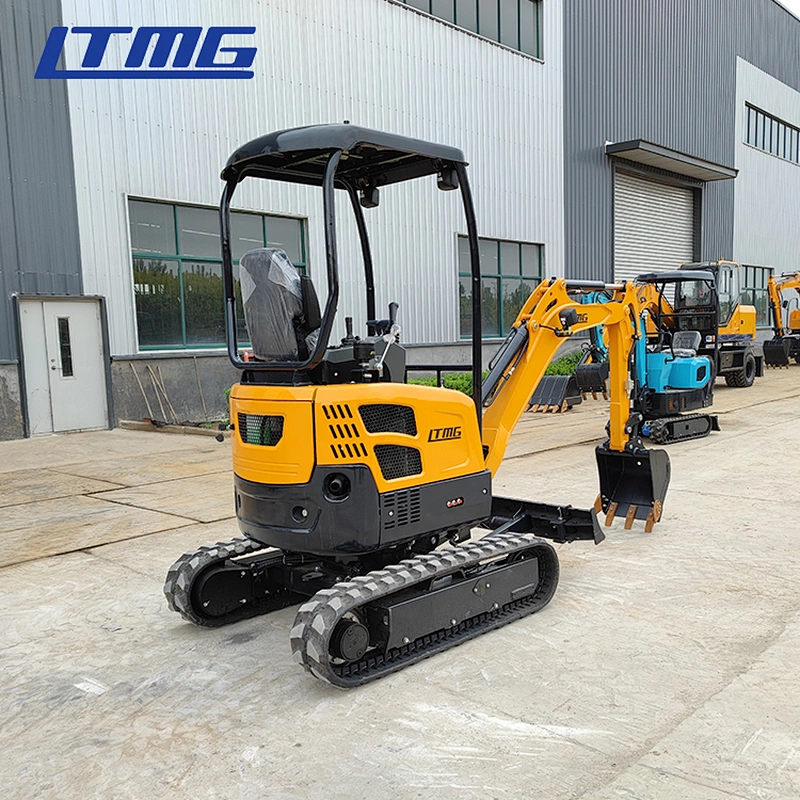

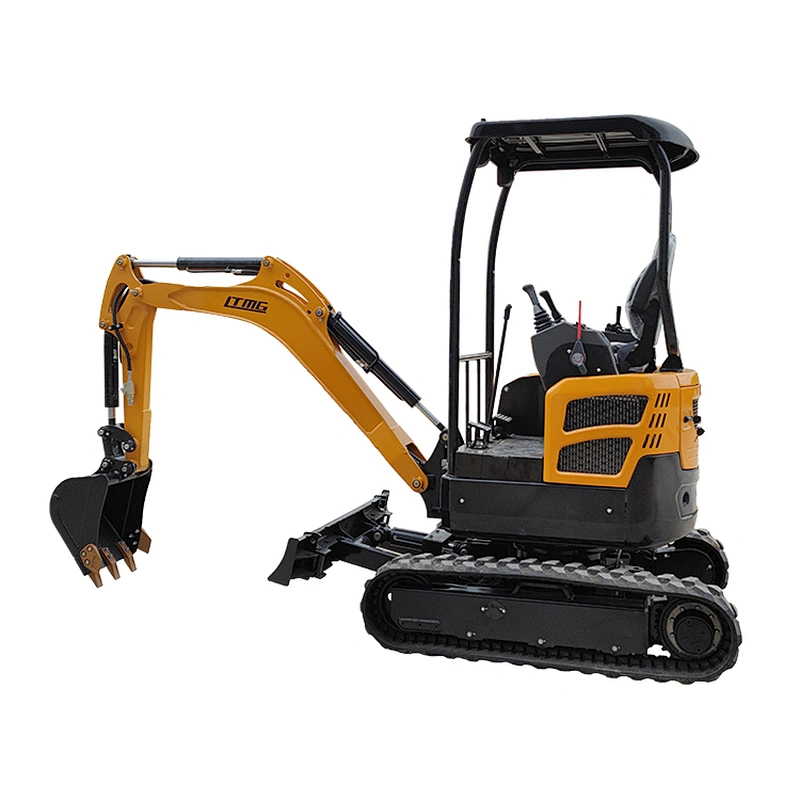

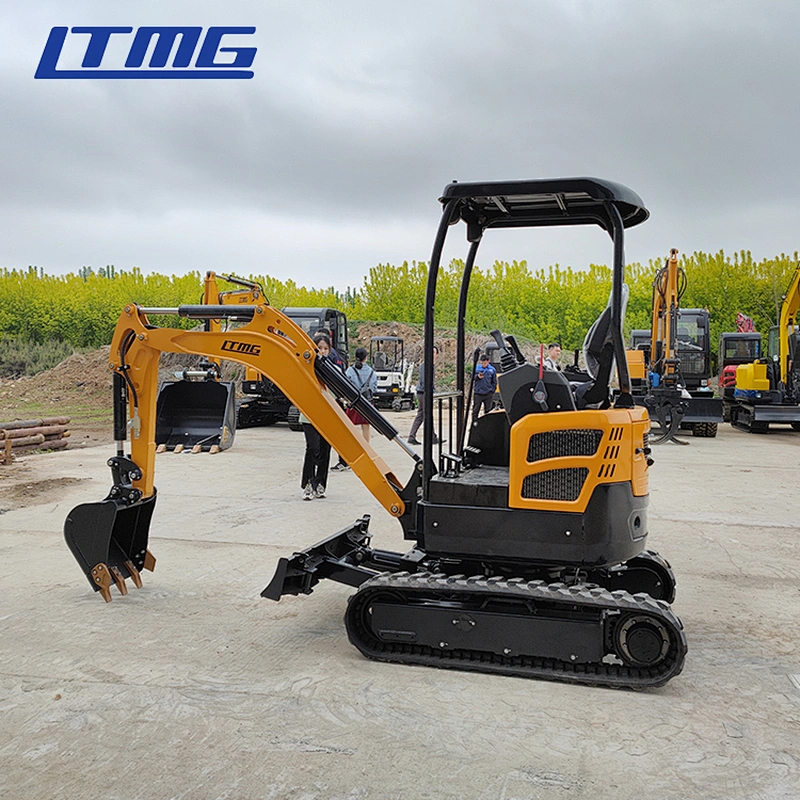

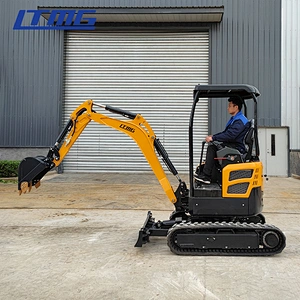

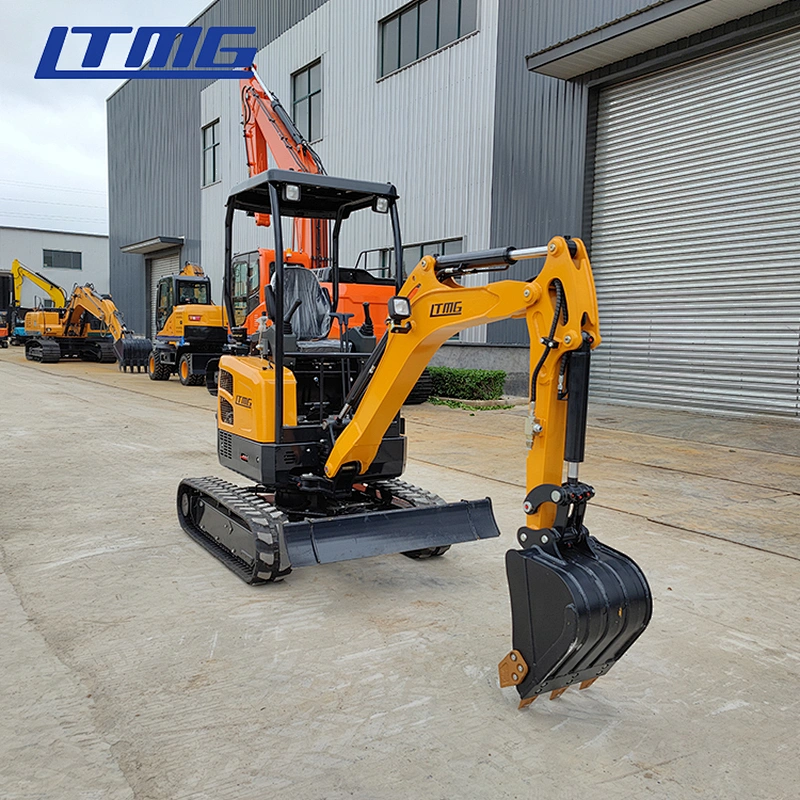

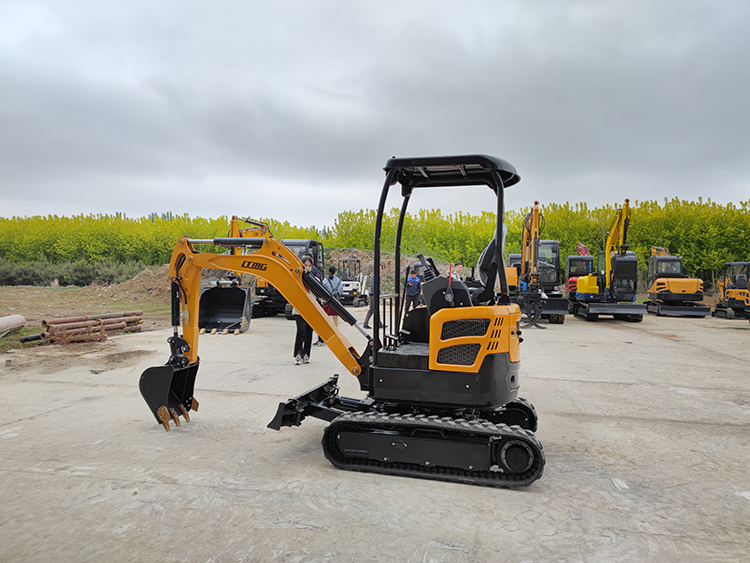

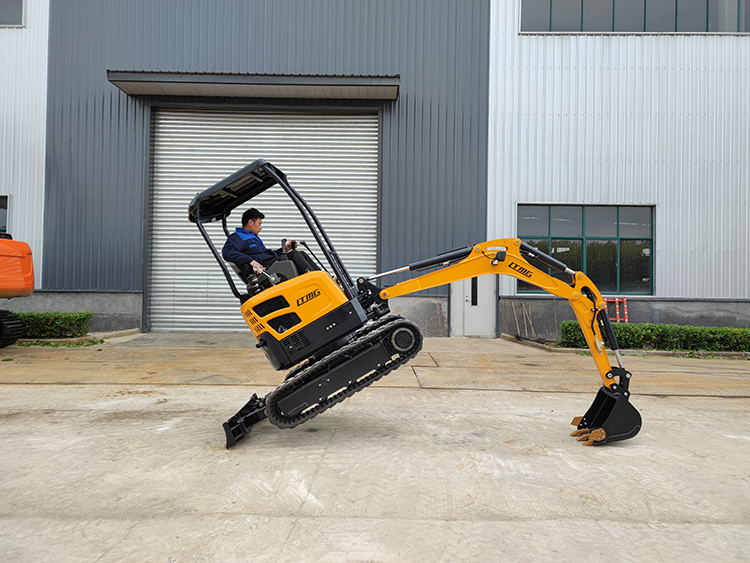

- Item:2 ton Excavator
- Product type:Excavator
- Digging bucket capacity:0.07cbm/100kg
- Track height:320 mm
- Max. Digging height:3700 mm
- Max.digging depth:2400 mm
- Max. Digging Radius:4040 mm
- Swing Speed:0-9 r/min
- Bucket Digging Force:18KN
- Tracking Force:15.2KN
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Wheel Excavator
- Operating Weight:2000Kg
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:KOOP / CHANGCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.07m3
- Maximum Digging Height:2365mm
- Maximum Digging Depth:1650mm
- Max Digging Radius:2560mm
- Rated Speed:1.5km/h
- Certification:CE
- Power:7.5Kw

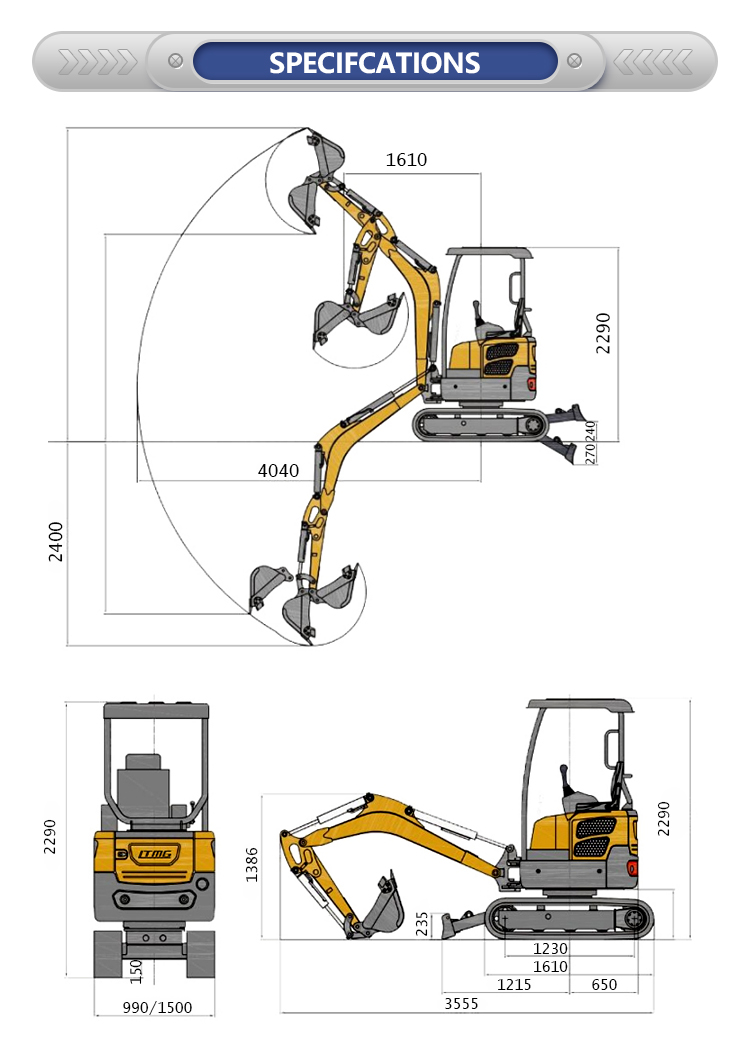

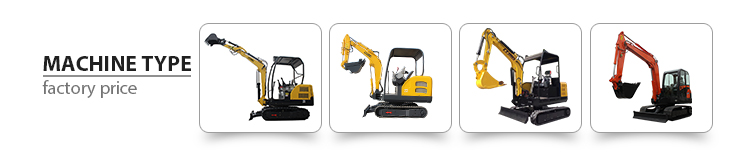

Model | LTE10 | LTE18 | LTE20 | LTE22 |
Operating Weight | 950kg | 1800kg | 1900kg | 2200kg |
Rated Power | 7kW/3000rpm | 18.1kW/2000rpm | 14.2kW/2200rpm | 22.1kW/2200rpm |
Engine | KOOP KD192F-1 | Laidong 3TE25 | Kubota | Laidong 3TE30 |
Bucket Capacity | 0.023m³ | 0.06m³ | 0.07m³ | 0.1m³ |
Max. Digging Radius | 3065mm | 3860mm | 4040mm | 4370mm |
Max. Digging Depth | 1715mm | 2050mm | 2400mm | 2450mm |
Max. Digging Height | 2600mm | 3370mm | 3700mm | 2290mm |
Max. Dumping Height | 1830mm | 2390mm | 2440mm | 3700mm |
Overall Width | 880mm | 3800mm | 3555mm | 4080mm |
Model | LTE30 | LTE35 | LTE40 | LTE60 |
Operating Weight | 3000kg | 3500kg | 3850kg | 6000kg |
Rated Power | 28/20/2200 | 32/24/2200 | 45/26.5/2300 | 51/37.4/2200 |
Engine | yanmar 3TNV80F | yanmar 388 | Changchai490 | Yanmar 4TNV94L |
Bucket Capacity | 0.08m³ | 0.1m³ | 0.26m³ | 0.2m³ |
Max. Digging Radius | 3860mm | 4300mm | 4630mm | 6150mm |
Max. Digging Depth | 2150mm | 2500mm | 2545mm | 3820mm |
Max. Digging Height | 3365mm | 3300mm | 4450mm | 5760mm |
Max. Dumping Height | 2488mm | 2500mm | 3050mm | 4030mm |
Overall Width | 1200mm | 1450mm | 1700mm | 1880mm |

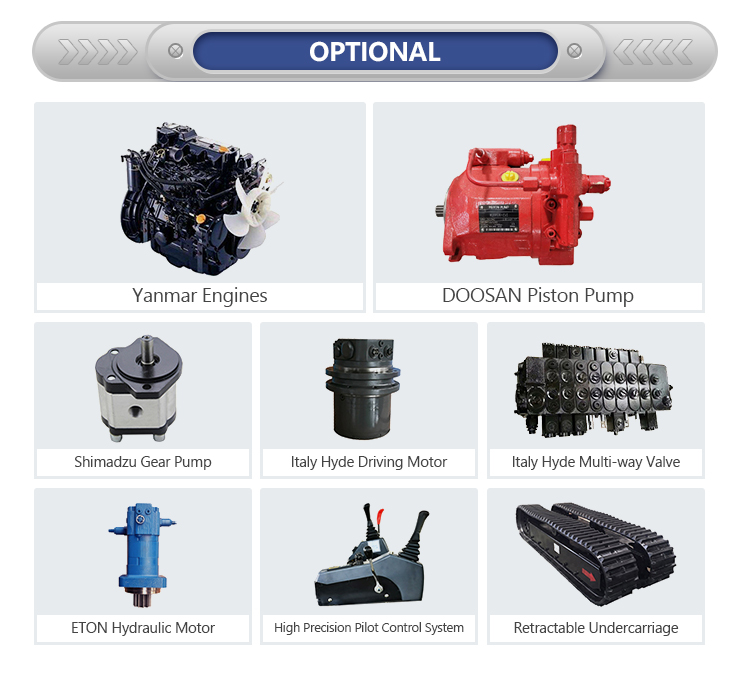

1. Optional Yanmar (EPA certified) / Changchai / Laidong/ kubote/ KOOP engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is
controlled by ECU computer, which makes the action more flexible.
3 The boom can swing from side to side with high flexibility to meet the needs of small space operations.
4. Optional with tail or no-tail to meet the construction needs under different conditions.
5. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
6. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is
controlled by ECU computer, which makes the action more flexible.
3 The boom can swing from side to side with high flexibility to meet the needs of small space operations.
4. Optional with tail or no-tail to meet the construction needs under different conditions.
5. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
6. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
