- Item:Excavator
- Engine:Japanese engine
- Max.digging depth:3440mm
- Max.digging force:52KN
- Max.digging height:6220mm
- Chassis width:2150mm
- Track width:400mm
- Total track lenght:2750mm
- Gradeability:35°
- Ground pressure:39Kpa
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Kyrgyzstan
- Local Service Location:Uzbekistan
- Showroom Location:Egypt
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Uzbekistan
- Showroom Location:Australia
- Condition:New
- Moving Type:Crawler Excavator
- Operating Weight:6730Kg
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:Japanese
- UNIQUE SELLING POINT:Imported engine
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Applicable Industries:Construction works
- Applicable Industries:Earth moving machinery
- Brand Name:LTMG
- Bucket capacity:0.3m3
- Maximum Digging Height:6220mm
- Maximum Digging Depth:3440mm
- Max Digging Radius:6140mm
- Rated Speed:4km/h
- Certification:CE
- Power:33.7Kw
Model | LTE65 | LTE75 | LWE75 | LWE85 | ||||||
Engine | ||||||||||
Engine Model | Kubota V2607 42.4KW/2000rpm | YC4DK85 62.5KW-2200RPM | YC4DK85 62.5kw/ 2200rpm | |||||||
Type | Direct injection, water cooled, supercharge | Eletronic injection, water cooled, supercharge | ||||||||
No. of cylinder | 4 | |||||||||
Main Performance | ||||||||||
Swing Speed | r/min | 0-11 | 0-11 | 0-11 | 0-11 | |||||
Traveling Speed | km/H | 2.5~4.2 | 2.8 | 0-28 | 0-30 | |||||
Grade ability | % | 70(35°) | 70(35°) | 25 | 25 | |||||
Bucket Digging Force | kN | 48 | 56 | 45 | 56 | |||||
Arm Digging Force | kN | 35 | 38 | 36 | 38 | |||||
Overall Dimensions | ||||||||||
Overall Length | mm | 5940 | 6054 | 5930 | 6087 | |||||
Overall Width | mm | 1880 | 2216 | 2205 | 2394 | |||||
Overall Height | mm | 2570 | 2672 | 2787 | 3010 | |||||
Ground clearance | mm | 700 | 375 | 260 | 264 | |||||
Operation parameters | ||||||||||
Operation Weight | KG | 6500 | 7500 | 7000 | 8500 | |||||
Bucket Capacity | m3 | 0.21 | 0.28 | 0.21 | 0.28 | |||||
Max. Digging Radius | mm | 6128 | 6182 | 5830 | 5923 | |||||
Max. Digging Depth | mm | 3808 | 3898 | 3380 | 3556 | |||||
Max. Digging Height | mm | 5499 | 7023 | 5730 | 7364 | |||||
Max. Dumping Height | mm | 3854 | 5195 | 4120 | 5537 | |||||
Max. Dozer Cutting | mm | 474 | 332 | 130 | 1730 | |||||

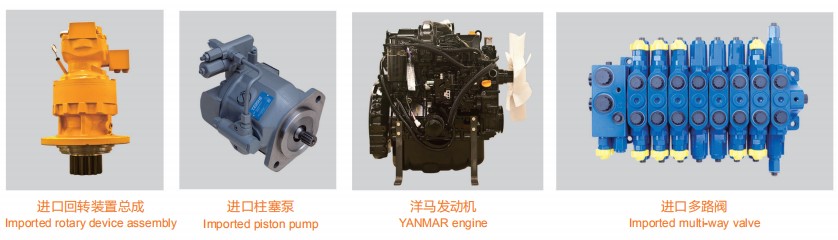

》Using YANMAR engine, in-line four stroke, low fuel consumption, environmental protection,convenient repair and maintenance.
》Electronic monitoring using a dot matrix type advanced multifunctional large screen liquid crystal display, electronic throttle control system has the function of throttle control, automatic idle speed, overheat protection, speed acquisition. Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
》Imported original hydraulic parts,quality is reliable and stable, working efficiency is high.
》Based on the strong and durable key parts and international quality chassis configuration, operation stablility is stronger.
》The machine adopted new type cab with wide field of vision, new seat, automatic regulated air-conditioning system ,make the operation flexible and comfortable.
》The concept of low noise, ensure the operator to manipulate more comfortable and safety.
