- Hydraulic working pressure:21Mpa
- Gradeability:59%(30°)
- Max.traction force:65KN
- Rated power:50Kw/2400rpm
- Max.digging reach:7045mm
- Max.digging depth:3735mm

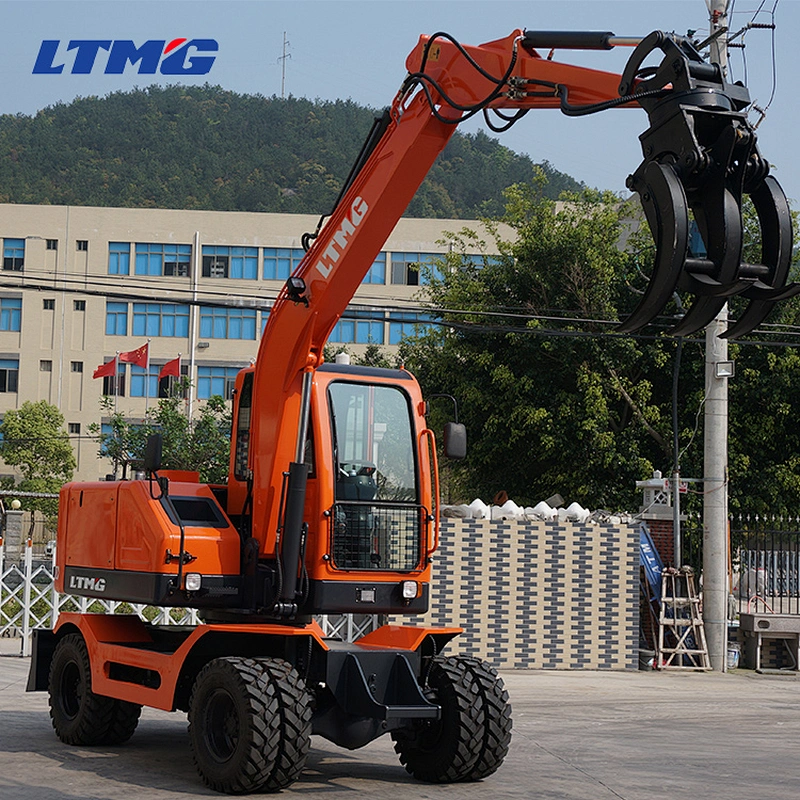

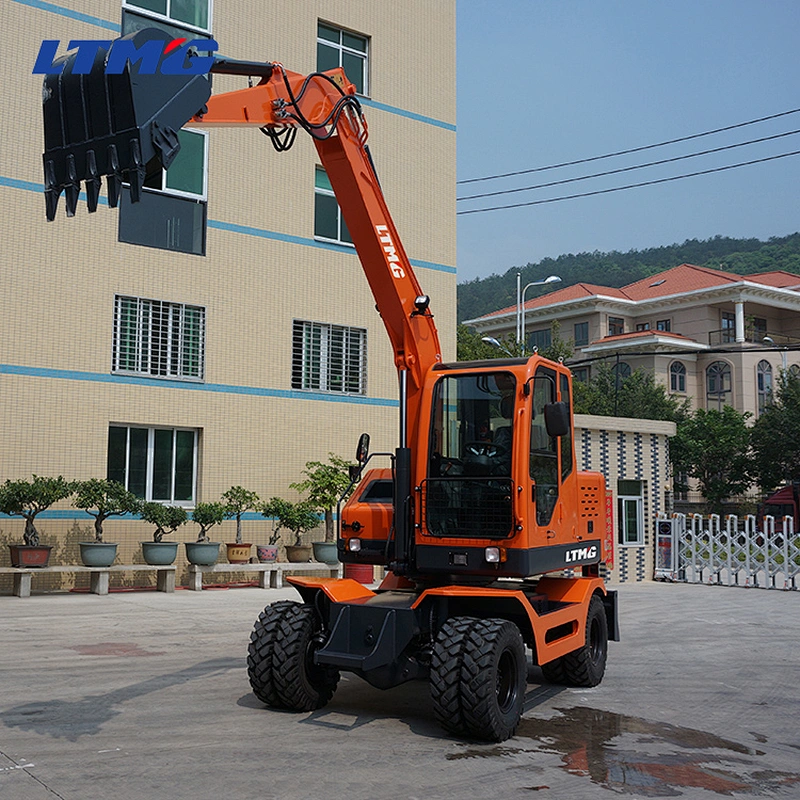

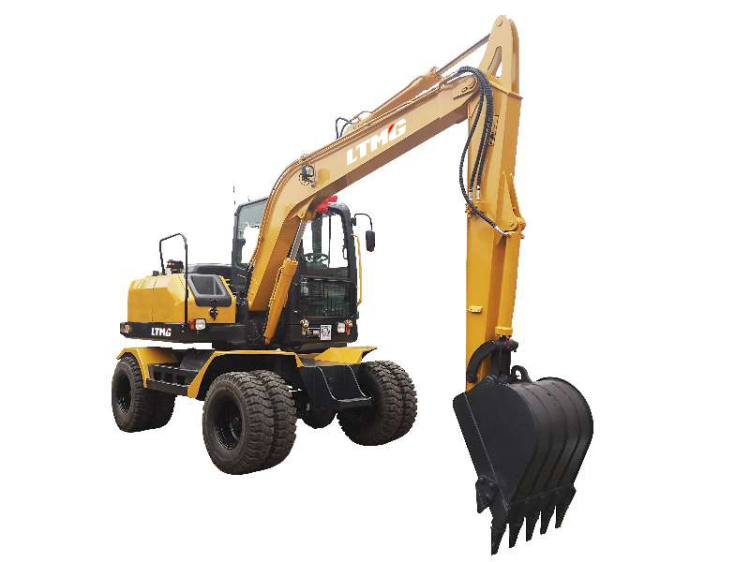

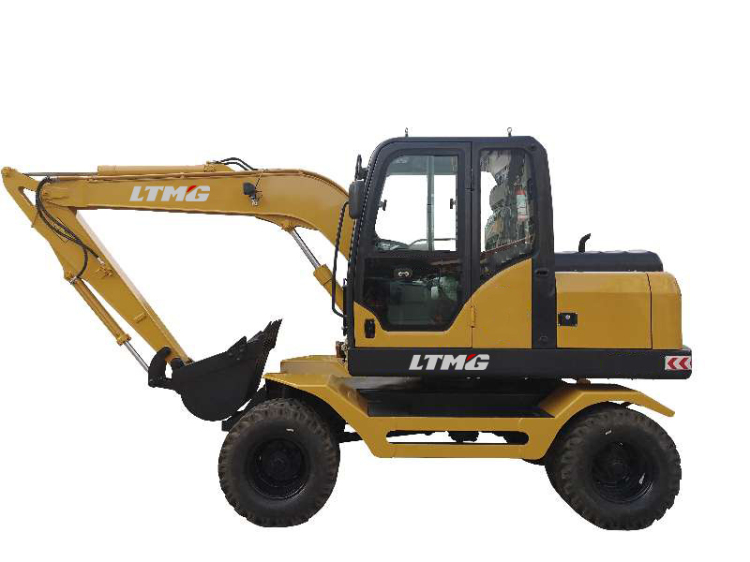

- Product name:LTMG Construction machines 8 ton 9 ton Wheel Excavator price
- Item:8 ton Excavator
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Canada
- Local Service Location:Philippines
- Local Service Location:Mexico
- Local Service Location:Spain
- Showroom Location:Philippines
- Showroom Location:Indonesia
- Showroom Location:Argentina
- Showroom Location:Australia
- Condition:New
- Moving Type:Wheel Excavator
- Operating Weight:6700Kg
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:YUCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Pump
- Core Components:Bearing
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.3m3
- Maximum Digging Height:7280mm
- Maximum Digging Depth:3735mm
- Max Digging Radius:6780mm
- Rated Speed:32km/h
- Certification:CE
- Power:50Kw

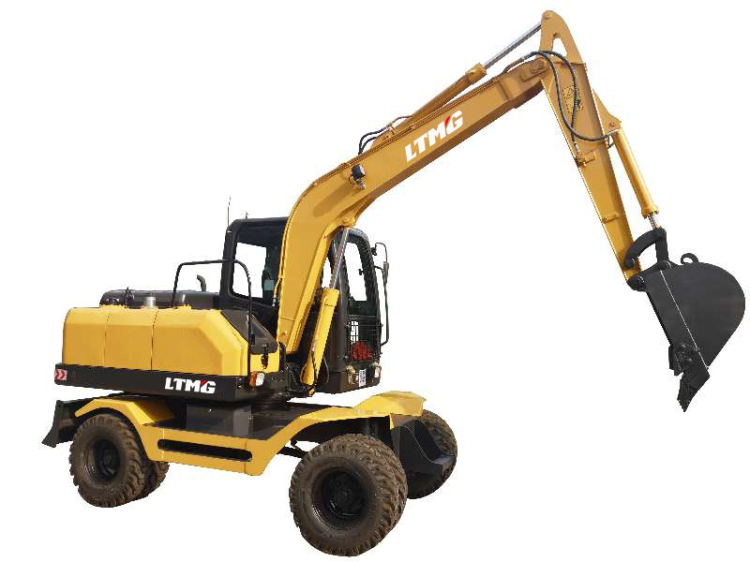

The pecification of LTMG 8 ton Excavator | ||
Working Range | ||
Boom lenghth | 3650mm | |
Arm length | 2250mm | |
Max.digging reach | 7045mm | |
Max.digging depth | 3735mm | |
Max.digging height | 7280mm | |
Max.dumping height | 5530mm | |
Min.platform tail turning radius | 1755mm | |
Rated load | ||
Dimmension | ||
Platform width | 1930mm | |
Overall width | 2100mm | |
Overall height | 2865mm | |
Wheel tread | 2500mm | |
Distance from the digging arm to rotating center | 4390mm | |
Overall length | 6145mm | |
Min.Ground clearance | 260mm | |
Height for dozer blade(Optional) | 500mm | |
Dozer blade rising distance/lowering distance | ||
Technical data | ||
Rated power | 50Kw/2400rpm | |
Operating weight | 6700Kg | |
Bucket capacity | 0.3m³ | |
Hydraulic working pressure | 21Mpa | |
Max.digging force | 46KN | |
Gradeability | 59%(30°) | |
Travel speed | 32km/h | |
Max.traction force | 65KN | |
Swing speed of platform | 10.5rpm | |
Fuel tank capacity | 110L | |
1. Adopt YUCHAI engine meeting National III standard,high torque,low emission,strong power.
2. Gear pump system,easy to maintain.
3. Increase pump displacement,improve working efficiency by 17%
4. Optimize the transmission system and prolong the service life effectively.
5. Longer wheel base,operate smoothly.
6. Optimize intake and exhaust system,reduce noise by 2 decibels.

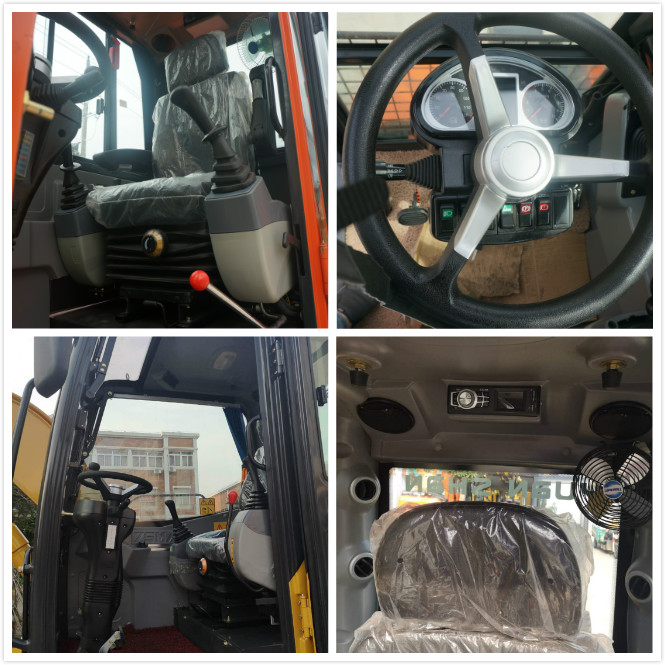

7. Luxurious cab with broad vision,comfortable for driving.

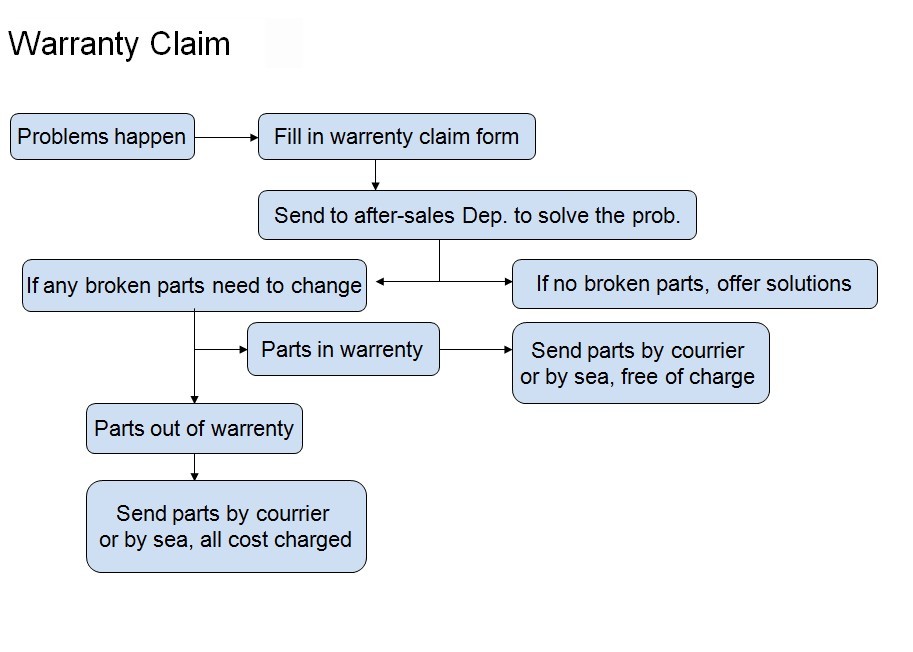

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

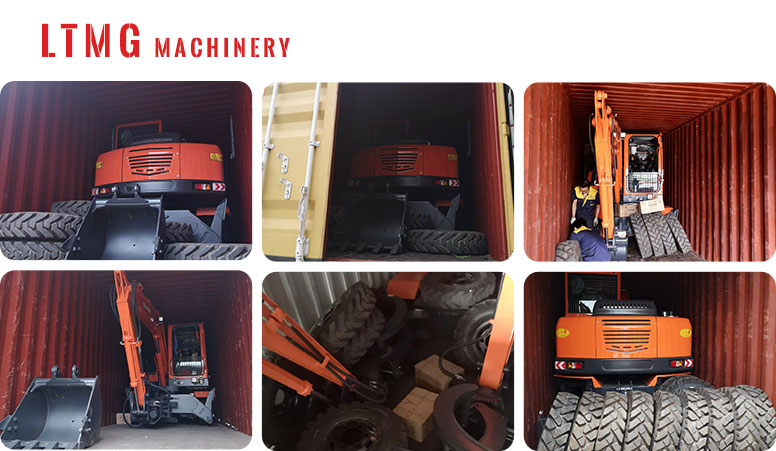

6. Delivery time:

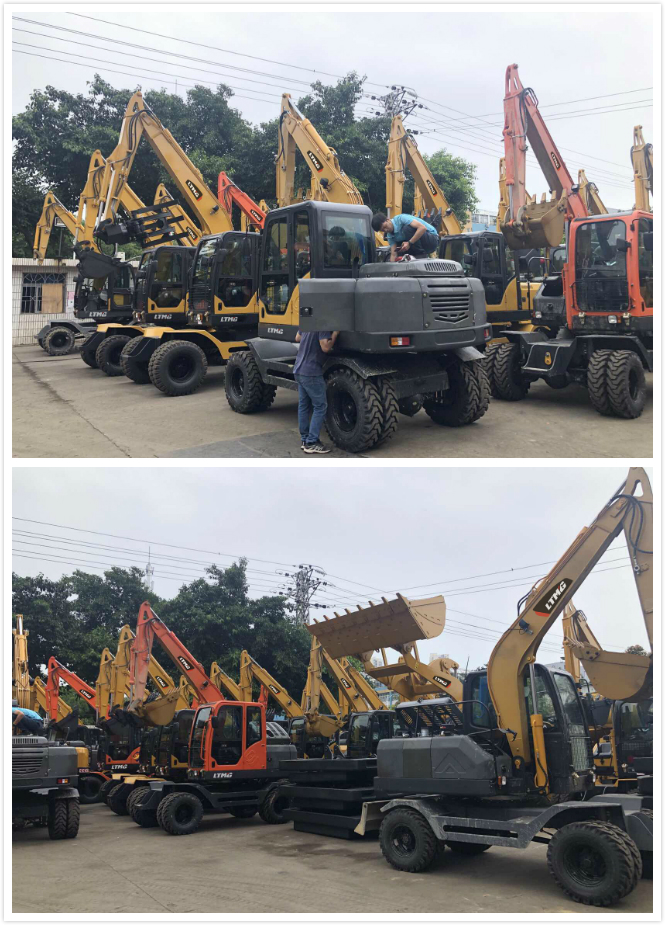

Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
