1. Adopt YUCHAI engine meeting National III standard,high torque,low emission, energy saving and environmental protection,save fuel oil by 20%
2. Hydraulic system with variable displacement piston pump,and improve operation efficiency by 25%
3. Flow rate of each movement as distribution according to needs,precise and reliable composite move

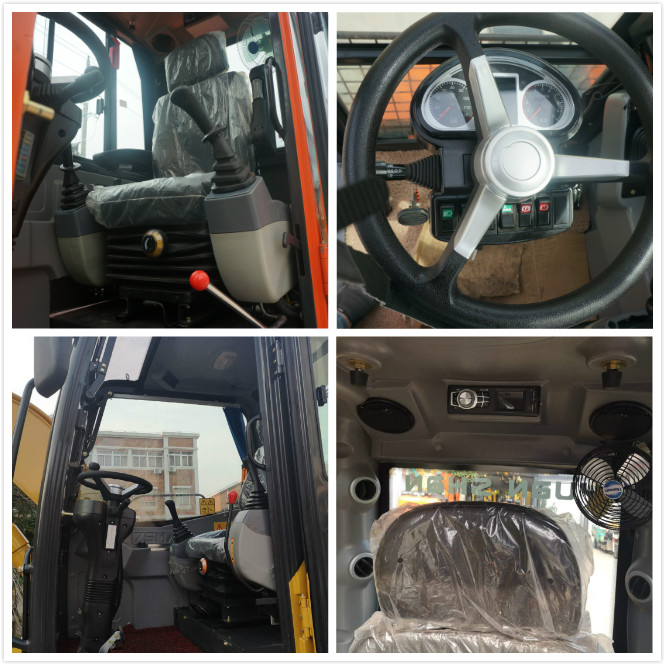

4. Joystick with precise operation,better fretting performance.
Specification

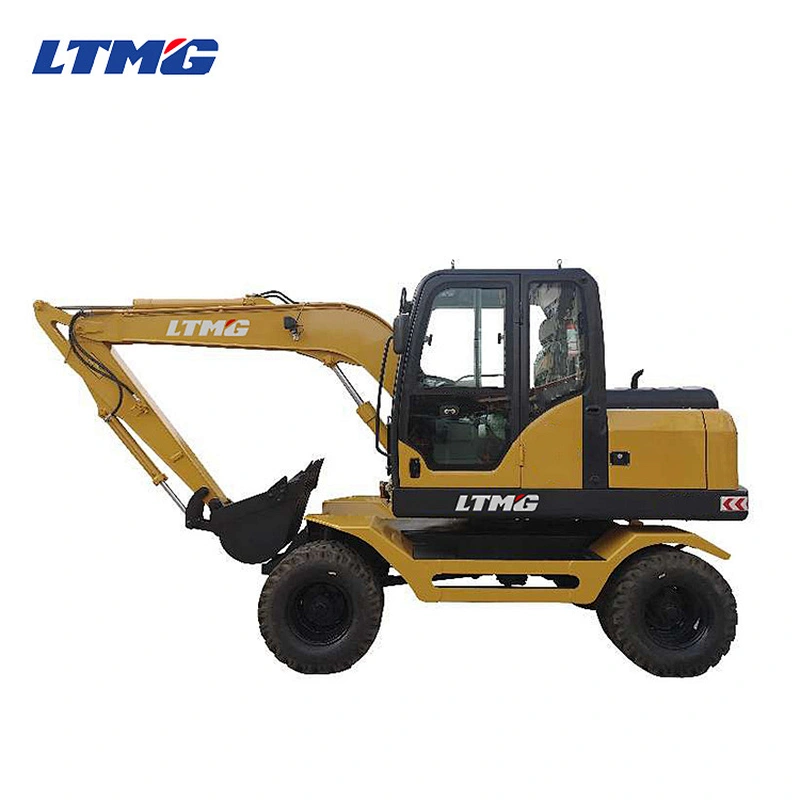

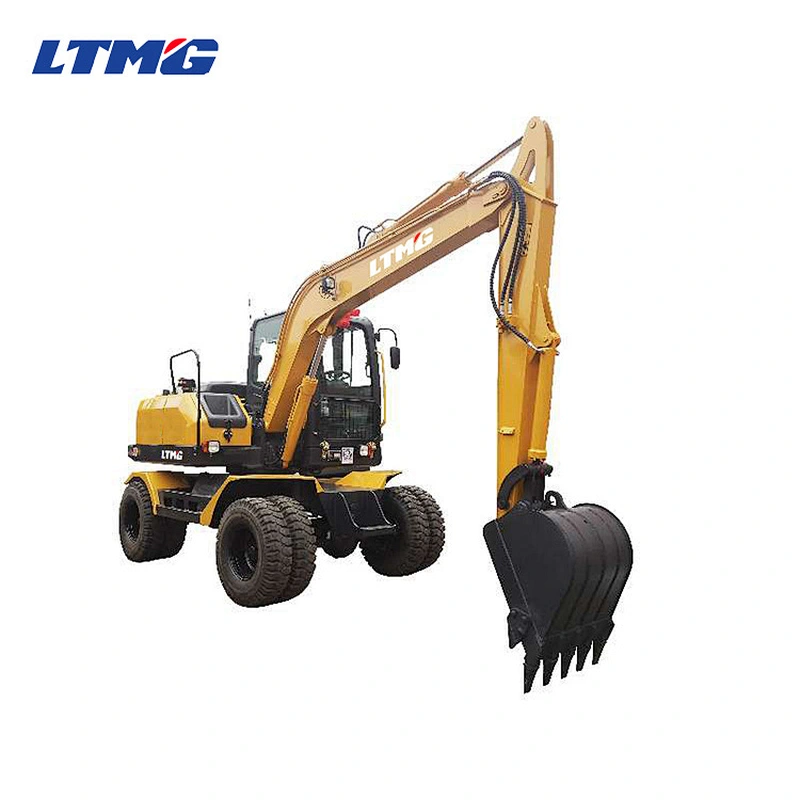

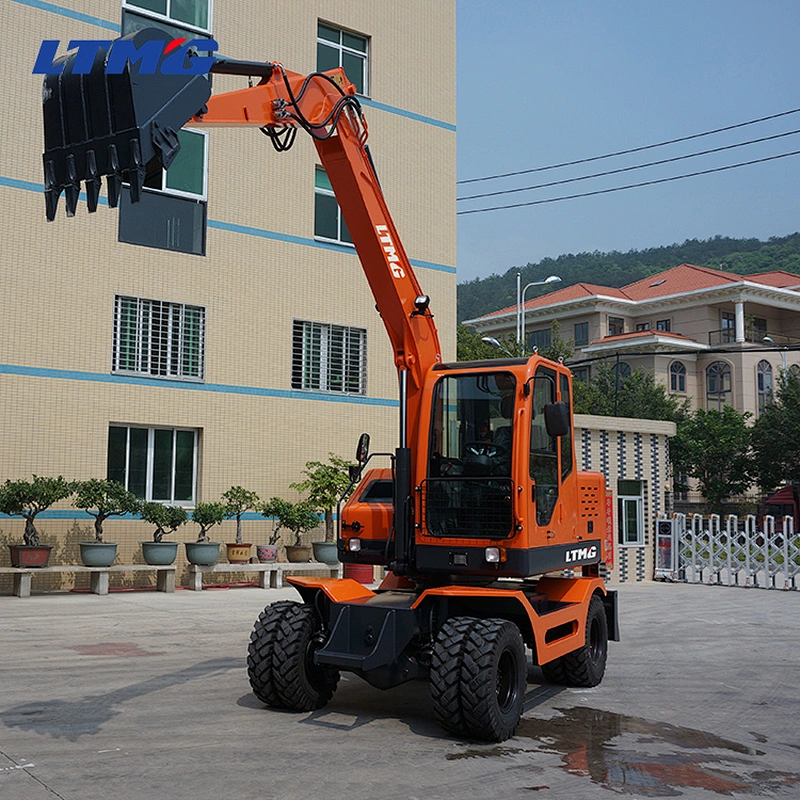

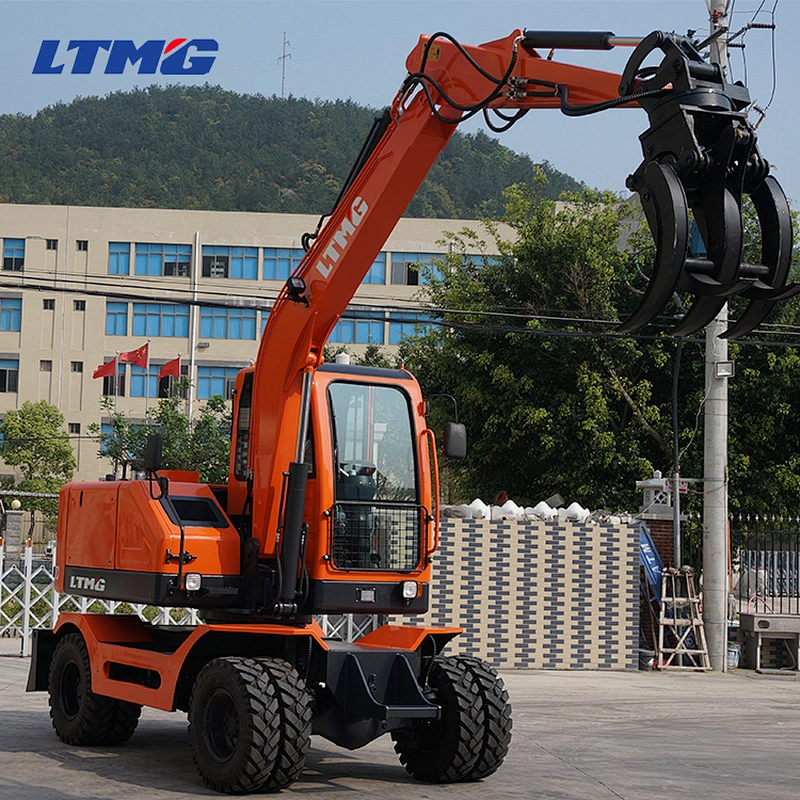

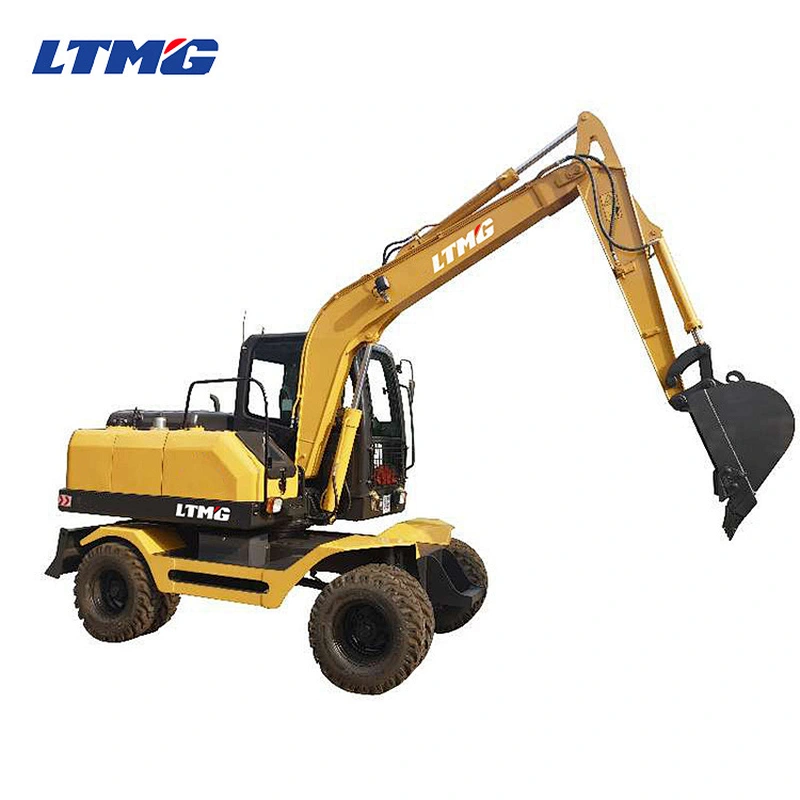

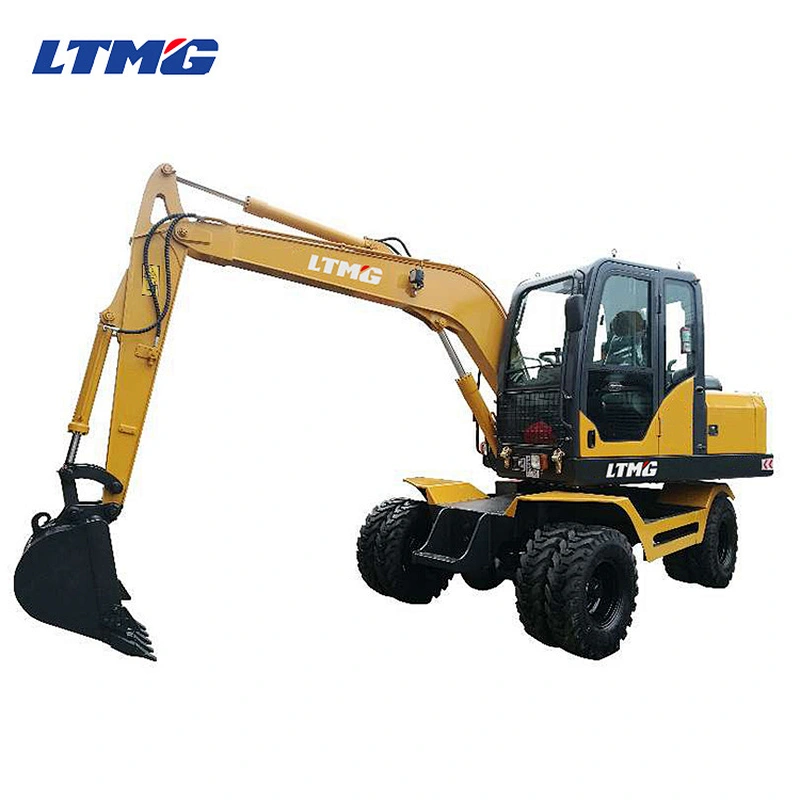

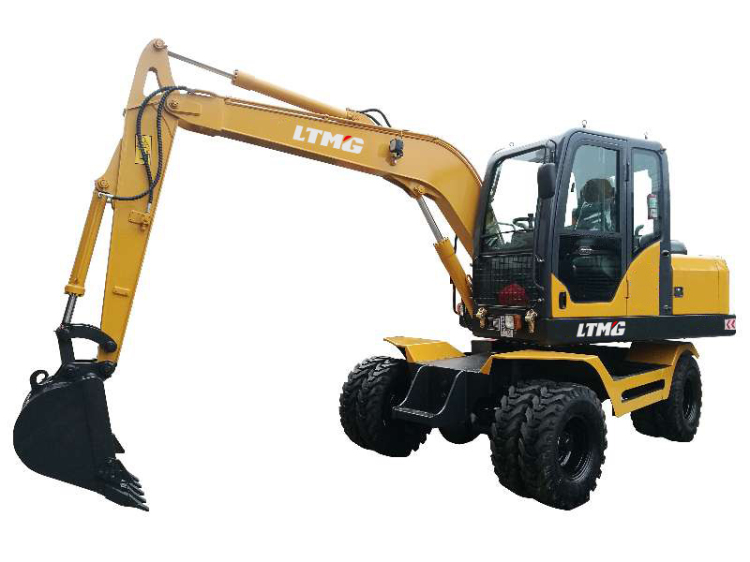

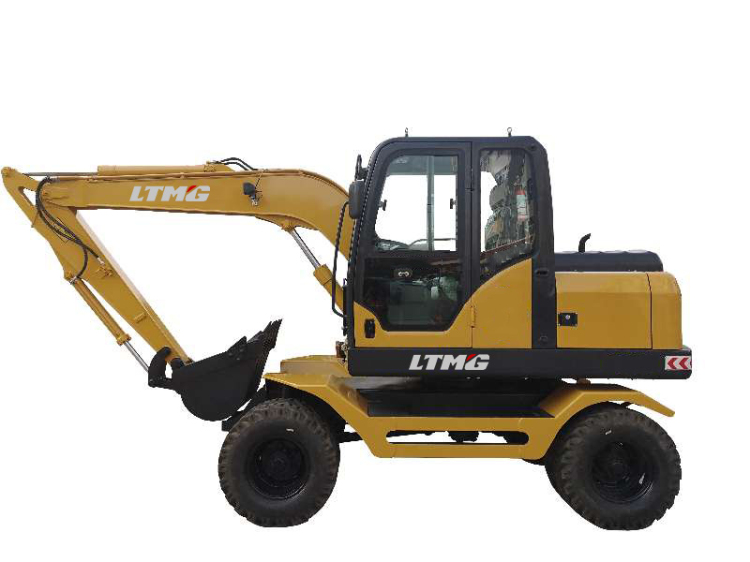

LT780-9T WHEEL EXCAVATOR Specification
Working Range
Boom lenghth
3400mm
Arm length
1900mm
Max.digging reach
6480mm
Max.digging depth
3320mm
Max.digging height
6700mm
Max.dumping height
5000mm
Min.platform tail turning radius
1985mm
Dimmension
Platform width
1930mm
Overall width
2050mm
Overall height
2790mm
Wheel tread
2400mm
Distance from the digging arm to rotating center
4270mm
Overall length
6205mm
Min.Ground clearance
240mm
Height for dozer blade(Optional)
460mm
Dozer blade rising distance/lowering distance
400/90mm
Technical data
Rated power
48Kw/2200rpm
Operating weight
6600Kg
Bucket capacity
0.3m³
Hydraulic working pressure
25Mpa
Max.digging force
48KN
Gradeability
59%(30°)
Travel speed
33km/h
Max.traction force
65KN
Swing speed of platform
11rpm
Fuel tank capacity
125L
Hydraulic tank capacity
160L

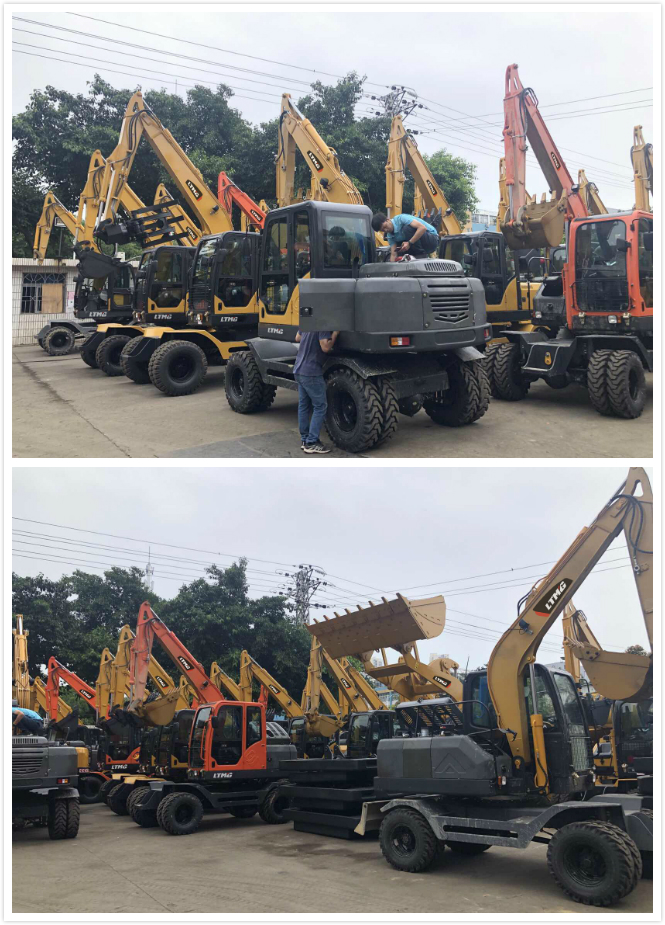

Factory

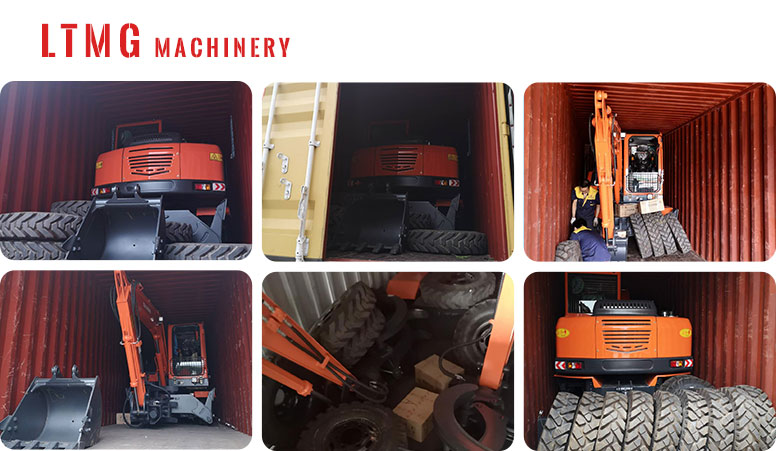

Packing & Delivery

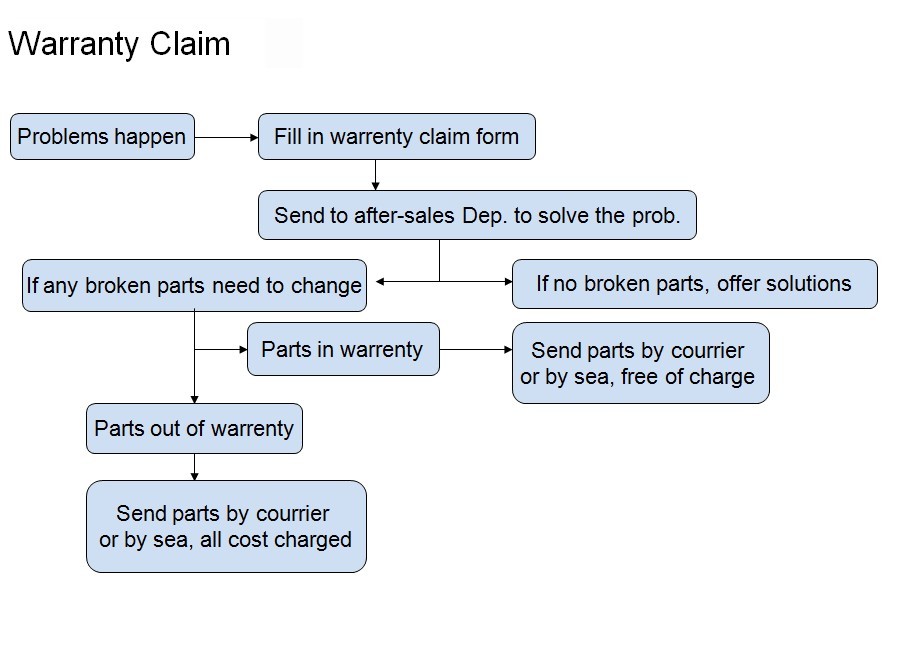

Our Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
