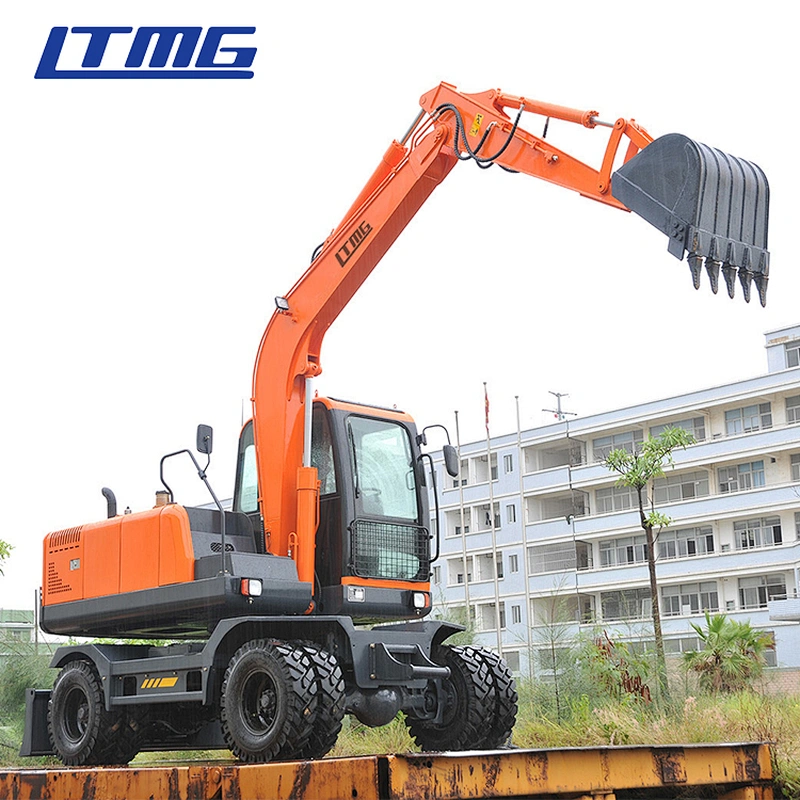

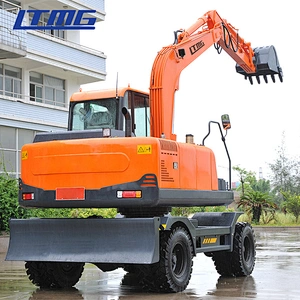

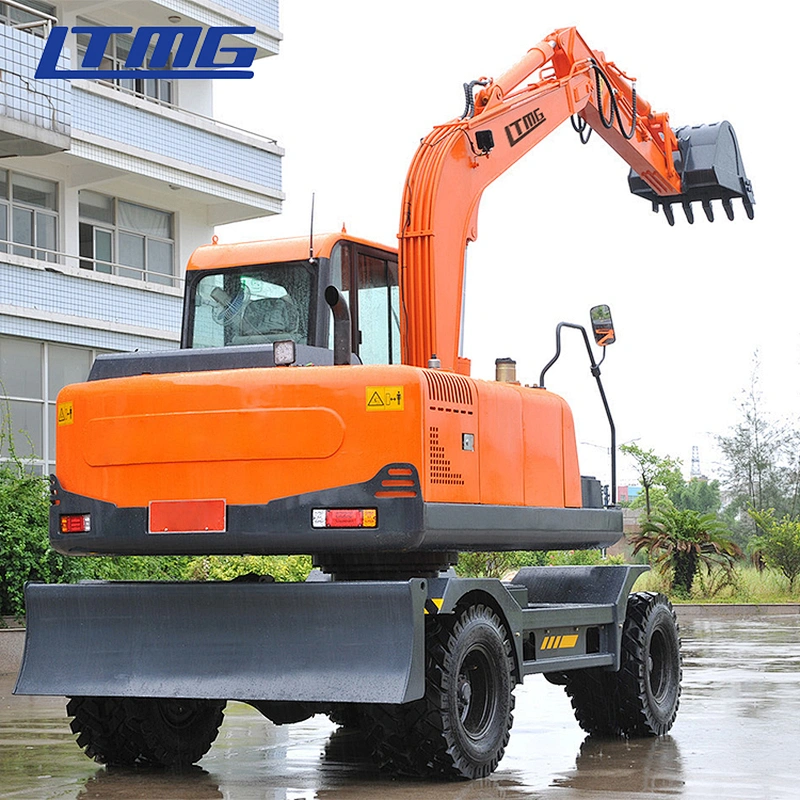

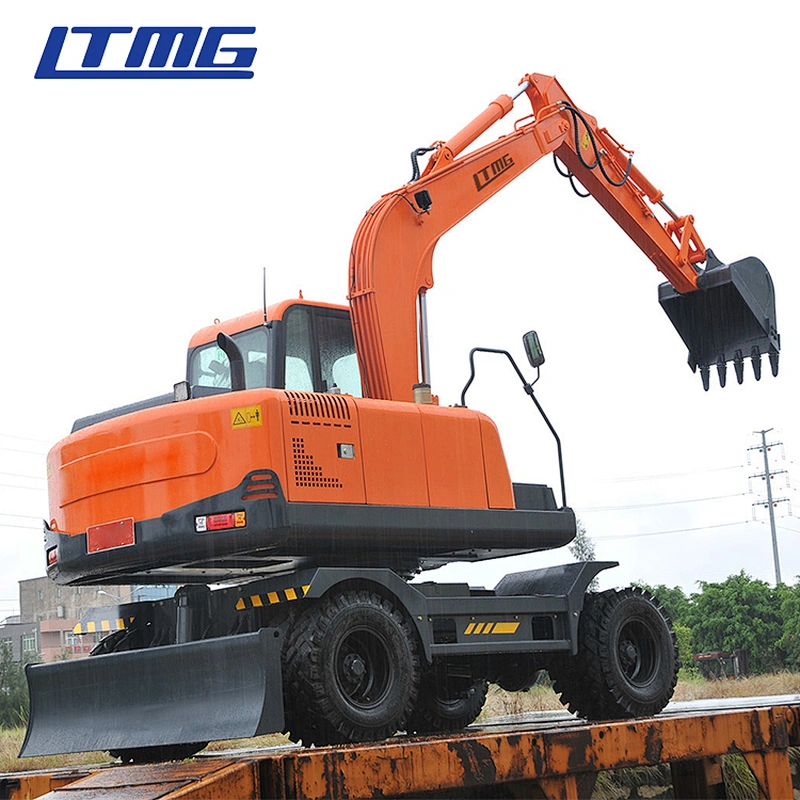

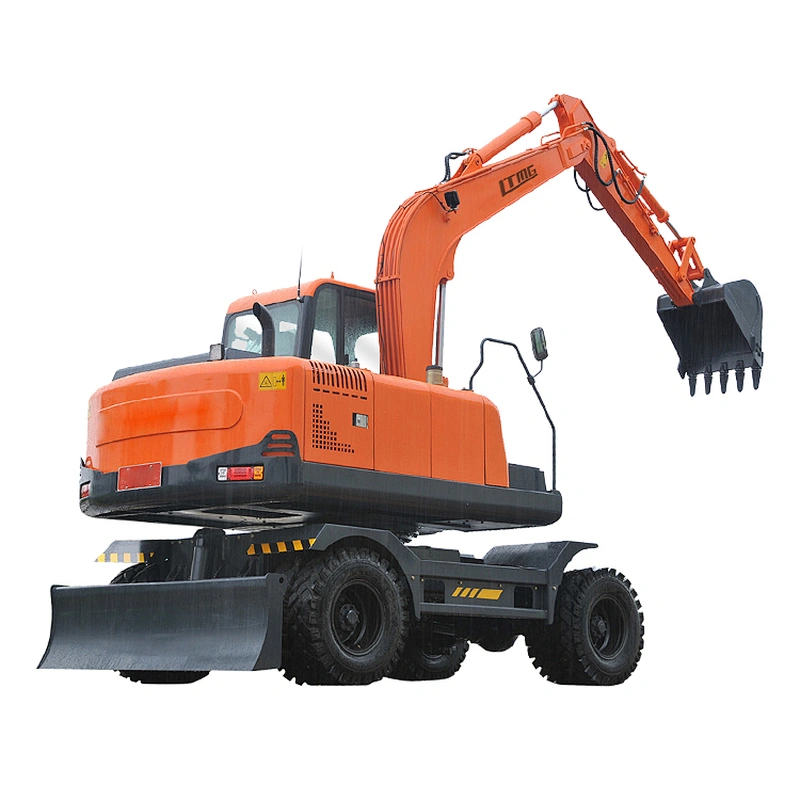

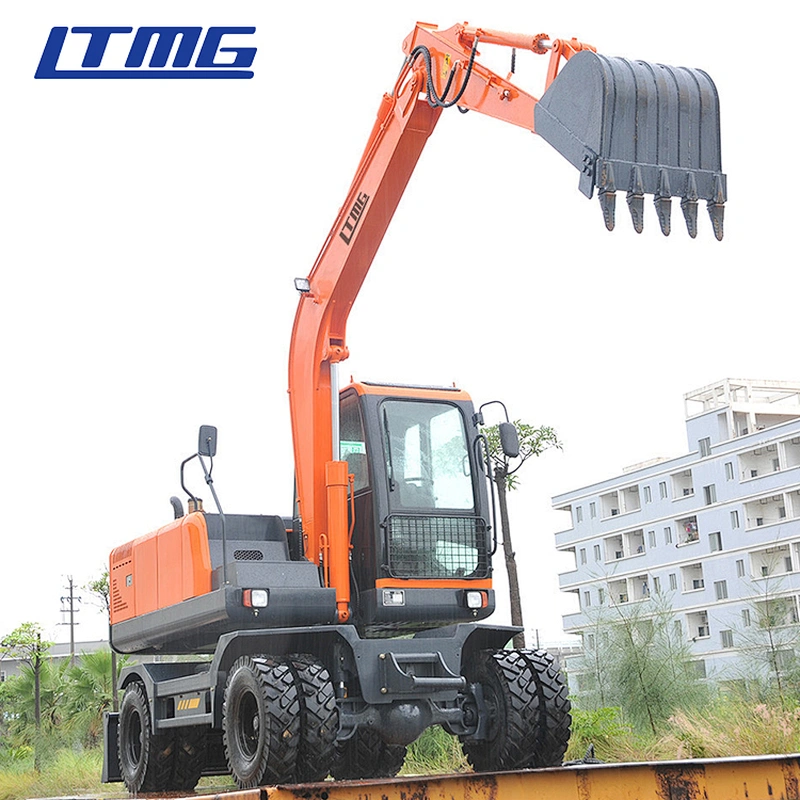

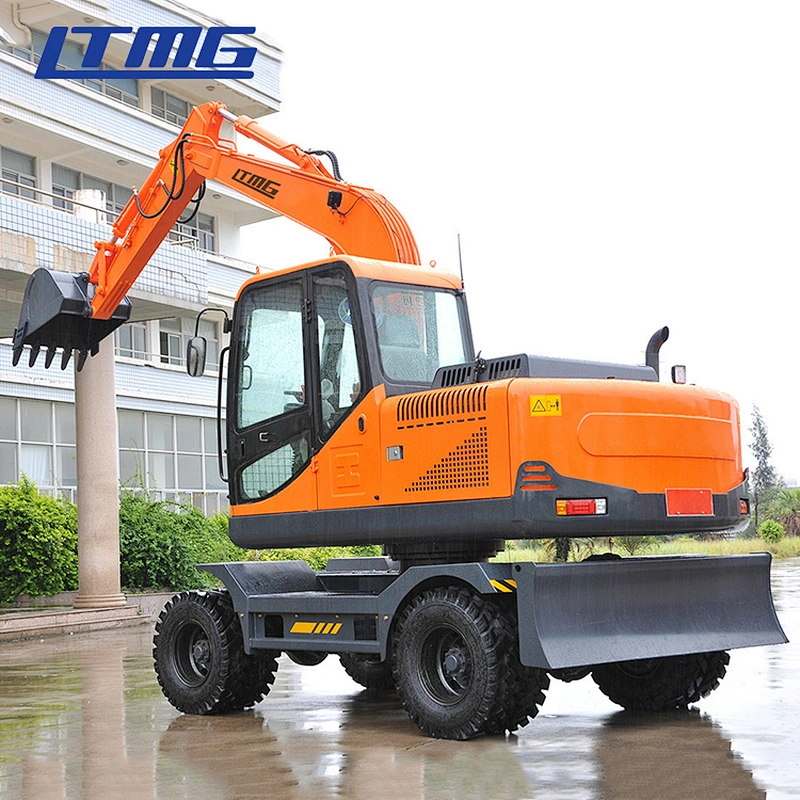

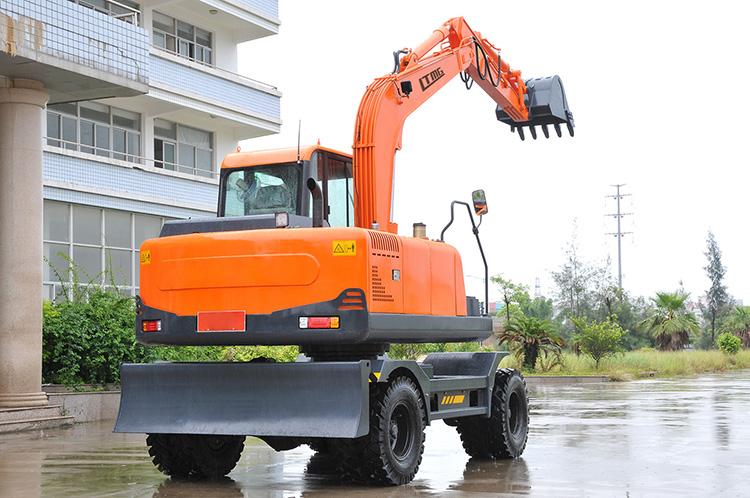

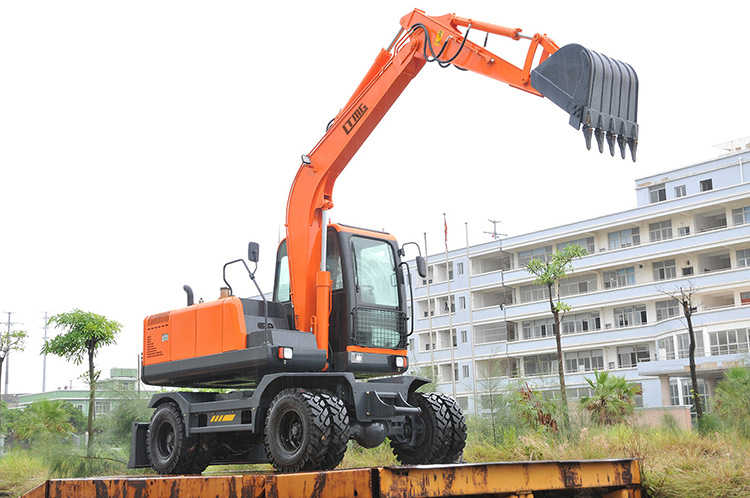

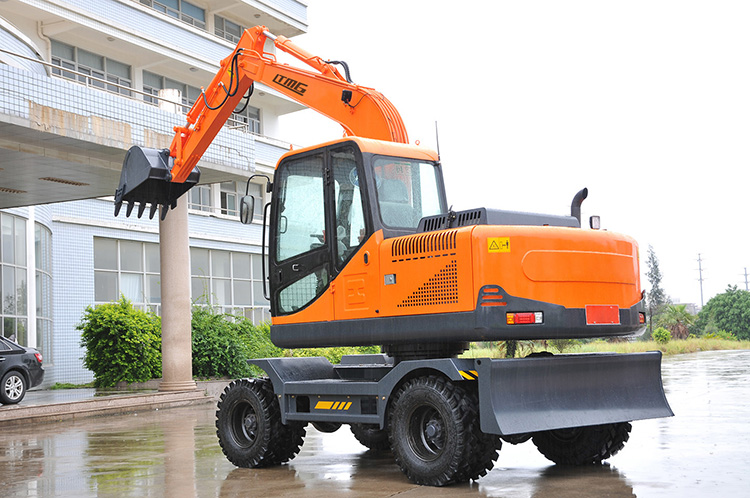

Ltmg Hydraulic Excavator 9ton Wheel Excavator Price

Ltmg Hydraulic Excavator 9ton Wheel Excavator Price

Price:: US $ 35600.00-35956.00 / unit
Minimum order quantity: 1 unit
Supply Ability: 300.0 unit / Month
Country of Origin: Xiamen Port, China

Quantity:

Product Description

Product name:Ltmg Hydraulic Excavator 9ton Wheel Excavator Price
Brand:LTMG
Product type:wheel Excavator
Operating Weight:8200 kg
wheel base:2450mm
Min.Ground clearance:220mm
Bucket digging force:45KN
Boom length:3500mm
Max.Dumping height:4800mm
Rear tail swing radius:1940mm
Applicable Industries:Building Material Shops
Applicable Industries:Machinery Repair Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Farms
Applicable Industries:Retail
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Local Service Location:Egypt
Local Service Location:Turkey
Local Service Location:Philippines
Local Service Location:Brazil
Local Service Location:Saudi Arabia
Local Service Location:Indonesia
Local Service Location:Mexico
Local Service Location:Thailand
Local Service Location:Australia
Local Service Location:Chile
Local Service Location:Colombia
Local Service Location:Kazakhstan
Local Service Location:Ukraine
Showroom Location:Egypt
Showroom Location:Turkey
Showroom Location:Philippines
Showroom Location:Brazil
Showroom Location:Saudi Arabia
Showroom Location:Indonesia
Showroom Location:Mexico
Showroom Location:Thailand
Showroom Location:Chile
Showroom Location:Colombia
Showroom Location:South Africa
Showroom Location:Kazakhstan
Showroom Location:Ukraine
Showroom Location:Australia
Condition:New
Moving Type:Wheel Excavator
Operating Weight:8200Kg
Warranty:1 Year
After-sales Service Provided:Field installation, commissioning and training
After-sales Service Provided:Field maintenance and repair service
After-sales Service Provided:Video technical support
After-sales Service Provided:Online support
After-sales Service Provided:Free spare parts
Hydraulic Cylinder Brand:Chinese brand
Hydraulic Pump Brand:Chinese brand
Hydraulic Valve Brand:Chinese brand
Engine Brand:Yuchai/Cummin-s
UNIQUE SELLING POINT:High digging power
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Engine
Place of Origin:CN;FUJ
Brand Name:LTMG
Bucket capacity:0.4m3
Maximum Digging Height:6500mm
Maximum Digging Depth:3800mm
Max Digging Radius:6250mm
Rated Speed:32Km/h
Certification:CE
Power:60Kw
Marketing Type:New Product 2021

Working Range
Boom length	3500mm
Arm length	1900mm
Max.Digging Reach	6250mm
Max.Digging depth	3800mm
Max.Digging height	6500mm
Max.Dumping height	4800mm
Min.Swing radius	2300mm
Rear tail swing radius	1940mm
Max. Digging Reach on the Ground	6300mm
Performance
Operating weight	8200KG (with blade and trigger)
Engine rated power	60KW
Bucket capacity	0.4m³
Hydraulic system	26Mpa
Swing speed	11.5r/min
Traveling speed	32Km/h
Bucket digging force	45KN
Arm digging force	35KN
Max.Grade ability	30°
Ground pressure	49Kpa
Dimension
Overall width	2130mm
Overall height	2910mm
Overall length	6230mm
Min.Ground clearance	220mm
Wheel base	2450mm

1.The main parts are from Sino-foreign joint ventures and domestic well-known manufacturers. The performance indicators are better than similar products in the domestic market.

2.Applied Range:
This wheel excavator are widely used in construction engineering, municipal engineering, urban and rural landscape, road trafficconstruction remould, station dock, irrigation and water conservancy, rustic home construction, and minor works for loading and transporting earth and stone block etc., also can be matched well with kinds of lorry, tractor, agricultural vehicle and
construction machinery etc.

3.Auxiliary tools:
Breaker Hammer,Clamshell Bucket,Grapple
