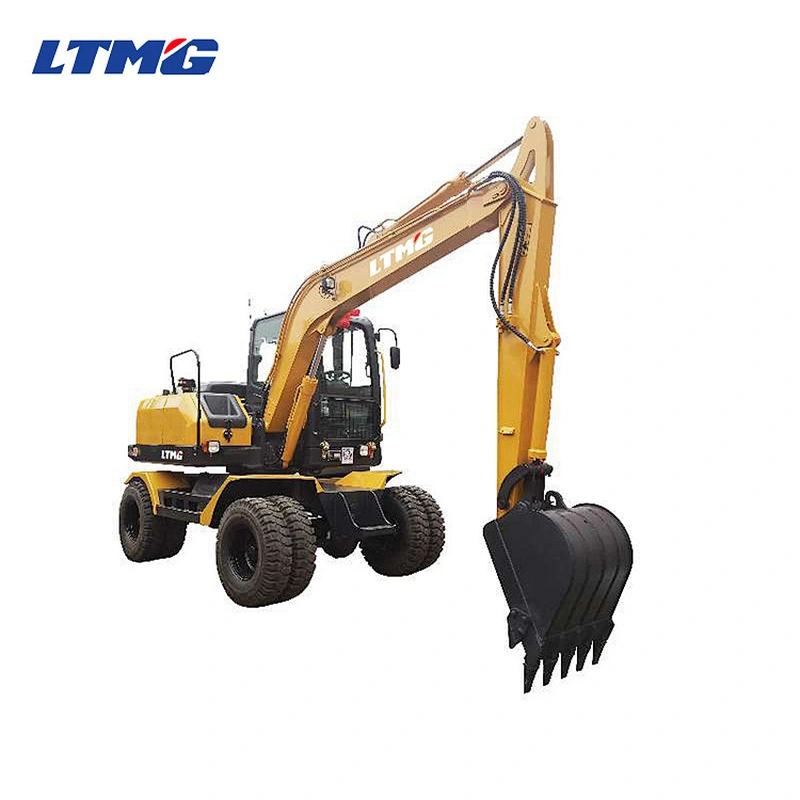

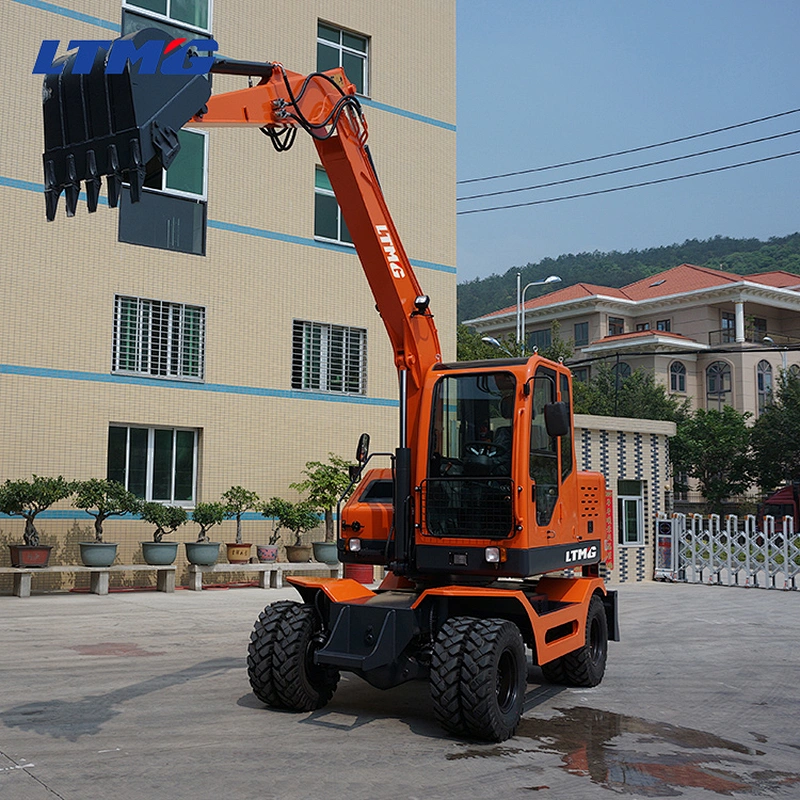

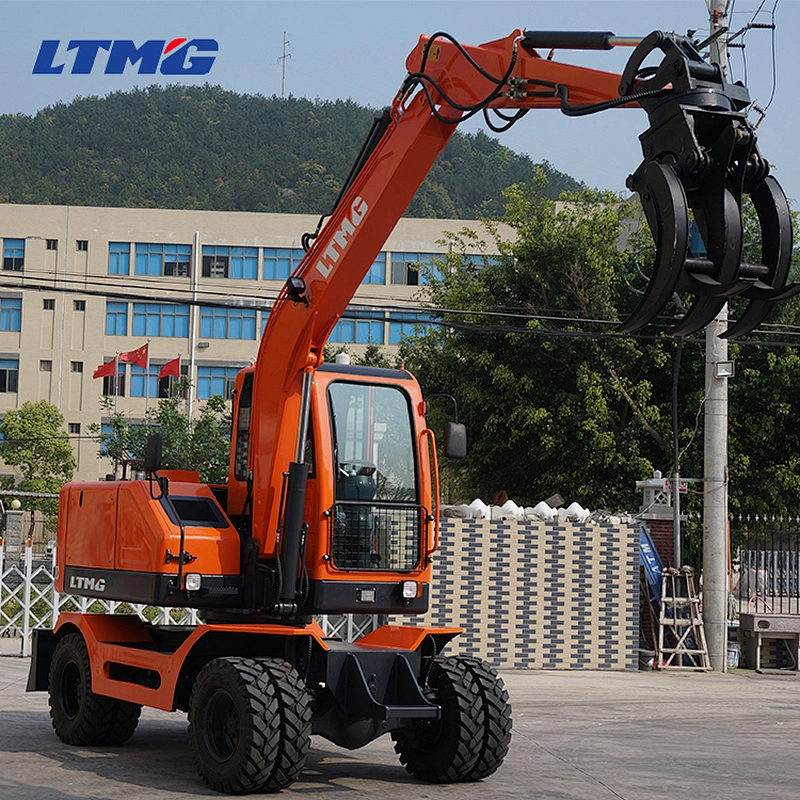

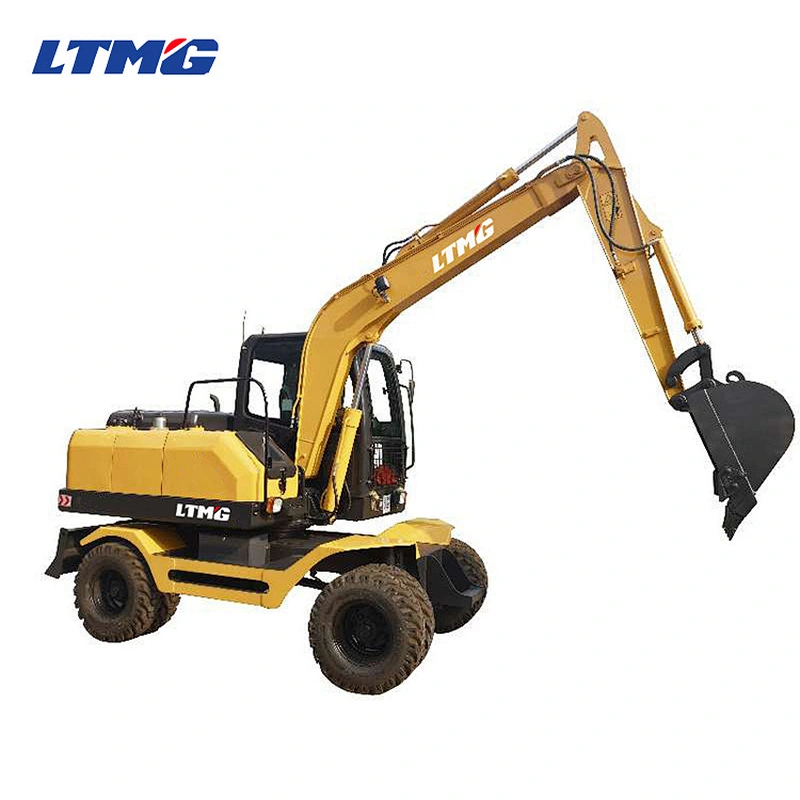

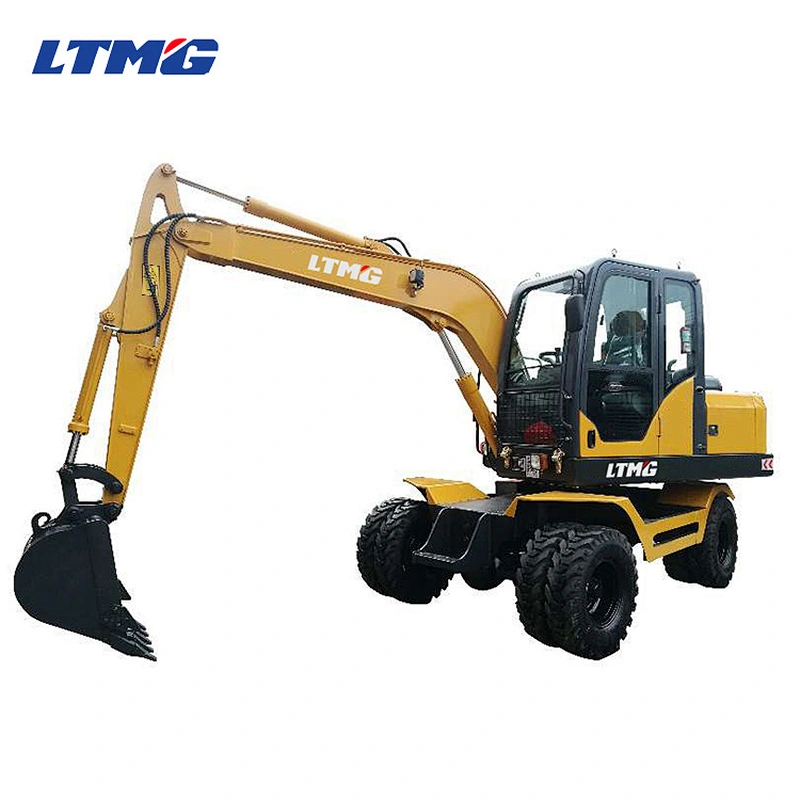

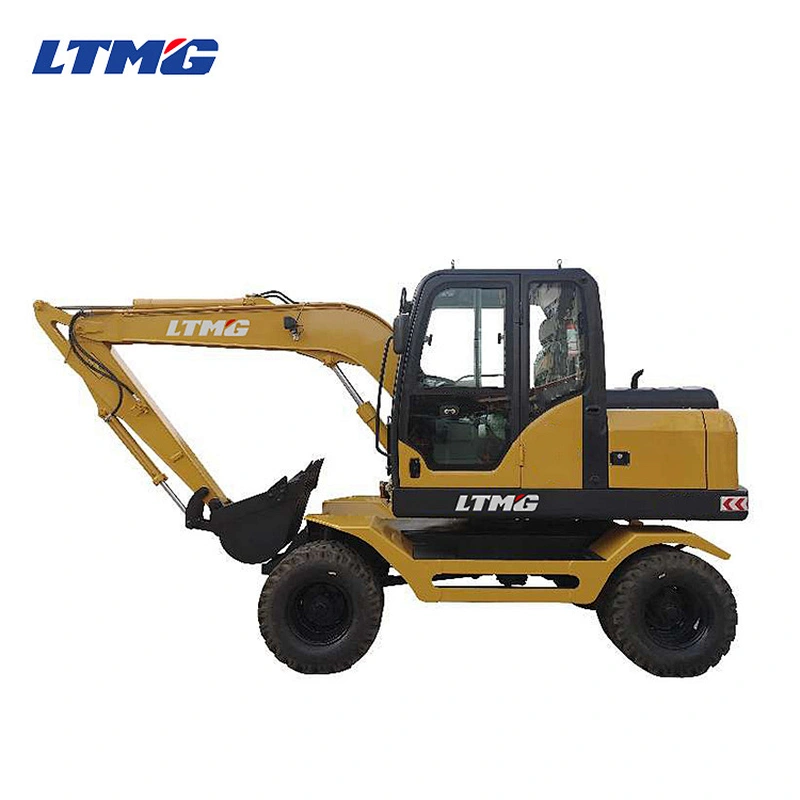

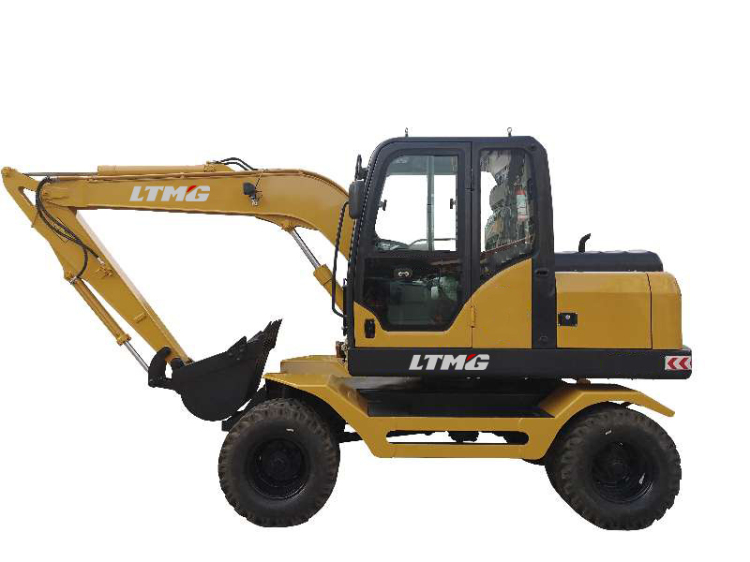

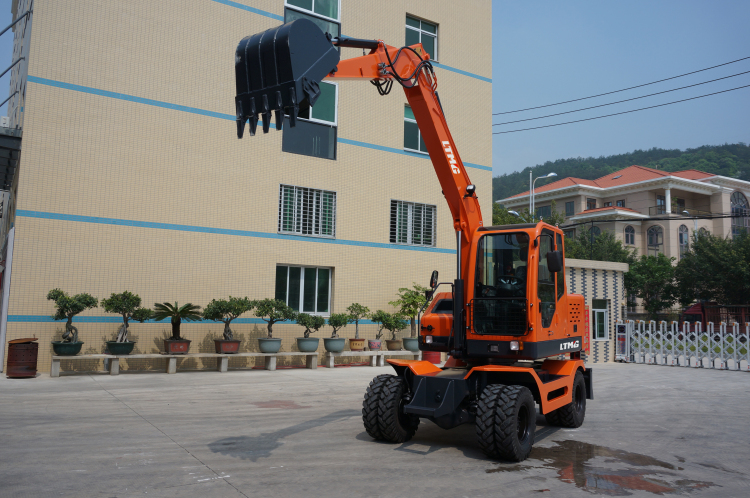

Item:LTMG heavy Construction equipment LT780-8T wheel excavator
Operating weight:6700kg
Bucket capacity:0.3m3
Hydraulic working pressure:21Mpa
Gradeability:59%(30°)
Max.traction force:65KN
Max.digging force:46KN
Rated power:50Kw/2400rpm
Max.digging reach:7045mm
Max.digging depth:3735mm
Applicable Industries:Construction works
Applicable Industries:Energy & Mining
Condition:New
Moving Type:Wheel Excavator
After-sales Service Provided:Online support
After-sales Service Provided:Free spare parts
Warranty:1 Year
UNIQUE SELLING POINT:High operating efficiency
Applicable Industries:logistics transportation
Hydraulic Cylinder Brand:KAIWO
Hydraulic Pump Brand:DOOSAN
Hydraulic Valve Brand:RUILONG
Engine Brand:YUCHAI
Brand Name:LTMG
Operating Weight:6700Kg
Bucket capacity:0.3m3
Maximum Digging Height:7280mm
Maximum Digging Depth:3735mm
Rated Speed:32km/h
Certification:CE
Power:50KW
Place of Origin:China

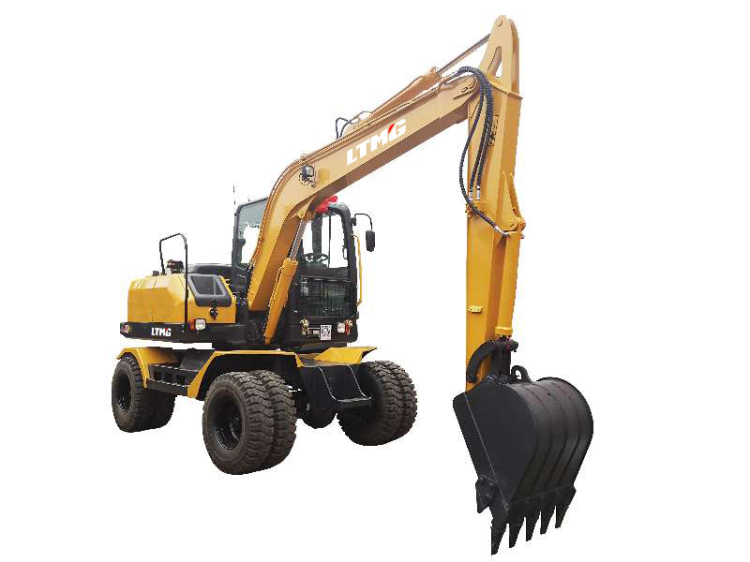

Product Description
Product feature
1. Adopt YUCHAI engine meeting National III standard,high torque,low emission,strong power.
2. Gear pump system,easy to maintain.
3. Increase pump displacement,improve working efficiency by 17%
4. Optimize the transmission system and prolong the service life effectively.
5. Longer wheel base,operate smoothly.
6. Optimize intake and exhaust system,reduce noise by 2 decibels.

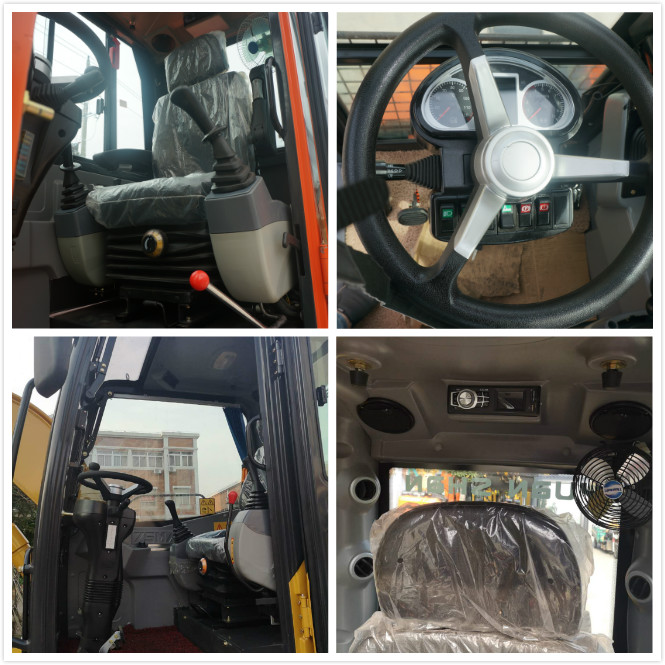

7. Luxurious cab with broad vision,comfortable for driving.
Specification
LT780-8TWHEEL EXCAVATOR Specification
Working Range
Boom lenghth
3650mm
Arm length
2250mm
Max.digging reach
7045mm
Max.digging depth
3735mm
Max.digging height
7280mm
Max.dumping height
5530mm
Min.platform tail turning radius
1755mm
Rated load
Dimmension
Platform width
1930mm
Overall width
2100mm
Overall height
2865mm
Wheel tread
2500mm
Distance from the digging arm to rotating center
4390mm
Overall length
6145mm
Min.Ground clearance
260mm
Height for dozer blade(Optional)
500mm
Dozer blade rising distance/lowering distance
Technical data
Rated power
50Kw/2400rpm
Operating weight
6700Kg
Bucket capacity
0.3m³
Hydraulic working pressure
21Mpa
Max.digging force
46KN
Gradeability
59%(30°)
Travel speed
32km/h
Max.traction force
65KN
Swing speed of platform
10.5rpm
Fuel tank capacity
110L

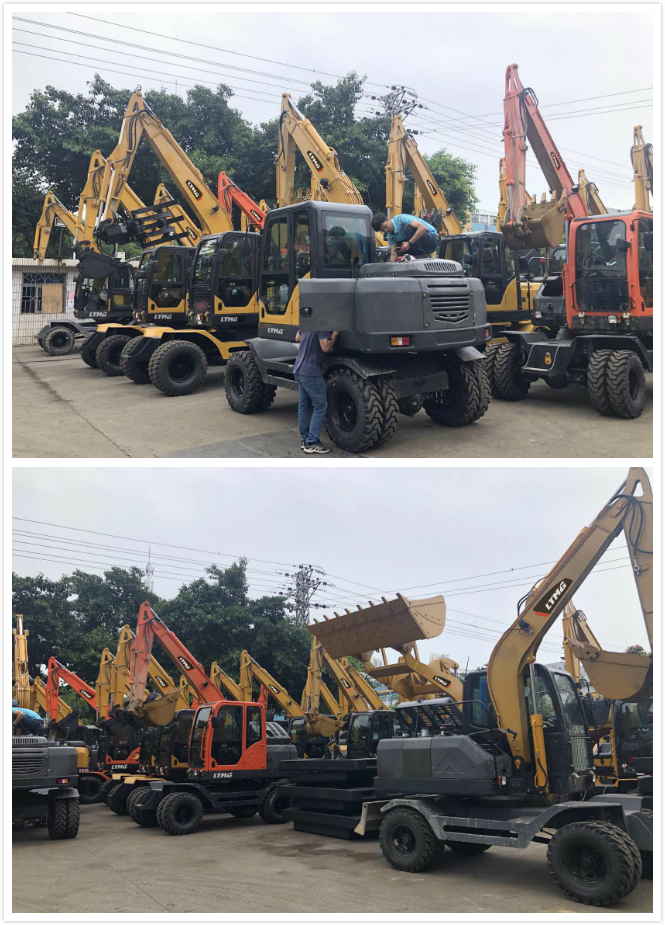

Factory

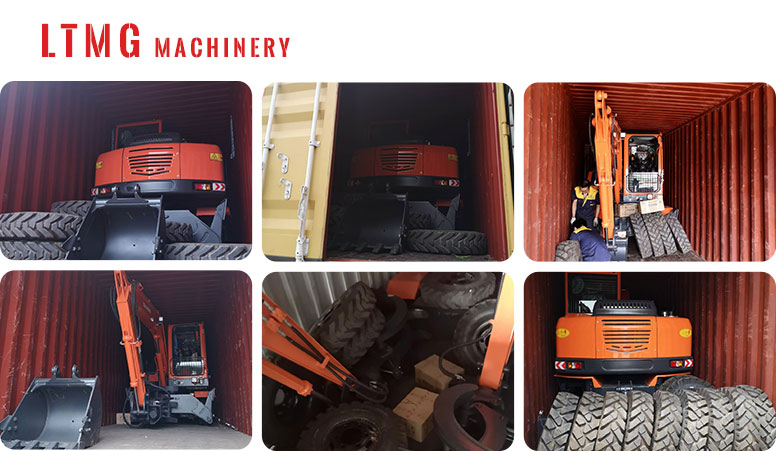

Packing & Delivery

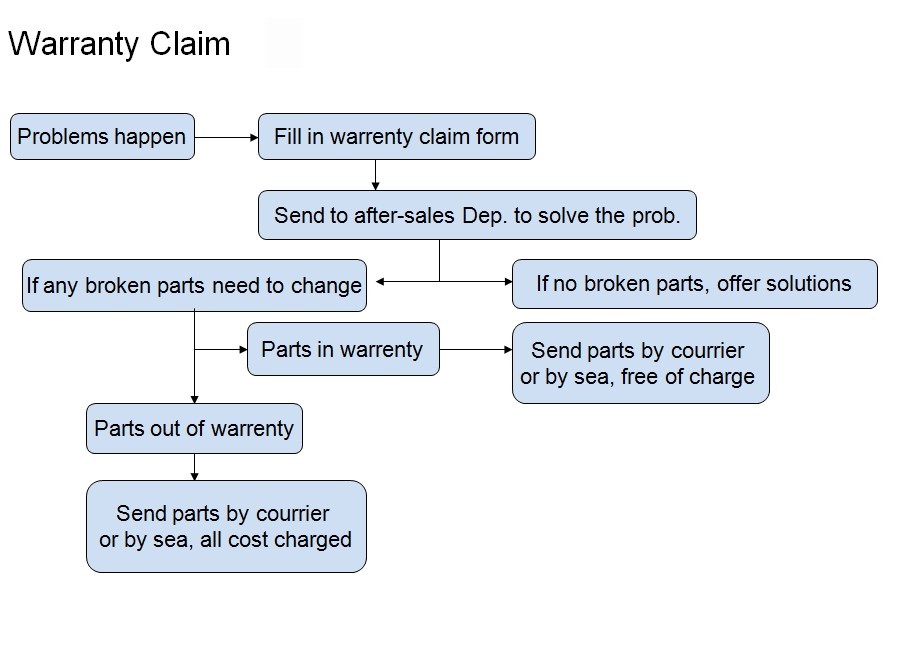

Our Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
