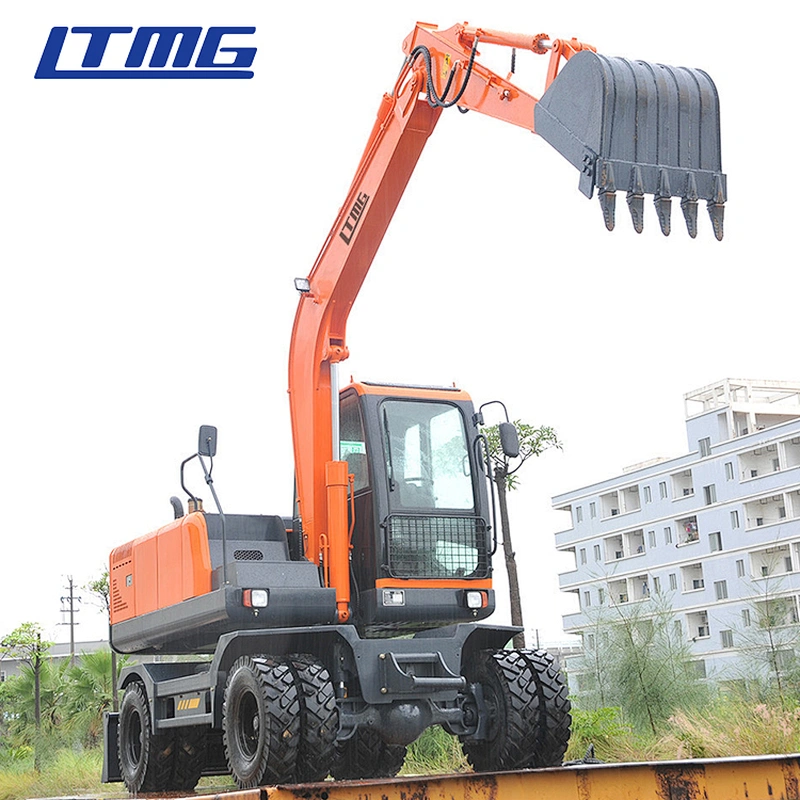

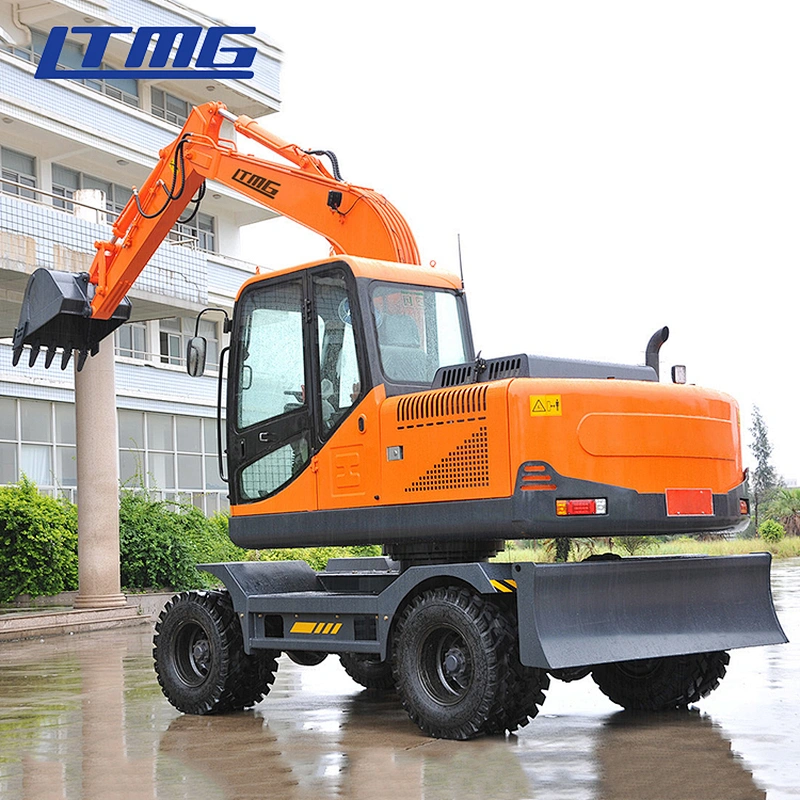

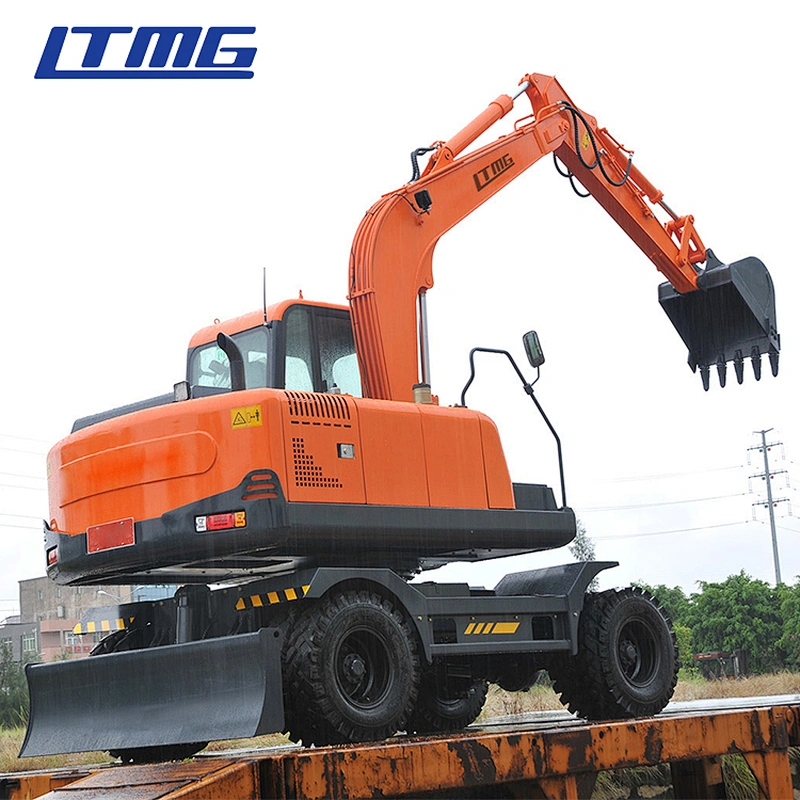

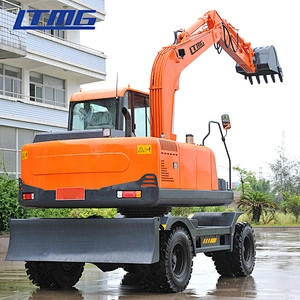

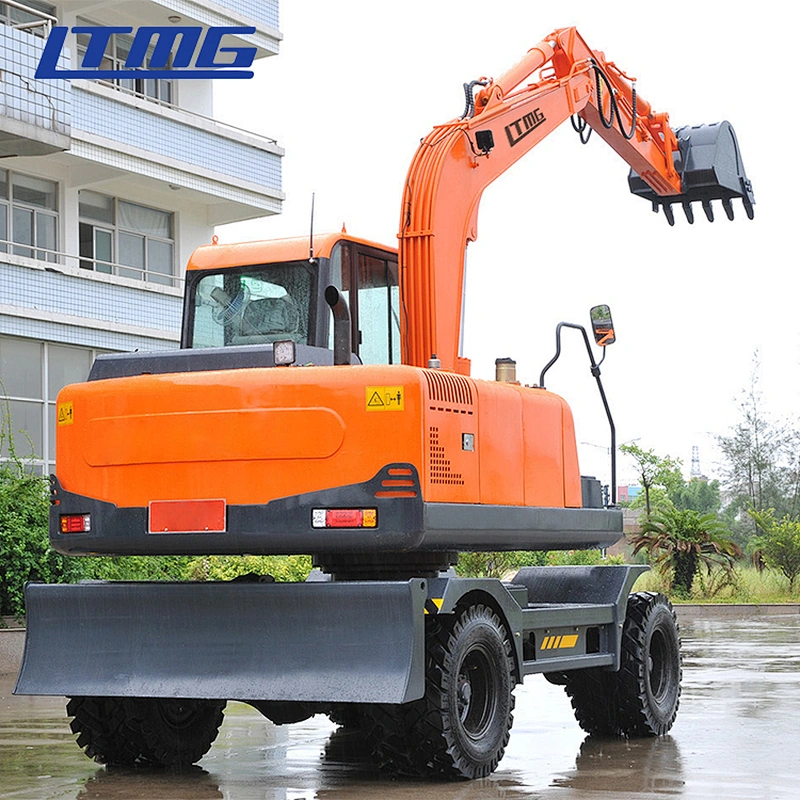

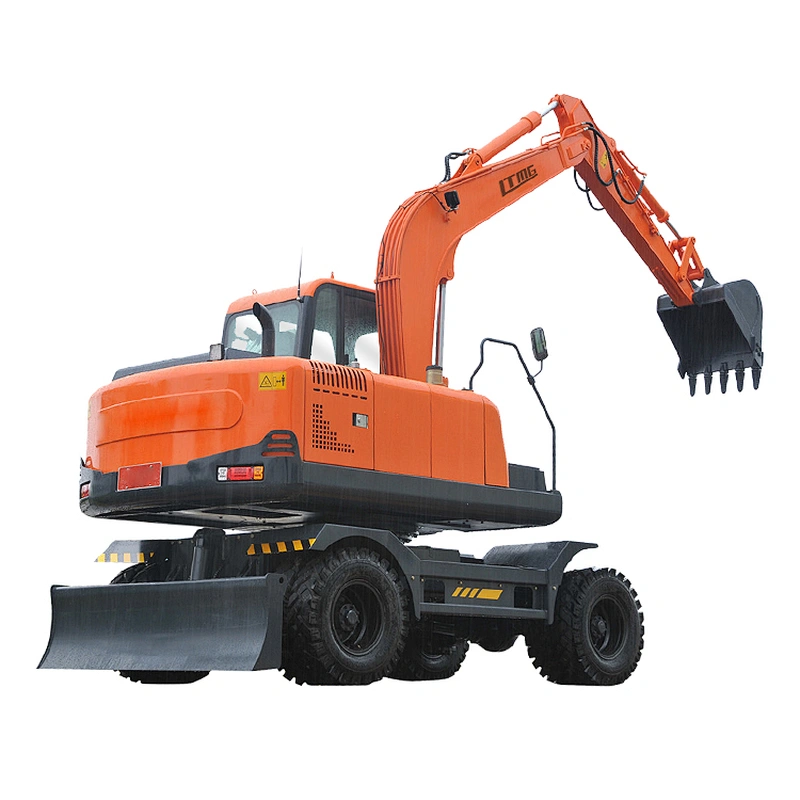

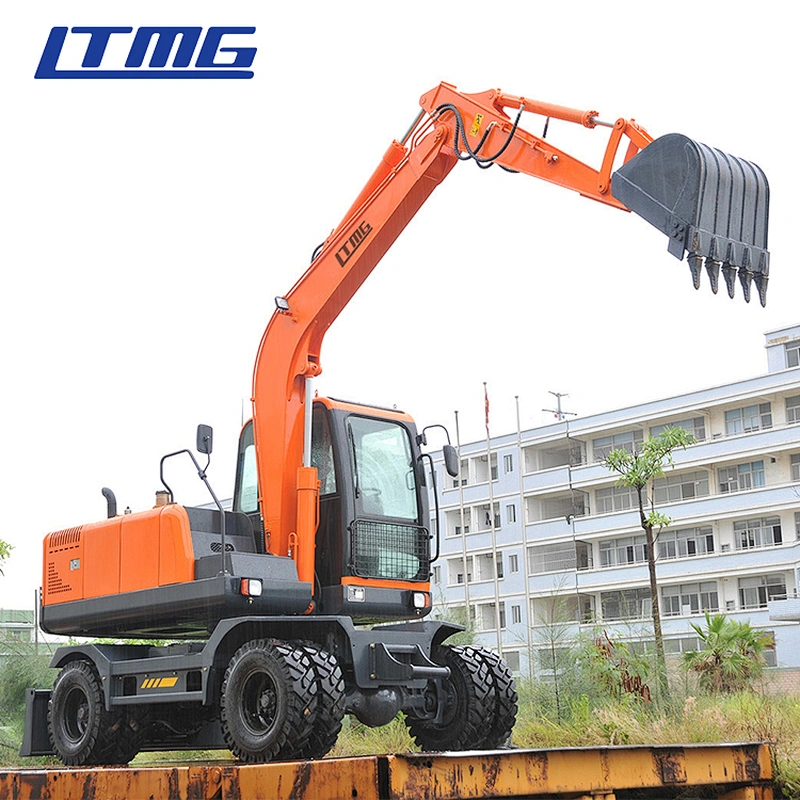

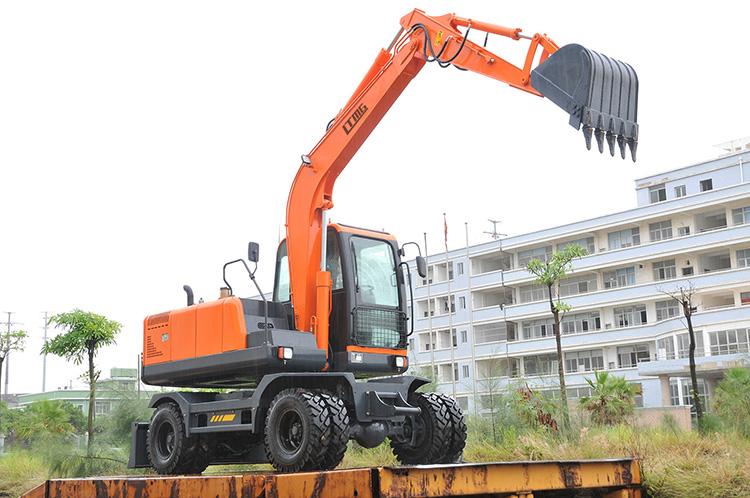

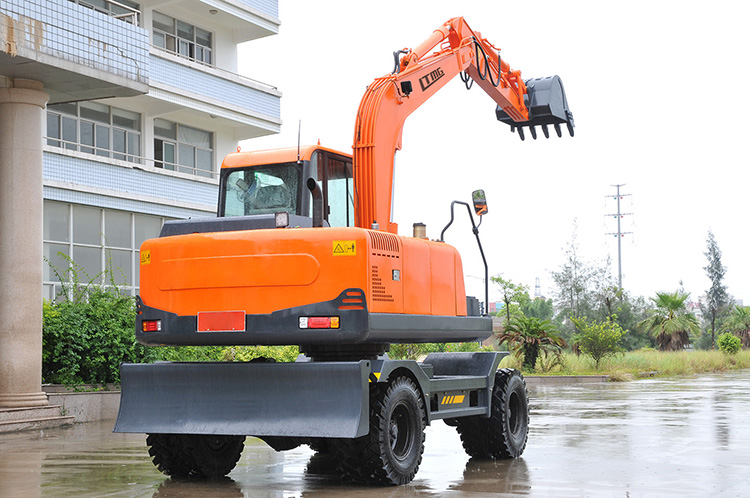

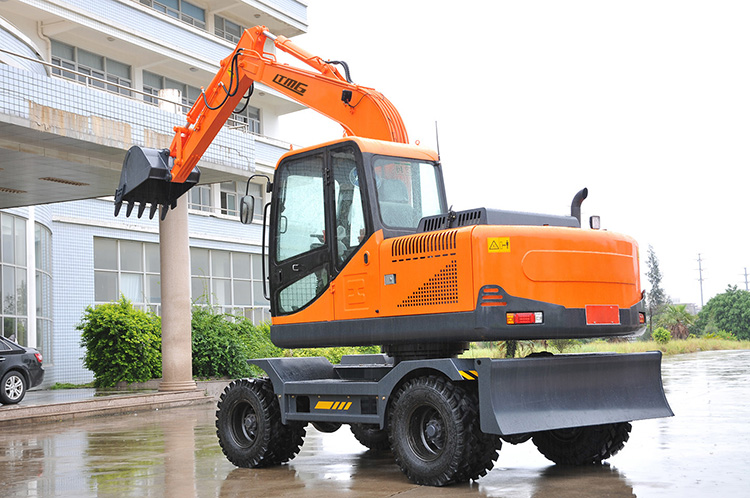

- Item:wheel Excavator
- Engine:Japanese engine
- Max.digging depth:3800mm
- Max.digging force:55KN
- Max.digging height:6500mm
- Chassis width:2130mm
- Min.Ground Clearance:290mm
- Overrall Length:6230mm
- Gradeability:36°
- Ground pressure:26Kpa
- After Warranty Service:Spare parts
- Local Service Location:Egypt
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Mexico
- Local Service Location:Australia
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Showroom Location:Egypt
- Showroom Location:Brazil
- Showroom Location:Indonesia
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Uzbekistan
- Showroom Location:Australia
- Condition:New
- Moving Type:Wheel Excavator
- Operating Weight:8200Kg
- Warranty:1 Year
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:Japanese
- UNIQUE SELLING POINT:Yuchai
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:Ordinary Product
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Applicable Industries:Construction works
- Applicable Industries:Earth moving machinery
- Brand Name:LTMG
- Bucket capacity:0.4m3
- Maximum Digging Height:6500mm
- Maximum Digging Depth:3800mm
- Max Digging Radius:6300mm
- Rated Speed:32km/h
- Certification:CE
- Power:60Kw
Working Range | ||
Boom Length | 3500mm | |
Arm Length | 1900mm | |
Max. Digging Distance | 6250mm | |
Max. Digging Depth | 3800mm | |
Max. Digging Height | 6500mm | |
Max. Dumping Height | 4800mm | |
Min. Swing Radius | 2300mm | |
Rear Tail Swing Radius | 1940mm | |
Max. Ground Dingging Distance | 6300mm | |
Performance | ||
Operating Weight | 8200KG (With blade, out trigger) | |
Engine | Yuchai YC4D85Z-T20 | |
Engine Rated Power | 60KW | |
Bucket Capacity | 0.4m³ | |
Hydraulic System Working Performance | 26Mpa | |
Swing Speed | 11.5r/min | |
Traveling Speed | 32Km/h | |
Max. Digging Force | 55KN | |
Max. Grade Ability | 36° | |
Ground pressure | 49Kpa | |
Hydraulic Oil Tank Capacity | 160L | |
Fuel Tank Capacity | 160L | |
Dimension | ||
Overall Length | 6230mm | |
Overall Width | 2130mm | |
Overall Height | 2910mm | |
Min. Ground Clearance | 290mm | |
Wheel Base | 2450mm | |
