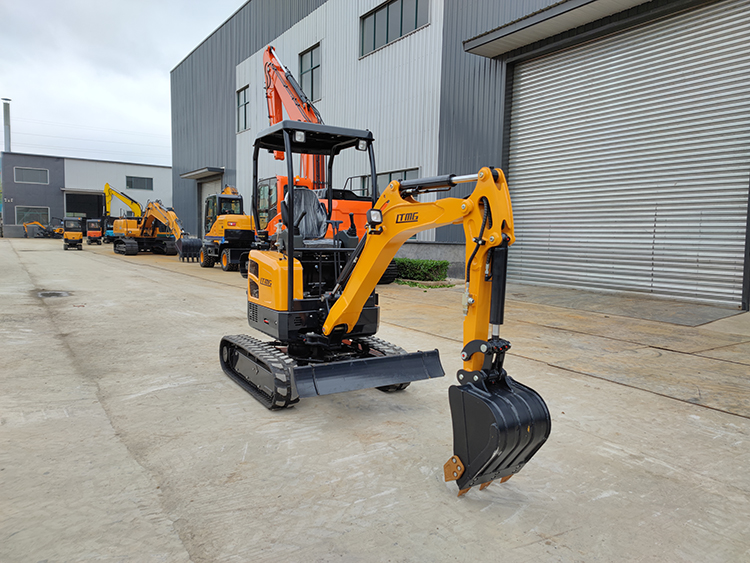

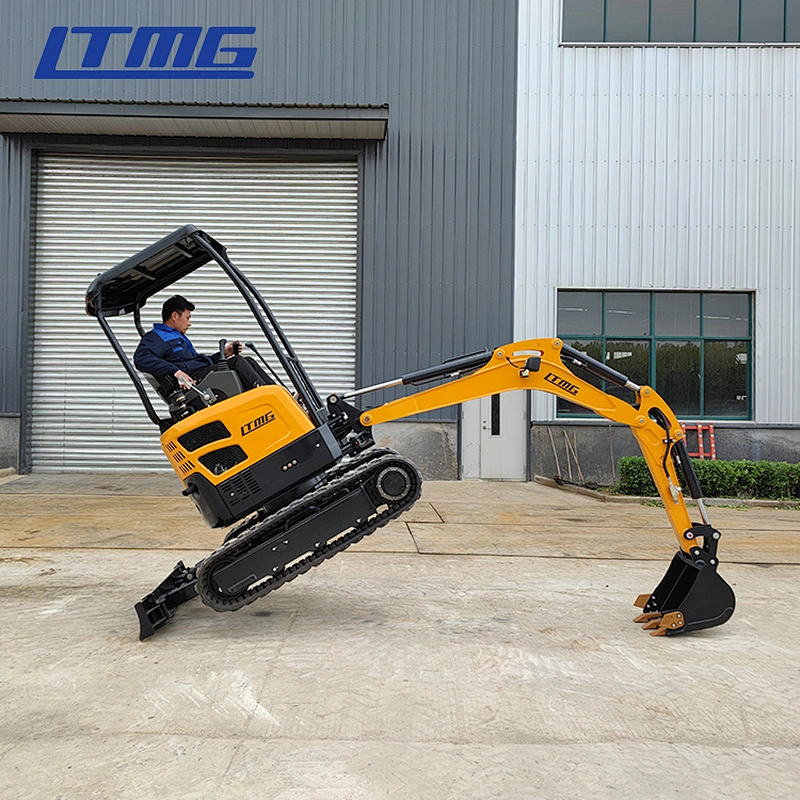

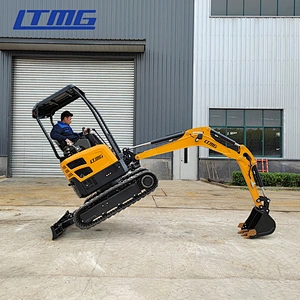

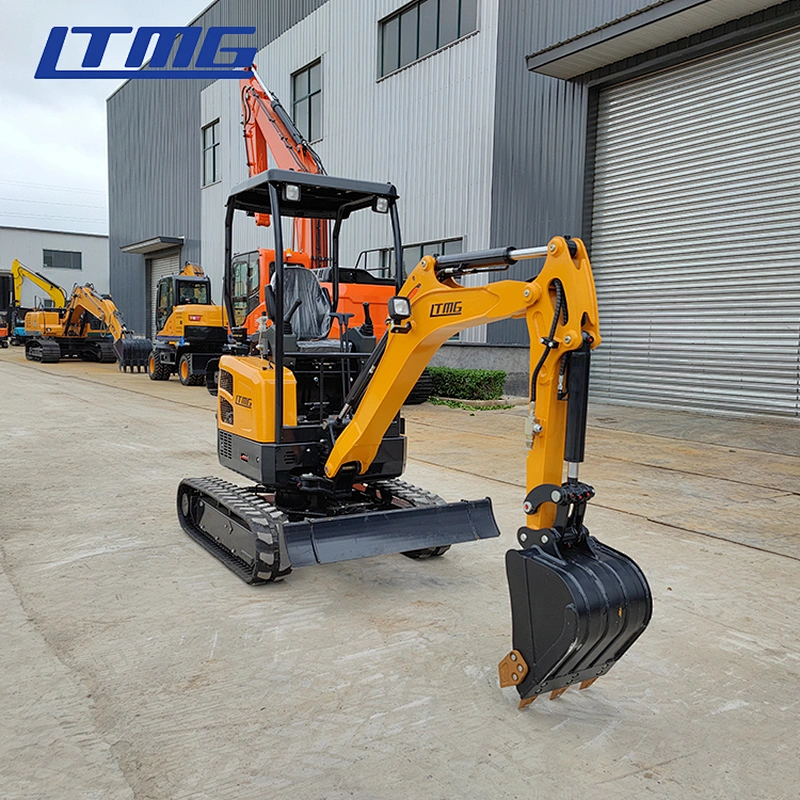

- Item:2 ton Excavator
- Product type:Excavator
- Digging bucket capacity:0.07cbm/100kg
- Track height:320 mm
- Max. Digging height:3700 mm
- Max.digging depth:2400 mm
- Max. Digging Radius:4040 mm
- Swing Speed:0-9 r/min
- Bucket Digging Force:18KN
- Tracking Force:15.2KN
- Applicable Industries:Building Material Shops
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Wheel Excavator
- Operating Weight:2000Kg
- Warranty:1 Year
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:KAIWO
- Hydraulic Pump Brand:DOOSAN
- Hydraulic Valve Brand:RUILONG
- Engine Brand:KOOP / CHANGCHAI
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1.5 years
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.07m3
- Maximum Digging Height:2365mm
- Maximum Digging Depth:1650mm
- Max Digging Radius:2560mm
- Rated Speed:1.5km/h
- Certification:CE
- Power:7.5Kw

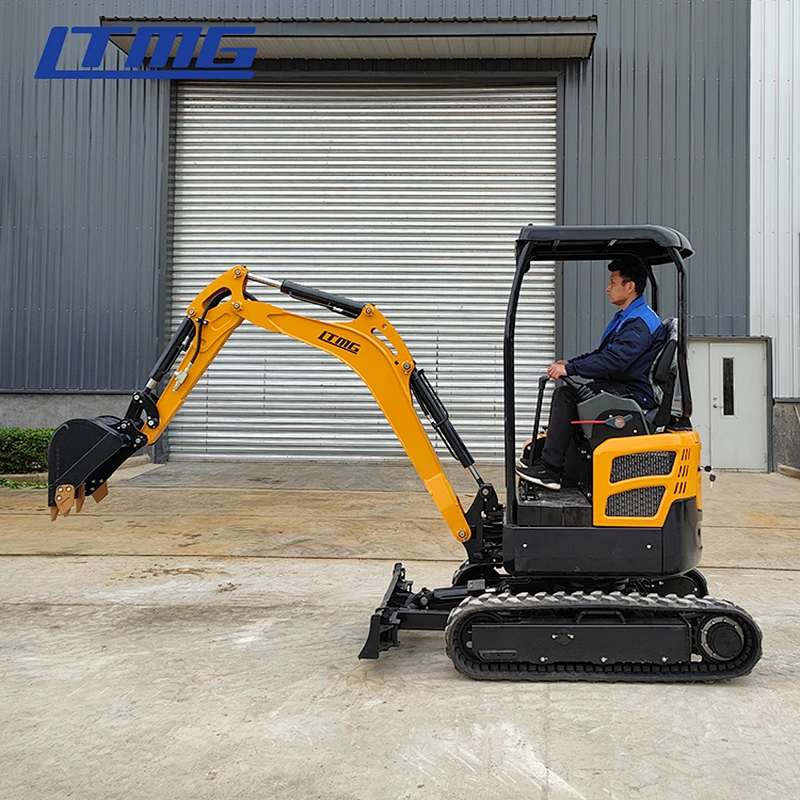

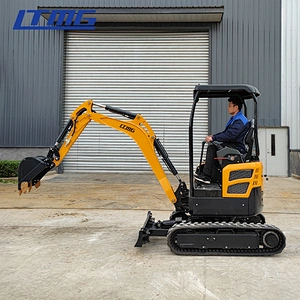

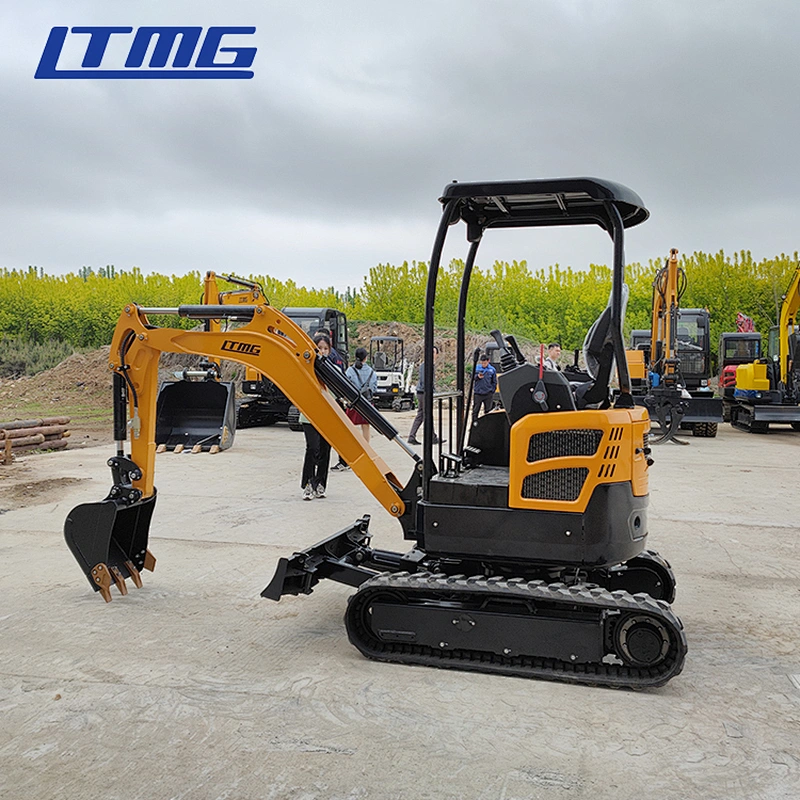

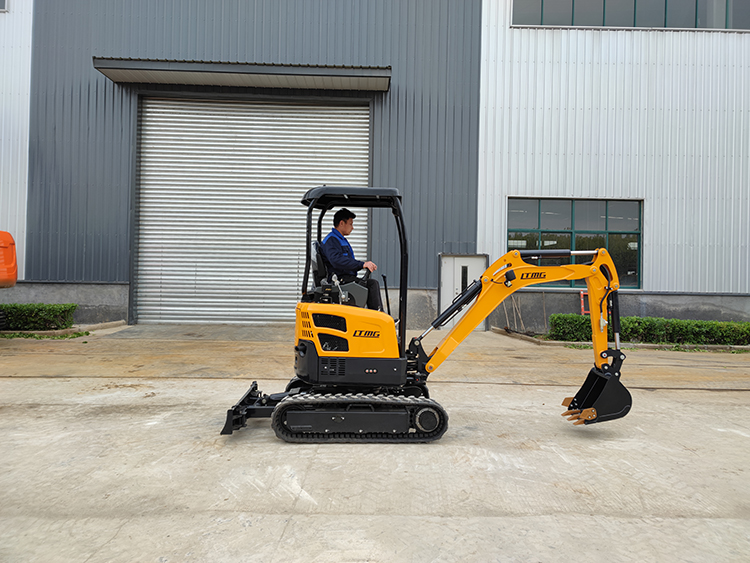

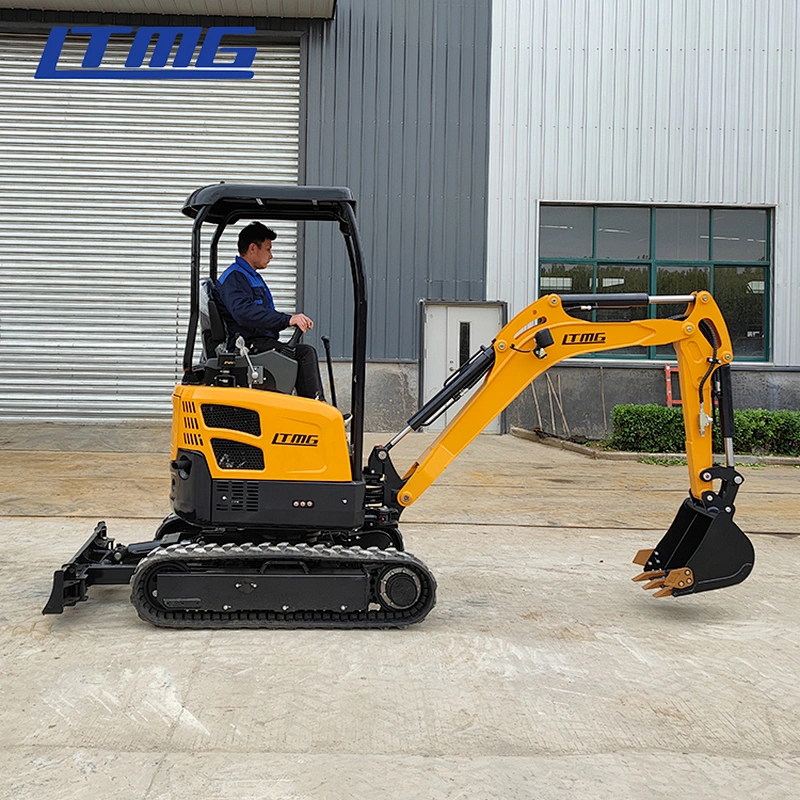

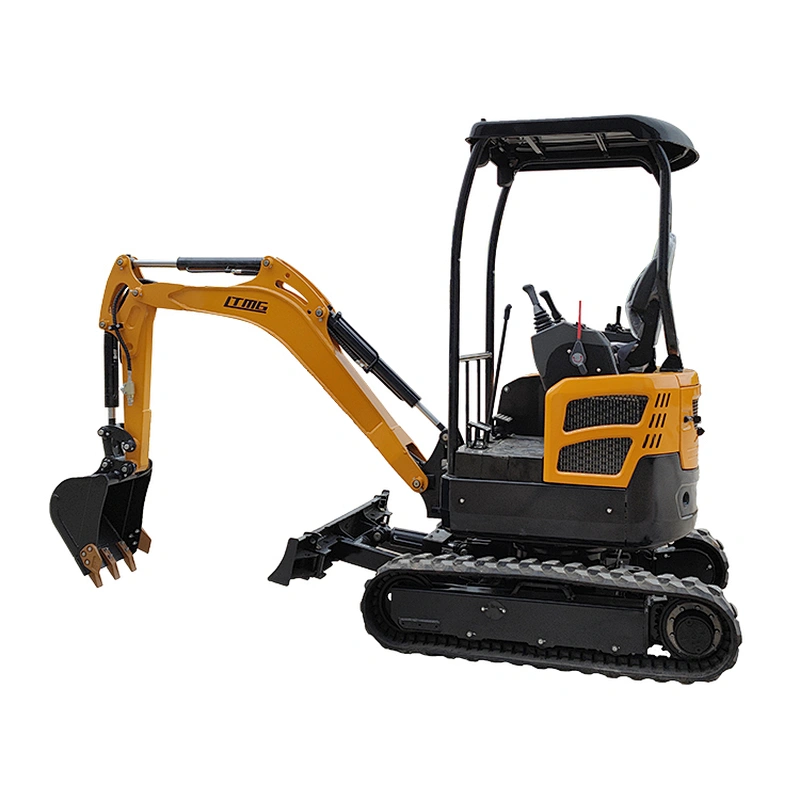

Specification of 2ton mini excavator | ||||
Model | LTE20 | |||
Engine | ||||
Engine Model | Kubota 14.2kW/2200rpm | |||
Type | Direct injection, water cooled, natural intake | |||
No. of cylinder | 3 | |||
Main Performance | ||||
Swing Speed | r/min | 0-9 | ||
Traveling Speed | km/H | 2.8 | ||
Grade ability | % | 70(35°) | ||
System rated pressure | Mpa | 21.5 | ||
Ground Pressure | Kpa | 30 | ||
Tracking Force | Kn | 15.2 | ||
Bucket Digging Force | kN | 18 | ||
Arm Digging Force | kN | 11 | ||

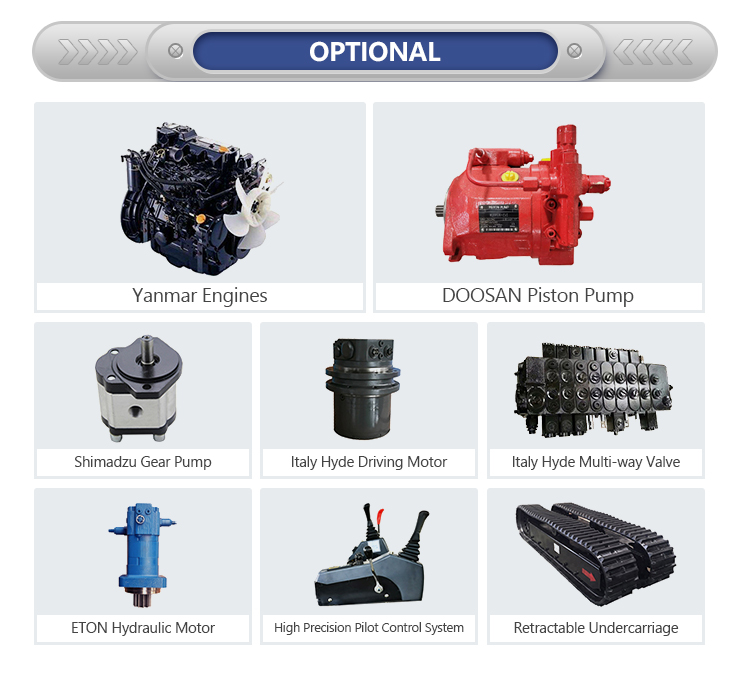

Hydraulic System | ||||
Hydraulic Pump | Italian | |||
Main Valve | Italian | |||
Swing Motor | Eaton | |||
Traveling Motor | Eaton | |||
Fuel Tank Capacity | L | 17 | ||
Hydraulic Tank Capacity | L | 18 | ||

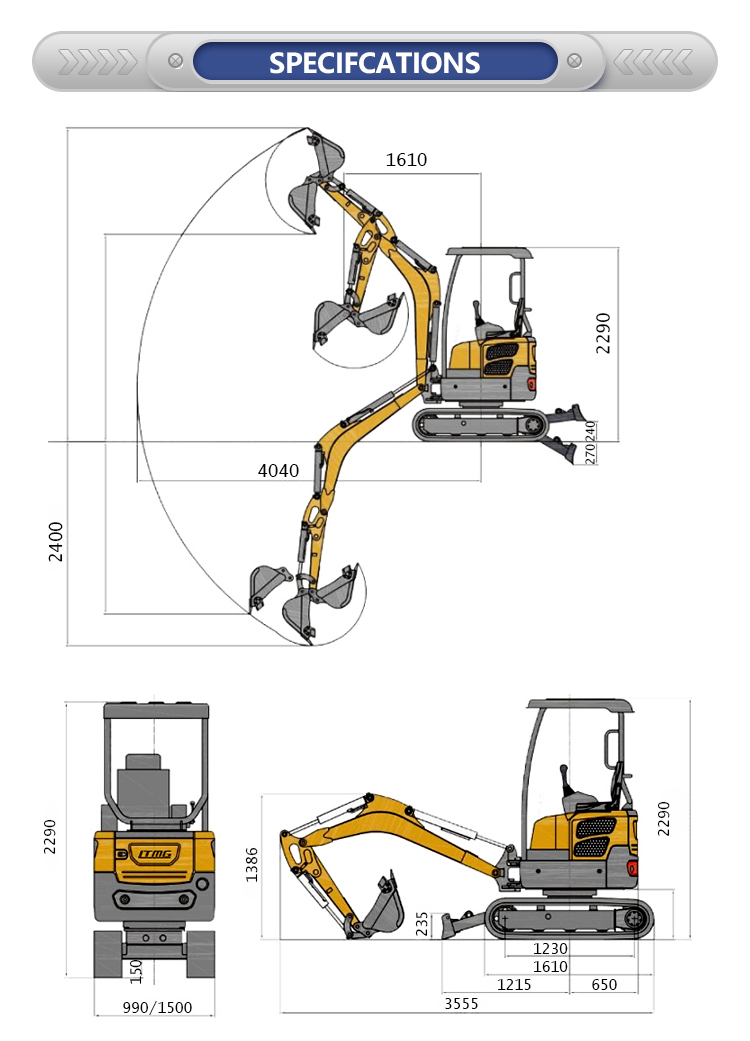

Overall Dimensions | ||||
Overall Length | mm | 3555 | ||
Overall Width | mm | 990/1300 | ||
Overall Height | mm | 2290 | ||
Ground clearance | mm | 150 | ||
Undercarriage width | mm | 990 | ||
Dozer Blade | mm | 1050×240 | ||
Operation parameters | ||||
Operation Weight | KG | 1900 | ||
Bucket Capacity | m3 | 0.07 | ||
Max. Digging Radius | mm | 4040 | ||
Max. Digging Depth | mm | 2400 | ||
Max. Digging Height | mm | 3700 | ||
Max. Dumping Height | mm | 2440 | ||
Max. Dozer Cutting | mm | 270 | ||
Max. Dozer Lifting | mm | 240 | ||
Boom Deflexion (Left/Right) | ° | 75/45 | ||
Tail Swing Radius | mm | 650 | ||
