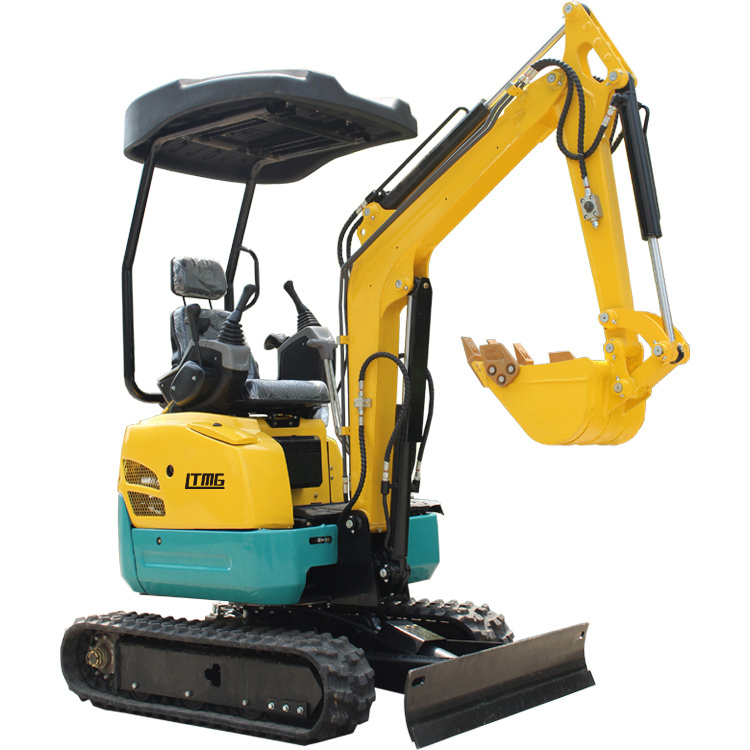

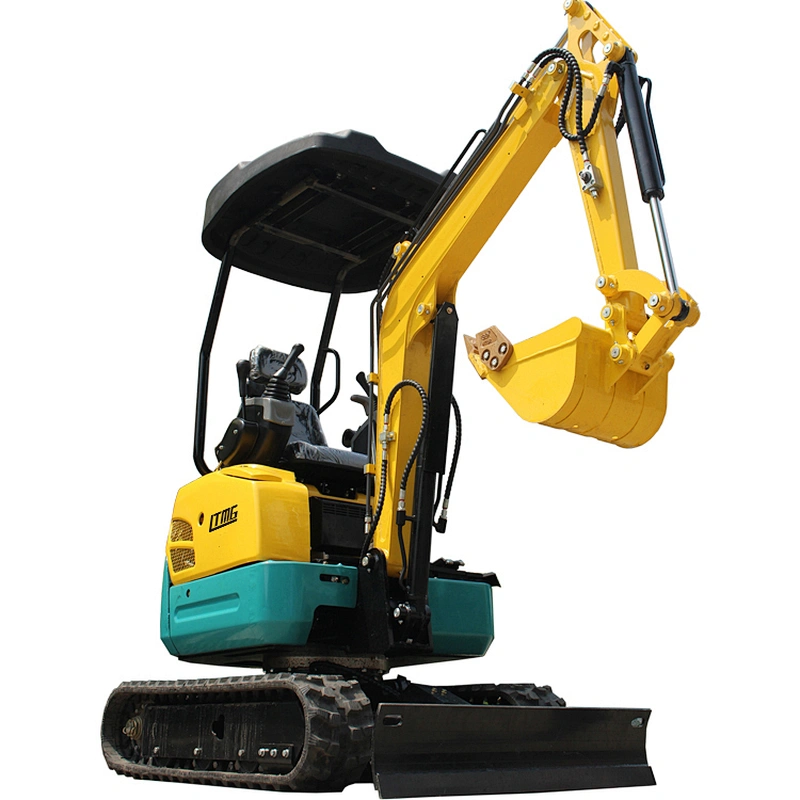

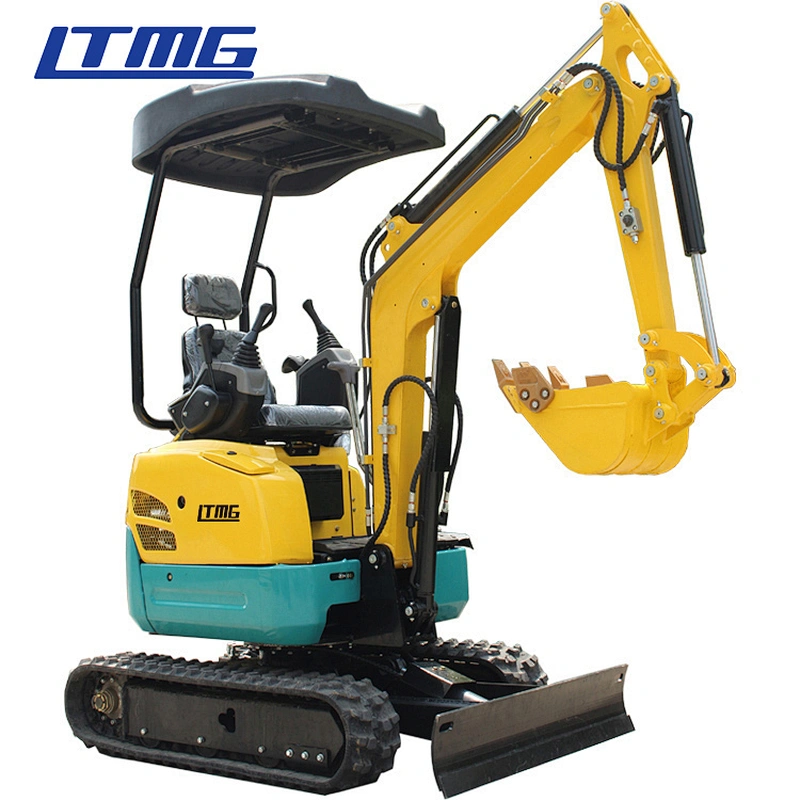

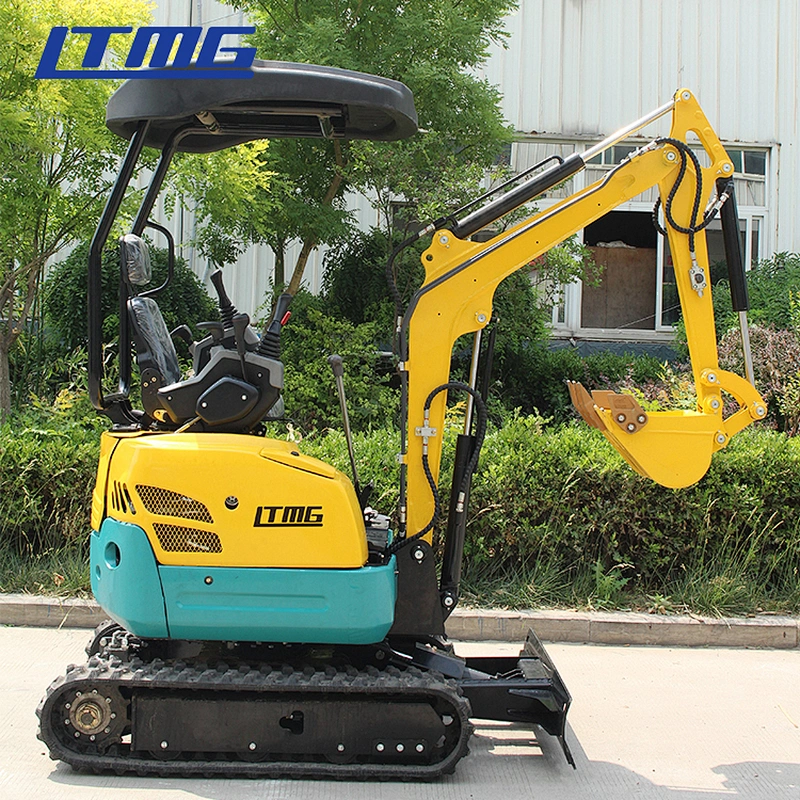

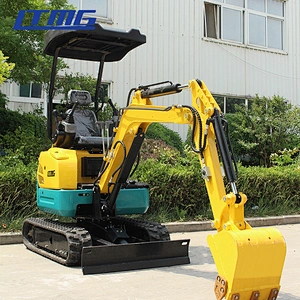

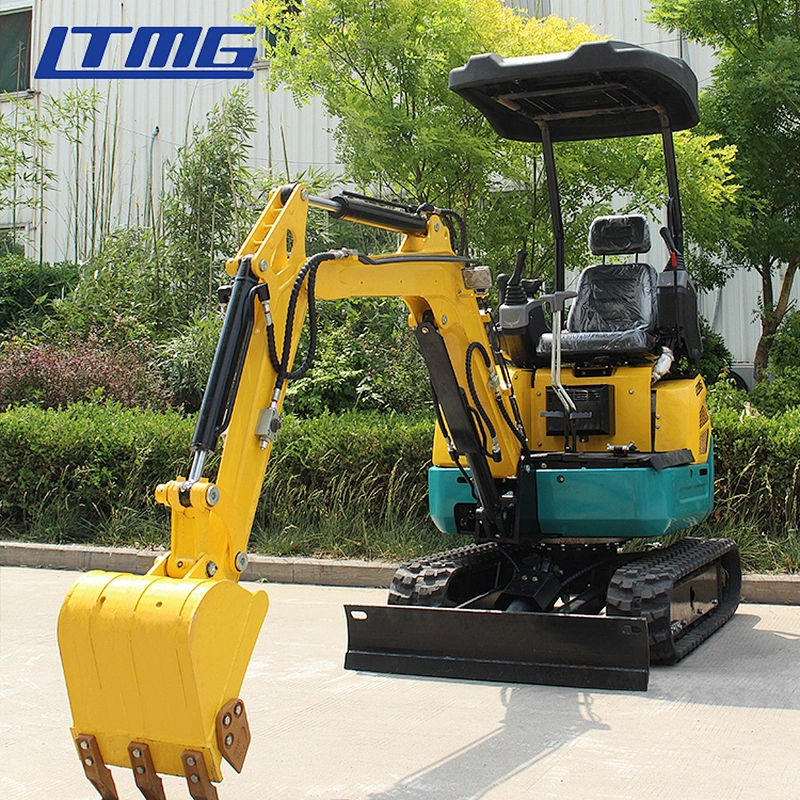

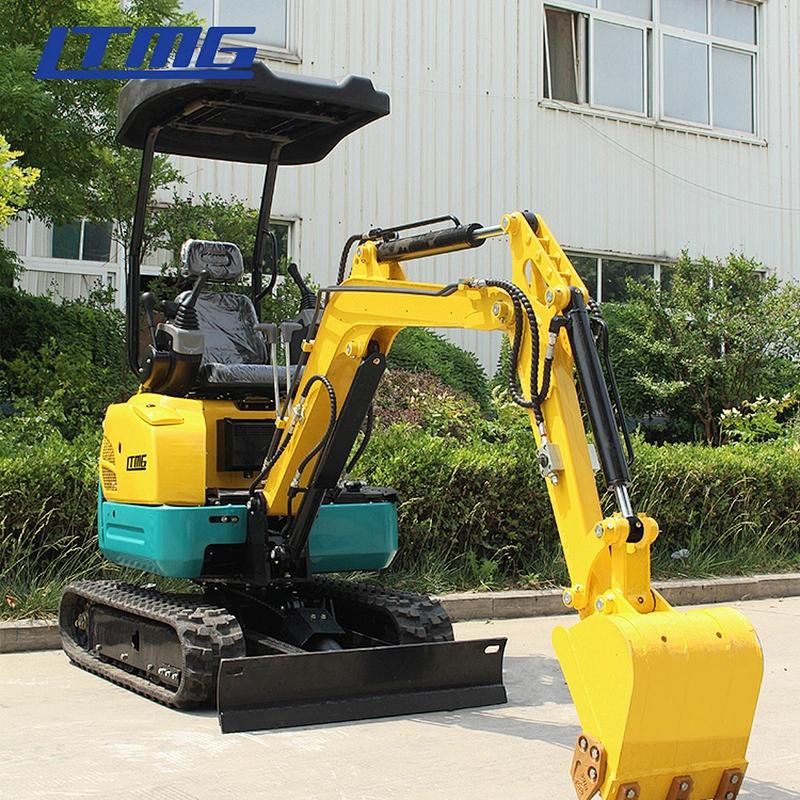

- Product name:LTMG 1.8 ton mini excavator chinese machine new excavators price
- Item:1.8 ton Excavator
- Product type:crawler Excavator
- Digging bucket capacity:0.045cbm
- Track height:320 mm
- Max. Dumping height:2260 mm
- Max. Digging height:3230 mm
- Max.digging depth:2190 mm
- Max. Vertical digging depth:1780 mm
- Rated power:10 KW
- Applicable Industries:Building Material Shops
- Applicable Industries:Machinery Repair Shops
- Applicable Industries:Manufacturing Plant
- Applicable Industries:Farms
- Applicable Industries:Retail
- Applicable Industries:Construction works
- Applicable Industries:Energy & Mining
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Local Service Location:Egypt
- Local Service Location:Turkey
- Local Service Location:Philippines
- Local Service Location:Brazil
- Local Service Location:Saudi Arabia
- Local Service Location:Indonesia
- Local Service Location:Mexico
- Local Service Location:Thailand
- Local Service Location:Australia
- Local Service Location:Chile
- Local Service Location:Colombia
- Local Service Location:Kazakhstan
- Local Service Location:Ukraine
- Showroom Location:Egypt
- Showroom Location:Turkey
- Showroom Location:Philippines
- Showroom Location:Brazil
- Showroom Location:Saudi Arabia
- Showroom Location:Indonesia
- Showroom Location:Mexico
- Showroom Location:Thailand
- Showroom Location:Chile
- Showroom Location:Colombia
- Showroom Location:South Africa
- Showroom Location:Kazakhstan
- Showroom Location:Ukraine
- Showroom Location:Australia
- Condition:New
- Moving Type:Crawler Excavator
- Operating Weight:1800Kg
- Warranty:1 Year
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Field maintenance and repair service
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:DONGHYUN (Korea)
- Hydraulic Pump Brand:NACHI(Japan)
- Hydraulic Valve Brand:KYB(JAPAN)
- Engine Brand:JANPANESE ENGINE
- UNIQUE SELLING POINT:High digging power
- Machinery Test Report:Provided
- Video outgoing-inspection:Provided
- Marketing Type:New Product 2020
- Warranty of core components:1 Year
- Core Components:Engine
- Core Components:Pump
- Core Components:Gearbox
- Place of Origin:CN;FUJ
- Brand Name:LTMG
- Bucket capacity:0.045m3
- Maximum Digging Height:3230mm
- Maximum Digging Depth:2190mm
- Max Digging Radius:3500mm
- Rated Speed:3 km/h
- Certification:CE
- Power:10Kw
The Specification of LTMG 1.8 ton mini Excavator | ||
Model | LTE18 | |
Operating Weight | 1800kg | |
Digging bucket capacity | 0.045cbm | |
Bucket width | 340mm | |
Engine | YANMAR(3TNV70) | |
Rated power | 10 kw | |
Swing motor | japan NACHI | |
Traveling motor | Korea DONGHYUN | |
Travel speed | 3 km/h | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 3160x1110x2377 mm | |
Wheelbase | 1130 mm | |
Total length of track | 1450 mm | |
Platform back turning radius | 730 mm | |
Chassis width | 1120 mm | |
Track width | 230 mm | |
Chassis ground clearance | 420 mm | |
Track height | 320 mm | |
OPERATING RANGE | ||
Max. Digging depth | 2190 mm | |
Max. Vertical digging depth | 1780 mm | |
Max. Digging height | 3230 mm | |
Max. Dumping height | 2260 mm | |
Max. Digging radius on ground | 3500 mm | |
Min. Rotation radius | 1440 mm | |
Max. Upgrade height of bulldozer blade | 270 mm | |
Max. Digging depth of bulldozer blade | 200 mm | |
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.

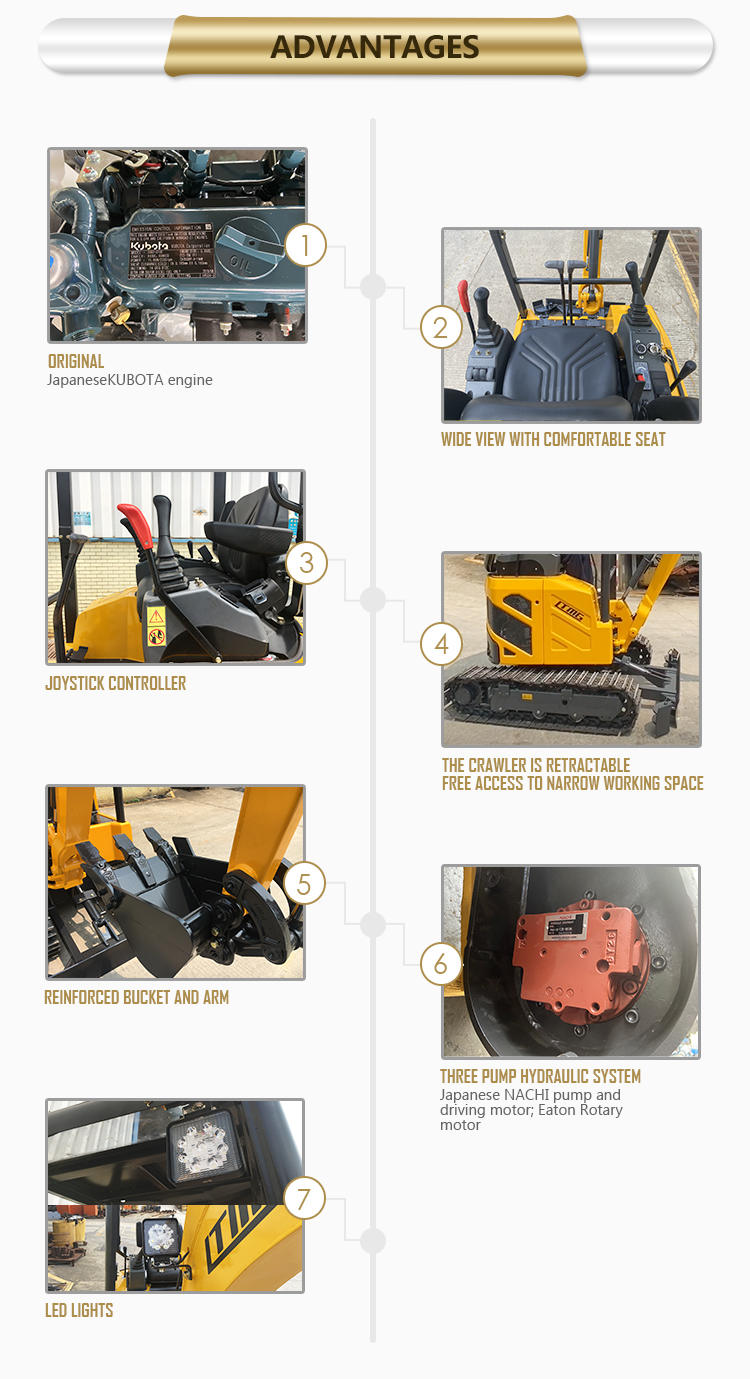

1.The use of high-strength welding plate, strong lifting capacity, U-shaped cross-section main arm, more uniform force and higher safety.2.The chassis can be flexibly matched, the structure is simple, the steering is light, the power transmission is stronger and more fuel-efficient, and the luxurious cab is more comfortable.3.Adopt high-strength sheet composite structure, increase the weight of the frame, prevent distortion and breakage.4.Equilibrium valve for smooth operation.Hardened gear with surface hardening, low noise and smooth operation, modular design, high temperature resistance, anti-seepage oil.
