- Applicable Industries:Energy & Mining
- Applicable Industries:Food & Beverage Shops
- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Place of Origin:CN;ZHE
- Power Souce:AC Motor
- Warranty:1 year
- After-sales Service Provided:Online support
- Brand Name:LTMG
- Max. Lifting Height:3000MM
- Min. Lifting Height:0MM
- Fork Length:1070mm
- Fork Width:100mm
- Overall Dimensions:1070mm*100mm*35mm
- Certification:CE , ISO
- Applicable Industries:warehouse and logistics

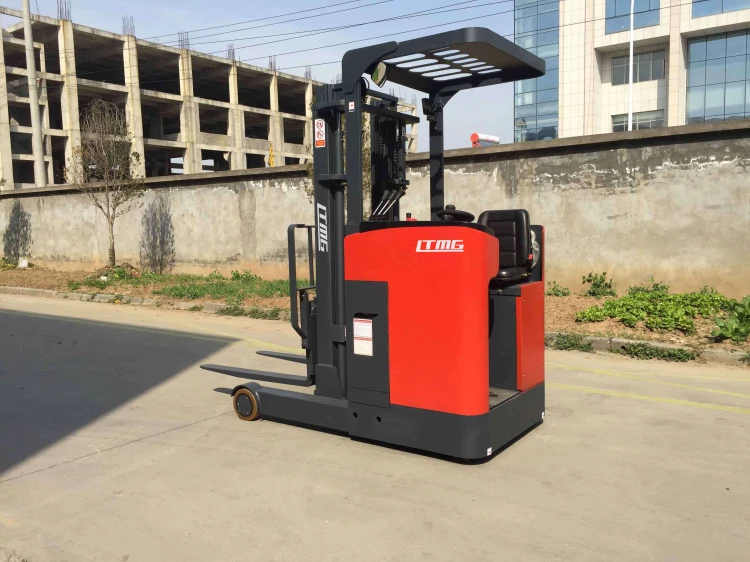

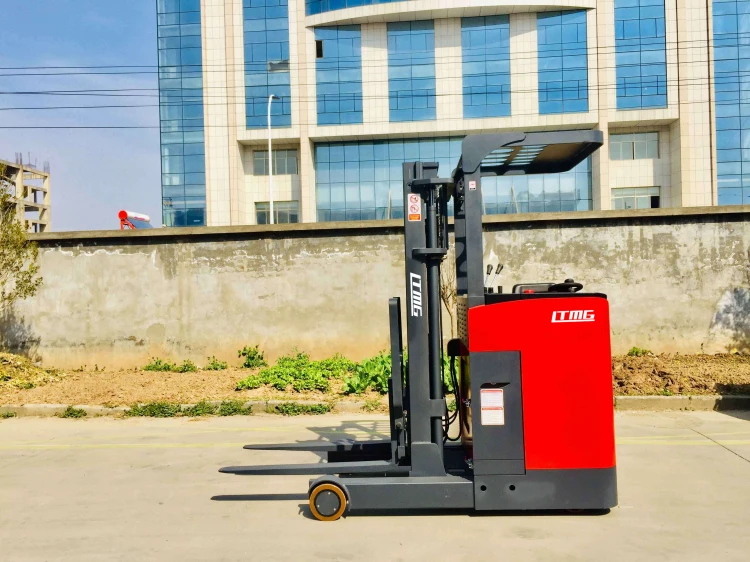

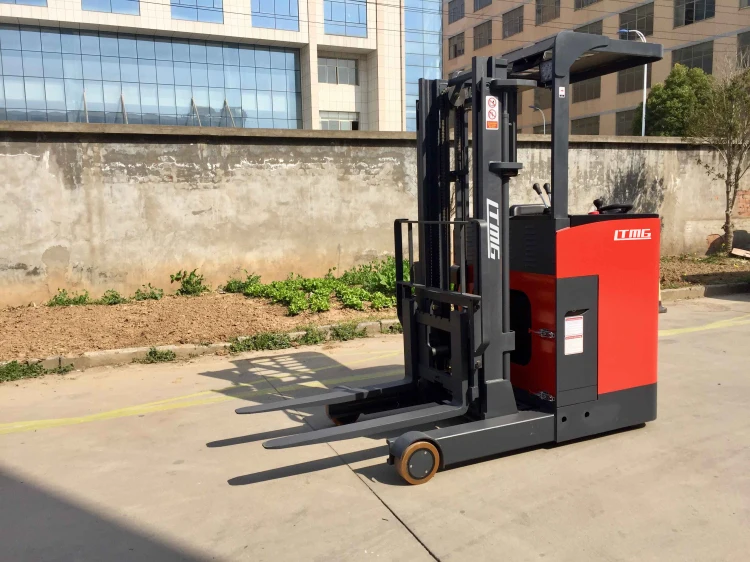

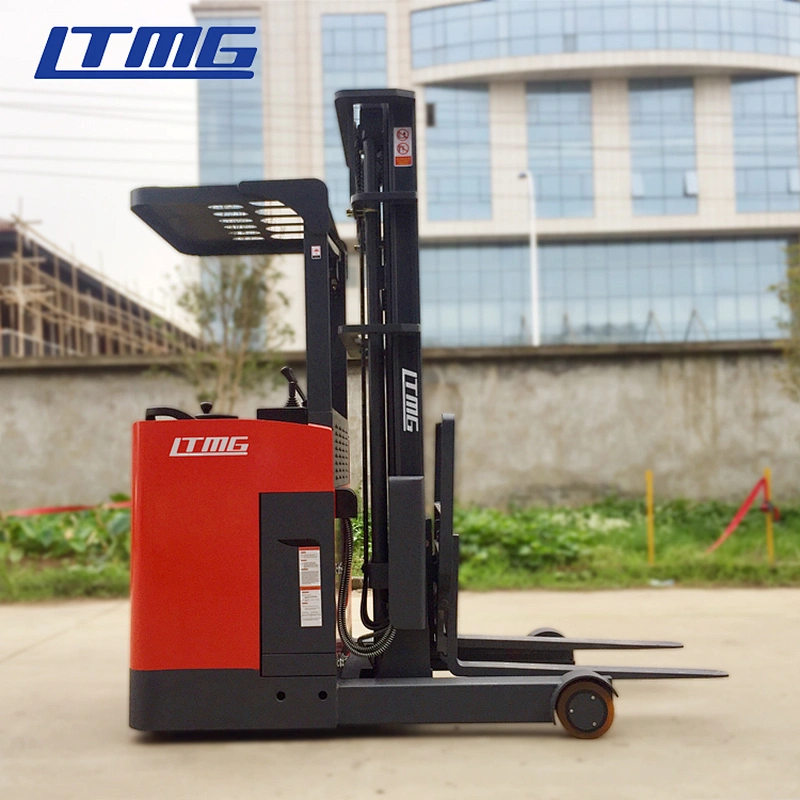

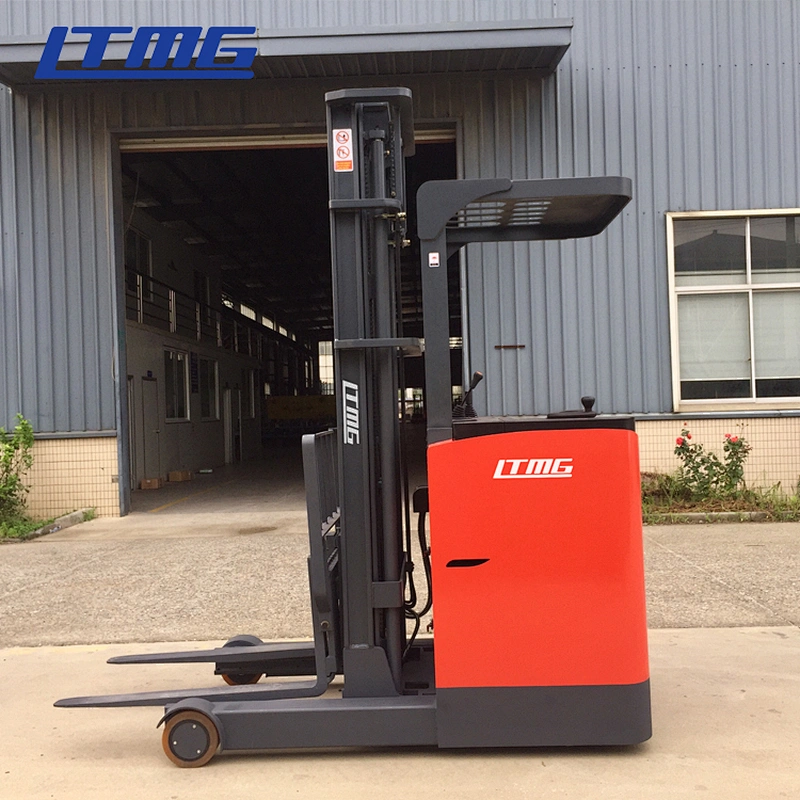

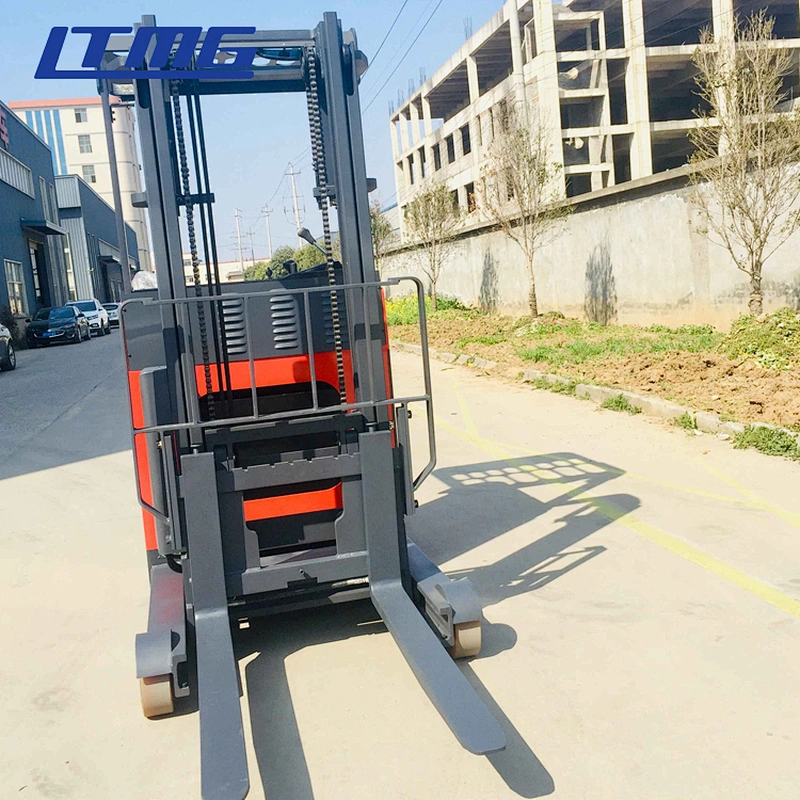

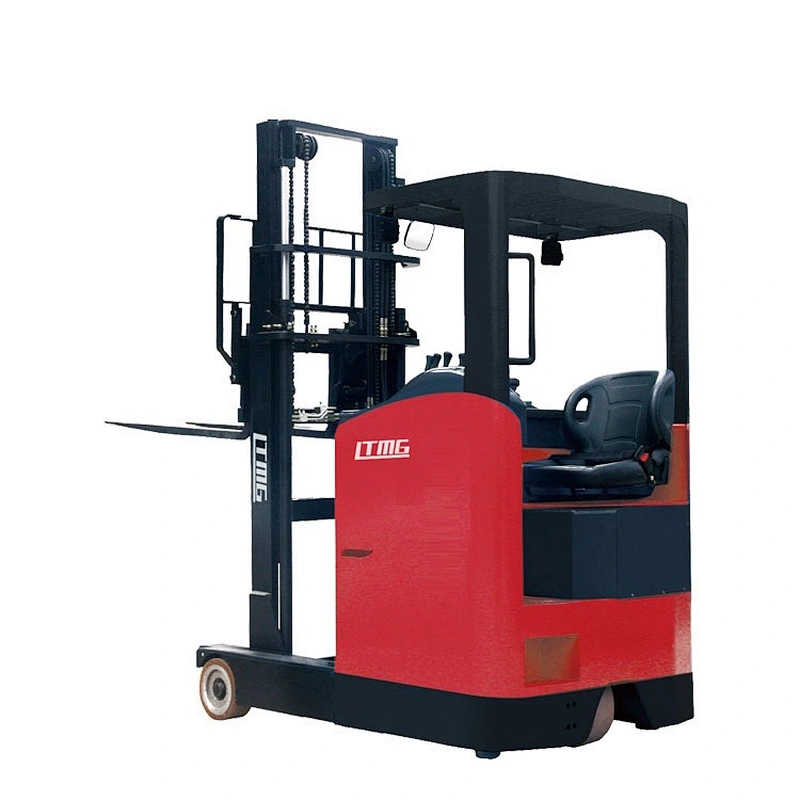

The specification of 1ton-2ton electric reach forklift | ||||||||||
Model | FRB10 | FRB15 | FRB20 | |||||||
Performance | Load capacity | kg | 1000 | 1500 | 2000 | |||||
Load center | mm | 500 | 500 | 500 | ||||||
Maximum lifting height | mm | 3000 | 3000 | 3000 | ||||||
Reach distance | mm | 510 | 510 | 550 | ||||||
Tiltiing angle (forwad/backward) | 3/5 | 3/5 | 3/5 | |||||||
Travel speed (without load) | km/h | 5 | 5 | 5 | ||||||
Travel speed (with load) | km/h | 5 | 5 | 5 | ||||||
Lifting speed (without load) | mm/s | 180 | 180 | 180 | ||||||
Lifting speed (with load) | mm/s | 100 | 100 | 100 | ||||||
Gradeability (without load ) | % | 8 | 8 | 8 | ||||||
Gradeability (with load ) | % | 5 | 5 | 5 | ||||||
Self Weight (with battery) | kg | 1800 | 1990 | 2140 | ||||||
Dimensions | Overall length o(mast no reach) | mm | 1530 | 1780 | 1880 | |||||
Overall length (without fork) | mm | 2100 | 2350 | 2410 | ||||||
Overall length (with fork) | mm | 2670 | 2860 | 2980 | ||||||
Overall width | mm | 1035 | 1035 | 1035 | ||||||
Overhead guard height | mm | 2190 | 2190 | 2190 | ||||||
Mast lowered height | mm | 2200 | 2200 | 2200 | ||||||
Max height(mast lifted with backrest) | mm | 2650 | 2650 | 2650 | ||||||
Wheelbase | mm | 1220 | 1450 | 1550 | ||||||
Fork length | mm | 1070 | 1070 | 1070 | ||||||
Fork width | mm | 100 | 100 | 120 | ||||||
Fork lowered height | mm | 35 | 35 | 40 | ||||||
Fork ajustable distance | mm | 210-716 | 210-716 | 250-716 | ||||||
Ground clearance | mm | 55 | 55 | 55 | ||||||
Turning radius | mm | 1470 | 1710 | 1810 | ||||||
Min working aisle (AST) | mm | 2370 | 2610 | 2680 | ||||||
Tire | Loading wheel | mm | 210*75 | 210*75 | 210*75 | |||||
Driving wheel | mm | 230*75 | 230*75 | 230*75 | ||||||
Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||||||
Wheel type | polyurethane | |||||||||
Motor | Drive motor | AC | ||||||||
Rated output | kw | 1.5 | 1.5 | 1.5 | ||||||
Lifting motor | ||||||||||
Rated output | kw | 3 | 3 | 3 | ||||||
Battery | Voltage | V | 24 | 24 | 24 | |||||
Volume | AH | 270/300 | ||||||||
Weight | kg | 260/285 | ||||||||
After-sale Service
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with 1 year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
