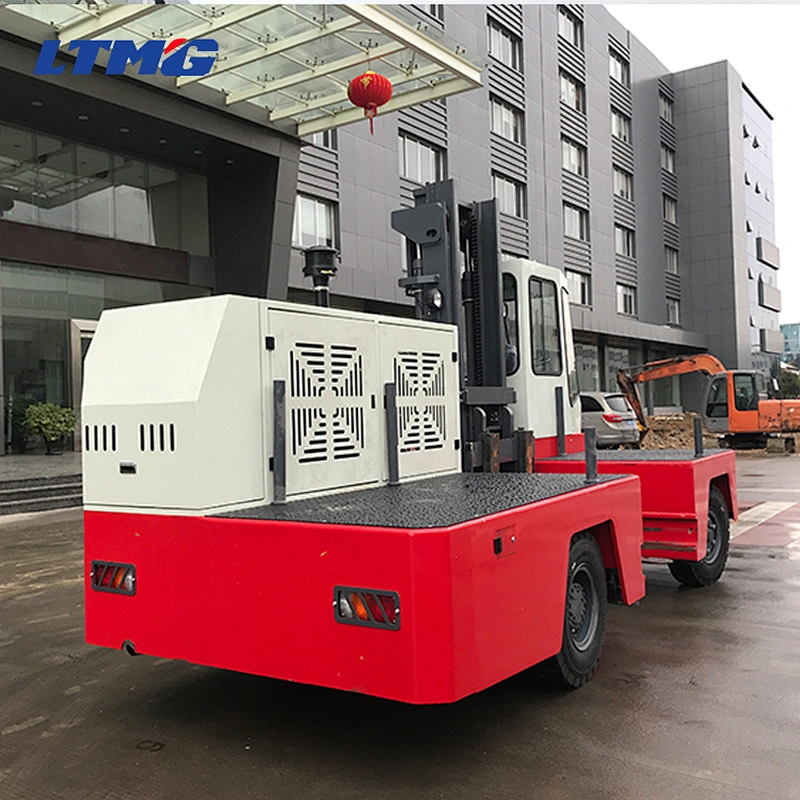

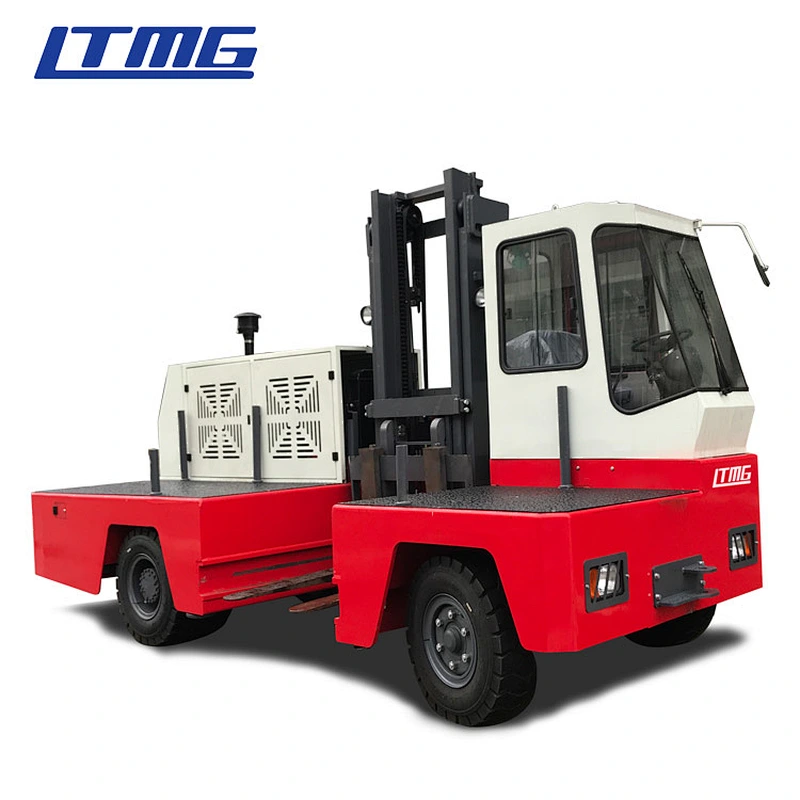

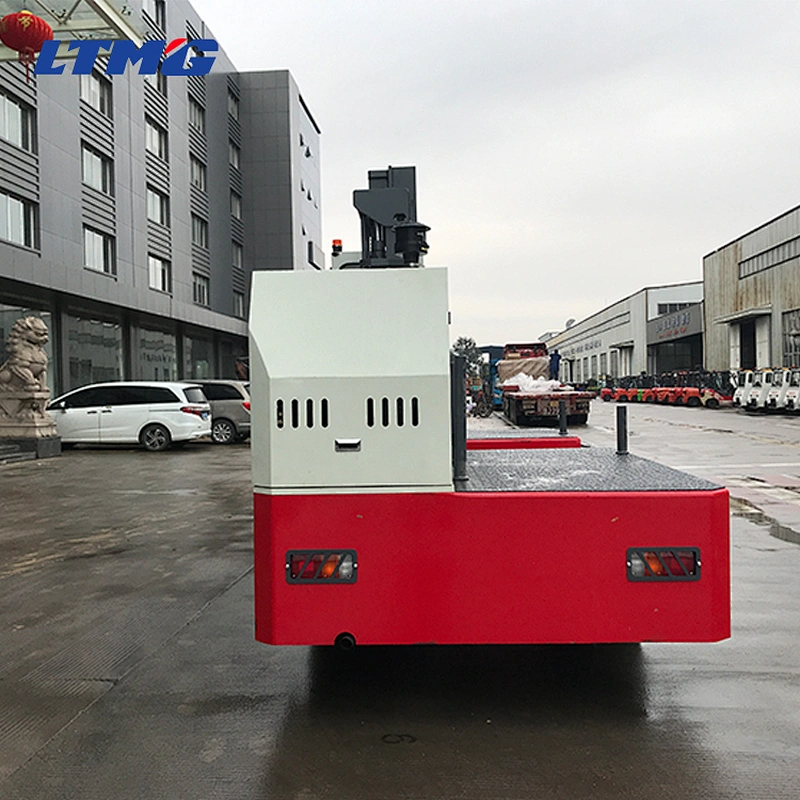

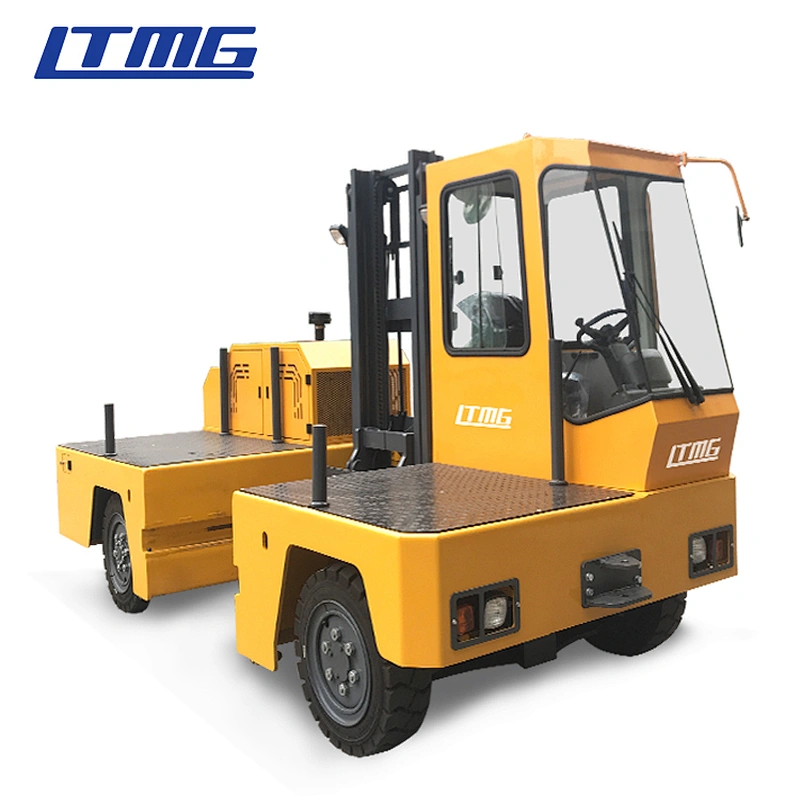

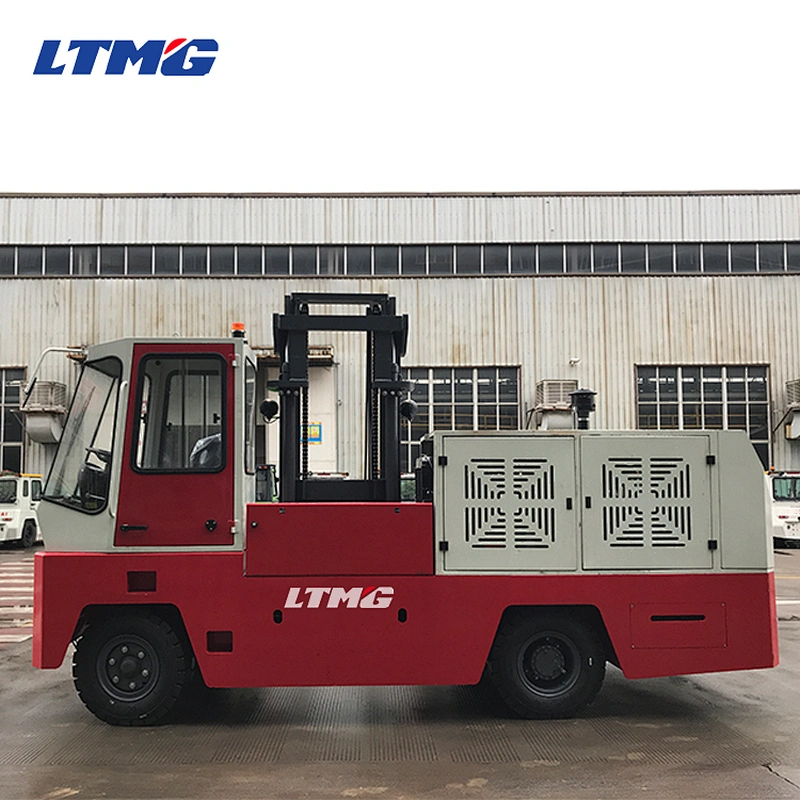

5 ton side loader forklift

Model NO.: FDS50
Price:: USD 30121.00-56000.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 300 unit / Month
Country of Origin: Ningbo,China

Quantity:

Product Description

Applicable Industries:Construction works
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Local Service Location:Egypt
Local Service Location:Canada
Local Service Location:Turkey
Local Service Location:United Kingdom
Local Service Location:United States
Local Service Location:Italy
Local Service Location:France
Local Service Location:Viet Nam
Local Service Location:Philippines
Local Service Location:Brazil
Local Service Location:Peru
Local Service Location:Saudi Arabia
Local Service Location:Indonesia
Local Service Location:Pakistan
Local Service Location:India
Local Service Location:Mexico
Local Service Location:Russia
Local Service Location:Spain
Local Service Location:Thailand
Local Service Location:Morocco
Local Service Location:Kenya
Local Service Location:Argentina
Local Service Location:South Korea
Local Service Location:Chile
Local Service Location:UAE
Local Service Location:Colombia
Local Service Location:Algeria
Local Service Location:Sri Lanka
Local Service Location:Romania
Local Service Location:Bangladesh
Local Service Location:South Africa
Local Service Location:Kazakhstan
Local Service Location:Ukraine
Local Service Location:Kyrgyzstan
Local Service Location:Uzbekistan
Local Service Location:Tajikistan
Showroom Location:Viet Nam
Showroom Location:Philippines
Showroom Location:Brazil
Showroom Location:Indonesia
Showroom Location:Pakistan
Showroom Location:India
Showroom Location:Spain
Showroom Location:Thailand
Showroom Location:Kenya
Showroom Location:Argentina
Showroom Location:South Korea
Showroom Location:Chile
Showroom Location:UAE
Showroom Location:Colombia
Showroom Location:Sri Lanka
Condition:New
Place of Origin:CN;ZHE
Power Souce:Diesel Engine
Warranty:1 year
After-sales Service Provided:Free spare parts
Brand Name:LTMG
Max. Lifting Height:3000mm-6000mm
Min. Lifting Height:0mm
Fork Length:1070mm
Fork Width:125mm
Overall Dimensions:4555*2000*2500 mm
Certification:CE/ISO9001:2008
Applicable Industries:piping yard

Product Description

LTMG diesel forklift 3 ton 5 ton 6 ton 8 ton 10 ton Side Loader Forklift with Japan engine

In the warehousing process, when the body go into the channel, the fork can face the shelf or goods. In the loading and unloading operations, the forklift can do not turn in the first time,And then workt,this characteristic makes side forklift truck is suitable for narrow channel operations

Side forklift is advantageous to the long goods, because long goods is parallel with the body,and this forklift can be not limited by the channel width. The side forklift to faster handling long goods

The specification of 5 ton side loader forklift
Model		FDS50
Rated Capacity	kg	5000
Load center	mm	600
Max.lift height	mm	3600
Max.lift speed(laden)	mm/s	350
Max.traveling speed(laden)	km/h	24
Fork tilt angle(up/down)	°	3°/ 5°
Gradeablity	%	20
Platform width	mm	1300
Platform length	mm	5150
Fork length	mm	1220
Wheel base	mm	2800
Frontal wheel track	mm	1750
Rear wheel track	mm	1750
Overall dimension(LxWxH)	mm	515021002800
Operating weight	kg	8000
Front tires	mm	2-9.00-16-14PR
Rear tires	mm	2-9.00-16-14PR
Engine Manufacturer		ISUZU
Model		6BG1
Rated Power	kw	82.3/2000

Packing & Delivery

Company Informaiton

Exhibition & Clients

After-Sales Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.
