- After Warranty Service:Video technical support
- After Warranty Service:Online support
- After Warranty Service:Spare parts
- After Warranty Service:Field maintenance and repair service
- Applicable Industries:Construction works
- Local Service Location:Turkey
- Local Service Location:Brazil
- Local Service Location:Indonesia
- Local Service Location:Thailand
- Local Service Location:South Africa
- Local Service Location:Ukraine
- Showroom Location:Brazil
- Showroom Location:Thailand
- Showroom Location:Australia
- Condition:New
- Place of Origin:CN;FUJ
- Type:Skid Steer Loader
- Moving Type:Wheel Loader
- Warranty:1 year
- After-sales Service Provided:Field installation, commissioning and training
- After-sales Service Provided:Video technical support
- After-sales Service Provided:Online support
- After-sales Service Provided:Free spare parts
- Hydraulic Cylinder Brand:MOOG
- Hydraulic Pump Brand:YUKEN
- Hydraulic Valve Brand:Eaton
- Engine Brand:YANMAR
- UNIQUE SELLING POINT:Imported hydraulic system
- Brand Name:LTMG
- Dimension(Long * Breadth * High):2900*2000*130mm
- Certification:CE ISO
- Machine Weight:2200kg
- Power(W):29.5kw
- Bucket capacity:0.3m3

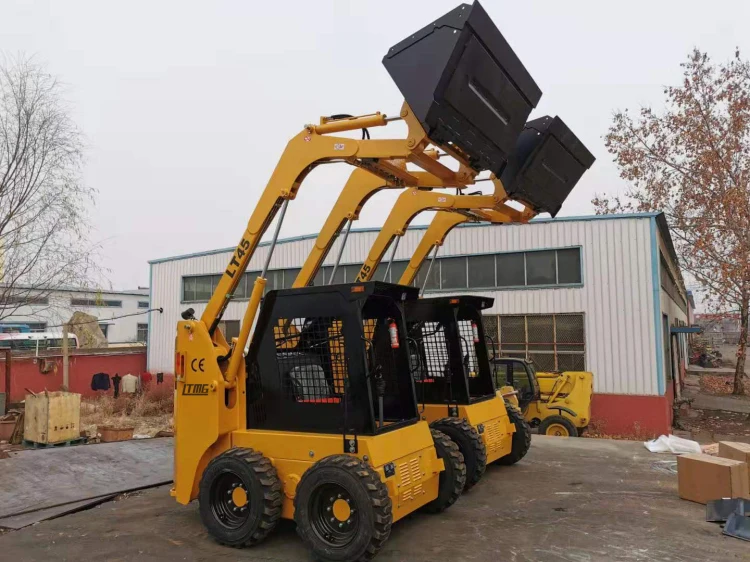

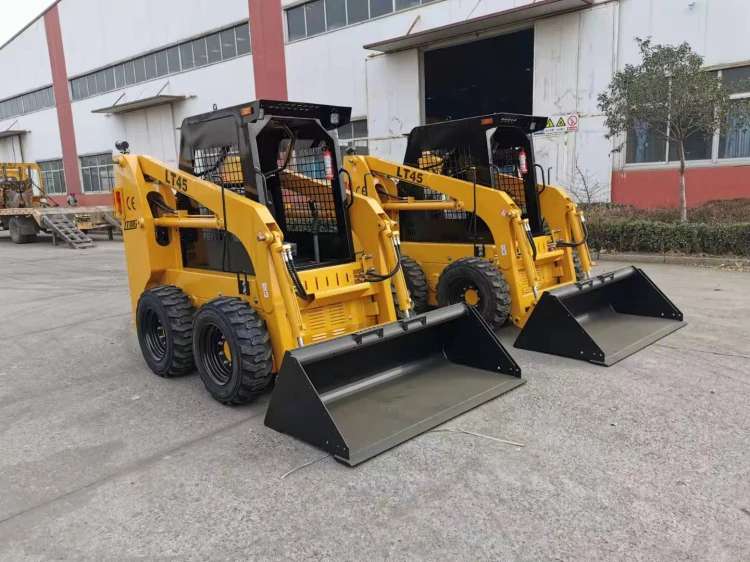

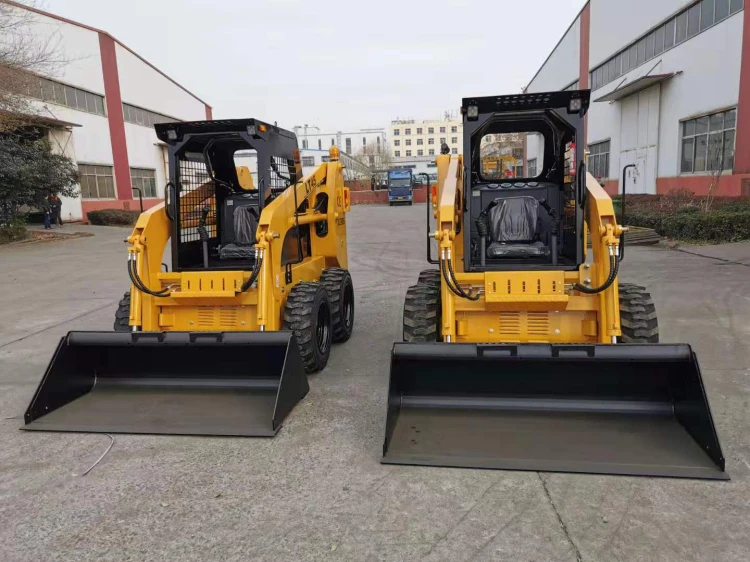

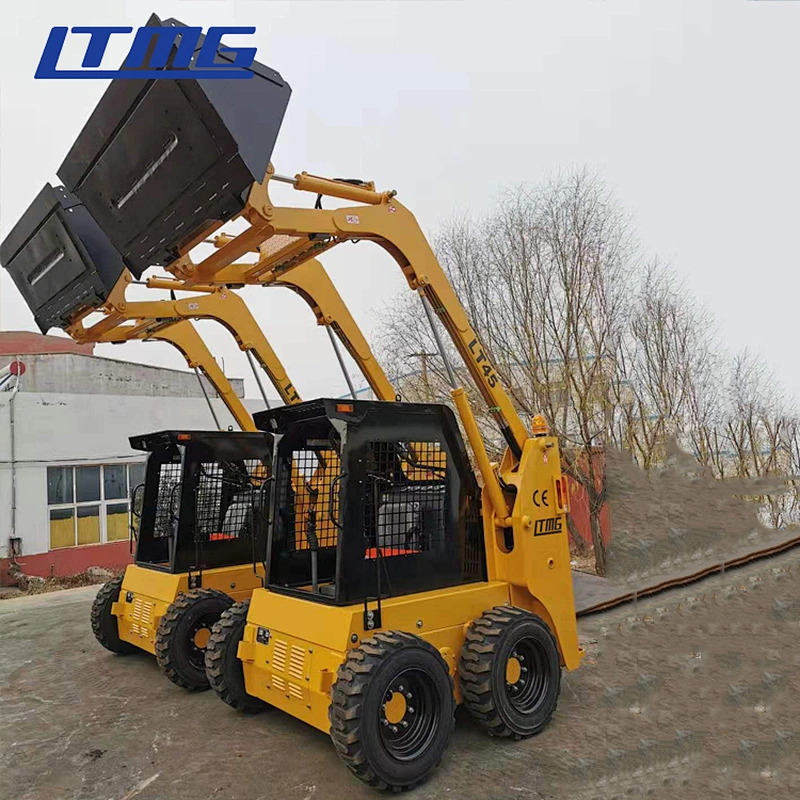

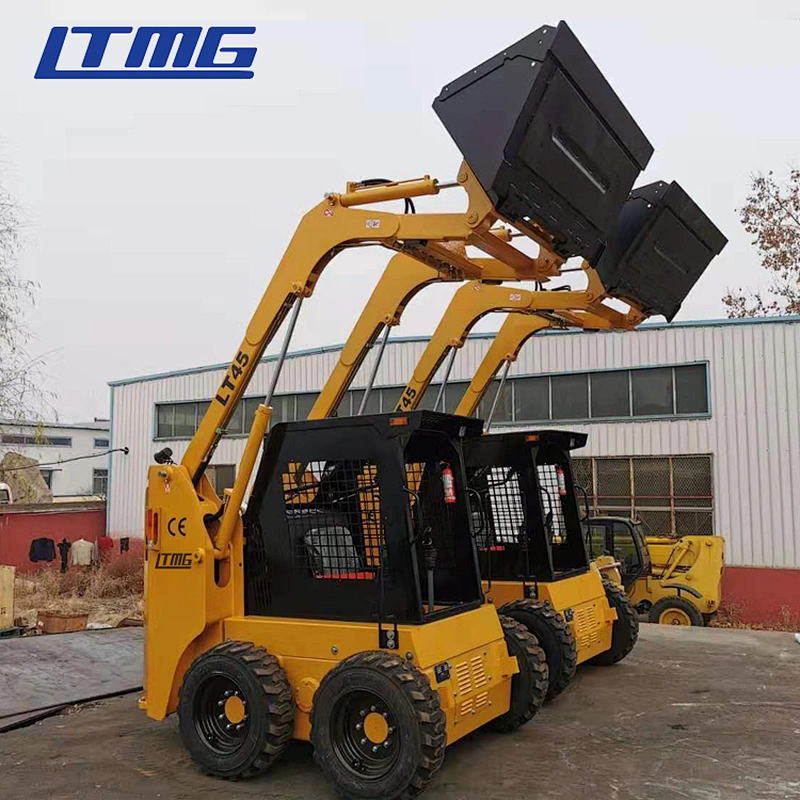

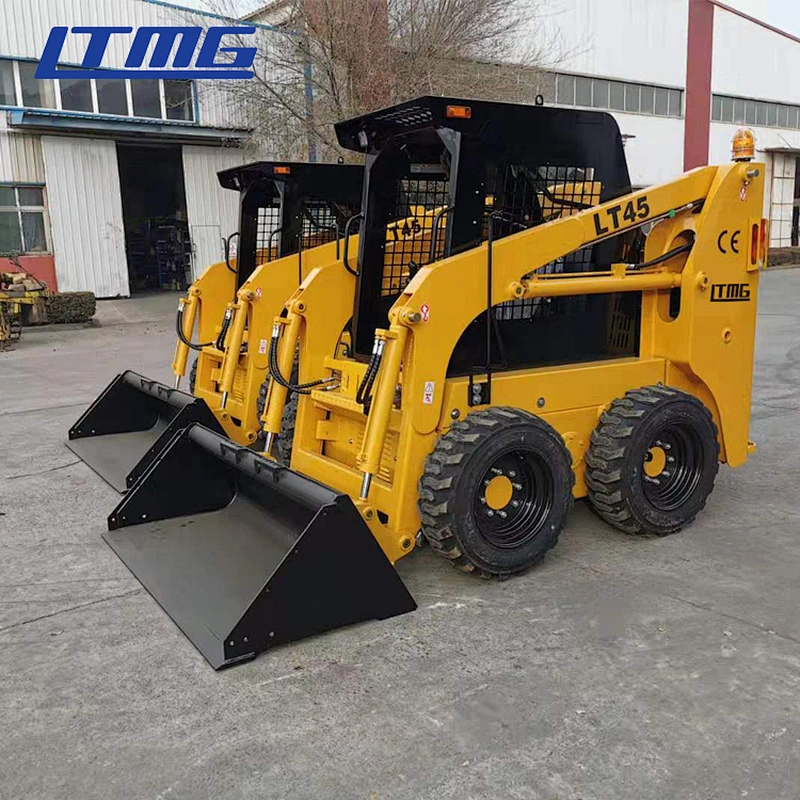

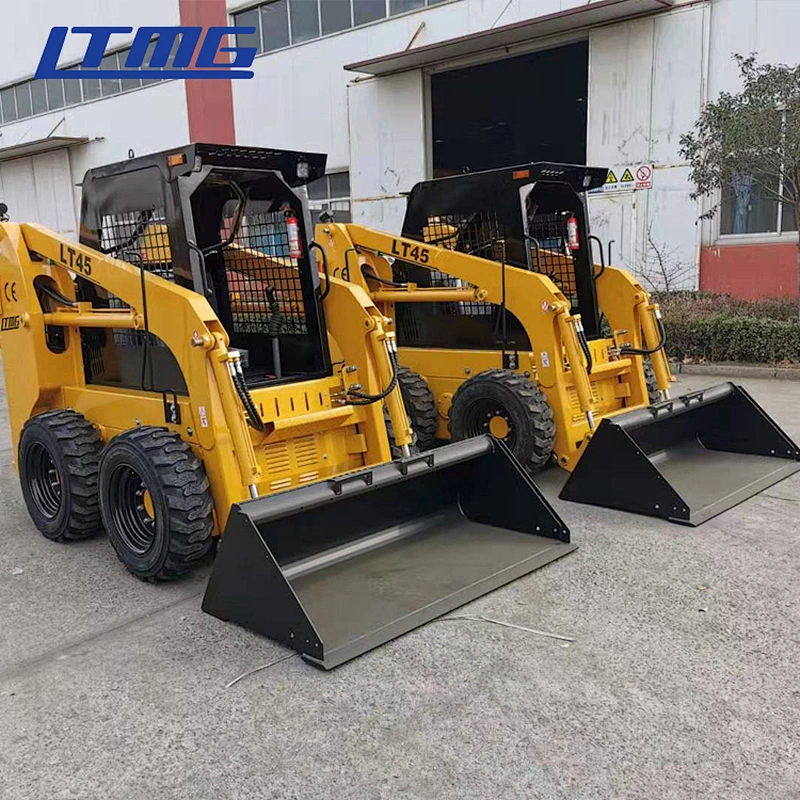

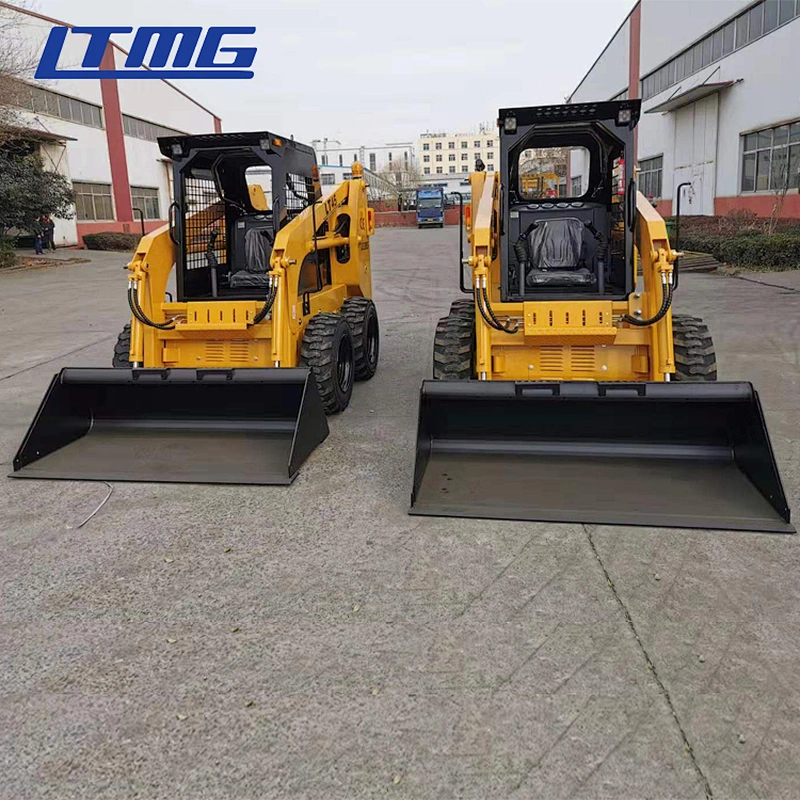

The Specifications of LTMG 500kg mini skid steer loader | ||
Rated operating capacity(kg) | 500 | |
Tipping load(kg) | 1000 | |
Bucket capacity(m3) | 0.25-0.4 | |
Operating weight(kg) | 2200 | |
Max. travel speed(km/h) | 12 | |
Hydraulic pump flow(L/min) | 75 | |
Fuel tank capacity(L) | 50 | |
Tires | 27*8.5-15-8NHS | |
Overall dimensions(mm) | 2900*2000*1300 | |
Dimensions | ||
Height at maximum extension(mm) | 3300 | |
Height to bucket hinge pin(mm) | 2725 | |
Width with bucket(mm) | 1300 | |
Track width(mm) | 1080 | |
Wheelbase(mm) | 891 | |
Ground clearance(mm) | 150 | |
Dump angle(deg) | 40 | |
Dumping height(mm) | 2050 | |
Maximum reach(mm) | 790 | |
Rollback at ground(deg) | 26 | |
Angle of departure(deg) | 20 | |
Engine | ||
Maker/Model | YND485G | |
Net power | 40hp/2600rpm | |
Type | 4Cylinder in-line, Water cooled, 4 stroke, Diesel engine | |
Displacement(L) | 2.156 | |
1. Weichai Deutz engine
2. Hydraulic Control Type: main pump is ITALY BONDIOLI brand, Motor is ITALY SAI, Multiway valve and Pilot handle use ITALY HYDQD.
3. Dual Accelerator Control Model: manual operated + foot operated, easy to operate .
4. Open-type cabin: with shock absorption chair, safety guard bar, removable rear window.

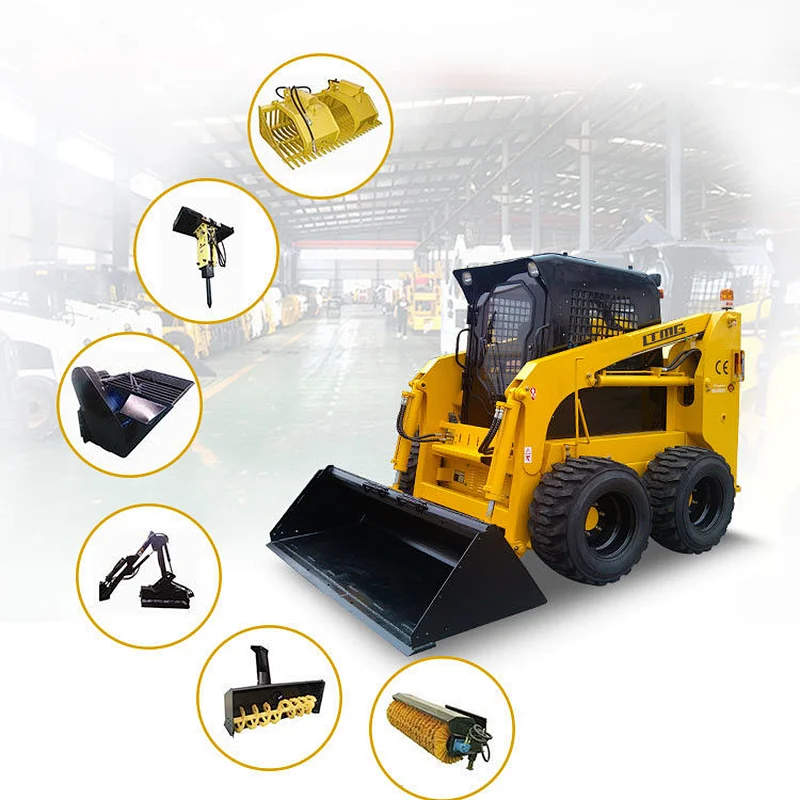

5. Hydraulic quick-change coupler is the same as BOBCAT, and is suitable to our skid steer loader attachments as well as foreign attachments
6. Cabin design in safe and comfortable: big view, all of instruments set up in forward.Front light, rear light, turning light, horn, back up buzzing
7. The capacity of oil tank for high power steer loader is upto 90L, which can realize long time working, meanwhile, reducing the oil temperature.
8.The body design uses a mechanical leveling system. The lever and rocker arm are arranged above the working arm. Keep the shovel in the process of lifting and lowering the machine arm Bucket balance. The body adopts a lightweight design, and the overall machine quality is less than 3000kg. The operating system uses a mechanical pull rod system. Simple structure, easy maintenance. High cost performance.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
