- Applicable Industries:Construction works
- Condition:New
- Place of Origin:CN;FUJ
- Type:Front Loader
- Moving Type:Wheel Loader
- Warranty:1 year
- After-sales Service Provided:Online support
- UNIQUE SELLING POINT:High power engine
- Hydraulic Cylinder Brand:jinhu
- Hydraulic Pump Brand:jinan
- Hydraulic Valve Brand:jinan
- Engine Brand:weichai
- Brand Name:LTMG
- Dimension(Long * Breadth * High):9850*3230*3800 mm
- Certification:CE ISO
- Machine Weight:25000KG
- Power(W):199kw/2200rpm

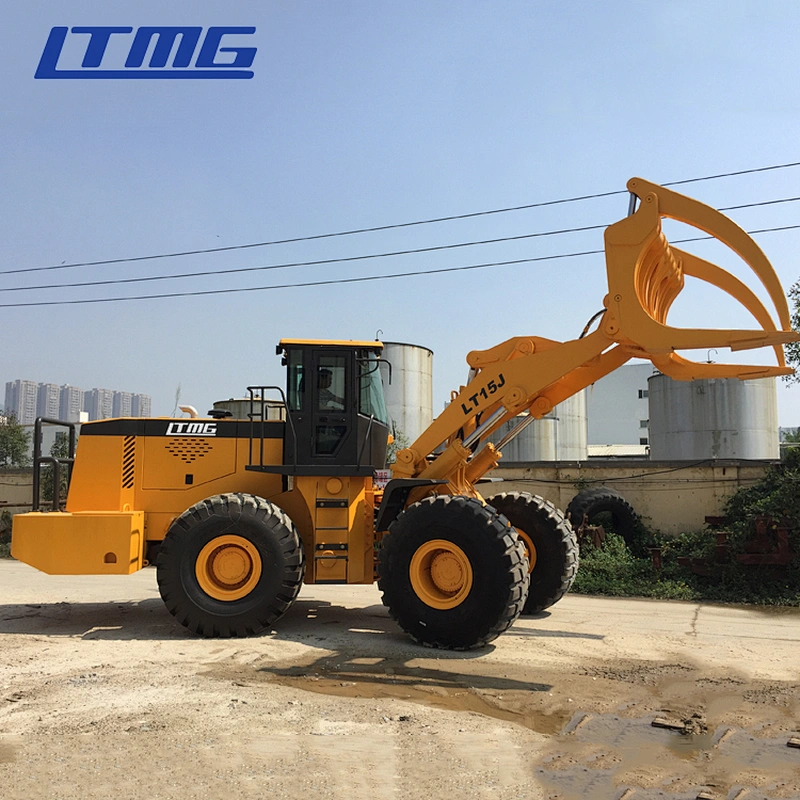

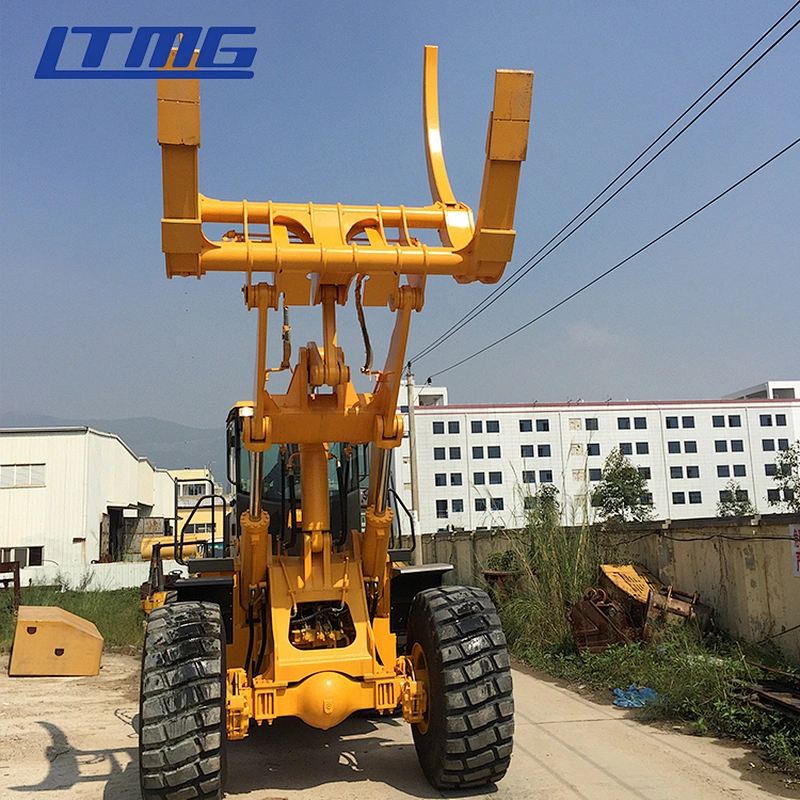

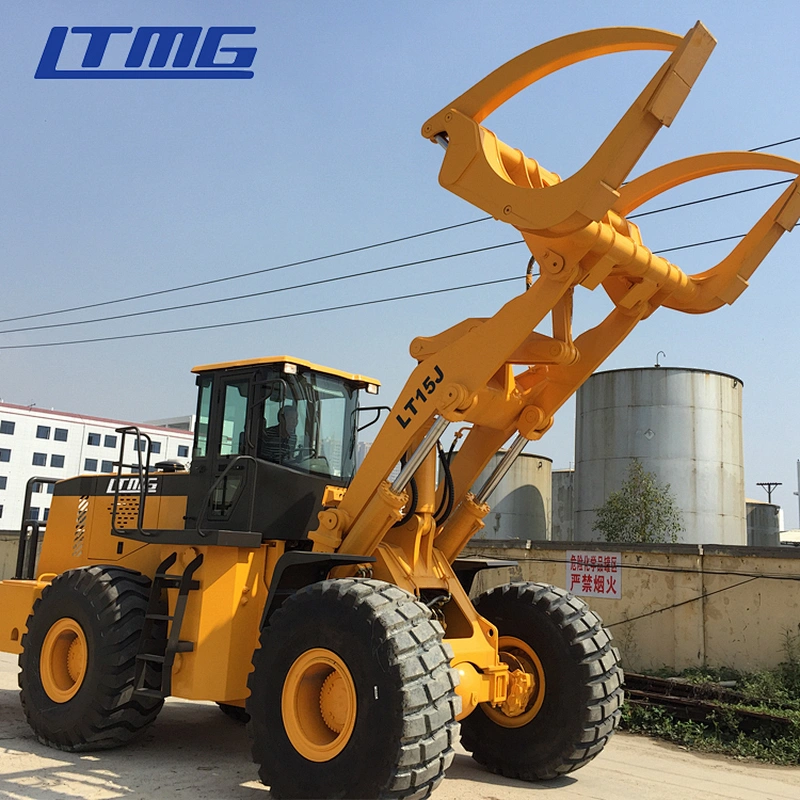

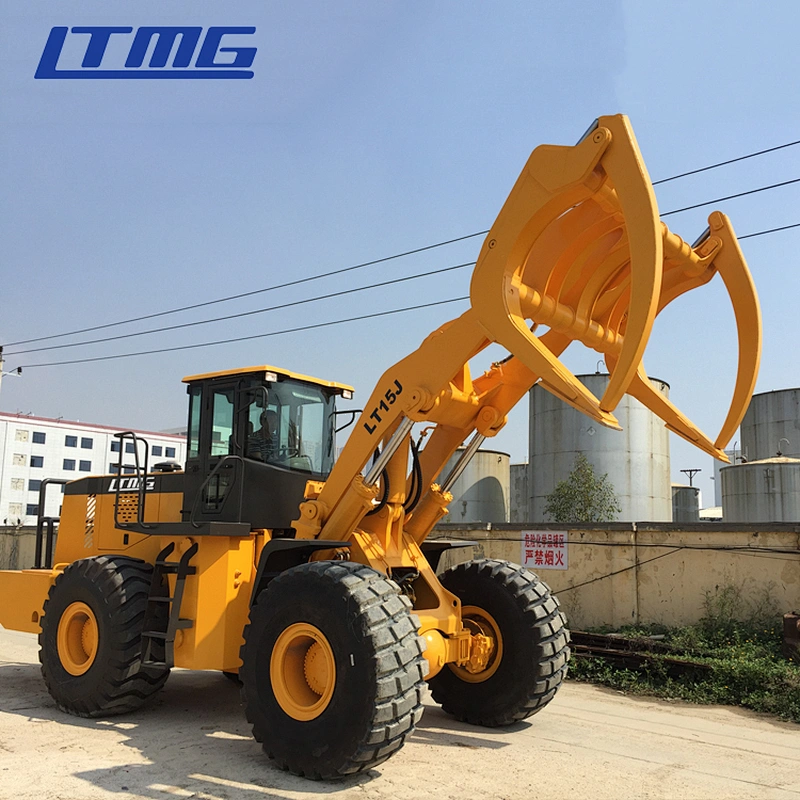

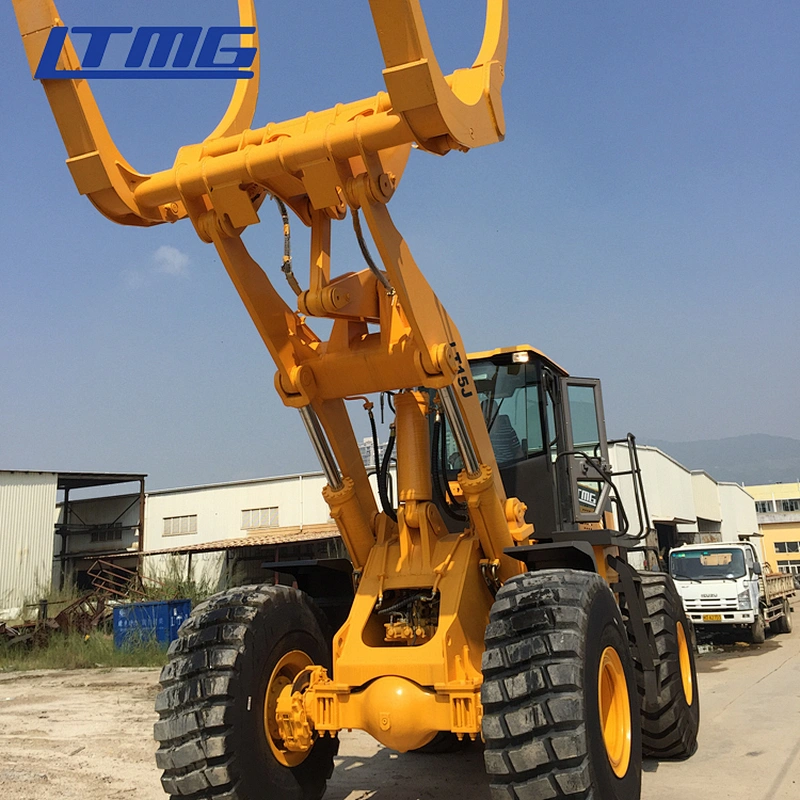

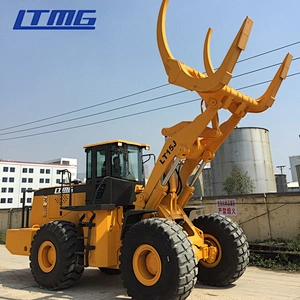

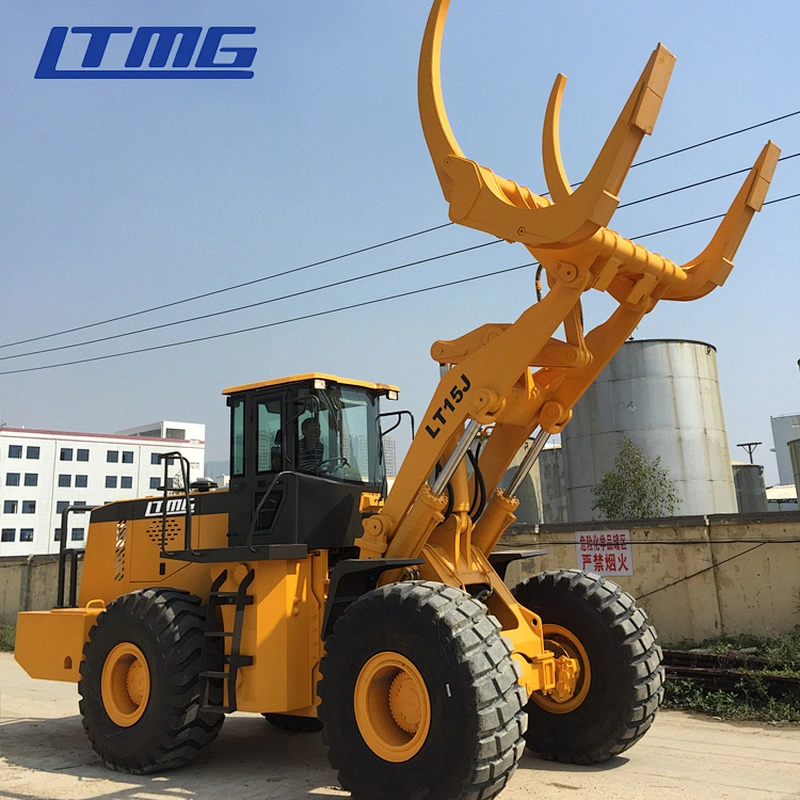

The Specification of 15ton log loader | ||
Model | LT15J | |
Operating weight | 25,000kg | |
Engine | Weichai | |
Rated engine power | 199KW | |
Rated rotate speed | 2200r/nin | |
Max.torque | 920N.m | |
Max.dumping height | 3850mm | |
Rated load | 15,000 KG | |
NO.of shifts | Forward 4 For Reverse2 | |
Driving speed | ||
Forward/Reverse I | 0-7km/h | |
Forward/Reverse II | 0-11km/h | |
Forward/Reverse III | 0-23km/h | |
Forward/ReverseIV | 0-38km/h | |
Grade ability | ≥25° | |
Turning angle | 35° | |
Overall length | 9500mm | |
Overall width | 3230mm | |
Overall height | 3800mm | |
Wheel base | 3600mm | |
Track base | 2410mm | |
Transmission | Beilian | |
Cycling time | 12s | |
Tire type | 26.5R25 | |
1.Weichai engine: with global service all around the world. Turbocharged Intercooled,high efficiency low noise and cooling technology, strong power, energy conservation and environmental protection.
2.Transmission and torque converter:Chinese Beilian advance gearbox with Caterpillar technique transmission, The powerful electronic control countershaft transmission is easy to maintain, superior in the efficiency delivery and overload adaption.
3.Axle: Reinforced 60 axle with bigger axle hub/gears features 50% stronger bearing capacity than the normal ones and can forbid the oil leak efficiently, high reliability and convenient to maintenance.
4.Tires:Enhanced front tires specially designed for the poor road conditions in mines. Steel radial tires are optional.
5.Pressurized cab: Cab with broad view, large space and noise-isolation and vibration absorber meets all kinds of operation. Radio with MP3 function and speaker and the Joystick control system(Optional)ensure easy operation and more comfortable.
6.Optional accessories:There are some accessories could be chosen by users ,such as engine, transmission,floating forks ,marble slab carrier ,manure fork a and bucket ,fixed platform etc.
LTMG always treat after-sale service more important than sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1.What's the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2.Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5.What's the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6.What logistics waysd we can work for shipment ?
We can ship construction machinery by various transportation tools.
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7.Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is 30 days.
