- Condition:New
- Place of Origin:CN
- Type:Powered Pallet Truck
- Power Souce:AC Motor
- Warranty:1 year
- After-sales Service Provided:Free spare parts
- Brand Name:LTMG
- Max. Lifting Height:6000mm
- Min. Lifting Height:29mm
- Fork Length:1070mm
- Fork Width:100mm
- Overall Dimensions:1985*940*2682mm
- Certification:CE ISO

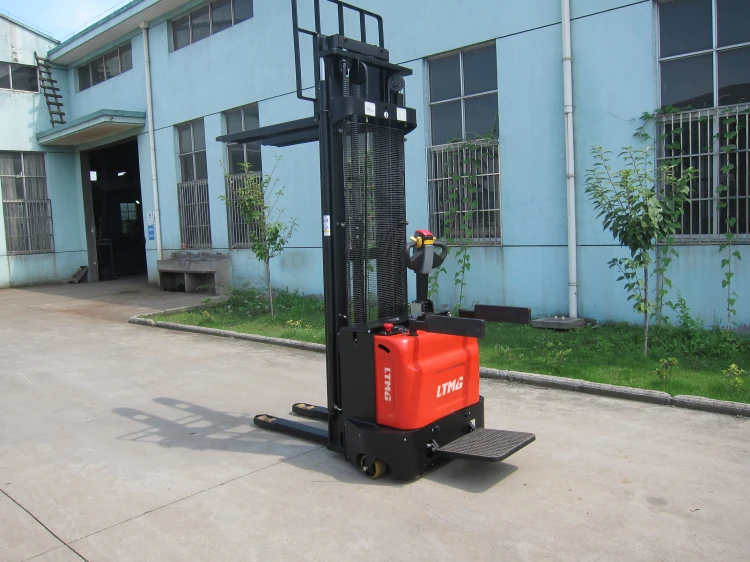

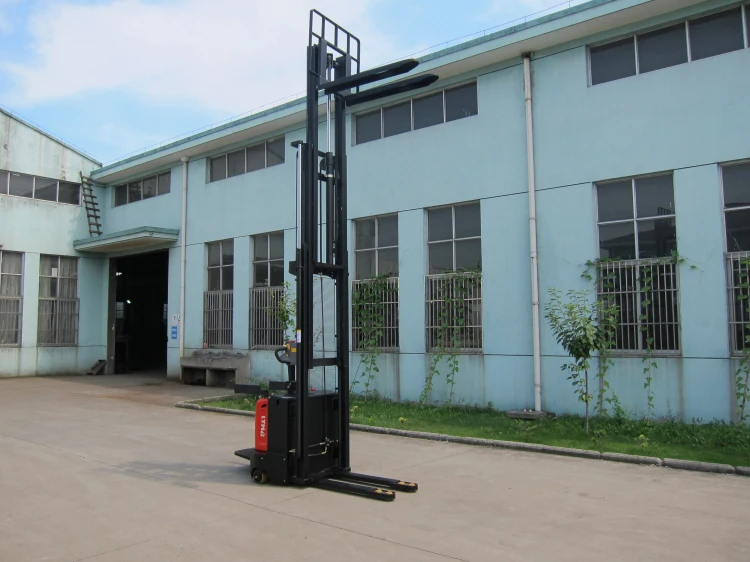

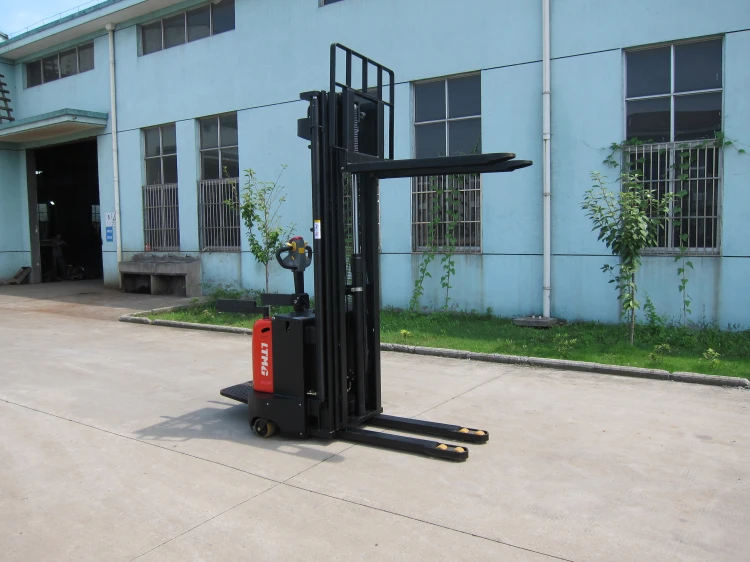

The specifications of new 2 ton electric pallet stacker
The specifications of new 2 ton electric pallet stacker | ||||
Model | ERB20 | |||
Type | Narrow legs | |||
Mast type | 2-Stage STD | |||
Load capacity | kg | 2000 | ||
Load center | mm | 600 | ||
Wheel base | mm | 1325 | ||
Operating type | Walkle/Stand on | |||
Wheels | ||||
Wheel type | PU | |||
Wheel quantity driving wheel/Balance wheel/Bearing wheel | 1/2/4 | |||
Demension | ||||
Standard lift height | mm | 3000 | ||
Lowered fork height | mm | 86 | ||
Fork size(length/width/thickness) | mm | 1150(1200)/180/60 | ||
Overall length | mm | 1970/2390 | ||
Overall width | mm | 1050 | ||
Outside with between legs | mm | 570/600/650/685 | ||
Inside with between legs | mm | 180/230/280/315 | ||
Min.turning radius | mm | 1630/1990 | ||
Min.aisle width for pallets 800×1200 | mm | 2180/2580 | ||
Min.aisle width for pallets 1000×1200 | mm | 2210/2600 | ||
Min.groud clearance | mm | 30 | ||
Performance | ||||
Travel speed,laden/unladen | km/h | 5/5.5 | ||
Lift speed,laden/unladen | mm/s | 80/120 | ||
Travel speed,laden/unladen | mm/s | 80/90 | ||
Gradeability,laden/unladen | % | 5/8 | ||
Electric configuration | ||||
Drive motor /Lift motor/Steering motor | kw | AC1.5/DC3.0/DC0.15 | ||
Battery voltage | V | 24 | ||
Battery capacity | Ah | 280 | ||
Brake | Electromagnetic/Regenerative | |||
Controller | CURTIS | |||
Weight | ||||
Battery weight | kg | 235 | ||
Service weight with battery | kg | 1280 | ||

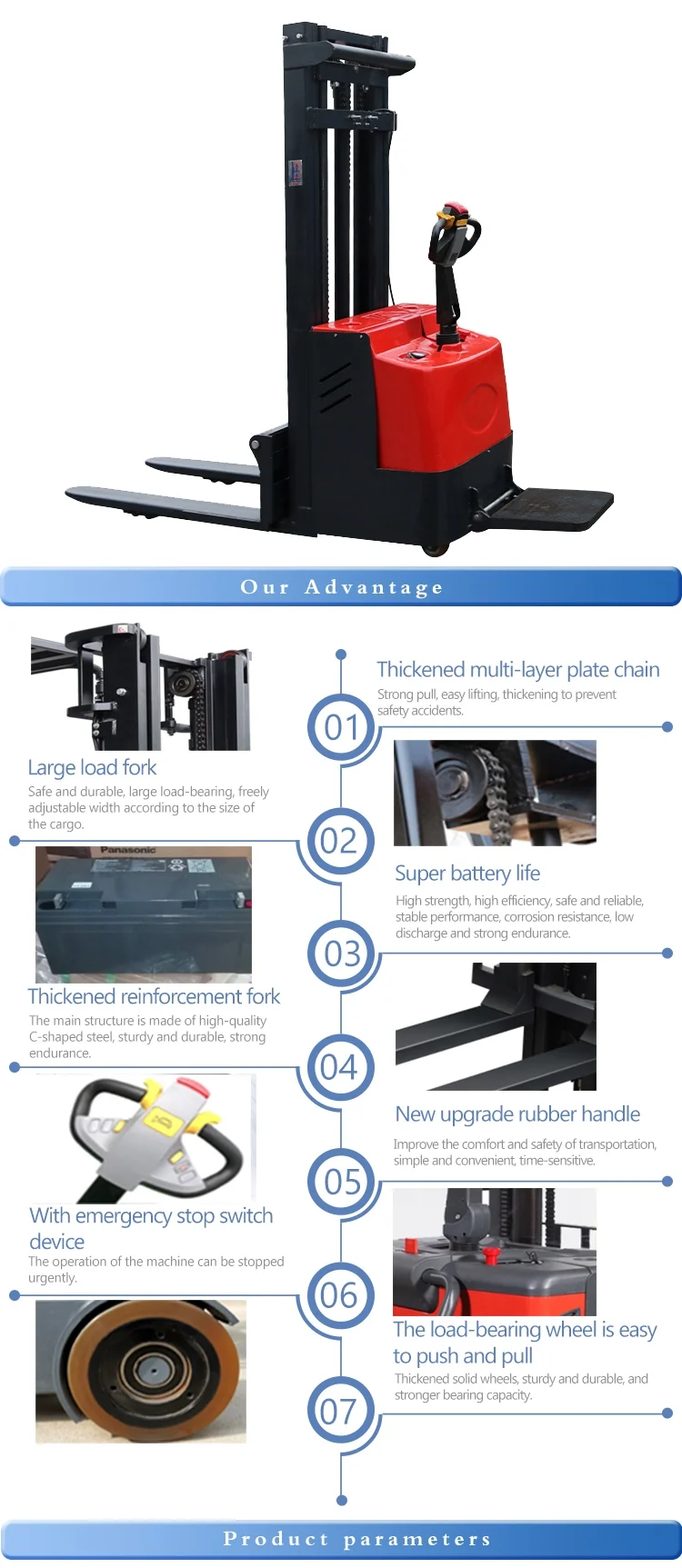

1. AC drive motor, prolong battery use life.
2.USA Curtis controller system.
3. Equipped with electric steering(EPS),easy to operate.
4. Emergency power-off switch.
5.USA KDS vertical drive motor, increase work efficiency by 30%
6.USA AMP wire connector.
7. Wide-view mast design, with lift limit switch.
8. Germany Vulkollan wheel, more durable.
LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.
1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
