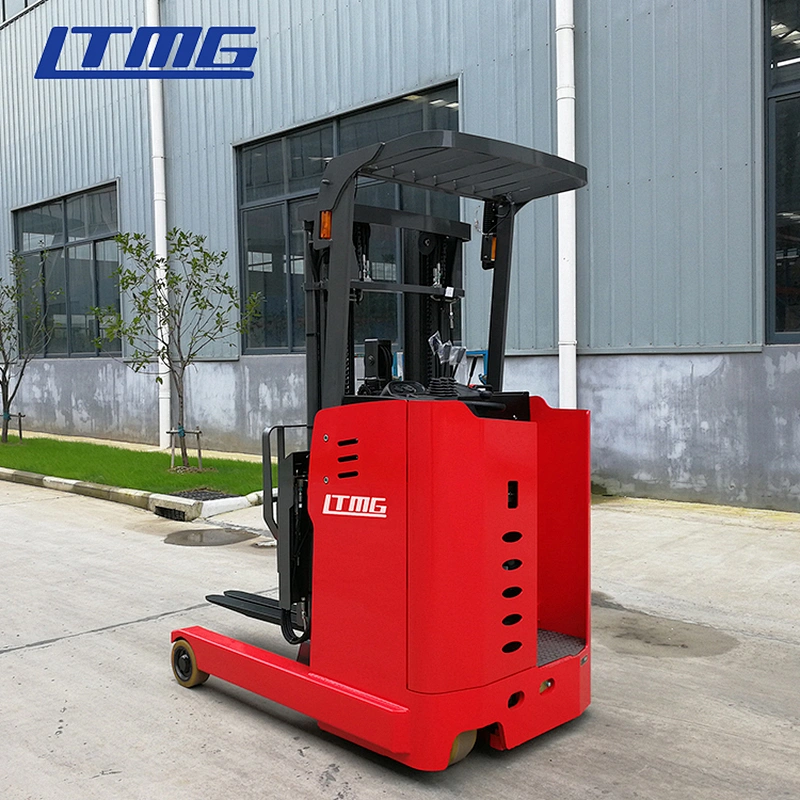

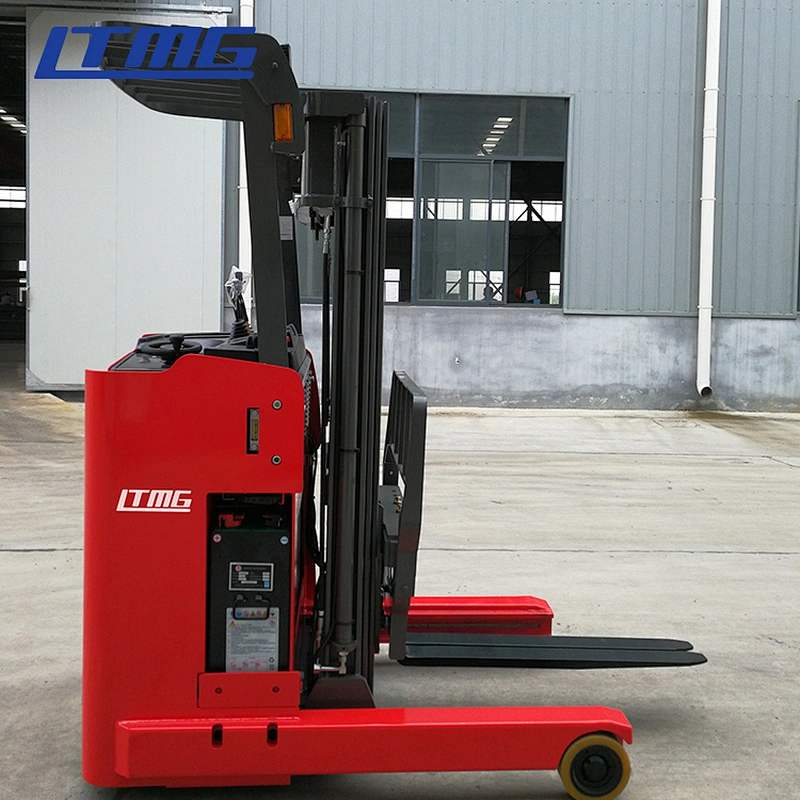

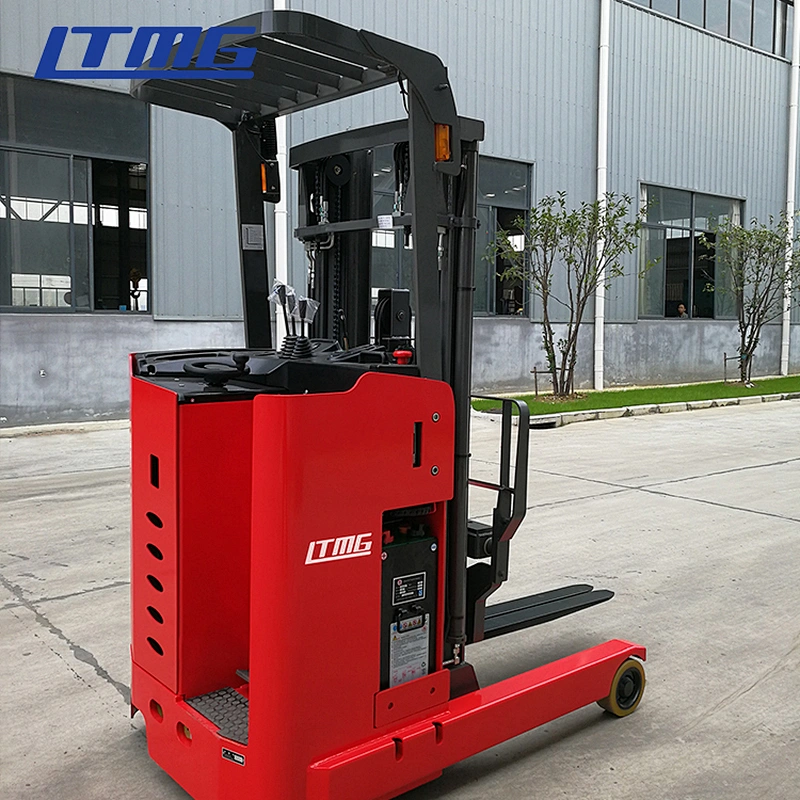

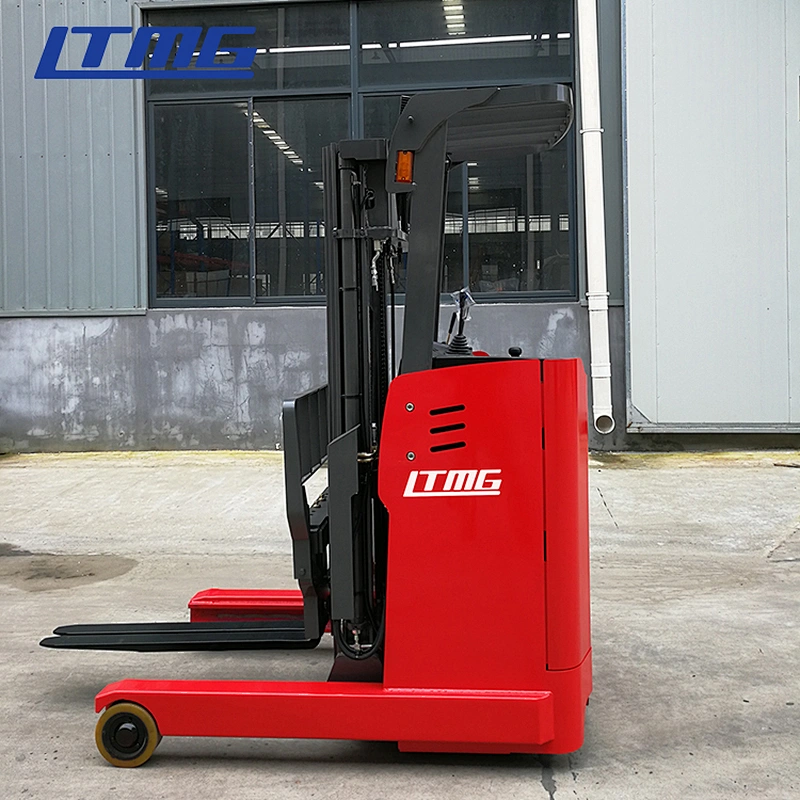

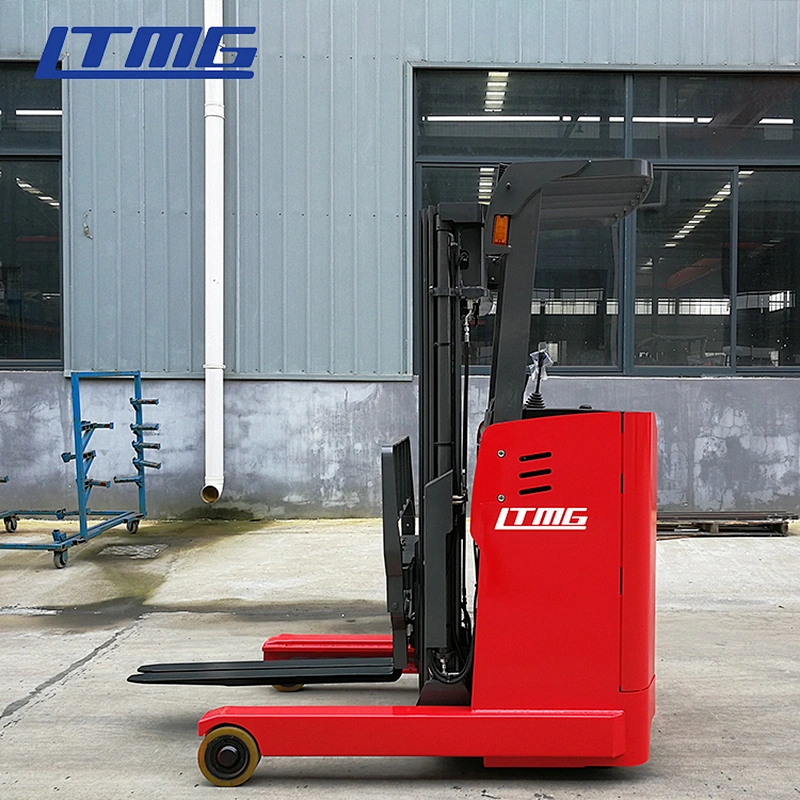

1 ton - 2 ton electric reach truck (stand on type)

1 ton - 2 ton electric reach truck (stand on type)

Model NO.: FRB10E - FRB20E
Price:: USD 7510.00-7510.00
Delivery: FOB
Minimum order quantity: 1

Quantity:

Product Description

Applicable Industries:Hotels
Applicable Industries:Building Material Shops
Applicable Industries:Manufacturing Plant
Applicable Industries:Restaurant
Applicable Industries:Home Use
Applicable Industries:Retail
Applicable Industries:Food Shop
Applicable Industries:Printing Shops
Applicable Industries:Construction works
Applicable Industries:Food & Beverage Shops
After Warranty Service:Video technical support
After Warranty Service:Online support
After Warranty Service:Spare parts
After Warranty Service:Field maintenance and repair service
Local Service Location:United States
Local Service Location:Germany
Local Service Location:Brazil
Local Service Location:Russia
Local Service Location:Spain
Local Service Location:Thailand
Local Service Location:Australia
Local Service Location:Argentina
Local Service Location:Sri Lanka
Local Service Location:Bangladesh
Local Service Location:South Africa
Local Service Location:Tajikistan
Showroom Location:United States
Showroom Location:France
Showroom Location:Brazil
Showroom Location:Saudi Arabia
Showroom Location:Pakistan
Showroom Location:Mexico
Showroom Location:Spain
Showroom Location:Kenya
Showroom Location:Colombia
Showroom Location:Sri Lanka
Showroom Location:South Africa
Showroom Location:Ukraine
Showroom Location:Australia
Condition:New
Place of Origin:CN
Power Souce:AC Motor
Warranty:1 year
After-sales Service Provided:Free spare parts
Brand Name:LTMG
Max. Lifting Height:6000mm
Min. Lifting Height:0mm
Fork Length:920mm
Fork Width:100mm
Certification:CE/ISO

Product Description

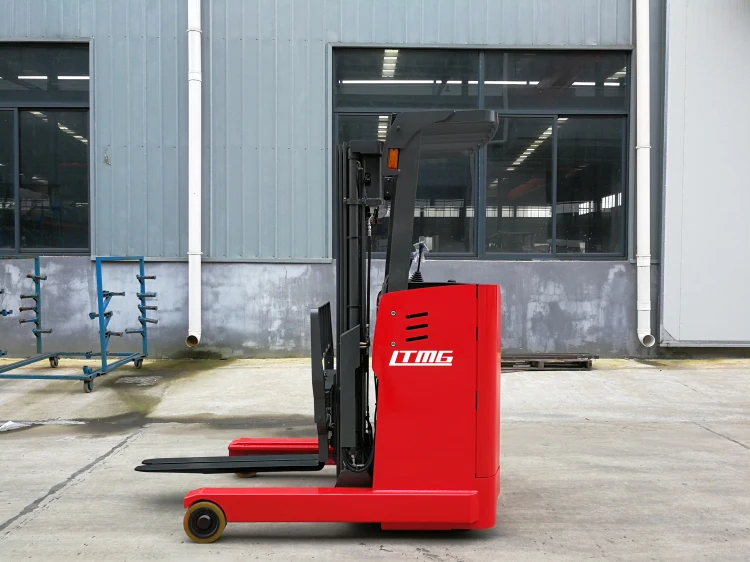

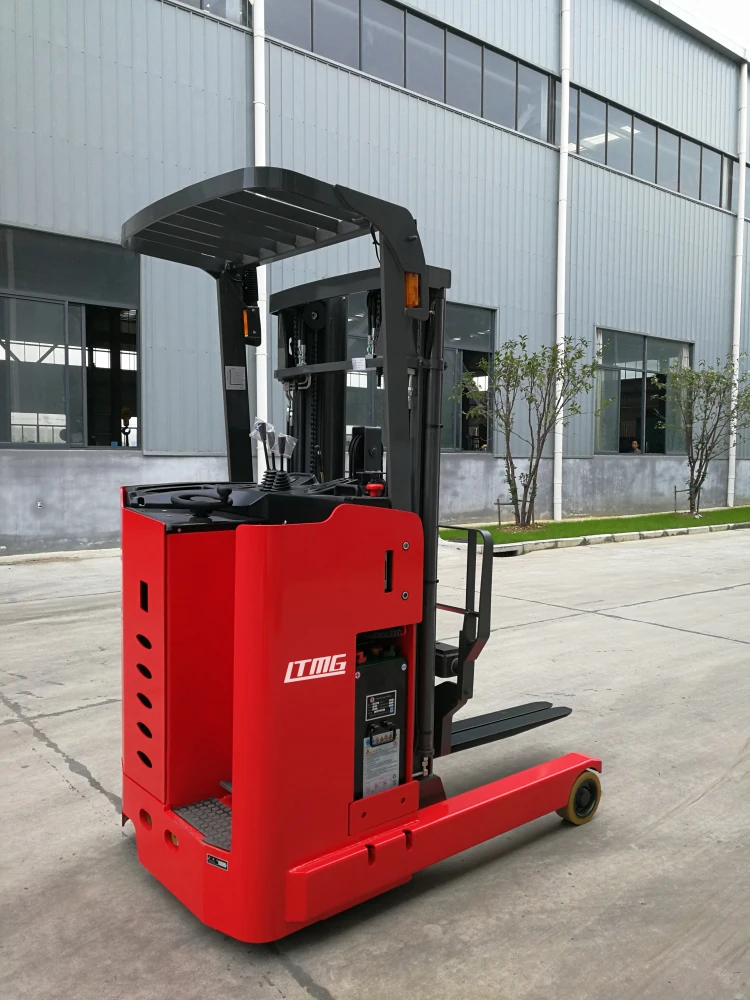

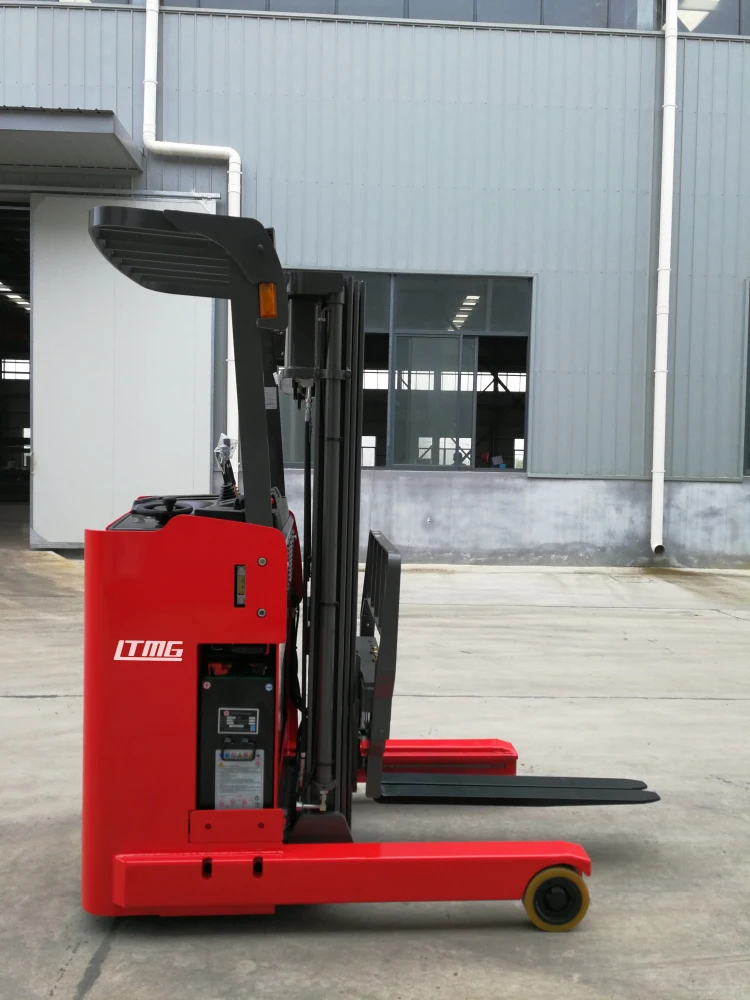

LTMG 1.5 ton electric reach forklift truck

Product Features

Performance	Model		ERB10E	ERB15E	ERB20E
		Maximum load capacity	kg	1000	1500	2000
		Load center	mm	500	500	500
		Maximum lifting height	mm	1600	1600	1600
		Reach length	mm	510	510	550
		Tiltiing angle (up/down)		3/5	3/5	3/5
		Travel speed (without load)	km/h	5	5	5
		Travel speed (with load)	km/h	5	5	5
		Lifting speed (without load)	mm/s	180	180	180
		Lifting speed (with load)	mm/s	100	100	100
		Ascend slope ability (without load )	%	8	8	8
		Ascend slope ability (with load )	%	5	5	5
		Weight (without battery)	kg	2050	2080	2140
Dimensions	Overall length of frame(mast no reach)	mm	1780	1780	1880
		Overall length (mast no reach)	mm	2350	2350	2410
		Overall length (mast reach)	mm	2860	2860	2980
		Overall width of frame	mm	1035	1035	1035
		Overhead guard height	mm	2185	2180	2180
		Mast lowered height	mm	2200	2200	2200
		Max height(mast lifted with backrest)	mm	2650	2650	2650
		Wheelbase	mm	1450	1450	1550
		Fork length	mm	1070	1070	1070
		Fork width	mm	100	100	120
		Fork lowered height	mm	35	35	40
		Fork spread width	mm	210-716	210-716	250-716
		Min frounf height	mm	55	55	55
		Turning radius	mm	1710	1710	1810
		Min intersecting aisle width	mm	2610	2610	2680
Tires	Front wheel	mm	210*75	210*75	210*75
		Drive wheel	mm	230*75	230*75	230*75
		Caster wheel	mm	130*55	130*55	130*55
		Wheel material	Polyuretgabe
Electrical components	Drive motor type	AC
		Rated output	kw	1.5	1.5	1.5
		Hoist motor type	DC/AC
		Rated output	kw	3	3	3
Battery	Voltage	V	24	24	24
		Capacity	AH	270
		Weight	kg	260

1. Safety Device for neutral position to increase the safety of forklift;

2. High Strength frame to protect the operator;

3. Oil-way stop Valve,to protect the operator and goods;

4. AC electric controller with multiple automatic safety protection settings, to reduce the operation accident by misoperation;

5. Inching capacity, the forklift can finish the extremely adjustment during moving;

6. With Imported AC motor without Carbon brush, dustproof, damp proofing,long working life, lower use-cost, controlled voltage/frequency;

7. To use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened;

8. To use intelligent charger, auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectivly;

9. High Speed Limited, the forklift will reduce the lift speed when lift to a high position;

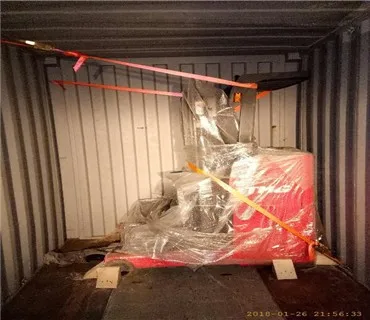

Packing & Delivery

Packaging
Size	251 (L) * 102(W) * 385 (D)
Weight	2200kg
Packaging Details	Fit in container,by nude.

The praise rate is as high as 100%, we provide you with high-quality services, and you leave us five-star praise.

Customer

LTMG sale to 84 countries at 2019.Can you find our machine at your country?

Our Factory

After-Sales Service

LTMG always treat after-sale service as important as sale.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
